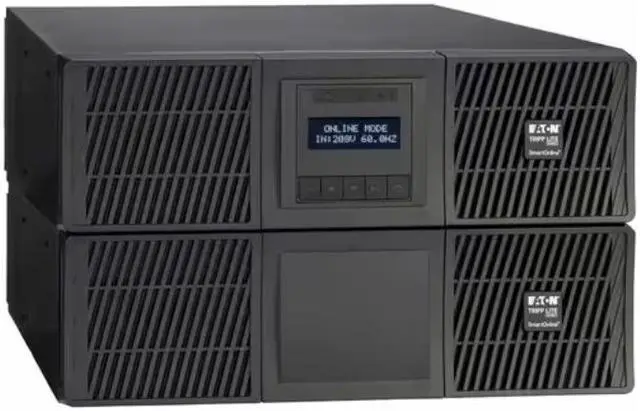

Tripp Lite series SmartOnline SU6000RTFMB 6000VA Rack/tower UPS - 6U Rack/Tower - AVR - 3 Minute Stand-by - 230 V AC Input - 230 V AC, 240 V AC, 220 V AC, 208 V AC, 200 V AC, 100 V AC, 110 V AC, 120 V AC Output - Single Phase
- Battery Chemistry Lead Acid
- Hot Swappable Yes
- Backup/Run Time (Half Load) 8 Minute
- Backup/Run Time (Full Load) 3 Minute
- Battery Characteristics Valve-regulated
- Replaceable Battery Yes
- DC System Voltage 180 V DC
- Circuit Breaker Yes
- Input Voltage 230 V AC
- Output Voltage: 220 V AC, 230 V AC, 240 V AC, 120 V AC, 200 V AC, 110 V AC, 100 V AC, 208 V AC
- Input Current 24.80 A
- Waveform Type Pure Sine Wave
- Output Frequency 60 Hz, 50 Hz
- Load Capacity (VA) 6000 VA
- Load Capacity (Watt) 5400 W
- Output Power Factor 0.9
- Network Management: USB, SNMP, Network Card, Dry Contact., DB-9 RS-232
- Alarm: Remote Shutdown, Utility Power Failure, Overload, Low Battery, Battery Fault
+
+
Learn more about the Detailed Specifications
| Brand | EATON |
|---|---|
| Part Number | SU6000RTFMB |
| Input Voltage Range | 230 V AC |
|---|
| Output Voltage | 100 V AC 110 V AC 230 V AC 200 V AC 208 V AC 220 V AC 240 V AC 120 V AC |
|---|---|
| Output Frequency | 50 Hz 60 Hz |
| Alarms | Low Battery Utility Power Failure Remote Shutdown |
|---|
| Features | Green Energy Saving Cold Start Function Audible Alarm |
|---|

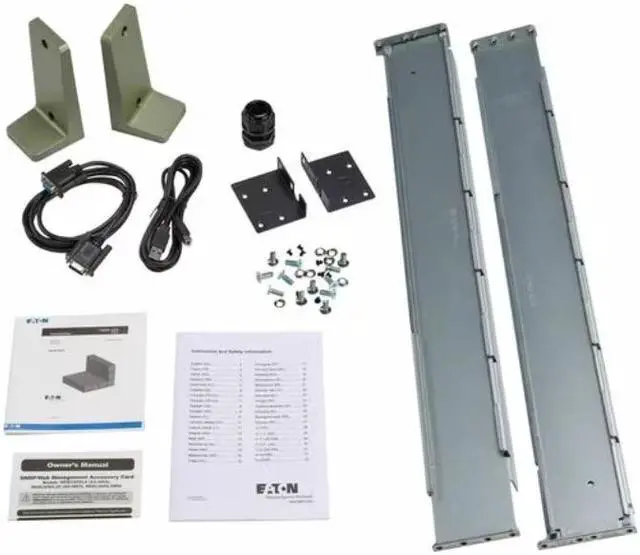

| Package Contents | SmartOnline SU6000RTFMB 6000VA Rack/tower UPS SUTFMR 120V Stepdown Transformer SUPDMBP6K Maintenance Bypass WEBCARDLXE Network Card USB Cable RS-232 Cable Tower Support Stands Cable Gland for Hardwire Connection Rack-mounting Hardware for UPS and Transformer Maintenance Bypass Mounting Hardware DB9 Serial Cables Quick Start Guide |
|---|
| First Listed on Newegg | November 07, 2024 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-386-1911
- Support Website
- View other products from Eaton
LOADING...
The Eaton/Tripp Lite SmartOnline SU6000RTFMB is a 6U rack/tower UPS rated for 6000VA/5400W, suited to server rooms and other installations that need high-capacity backup, pure sine-wave output, and support for multiple output voltages.
Recommended For
- IT teams protecting a heavily loaded server or network rack that needs online, double-conversion power protection and centralized monitoring.
- Sites running both 120V equipment and higher-voltage rack loads that want a bundled step-down transformer, multiple outlet types, and a maintenance bypass.
- Administrators who need a short battery window to ride through brief power interruptions or shut equipment down safely, with the option to add compatible battery modules for longer runtime.
- Rack operators who want a serviceable installation with hot-swappable, user-replaceable batteries and a bypass for maintenance.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Rack- or tower-based equipment needing a 6000 VA UPS, with a step-down transformer, maintenance bypass, and network card included |
| Power Capacity | 6000 VA capacity and 5400 W output |
| Input And Output | 230 V AC input; selectable output voltages of 100, 110, 120, 200, 208, 220, 230, or 240 V AC; 50 or 60 Hz output |
| Battery | Lead-acid battery type; batteries are not included |
| Connectivity And Outlets | 22 outlets; NEMA connector and Type A 2-pin North American plug; 10-foot cable |
| Alarms And Features | Low-battery, utility-power-failure, and remote-shutdown alarms; green energy-saving mode, cold-start function, and audible alarm |
| Form Factor And Construction | Rack form factor with metal enclosure; black |
| Dimensions And Weight | Listed item dimensions: 10.5 × 10.5 × 10.5 inches; item weight: 206.1 lb; package dimensions: 64.77 × 100.33 × 104.14 cm; package weight: 116.682 kg |
| Package Contents | SmartOnline SU6000RTFMB UPS, SUTFMR 120 V step-down transformer, SUPDMBP6K maintenance bypass, WEBCARDLXE network card, USB and RS-232 cables, DB9 serial cables, tower support stands, hardwire cable gland, mounting hardware, and quick start guide |
| Model Identifiers | SU6000RTFMB; brand listed as EATON and manufacturer as Tripp Lite |
