Eaton 9PX6KG2 G2 6000VA 5400W 208V Online Double-Conversion UPS - L6-30P or Hardwired Input, 2 L6-20R, 2 L6-30R, Hardwired Output, Cybersecure Network Card, Extended Run, 3U Rack/Tower - 3U Rack/Tower
- Input Phase Single-Phase
- Rated input current (Maximum Load) 24.4A
- Nominal Input Voltage(s) Supported 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
- UPS Input Connection Type Hardwire; L6-30P
- Input Circuit Breakers Recommended 30A upstream (L6-30P input) or 40A upstream (hardwired input)
- UPS Input Cord Length (ft.) 10
- Input Plug Type Hard-wire; NEMA L6-30P
- Output Capacity (VA) 6000
- Output Capacity (kVA) 6
- Output Capacity (Watts) 5400
- Output Capacity (kW) 5.4
- Power Factor 0.9
- Crest Factor 3:1
- Nominal Voltage Details 200V, 208V, 220V, 230V, 240V
- Frequency Compatibility 50 / 60 Hz
- Output AC Waveform (Battery Mode) Pure Sine wave
- Nominal Output Voltage(s) Supported 200V; 208V; 220V; 230V; 240V

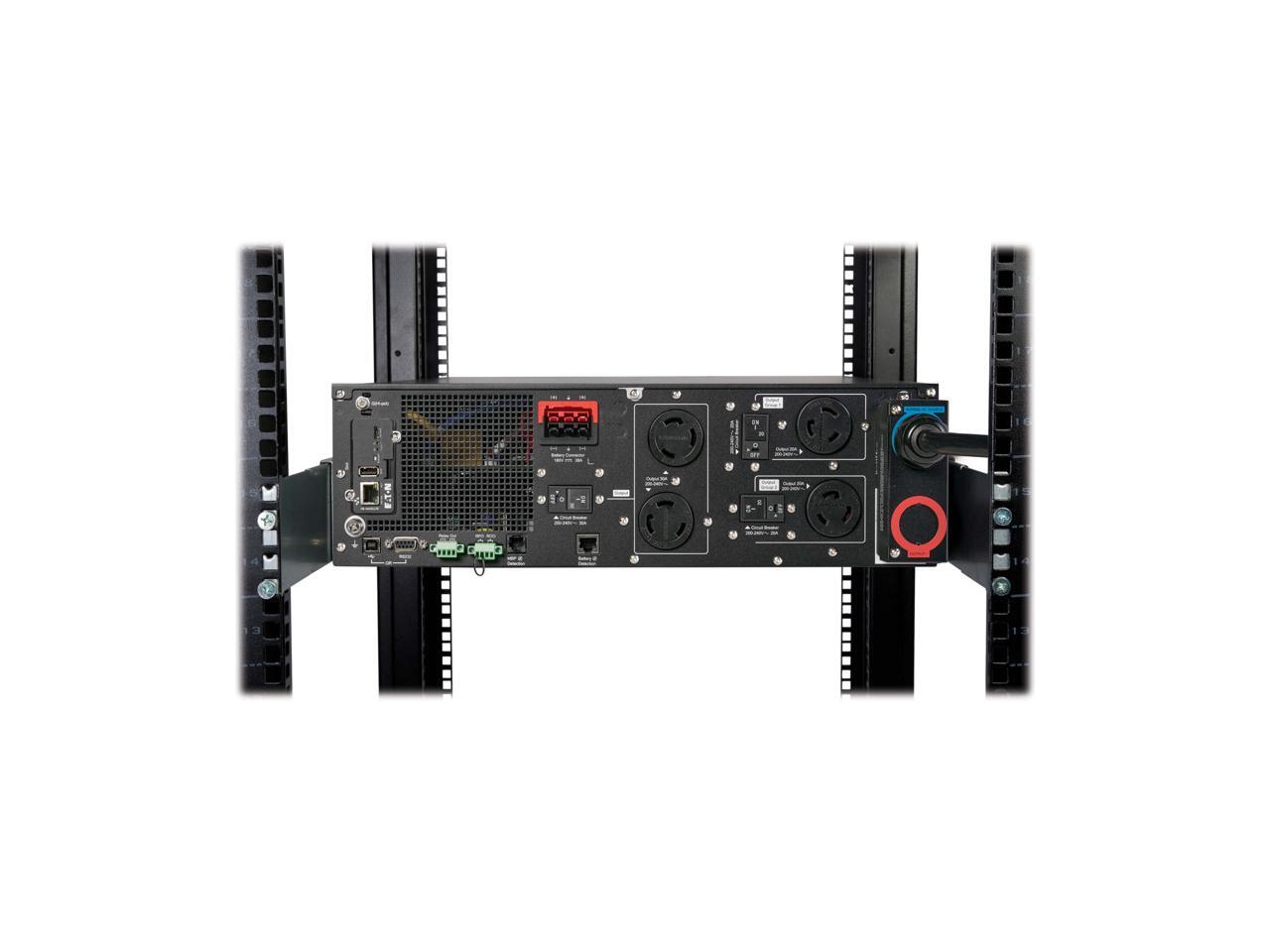

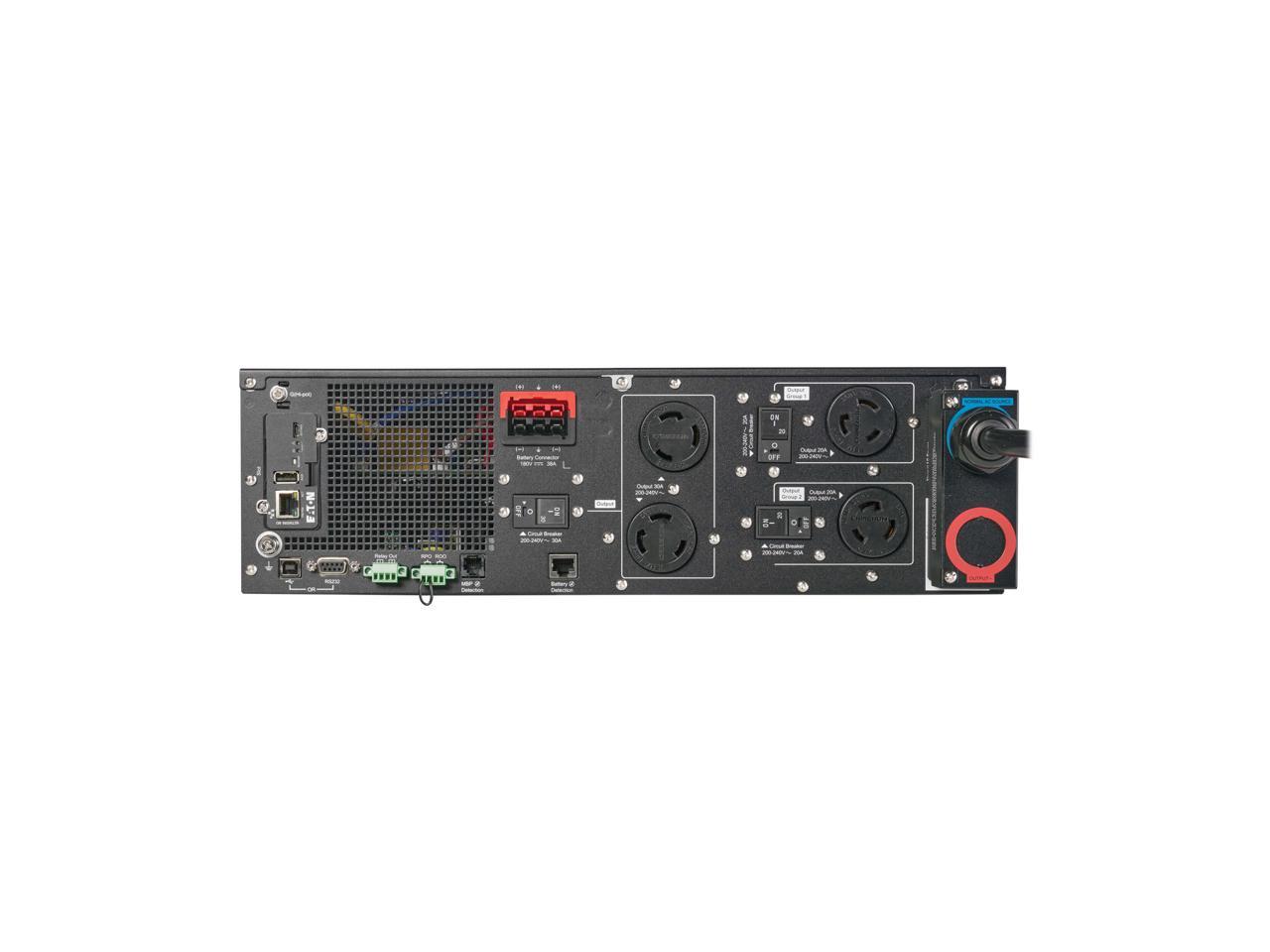

- Output Receptacles (2) L6-20R; (2) L6-30R; Hardwire
- Battery Type Valve Regulated Lead Acid (VRLA)
- Runtime Full Load (min.) 3 min. (5400W)
- Runtime Half Load (min.) 8.3 min. (2700W)
- Expandable Runtime Yes
- $5,999.99 –
