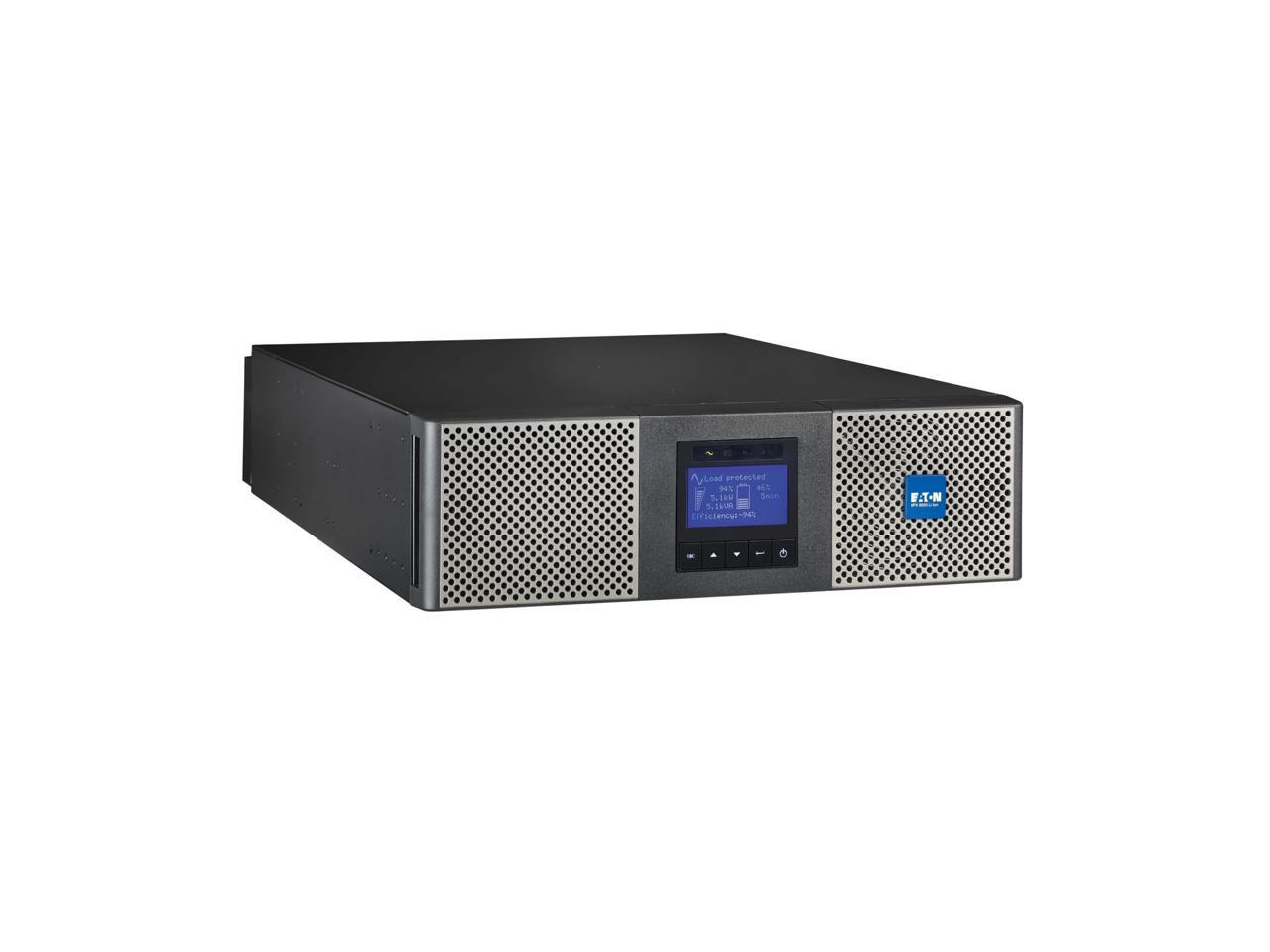

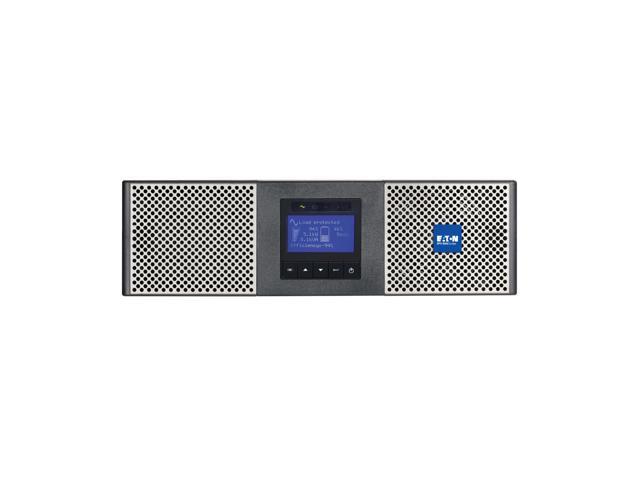

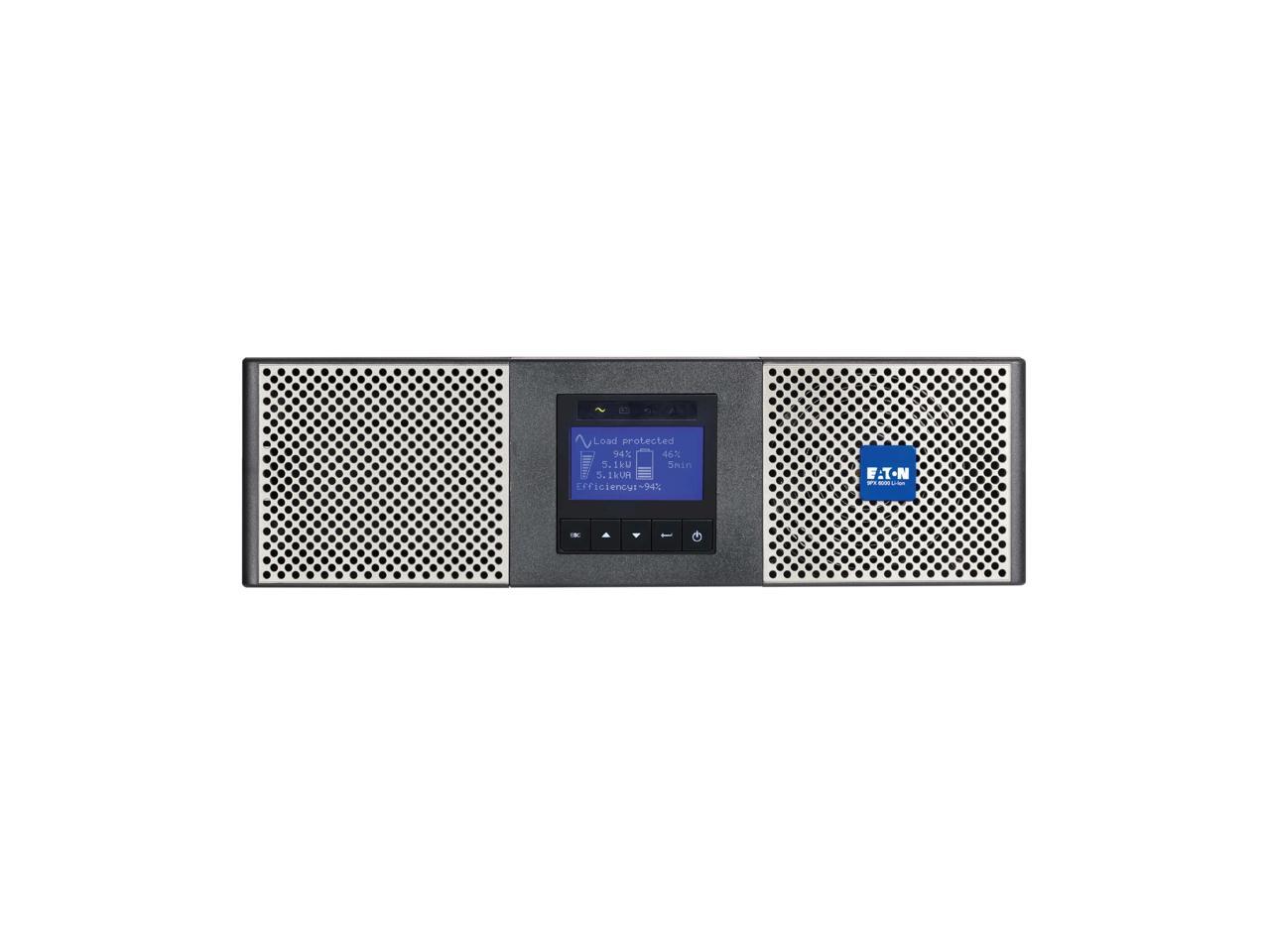

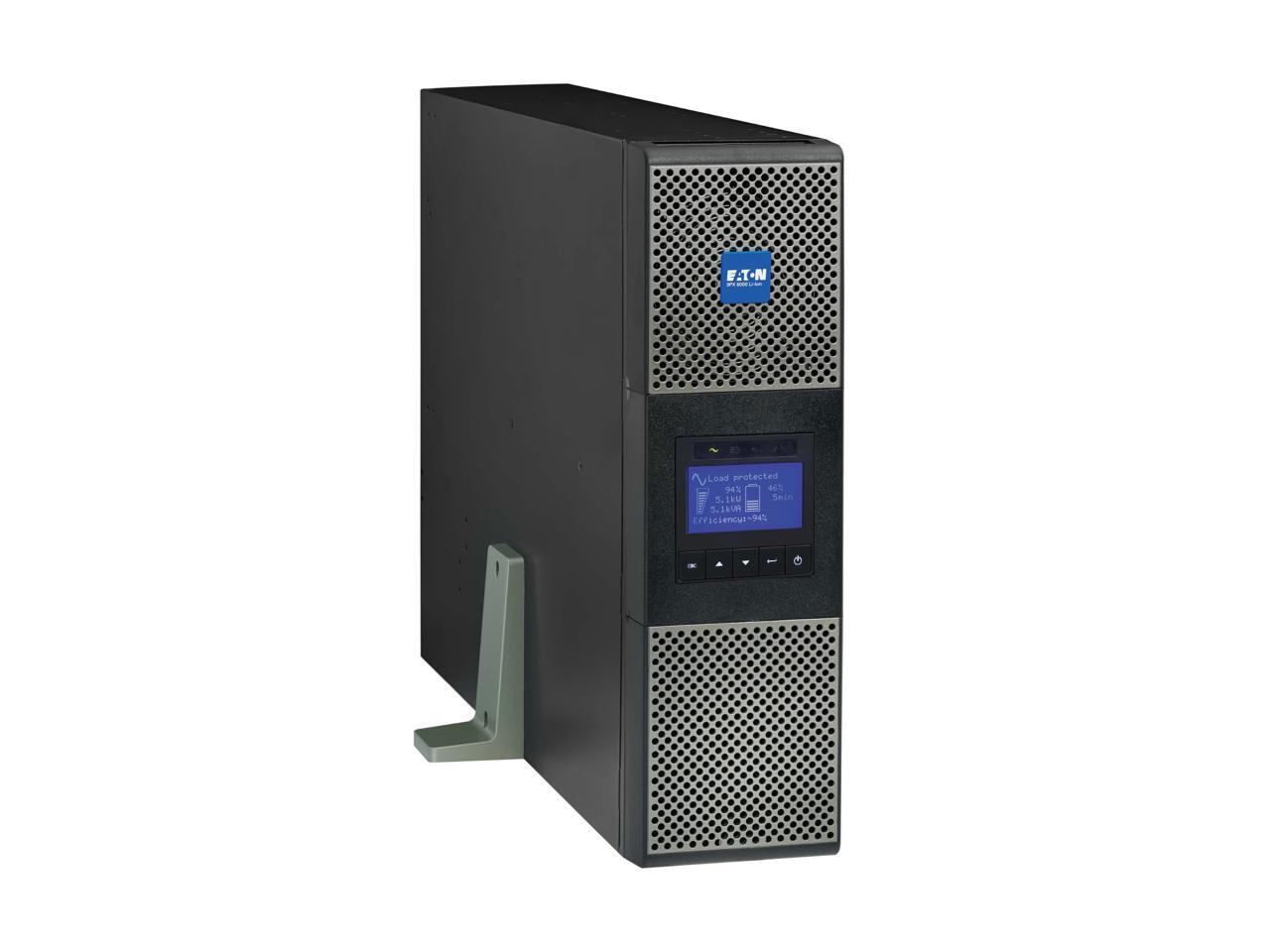

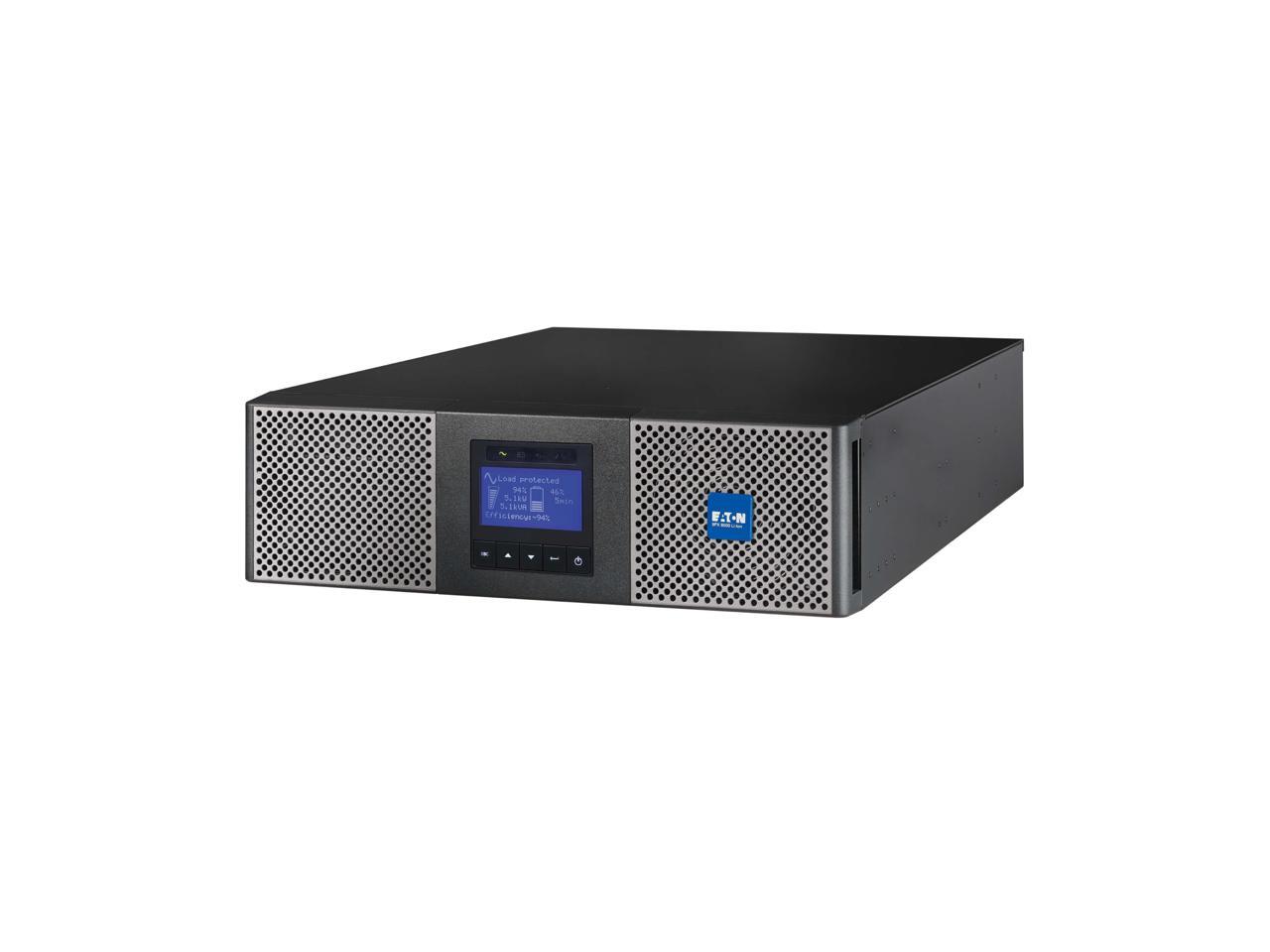

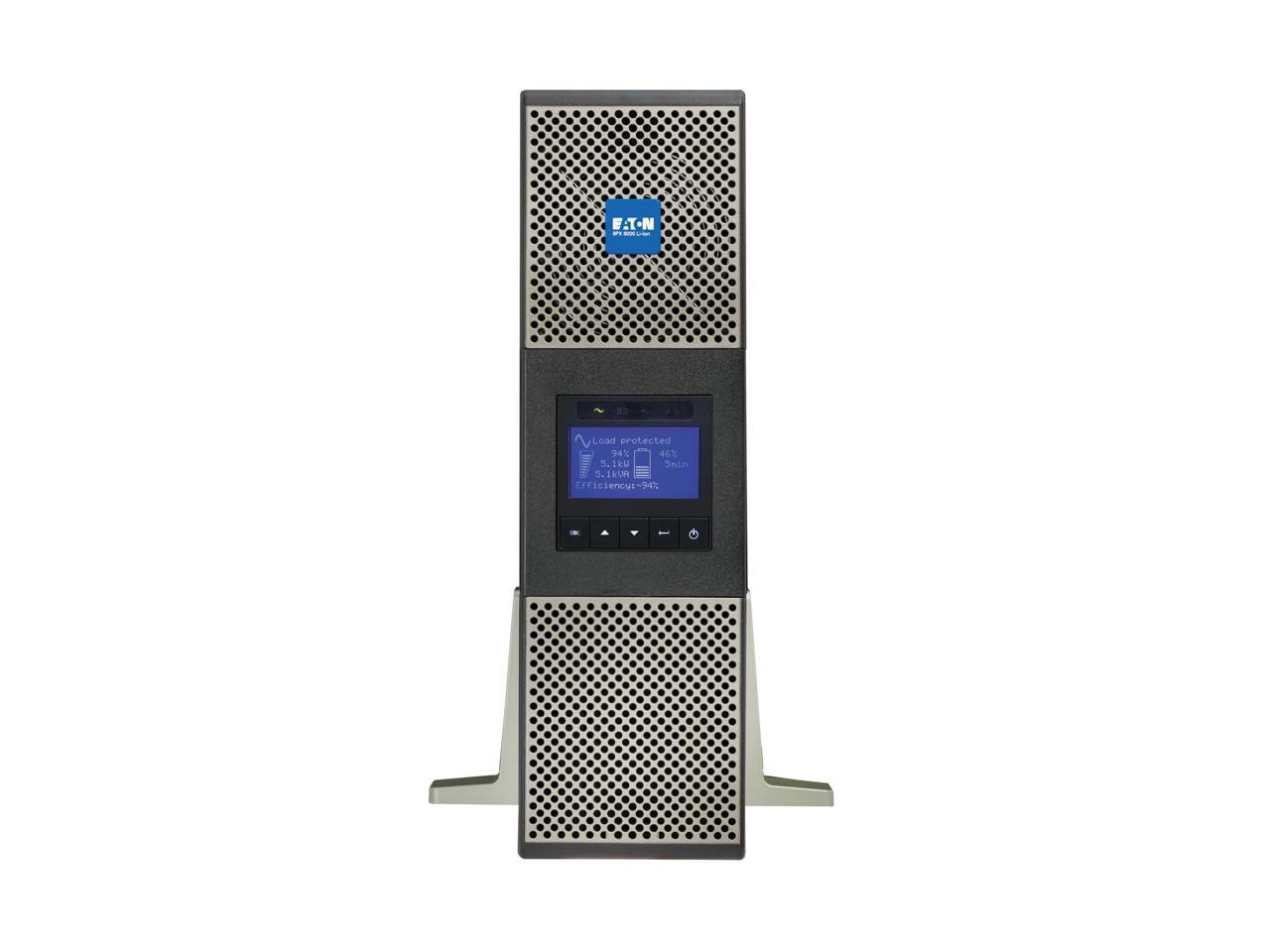

Eaton 9PX6K-L 6000VA 5400W 208V 9PX Online Double-Conversion UPS - Eaton 9PX 6000VA 5400W 208V Online Double-Conversion UPS - L6-30P or Hardwired Input, 2 L6-20R, 2 L6-30R, Lithium-ion Battery
- nput Phase Single-Phase
- Rated input current (Maximum Load) 29A
- Nominal Input Voltage(s) Supported 200V AC; 208V AC; 220V AC; 230V AC; 240V AC

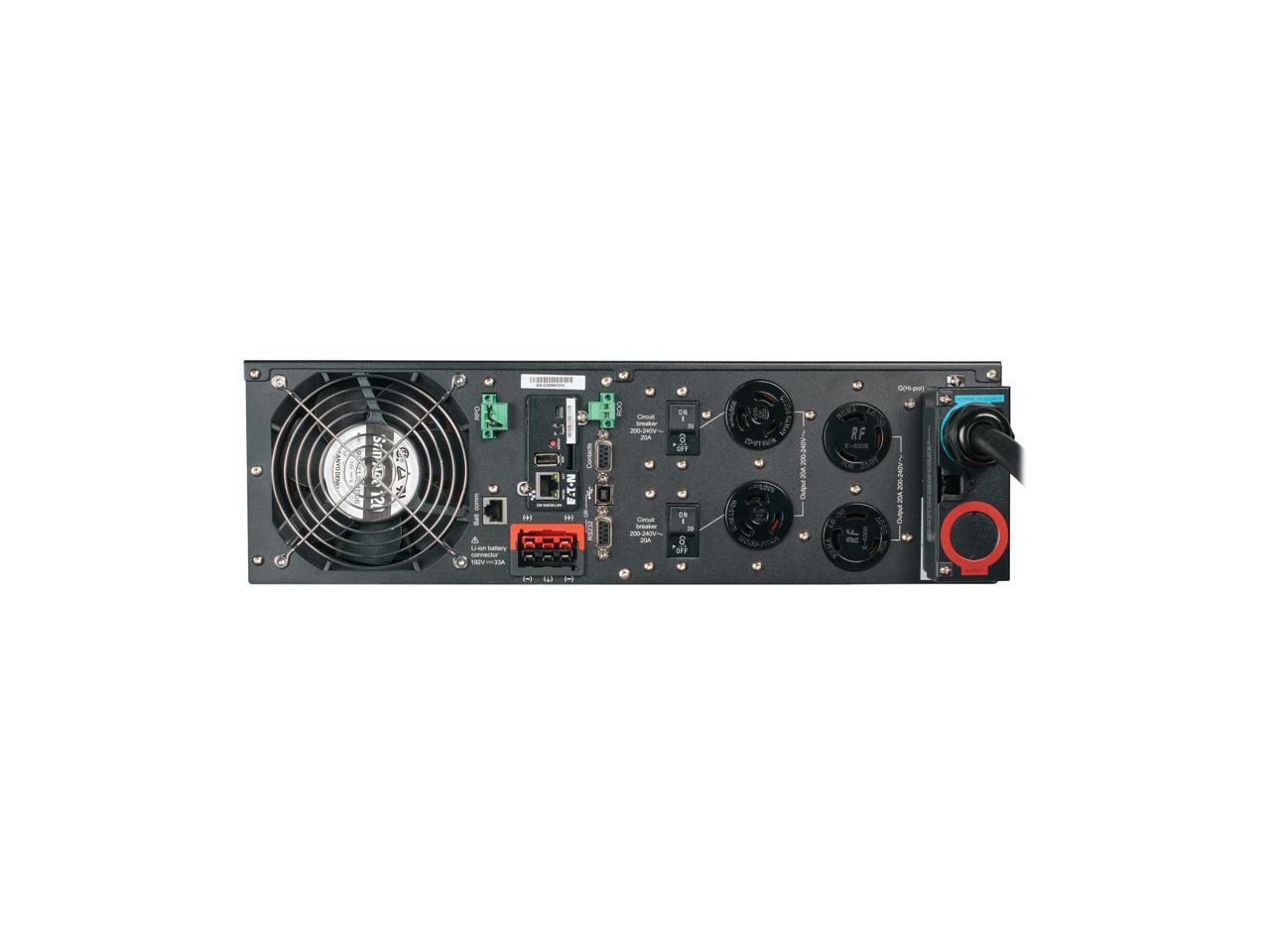

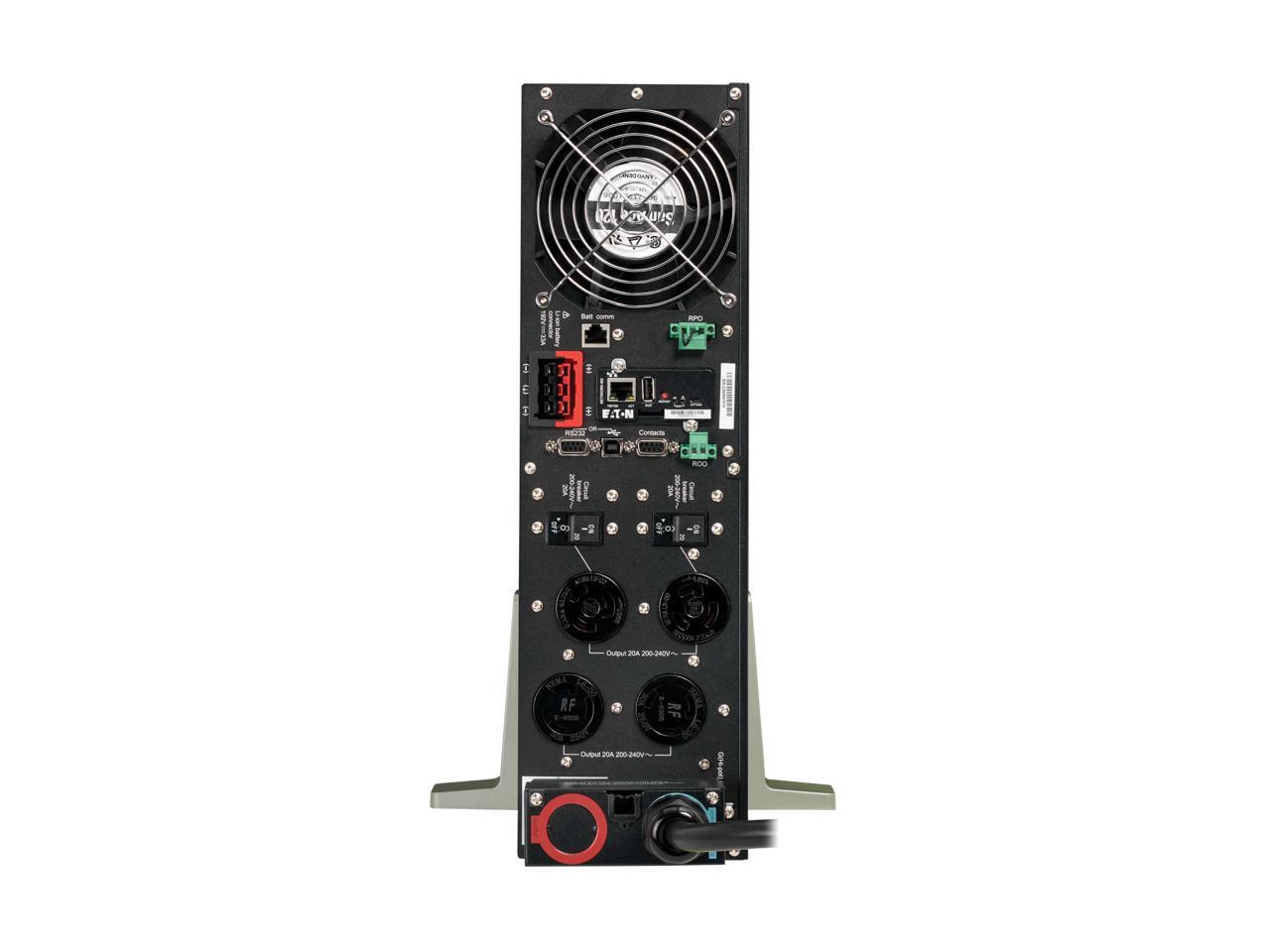

- UPS Input Connection Type Hardwire; L6-30P
- Input Circuit Breakers Recommended 30A upstream
- UPS Input Cord Length (ft.) 10
- Maximum Input Amps 29
- Input Plug Type NEMA L6-30P
- Output Capacity (VA) 6000
- Output Capacity (kVA) 6
- Output Capacity (Watts) 5400
- Output Capacity (kW) 5.4
- Power Factor 0.9
- Crest Factor 3:1
- Nominal Voltage Details 200V, 208V, 220V, 230V, 240V
- Frequency Compatibility 50 / 60 Hz
- Output Circuit Breakers 20A breaker protects L6-20R outlets
- Output AC Waveform (AC Mode) Pure Sine wave
- Output (Watts) 5400
- Output AC Waveform (Battery Mode) Pure Sine wave
- Battery Type Lithium-ion (LiFePO4)
- Runtime Full Load (min.) 7.7 min. (5400W)
- Runtime Half Load (min.) 15.4 min. (2700W)
- Expandable Runtime Yes
- $9,999.99 –
