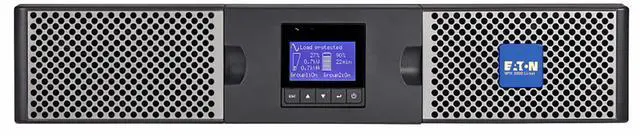

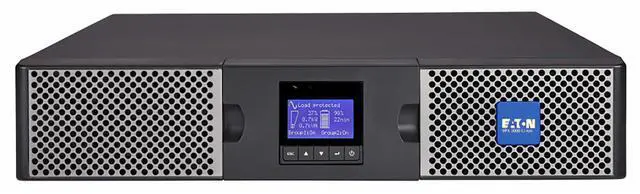

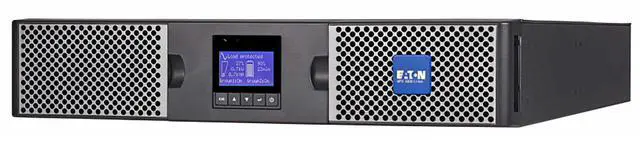

Eaton 9PX3000GRT-L 9PX 3000VA 2700W 208V Online Double-Conversion UPS - L6-20P, 8 C13, 2 C19 Outlets, Lithium-ion Battery, Cybersecure Network Card Option, 2U Rack/Tower
- Input Phase Single-Phase
- Rated input current (Maximum Load) 14.42A
- Nominal Input Voltage(s) Supported 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
- UPS Input Connection Type L6-20P
- UPS Input Cord Length (ft.) 6
- Maximum Input Amps 14
- Input Plug Type NEMA L6-20P
- Output Capacity (VA) 3000
- Output Capacity (kVA) 3
- Output Capacity (Watts) 2700
- Output Capacity (kW) 2.7
- Power Factor 0.9
- Crest Factor 3:1
- Nominal Voltage Details 200V, 208V, 220V, 230V, 240V
- Frequency Compatibility 50 / 60 Hz
- Output Receptacle Details Compatible with Eaton Tripp Lite Power Cords
- Output AC Waveform (Battery Mode) Pure Sine wave
- Nominal Output Voltage(s) Supported 200V; 208V; 220V; 230V; 240V

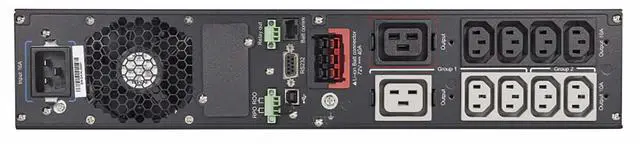

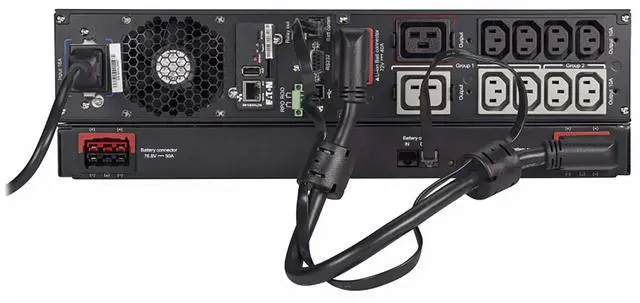

- Output Receptacles (8) C13; (2) C19
- Individually Controllable Load Banks Yes
- Battery Type Lithium-ion (LiFePO4)
- Runtime Full Load (min.) 9.1 min. (2700W)
- Runtime Half Load (min.) 20.5 min. (1350W)
- Expandable Runtime Yes

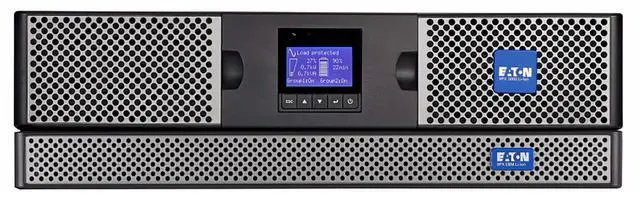

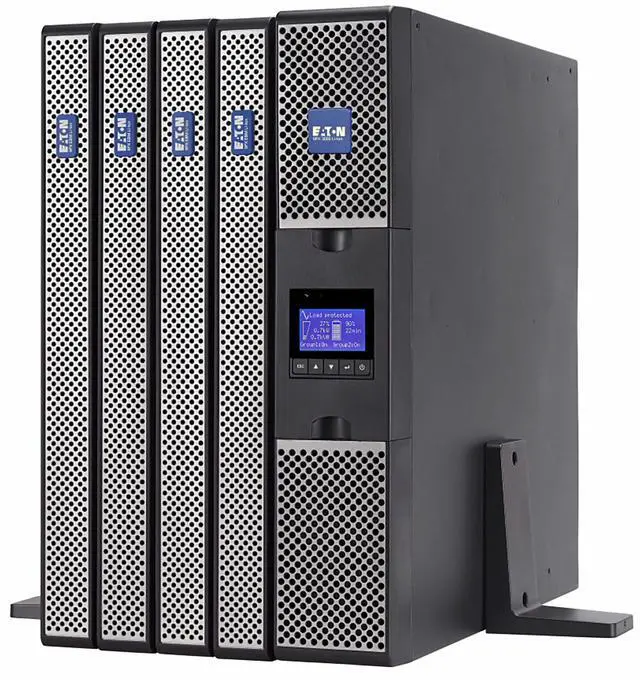

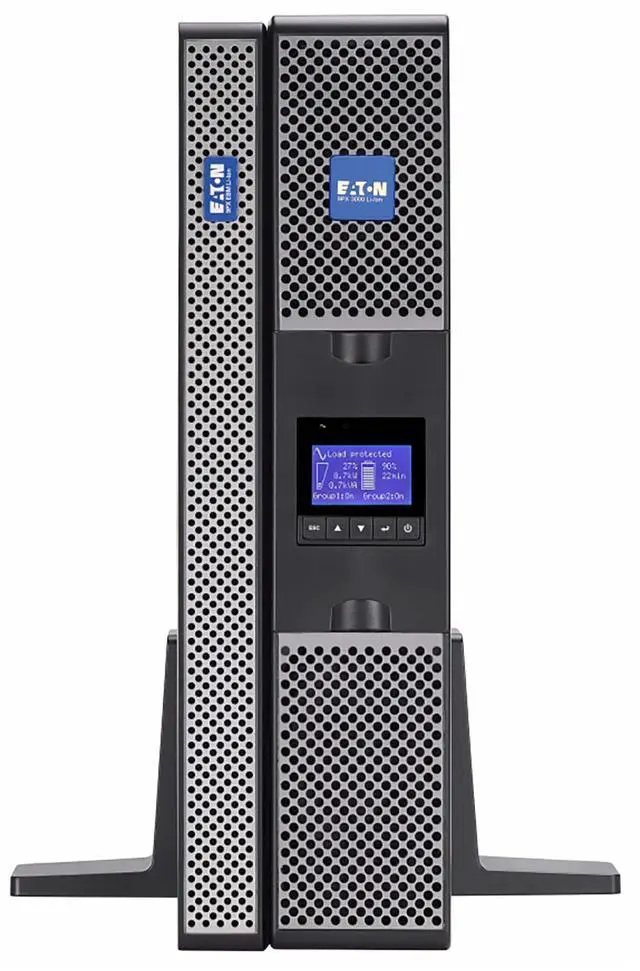

- Expandable Runtime Description Add up to 4 extended battery modules (EBM). Part number 9PXEBM72RT-L
- DC System Voltage (VDC) 72

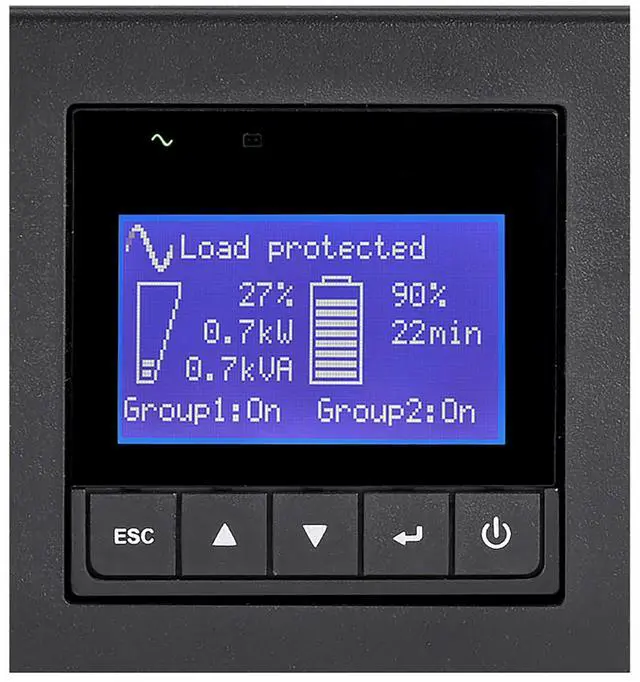

- Front Panel LCD Display LCD graphical display
- Switches RPO / ROO
- Alarm Cancel Operation Press ESC to silence the alarm

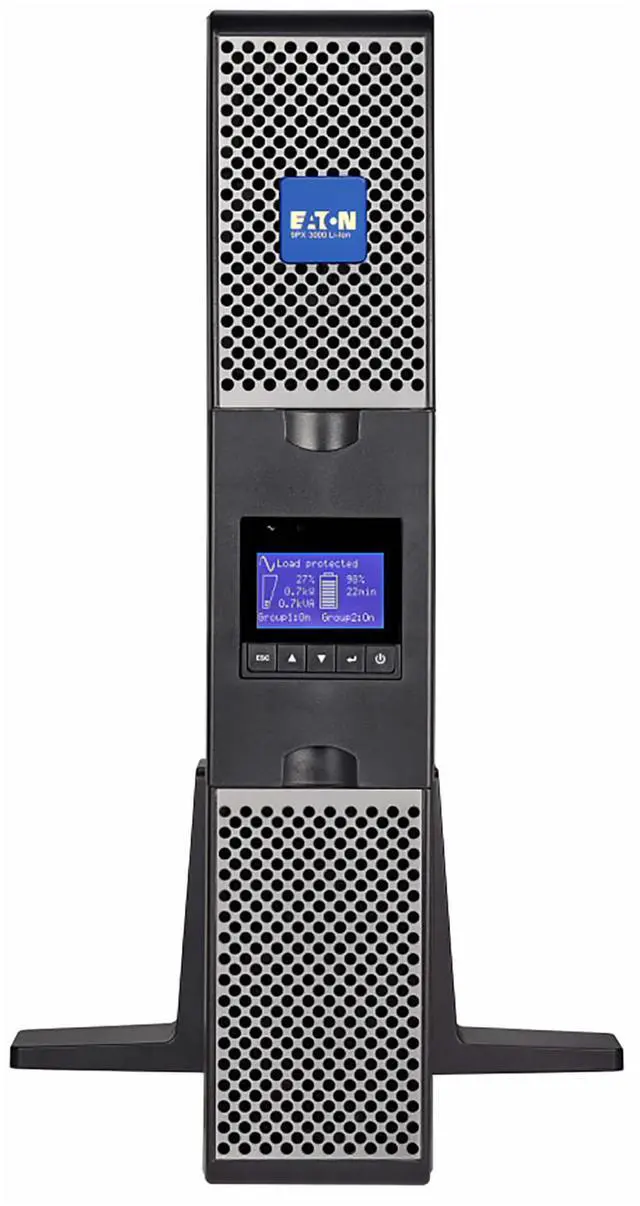

- Primary Form Factor Rackmount; Tower
- Rack Height 2U
- Cooling Method Fan

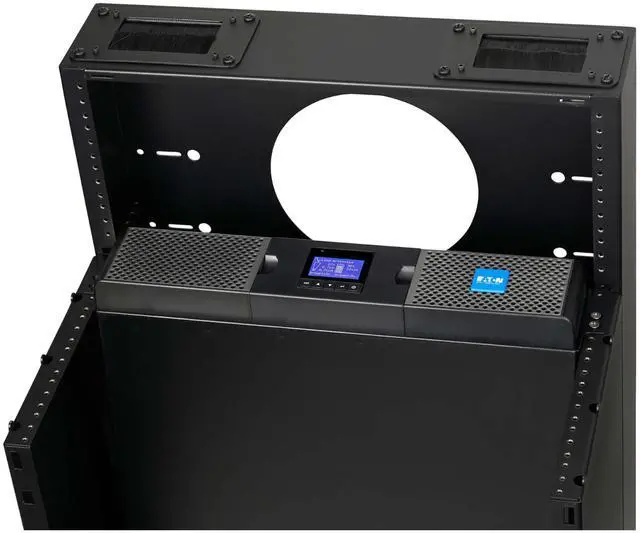

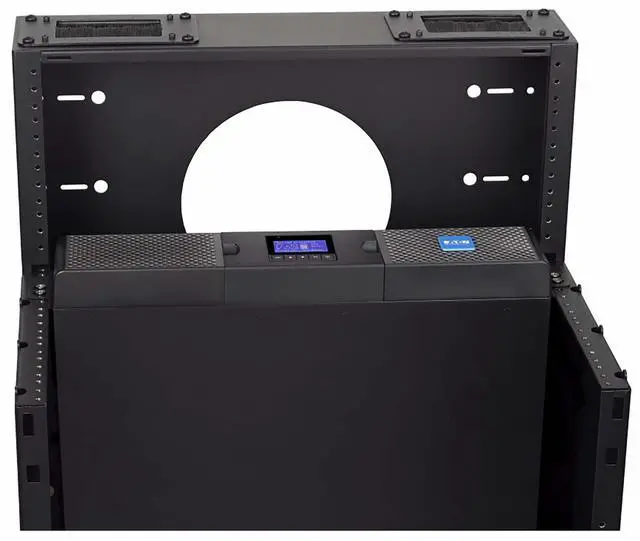

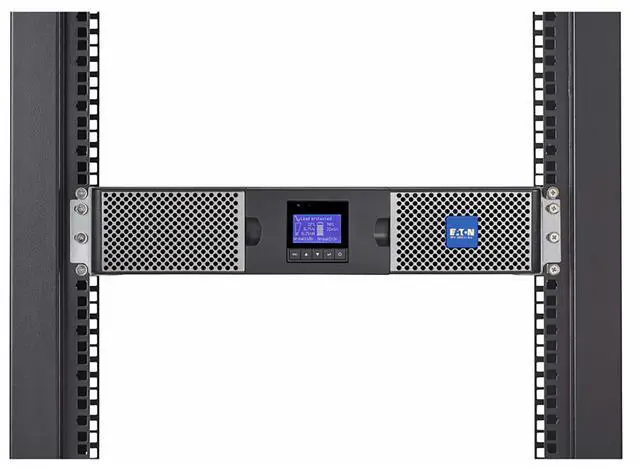

- Installation Form Factors Supported with Included Accessories 4 post 19 inch rackmount; Tower
- Installation Form Factors Supported with Optional Accessories 2 post rackmount ( RK2PC )
- Minimum Required Rack Depth (inches) 27
+
+
Reviews
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-386-1911
- Support Website
- View other products from Eaton
LOADING...
The Eaton 9PX3000GRT-L is a 3,000VA/2,700W online double-conversion UPS with a LiFePO4 battery, designed for 200–240V server, network, and other critical equipment installations that use an L6-20P input.
Recommended For
- IT administrators protecting a small-business or branch-office server rack with compatible 200–240 V power who need online double-conversion backup for servers, storage, and network equipment.
- Organizations seeking lithium-ion UPS batteries and a longer service interval for a rack or tower installation; Eaton lists a battery service life of up to 10 years for this model.
- Teams that need to extend backup time as requirements grow, and can install compatible Eaton extended battery modules alongside the UPS.
- Rack or tower operators who want a UPS for brief outage ride-through and orderly equipment shutdown, rather than relying on it as a long-duration power source.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Rack/tower UPS setups requiring up to 2700W of output power |
| Power Capacity | 2700W output |
| Input And Output | 230V AC input, 120V output, 22.5A output current, with an NEMA L6-20P connector |
| Battery | Lithium-ion cell type; 10-minute average battery life; batteries listed as not included |
| Form Factor And Dimensions | Rack/tower form factor; 51 lb, 24.8 in deep × 17.3 in wide × 3.5 in high |
| Materials And Color | Metal enclosure in black |
| Model And Brand | Eaton model 9PX3000GRT-L |
