Out of stock
  • $24,000.00
  • This item is not returnable
Sold by Newegg

Shipped by Newegg

Price alert
Shop it at NeweggBusiness.

Vertiv Liebert AS4B0NCVGNNXLKB APS 10kVA Scalable to 20kVA N+1 -5 Minutes Full-Load Runtime| Online Double Conversion UPS | Rack/Tower | Factory Installed SNMP/Webcard | Internal Step-Down Transformer

  • AL3A0NHUGNNXLKB
  • AL3B0NHVGNNXLKB
  • AL3C0NHWGNNXLKB
  • AL4A0NHUGNNXLKB
  • AL4B0NHVGNNXLKB
  • AL4C0NHWGNNXLKB
  • AL4D0NHXGNNXLKB
  • AL5A0NHUGNNXLKB
  • AL5B0NHVGNNXLKB
  • AL5C0NHWGNNXLKB
  • AL6A0NHUGNNXLKB
  • AL6B0NHVGNNXLKB
  • AL6C0NHWGNNXLKB
  • AL6D0NHXGNNXLKB
  • AS3A0NCUGNNXLKB
  • AS3B0NCVGNNXLKB
  • AS3C0NCWGNNXLKB
  • AS4A0NCUGNNXLKB
  • AS4B0NCVGNNXLKB
  • AS4C0NCWGNNXLKB
  • AS4D0NCXGNNXLKB
  • AS5A0NCUGNNXLKB
  • AS5B0NCVGNNXLKB
  • AS5C0NCWGNNXLKB
  • AS6A0NCUGNNXLKB
  • AS6B0NCVGNNXLKB
  • AS6C0NCWGNNXLKB
  • AS6D0NCXGNNXLKB
  • Status Indicators LCD Display
  • Backup/Run Time (Half Load) 15 Minute
  • Backup/Run Time (Full Load) 5 Minute
  • Battery Characteristics Valve Regulated Lead Acid (VRLA)
  • Maximum Operating Temperature 104°F (40°C)
  • Environmental Sensors: Leak Detection Sensor, Humidity Sensor, Temperature Sensor
  • Form Factor Rack/Tower
  • Height 38"
  • Width 17"
  • Depth 34"
  • Application/Usage: Room, Mission Critical Equipment
  • Plug/Connector Type Hard Wire 3-wire (L-L-G)
  • Phase Single Phase
  • Network (RJ-45) No
  • Modem (RJ-11) No
  • Serial Port Yes
  • EPO Port Yes
  • USB (HID Compliant) Port Yes
  • Input Voltage 230 V AC
  • Input Voltage Range 120 V AC - 280 V AC
  • Output Frequency 60 Hz
  • Input Frequency 70 Hz
  • Load Capacity (VA) 10000 VA
  • Auto Shutdown Software: Trellis™ Power Insight
  • Extra Power for Future Expansion: 20kVA/18kW N+1
  • VGA: No
  • Hot Swappable: Yes
  • Relative Humidity: 0 - 95%, non-condensing
  • Altitude: 3000 (10000) @ 25°C (77°F)
  • Battery Capacity: 36W @ 15min-rate to 1.67V per cell @ 25°C (77°F)
  • Maximum Charge Current (full load): Power module internal charger: 1.8A / Charger module: 10A
  • Nominal Voltage: 144 VDC
  • Output Voltage: 100-240VAC
  • Environmentally Friendly Yes
  • Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Restriction of Hazardous Substances (RoHS) 2
  • Waste Electrical and Electronic Equipment Directive (WEEE)
This item is covered under the Manufacturer Only Return Policy.
+
+
Specs
Reviews
See all Q & A

Any questions? Ask CelesteSM will help you find out quickly.

Learn more about the Vertiv AS4B0NCVGNNXLKB

Model
Brand Vertiv
Series Liebert
Model AS4B0NCVGNNXLKB
Input
International Version 208V
Input Voltage Range 200/208/220/230/240 VAC
Input Frequency 40 Hz to 70 Hz auto-sensing
Input Connection 3-Wire (L-L-G)
Output
VA Rating 10 kVA
Watts 9 kW
Output Frequency 60Hz default; 50/60Hz user-configurable
Battery
Battery Type Valve Regulated Lead Acid (VRLA)
Battery Run Time Full Load: 5 mins.
Half Load: 14 mins.
Environmental
Temperature Operating temperature: 32°F - 104°F (0°C - 40°C)
Humidity 0 - 95%, non-condensing
Dimensions & Weight
Dimensions 49" x 17" x 34"
Weight 730 lbs.
Additional Information
First Listed on Newegg June 04, 2026

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details

Return Policies

LOADING...

The Vertiv Liebert AS4B0NCVGNNXLKB is a 10 kVA/9 kW online double-conversion UPS that can scale to 20 kVA with N+1 redundancy, making it suitable for mission-critical IT and equipment rooms that need configurable backup power.

Recommended For

  • IT teams running a branch, edge, or server-room rack that needs continuous online power conditioning for network and other critical equipment, with a hardwired 208V installation.
  • Organizations expecting IT loads to grow and wanting to add UPS capacity in stages, with the Liebert APS platform’s modular expansion and N+1 configuration options.

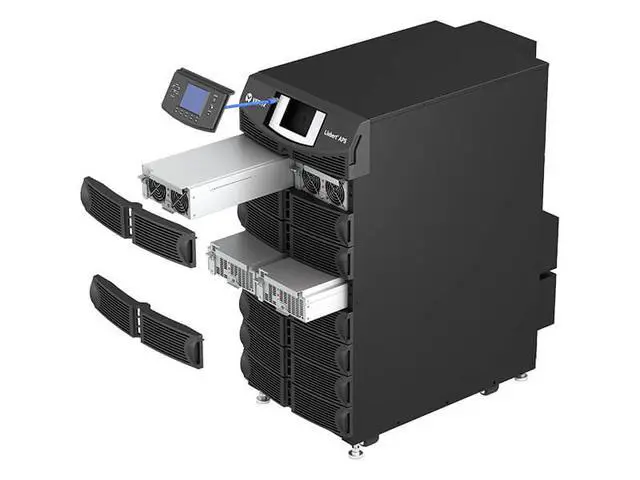

  • Operations teams that need to service or expand a UPS while keeping protected equipment online; the APS platform uses hot-swappable power and battery modules.
  • Facilities protecting a substantial critical load through brief outages or generator transfer, where the listed configuration’s five-minute full-load runtime is sufficient for the planned response.

Spec Summary

AttributeValue
Best ForMission-critical equipment in a room requiring battery backup
Capacity10 kVA rating with 9 kW output
Input And Output200–240 VAC input range with 3-wire L-L-G connection; 40–70 Hz auto-sensing input and 60 Hz default output, configurable for 50/60 Hz
Battery RuntimeValve-regulated lead-acid (VRLA) battery provides 5 minutes at full load and 14 minutes at half load
Operating Environment32°F–104°F (0°C–40°C) operating temperature and 0–95% non-condensing humidity
Physical Specifications49 × 17 × 34 inches; 730 lb
Model IdentifiersVertiv Liebert AS4B0NCVGNNXLKB; international version, 208 V
