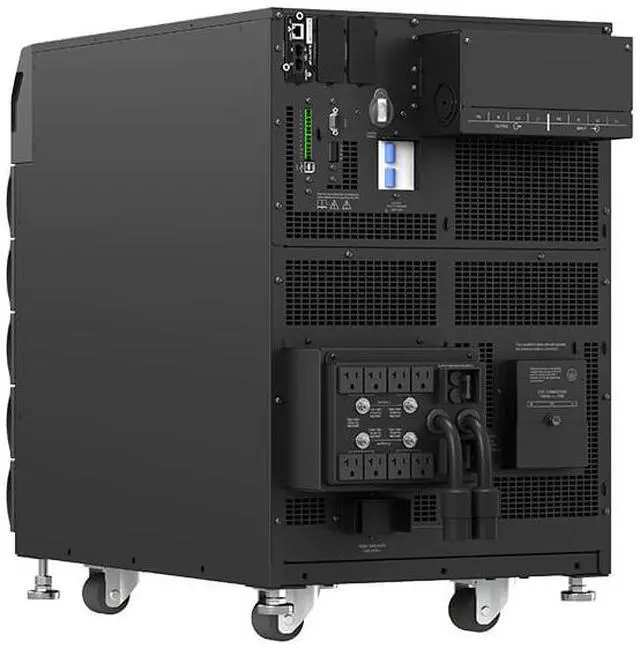

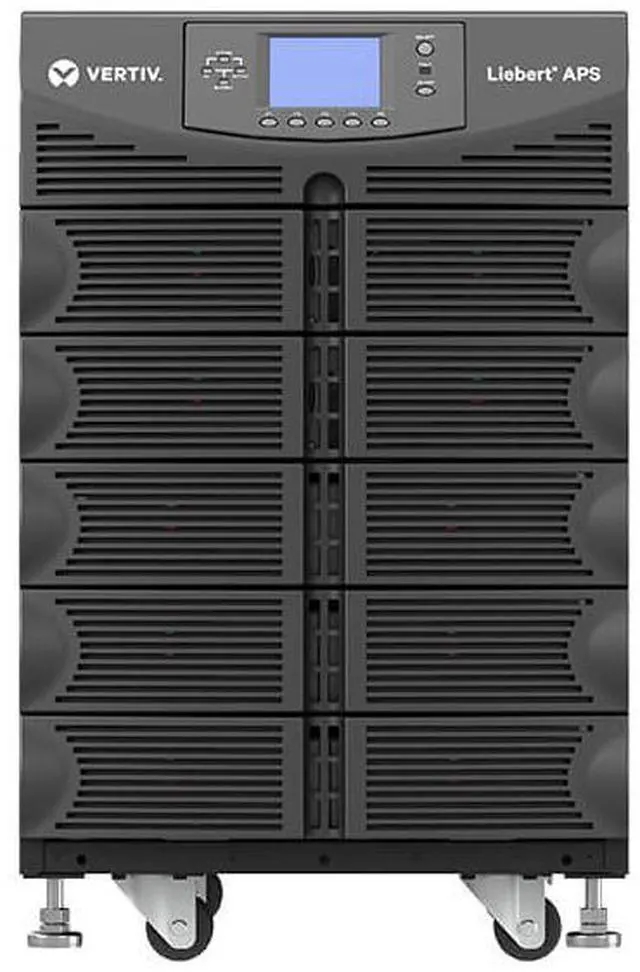

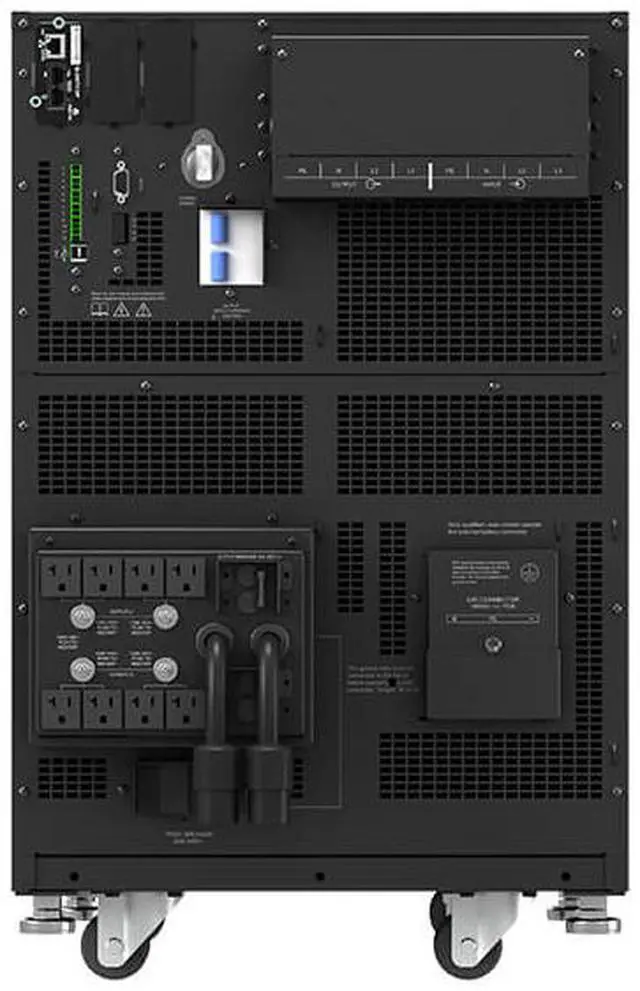

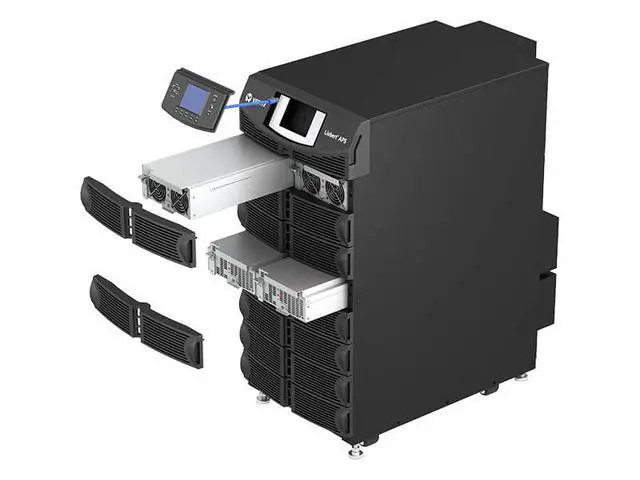

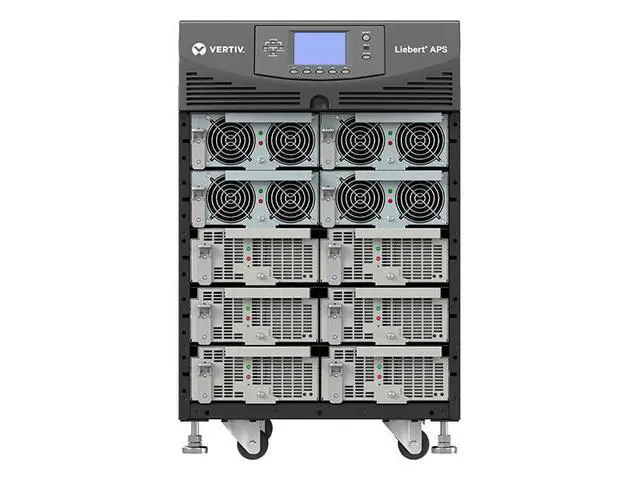

Vertiv Liebert AS5A0NCUGNNXLKB APS 5kVA Scalable to 15kVA N+1-120/208V Split Phase Modular UPS - 5 Minutes Full-Load Runtime| Online Double Conversion UPS | Rack/Tower | Factory Installed SNMP/Webcard - OEM

Status Indicators LCD Display
Form Factor Rack/Tower
Height 42"
Width 17"
Depth 32"
Application/Usage Mission Critical Equipment
Computer Room
Plug/Connector Type Hard Wire 4-wire (L-L-N-G)
Phase Single Phase
Battery Chemistry Lead Acid
Hot Swappable Yes
Backup/Run Time (Half Load) 15 Minute
Backup/Run Time (Full Load) 5 Minute
Battery Characteristics Valve-regulated
VGA No
Network (RJ-45) No
Modem (RJ-11) No
Serial Port Yes
EPO Port Yes
USB (HID Compliant) Port Yes
Auto Shutdown Software: Trellis™ Power Insight
Extra Power for Future Expansion: 15kVA/13.5kW N+1
Relative Humidity: 0 - 95%, non-condensing
Altitude: 3000 (10000) @ 25°C (77°F)
Battery Capacity: 36W @ 15min-rate to 1.67V per cell @ 25°C (77°F)
Maximum Charge Current (full load): Power module internal charger: 1.8A / Charger module: 10A
Nominal Voltage: 144 VDC
Environmentally Friendly Yes
Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS) 2
Waste Electrical and Electronic Equipment Directive (WEEE)
Input Voltage 230 V AC, 120 V AC
Output Voltage 240 V AC, 200 V AC, 100 V AC, 120 V AC
Input Voltage Range 120 V AC - 280 V AC
Output Frequency 60 Hz
Input Frequency 70 Hz
Load Capacity (VA) 5000 VA
