Elo E833933 PayPoint Plus for Windows POS System with 15" PCAP Touch Display, Barcode Scanner, Receipt Printer, MSR, Cash Drawer, Win 10 - White

  • PayPoint Plus for Windows offers a full HD 15.6” TouchPro PCAP touchscreen display w/ rotating head enabling multi-touch responses w/ up to 5-touches simultaneously
  • Star TSP100iii is a standard 3-inch (80mm) printer w/ auto-cutter & print speed of 230mm/sec
  • Honeywell N3680 is an omnidirectional 1D/2D engine w/ optional capability to add plugins
  • Full size industry–standard 5 Bill/6 Coin cash drawer w/ 3-position lock features; a 2nd cash drawer can be added using the I/O port
  • The MagTek 3-track encryptable MSR offers remote key injection; swipe loyalty cards w/ default security Level 2 or encrypt to Level 3 through the Elo Peripherals app to read sensitive credit card data
  • Offers additional input/output ports including serial, USB & mini-HDMI to support 3rd party peripherals
  • Utilizes the reliability-tested performance & security of Intel 8th Generation processors, integrated Trusted Platform Modules, Intel vPro & the Windows 10 operating system
+
+
Overview
Specs
Reviews
Elo_c0l_logo_elo
c0_PayPoint Plus for Windows PoS

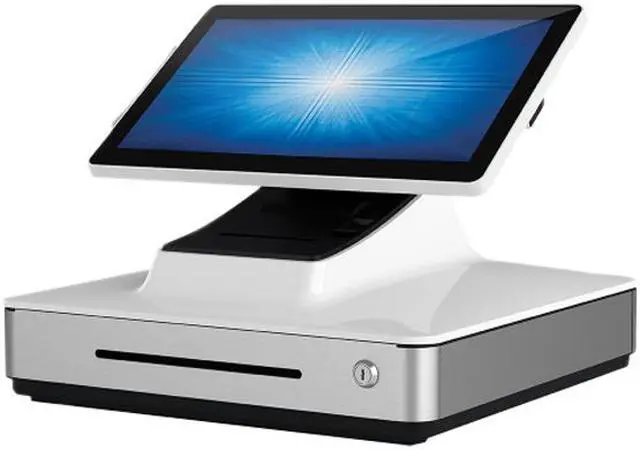

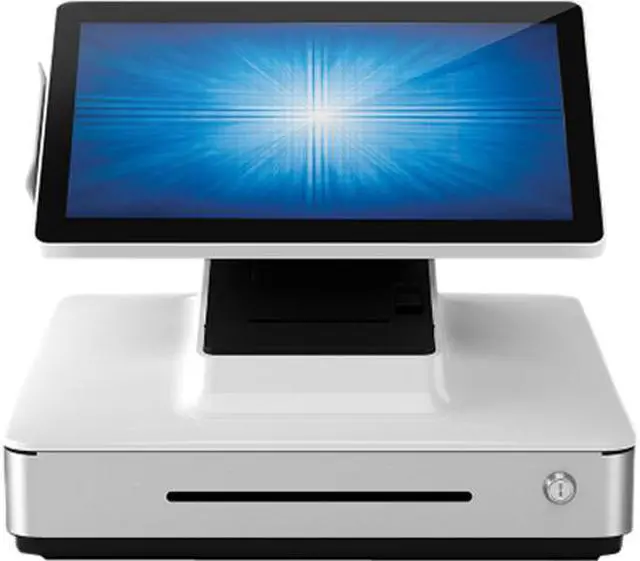

Elo PayPoint Plus for Windows

An all-in-one cash register

The PayPoint Plus for Windows is a fully integrated point-of-sale (POS) solution that streamlines check-out processes and saves on the counter space. The PayPoint Plus has integrated everything a merchant needs including a 15.6" Windows-powered system, a fully integrated 2D barcode scanner from Honeywell, a 3-inch printer from Star Micronics, an encryptable MSR from MagTek, full-sized 16-inch cash drawer and connections for third party peripherals.

Armed with Intel Core i5 8400T hexa-core processor, 8 GB DDR4 RAM and 128 GB SSD, this Wintel-based system enables fast transaction. Onboard Wi-Fi and Bluetooth offers wireless convenience when connecting to network or pairing with Bluetooth-enabled peripherals. A 1W speaker is also built-in for clear sound without the need for external speakers. Transforming traditional POS into a beautiful and functional space-saving solution, this commercial-grade AiO is ideal for retail, hospitality, restaurants and entertainment venues.

This system is available with Win 10 or NO OS. The model E922014 is White, No OS, 5 Bill/6 Coin Cash Drawer.

1_Large Display

Large Display

PayPoint Plus for Windows offers a full HD 15.6-inch TouchPro PCAP touchscreen display enabling multi-touch responses with up to 5-touches simultaneously.

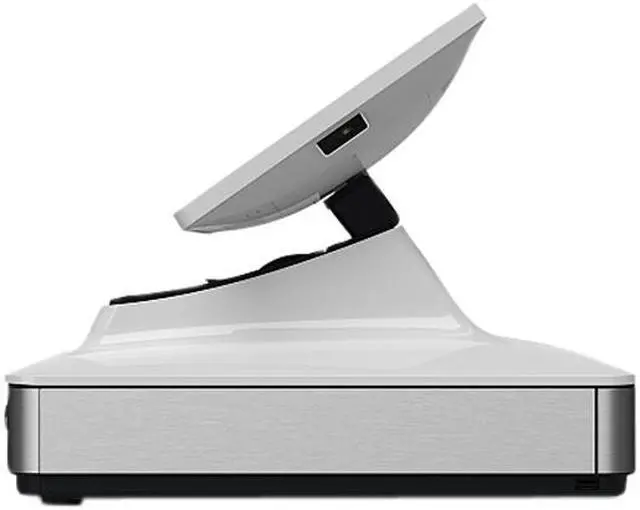

Rotating Display Head

Engage the customer by allowing them to control their transaction. With the rotating display head you can enable customers to participate in loyalty programs, view their purchases and sign to complete their transaction.

2_Rotating Display Head

Integrated Peripherals

3_Integrated Peripherals
301_Printer

Printer

The Star TSP100iii is a standard 3-inch (80mm) printer with auto-cutter and print speed of 230mm/sec.

302_Barcode Scanner

Barcode Scanner

The Honeywell N3680 is an omnidirectional 1D/2D engine with optional capability to add plugins. For example–EasyDL enables users to read government-issued identification cards in US and Canada.

303_Cash Drawer

Cash Drawer

The full size industry–standard cash drawer with 3-position lock offers two layouts–five bill / six coin or four bill / eight coin. A second cash drawer can be added using the I/O port.

304_MSR

MSR

The MagTek 3-track encryptable MSR offers remote key injection. Swipe loyalty cards with default security Level 2 or encrypt to Level 3 through the Elo Peripherals app to read sensitive credit card data.

3-inch Printer

PayPoint Plus brings robust printer performance with a TSP100iii built by Star Micronics which includes futurePRNT Software–making setup a breeze. Drop-in a standard 80mm width paper and print with speed at 230mm/sec. The printer supports multiple languages, barcodes and logo printing. It can even be configured for ESC/POS mode emulation. Reliability comes first—this printer has been tested to MCBF of 60 million lines.

4_3-inch Printer

Barcode Scanner

2D barcoding is the new norm across retail and hospitality. PayPoint Plus is equipped with an omnidirectional 1D/2D scanner built by Honeywell which includes Honeywell’s EZConfig Cloud for Scanning—simplifying the input of barcode scanner configurations and firmware updates. The scanner can be configured for operating modes, illumination, beep volume and choice of symbologies to optimize performance for your specific needs. PayPoint Plus offers optional plug-ins like EasyDL to scan and parse data from drivers licenses in the United States and Canada.

5_Barcode Scanner

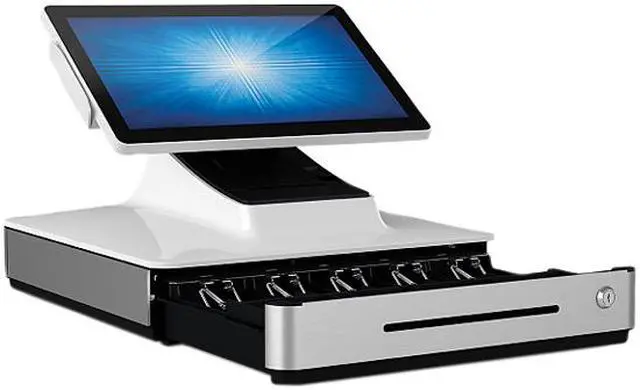

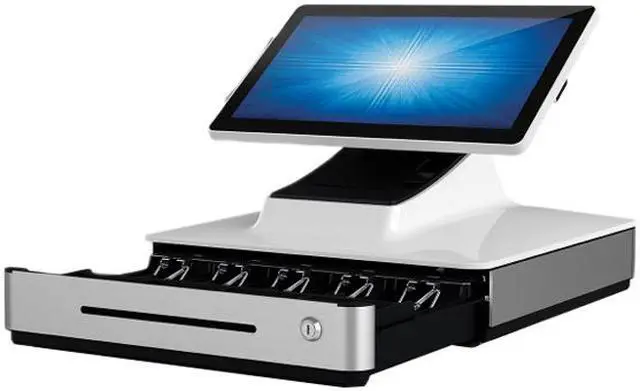

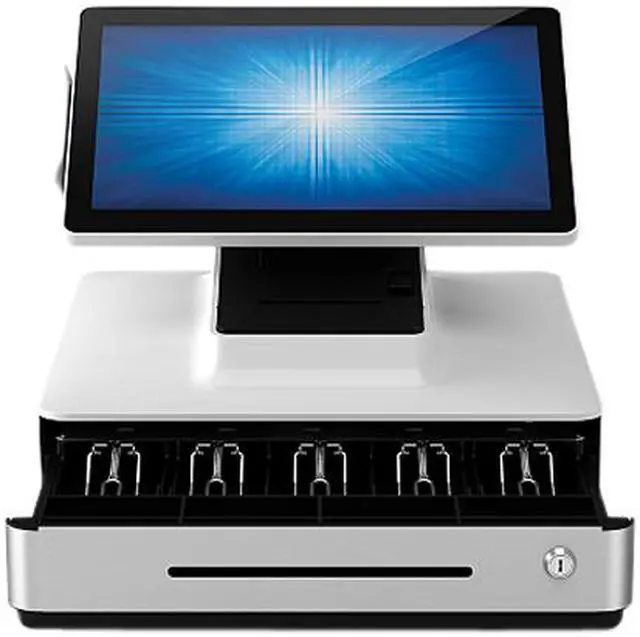

Full Size Cash Drawer

The full size 16-inch industry-standard cash drawer offers a 3-position lock and the ability to add second cash drawer through an I/O port.

6_Full Size Cash Drawer
601_America & China

N. America / China Model

Five bill & six coin layout

602_Worldwide Model

Worldwide Model

Four bill & eight coin layout

7_Magnetic Stripe Reader

Magnetic Stripe Reader

PayPoint Plus is equipped with a 3-track encryptable Magnetic Stripe Reader (MSR) built by MagTek. The MSR can be used for loyalty cards or employee check-in. To encrypt the device to accept credit card payments, you can use the intuitive toolkit Elo provides.

Connectivity for 3rd Party Peripherals

PayPoint Plus has additional input/output ports including serial, USB and mini-HDMI to support 3rd party peripherals. From scales or a secondary display to NFC and EMV devices—PayPoint Plus offers many options. You can even add a second cash drawer if needed.

8_Connectivity for 3rd Party Peripherals
9_Operate The Way You Need

Operate the Way You Need

The Elo PayPoint Plus for Windows utilizes the reliability-tested performance and security of Intel 8th Generation processors, integrated Trusted Platform Modules, Intel vPro and the Windows 10 operating system.

For added flexibility, PayPoint Plus for Windows offers models with no OS—all pretested with Linux SuSE and Ubuntu operating systems, allowing businesses to get the solution best-suited for them.

Connectivity

PayPoint Plus for Windows offers Wi-Fi 802.11 b/g/n/ac providing support for both 2.4 Ghz and 5 Ghz bands. In addition, BLE 5.0 enables connectivity to third party devices.

10_Connectivity
11_Add Your Software

Add Your Software

With PayPoint Plus, our goal is to offer a simple and elegant solution that’s easy to integrate, install and support regardless of the OS you are using. To ease integration with your POS application, we provide Windows and Linux drivers to allow you to control and communicate with the onboard peripherals. In addition, we leverage industry-standard tools and utilities such as Star FuturePRNT, Honeywell EZConfig and MagTek Utility to further simplify your PayPoint Plus development and configuration process. And, once your application is certified and ready for deployment, you can utilize the PayPoint Plus peripheral test app to check status of your customer’s device during set-up and support calls.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 547 days
  • Limited Warranty period (labor): 547 days
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
