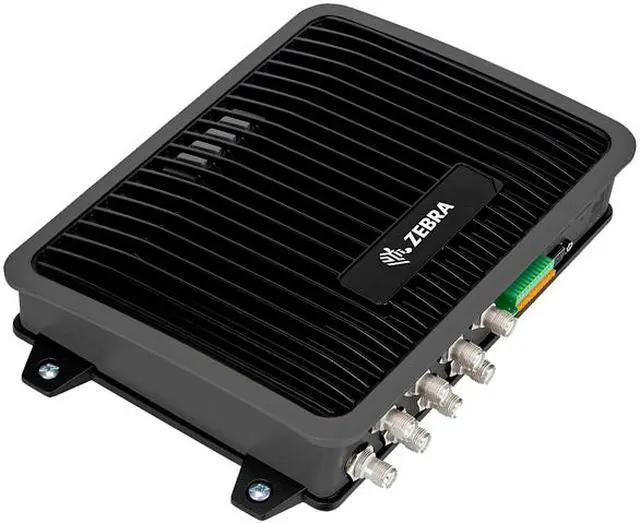

Zebra FX9600 Fixed RFID Reader, 8-Port, POE, US Only - FX9600-82320A50-US

Top Of The Line Performance For High-Volume Rugged Environments
The FX9600’s eight highly sensitive monostatic RF ports provide the exceptionally high RF sensitivity required to deliver the greatest accuracy and longer read ranges
With a best-in-class processor and expanded memory, the FX9600 offers the power needed to support very high traffic throughput and sophisticated software applications
Can host embedded applications, so data can be parsed directly on the reader
Eliminate the time and cost required to run power drops to each reader with support for PoE (802.3af)
Supports a Wi-Fi/Bluetooth dongle for direct wireless connectivity to
your Wi-Fi network, as well as Bluetooth-enabled computers and other devices
An extremely durable die-cast aluminum housing and IP53 sealing deliver the durability you need to ensure uptime
Global Reader: 902 MHz - 928 MHz (Also supports countries that use a part of this band), 865 MHZ - 868 MHz US (only) Reader: 902 - 928 MHz

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Zebra FX9600-82320A50-US

RF Interface
Frequency Type	UHF
Frequency	Global Reader: 902 MHz - 928 MHz (Also supports countries that use a part of this band), 865 - 868 MHz US (only) Reader: 902 - 928 MHz
RF Power Output	0 dBm to +33.00 dBm (POE+ 802.3at, Universal 24 V DC Power Supply) 0 dBm to +31.50 dBm (POE 802.3af)
Antenna	FX9600-8: 8 monostatic ports; (Reverse Polarity TNC)

Conntectors
Communications	10 / 100 BaseT Ethernet (RJ45); USB Host & Client (Type A & B); Serial (DB9)
General Purpose I/O	4 inputs, 4 outputs, optically isolated (Terminal Block)

Power
Power Supply	POE (802.3af) POE+ (802.3at) +24 V DC (UL Approved)

Feature
Feature	To achieve maximum visibility and efficiency in your most rugged environments, your business needs an RFID reader that can keep up with the high volume and wide variety of tagged items that go in, out and through your warehouse and dock doors each day. The Zebra FX9600-82320A50-US FX9600 8 Port Fixed RFID Reader is the next generation of Zebra Fixed RFID Readers replacing the FX9500. The new reader adds POE and delivers extremely high read performance with +33 dbm of RF output, so you can quickly and accurately move and track large volumes of your RFID-tagged cases, pallets and items. The FX9600 8 Port reader sports a rugged design with its IP53 sealed housing allowinf for installation in environments that may experience dust and water and also meets MIL-STD-810G requirements.

Dimensions & Weight
Dimensions	10.75" x 7.25" x 2.00"
Weight	Approx. 4.40 lbs.

Environment
Operating Temperature	-4 to +131 Degrees Fahrenheit (-20 to +55 Degrees Celsius)
Storage Temperature	-40 to +158 Degrees Fahrenheit (-40 to +70 Degrees Celsius)
Humidity	5 to 95 percent non-condensing
