RBH IRC-2000-2400MP AWID Reader - 2 Door Kit

The RBH IRC-2000 controller is for use with RBH access control system, and allows control of two access control points (doors). It has a capacity of up to 5000 cardholders, 10 unique site codes and 3,000 off-line transactions in its event buffer. It can also simultaneously read up to 5 distinct Wiegand or Clock & Data card formats.

The IRC-2000 utilizes flash firmware for easy upgrade, and employs fully distributed intelligence for off-line operations. Decisions such as access level changes, schedule activation and card expiration are made by the IRC-2000 controller without the need of a computer.

The panel contains on-board clock and memory backup as well as thermal overload protection. IRC-2000-UL supports fully supervised communication via RS-232, RS-485 and TCP/IP with selectable communication speed up to 56.6Kbps.

The IRC-2000 connects to the Integra32 Server PC directly via LIF-200 TCP/IP Gateway, RS-232 cable, or a USB to 485 converter, for a total of up to 16 panels per controller network.

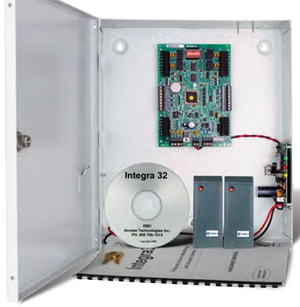

The IRC-2000-2400MP 2 Door KIT includes:

• 1 x IRC-SOFT Integra32 SIXTY FOUR Door Access Control Software
• 1 x IRC-2000-UL TWO Door Integrated Reader Controller with lockable metal enclosure and built-in 12VDC, 2A power supply

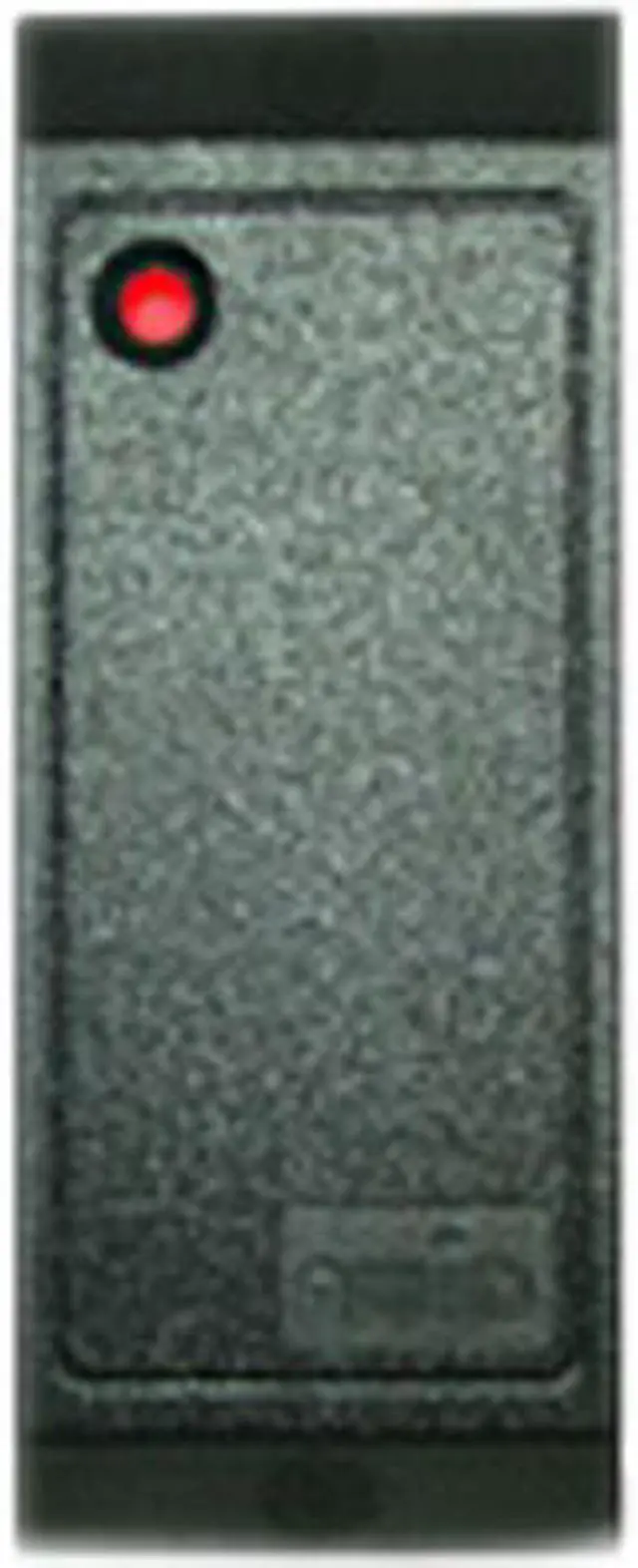

• 2 x SR-2400 Proximity Readers
