Its color screen is ideal for optimizing the signature process on a counter or desk
With its programmable memory, contents such as images, graphics or promotional images can be displayed to enhance the brand image of your business
Technology: Resistive
5" color TFT screen, 65,000 colors
Screen resolution: 640 x 480 px
Standby images: slideshow of up to 10 images
Signature display: on the pad and PC screen in real-time
Signature surface: 100 x 75 mm
Signature resolution: 4096 x 4096 px / 1388 x 1040 dpi
Linearity: +/- 1.5 %
Stylus: Neutral
Power: via USB cable only
Dimensions (H x W x D): 15 x 180 x 191 mm
Weight: 356 g
Warranty: 2 years
+
+
Overview
Specs
Reviews
MAIN OVERVIEW FEATURES: Display Screen Type: LCDActive Area: 3.98" (101 mm) x 2.99" (76 mm)Backlight: YesScreen Resolution: 640 x 480Host Interface: USBHeight: 0.59" (15 mm)Width: 7.52" (191 mm)Depth: 7.09" (180 mm)Limited Warranty: 2 Year
Designed to capture signatures quickly, effectively and securely. Handwritten signatures captured in a few seconds for many purposes. Reduction of the amount of paper used. Optimization of processes. Improvement of your company's brand image.

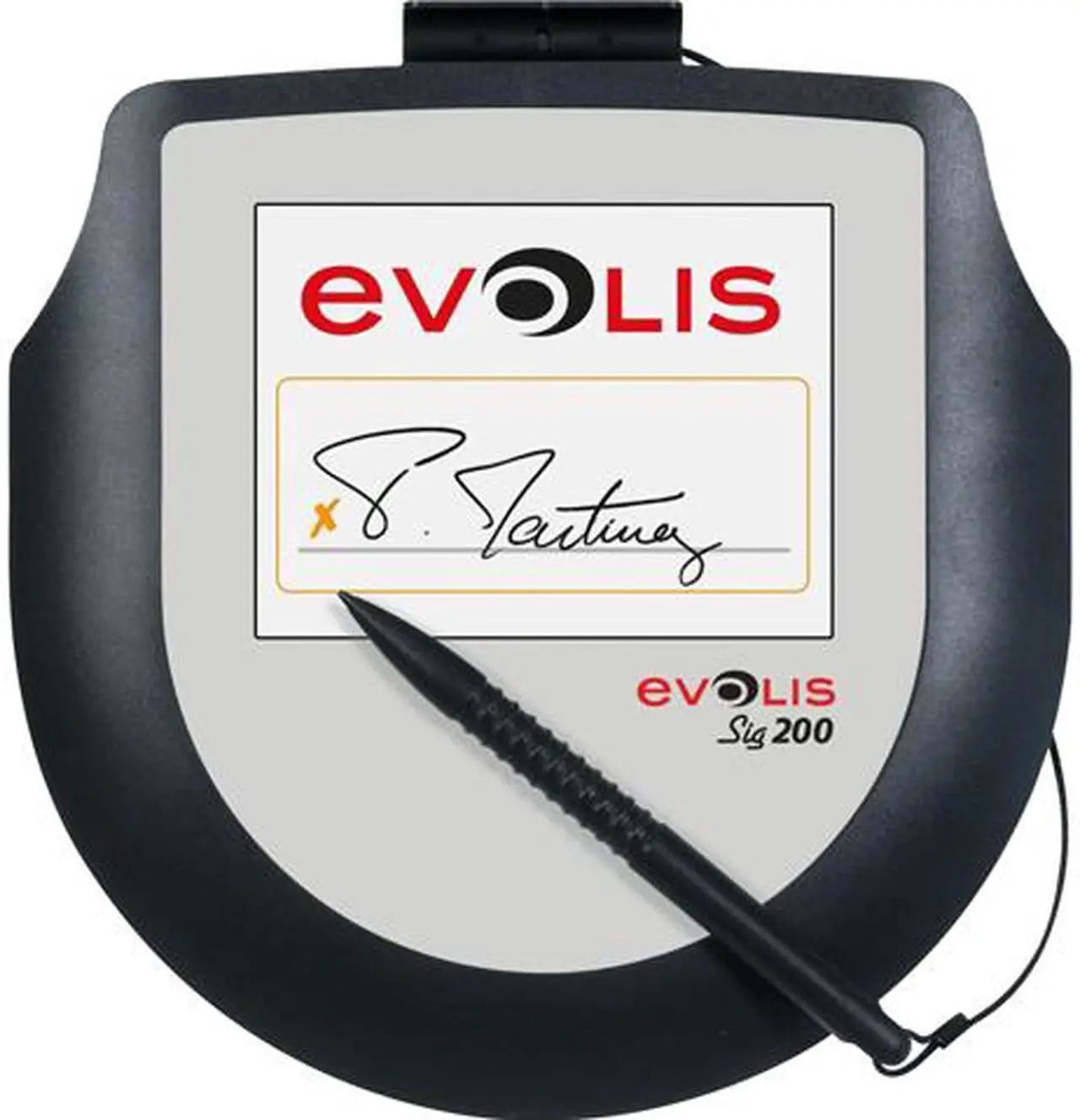

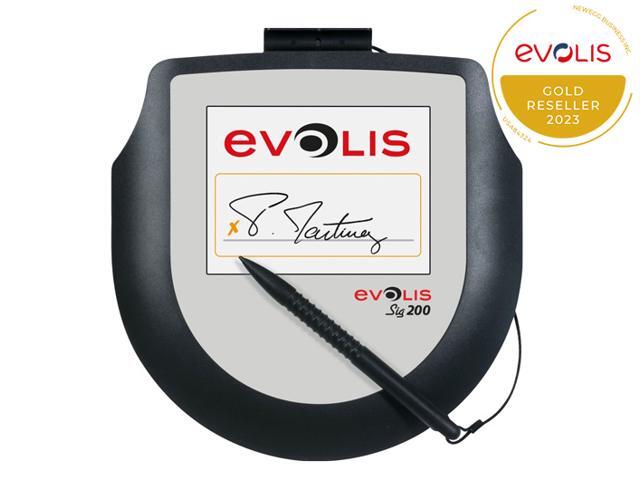

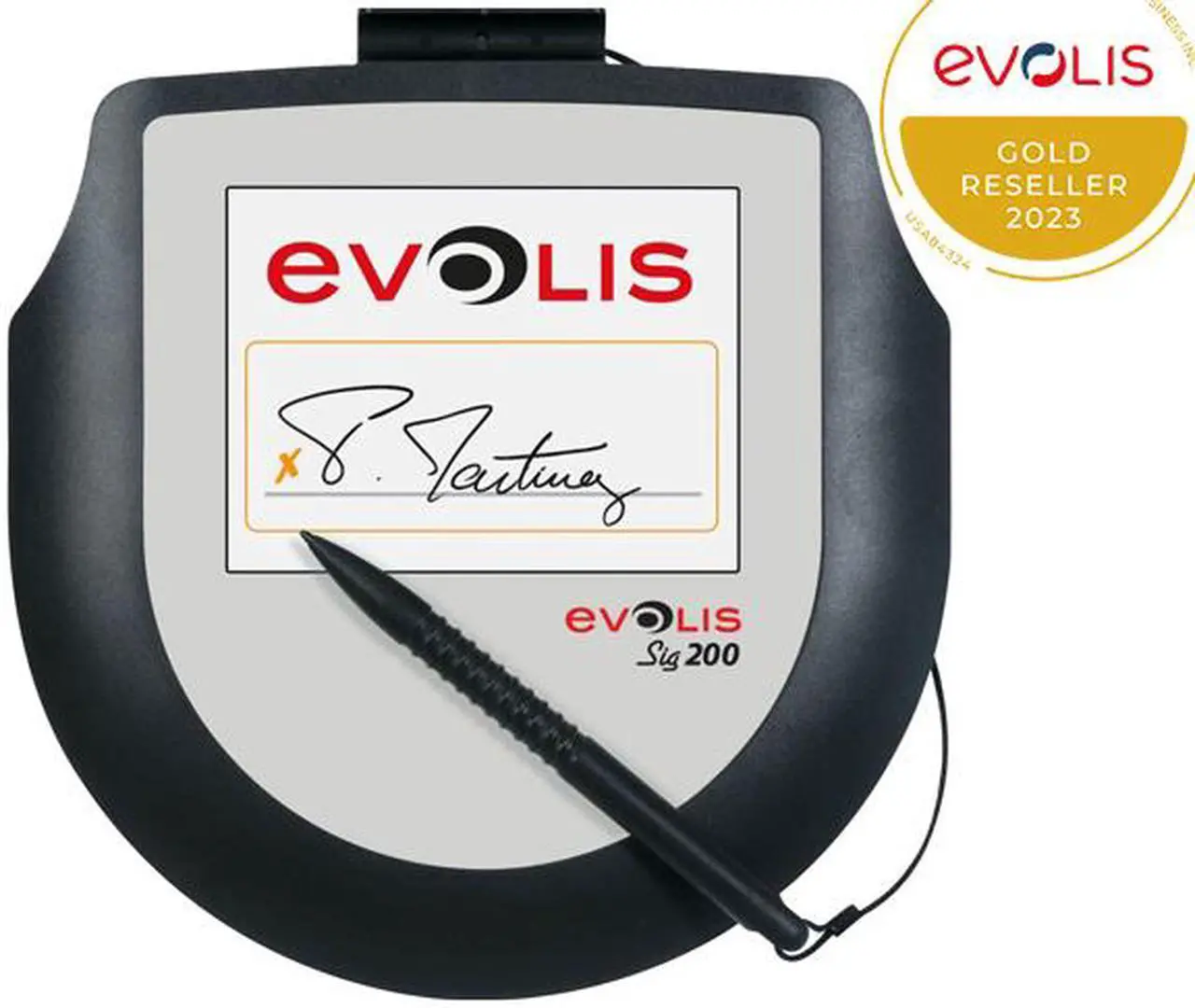

Learn more about the Evolis Sig200
General
Brand
Evolis
Model
Sig200
Part Number
ST-CE1075-2-UEVL
Color
Black
Specifications
Interfaces
USB
Backlit Option
Yes
Signing Area Size
Diagonal: 5.00" (12.70 cm) Display: Color Pixel size: 0.0529 x 0.1587 mm Display area: 101.00 x 76.00 mm
Resolution
640 x 480 pixels
Connectivity
Wired
Dimensions & Weight
Dimensions
0.59" x 7.52" x 7.08"
Weight
0.79 lb.
Features
Features
Touch sensitive screen: Active signing area: 95 x 47 mm (Sig100) / 100 x 75 mm (Sig200) Linearity: +/- 1,5 % in x, y and z directions 1024 pressure levels
Digitization: External sampling rate: 500 samples per second, 4 axes (x, y, time and pressure) Internal sampling rate: 6000 samples per second Resolution: 1040 dpi not interpolated
Interfaces: Full-speed (12 Mbps) USB 2.0 HID (Human Interface Device) compatible with earlier versions Plug and Play: no special drivers required
Security: AES encryption of data transfer between the pad and the computer RSA signature and RSA encryption in the pad Unique internal serial number
Software: Compatible with: Windows XP 32/64, W7 32/64, W8 32/64, Server 2003, 2008 Linux
Free SDK available upon request: Screen configuration and customization (logos, images, buttons) Definition of signature area Signature capture in various formats RSA-signing functionality in the pad Documentation available on demand
Free Twain driver available upon request: Optional signoSign/2 software for creating and signing secure PDF documents
Memory (SIG200): Internal memory for slideshows: up to 10 pictures
Power: Via USB cable, no external power supply
Certifications and statement of compliance: CE, FCC / RoHS / DIN EN 60950-1, DIN EN 61000-6-1, DIN EN 61000-6-3
Operating environment: Operating temperature range: -10 / 60 degrees C (14 / 140 degrees F) Storage temperature range: -25 / 70 degrees C (-13 / 158 degrees F) Humidity: 90% non condensing Atmospheric pressure: > 0.7 bar
Additional Information
Date First Available
August 02, 2024
