Wacom DTK-2451 24" Full HD Interactive Pen Display for Electronic Signature Capture, 2540 lpi, 2048 Pressure Level, Pen, USB Interface, Mac/PC

  • 23.80", 1920 x 1080, 210 nit
  • Designed to improve workflow and enhance visual communication

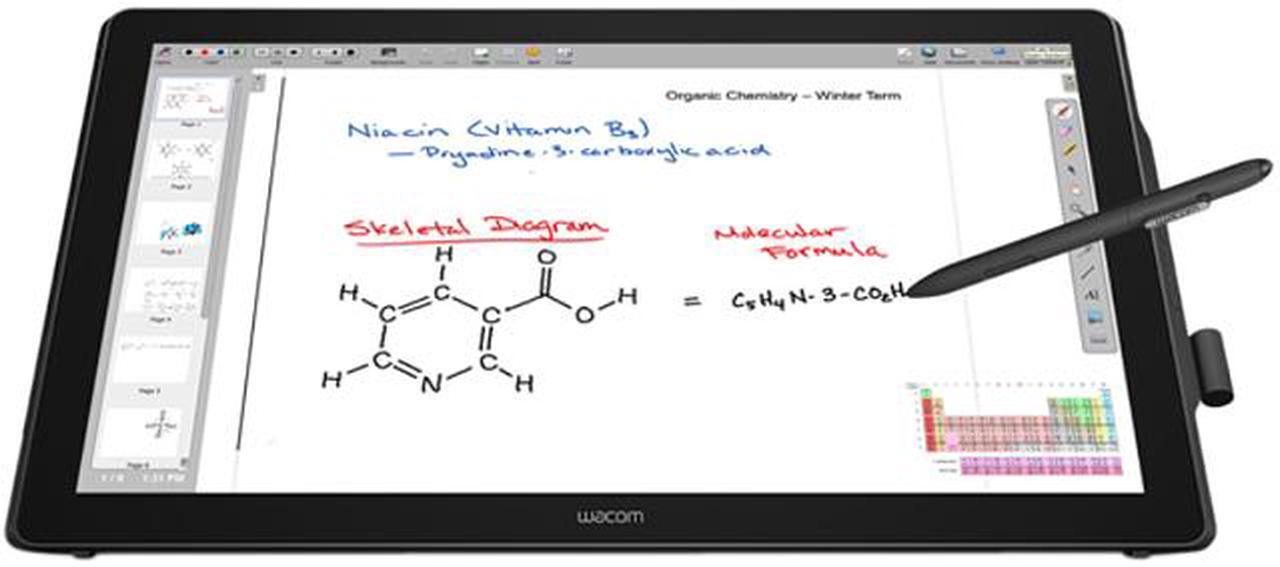

  • For teaching, educators can mark up and annotate presentations, or design lesson plans for interactive teaching
  • In business settings, the pen on screen can be used to complete electronic forms using digital ink, and
  • HDCP compliant
  • Hardened anti-glare etched glass ensures visibility and durability
  • Standard DVI-I and USB connections for easy installation
  • Secure eDocument transactions thanks to state-of-the-art encryption
  • Four integrated ExpressKeys for frequently used tools
  • A built-in video pass-thru connector that allows mirroring directly from pen display to another display
  • Multi-angle tilting stand to position the screen is the most comfortable angle for writing
  • VESA mountable for use with external stands or arms
  • Landscape mode only
  • Software sold separately
+
+
Specs
Reviews

Learn more about the Wacom DTK2451

General
Brand Wacom
Model DTK2451
Color Black
Specifications
Interfaces USB 2.0
Sensor Type Pressure levels: 2048 (NON-multi touch pad)
Data Conversion Rate 187 points per second (pen)
Resolution 1920 x 1080 (Native resolution)
Dimensions & Weight
Dimensions 14.00" x 23.70" x 1.80"
Weight 15.90 lbs. (without stand)
Features
Features General specifications

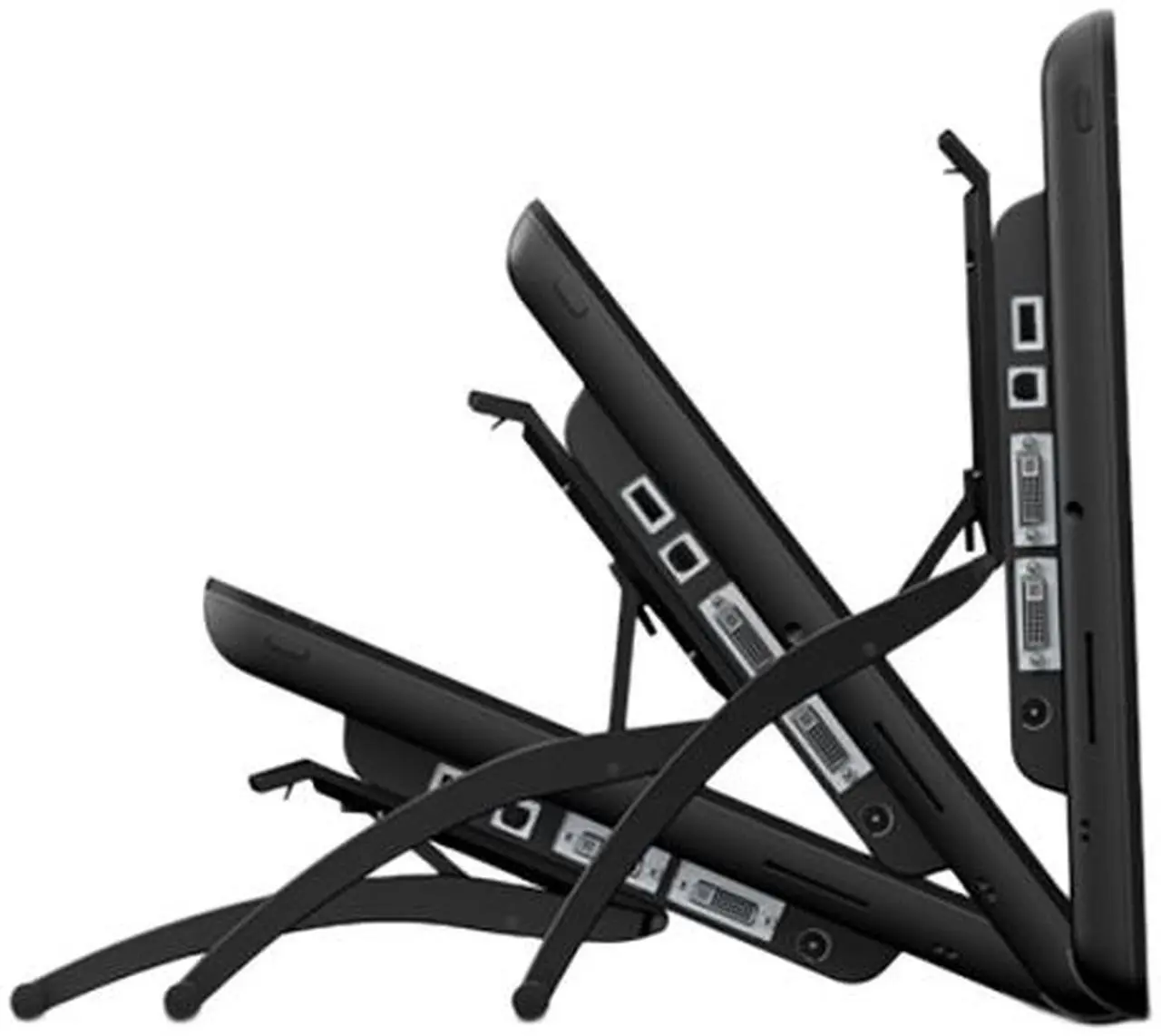

Stand inclination: 11 degrees - 73 degrees incline
Power supply: AC 100 - 240 V 50 / 60 Hz
Power consumption: 45 Watts or lower, Power Save mode: 0.5 Watt or lower, Power OFF mode: 0.5 Watt or lower
Supported operating systems: Windows 7 / 8 / 8.1 / 10, Mac OS X (10.11 and later)

LCD specifications
Screen Size: 23.8" diagonal (20.70" x 11.70")
Aspect ratio: 16:9
Display type: VA
Cover glass surface: Anti-glare
Supported resolutions: VGA: 640 x 480 @ 6 0Hz, SVGA: 800 x 600 @ 60 Hz, XGA: 1024 x 768 @ 60 Hz,
WXGA: 1280 x 800 @ 60 Hz, HD: 1366 x 768 @ 60 Hz, SXGA: 1280 x 1024 @ 60 Hz,
WSXGA: 1680 x 1050 @ 60Hz, FHD:1920 x 1080 @ 60Hz
Viewing angle H: 178 degrees (89 degrees / 89 degrees), V: 178 degrees (89 degrees / 89 degrees)
Colors: 16.7M colors
Brightness: 210 nits (typical)
Contrast ratio: 1000:1 (typical)
Response rate: 16 ms (typical)

Tablet and Pen
Technology: Electromagnetic Resonance (EMR)
Active area size: 20.70" x 11.70"
Pen pressure levels: 2048
Coordinate resolution: 0.01 mm / point / 2540 lpi
Reading height: 10 mm (center)

Miscellaneous
Pen storage: Detachable pen holder
Wall mount: VESA mount
Operating temperature / Relative humidity: 5 to 40 degrees / 30 to 80%
Storage temperature / Relative humidity: -20 to 60 degrees / 30 to 90%

Key features and benefits
24.00" LCD panel offers a large, comfortable surface and a wide viewing angle for excellent performance
2048 levels of pen pressure for precise drawing, writing, and annotating, plus enhanced biometric signature capturing
DVI video in / out for support of both analog and digital connections
Adjustable stand supports multiple angles to fit any working environment
Standard VESA mounting for use with 3rd party stands and arms

Electronic signature software is sold separately. Please check with your software provider regarding compatibility with Wacom devices.
Additional Information
Date First Available January 03, 2019

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
