Brand | Shuttle |
---|---|
Model | SN68SG2 |
Color | Black |
CPU Type | AMD Athlon 64 / Athlon 64 X2 / Sempron |
---|---|
CPU Socket | AMD Socket AM2 |
FSB | 1000 MHz |
North Bridge | NVIDIA GeForce 7025 |
---|---|
South Bridge | NVIDIA nForce 630a |
Memory slot | 2 x 240Pin DIMM |
---|---|
Memory Type Supported | DDR2 800/667 |
Max Memory Supported | 4GB |
Dual Channel Memory Supported | Yes |
PCI Express | 1 x PCI Express x16 |
---|---|
PCI | 1 |
IDE ATA | 1 x ATA 100 |
---|---|
Serial ATA | 2 x SATA 3.0Gb/s |
Onboard Video | GeForce 7025 |
---|
Onboard Audio | Realtek ALC888 |
---|---|
Channel | 8-CH |
First LAN | Marvell 88E1116(10/100/1000Mbps) |
---|---|
Max LAN Speed | 10/100/1000Mbps |

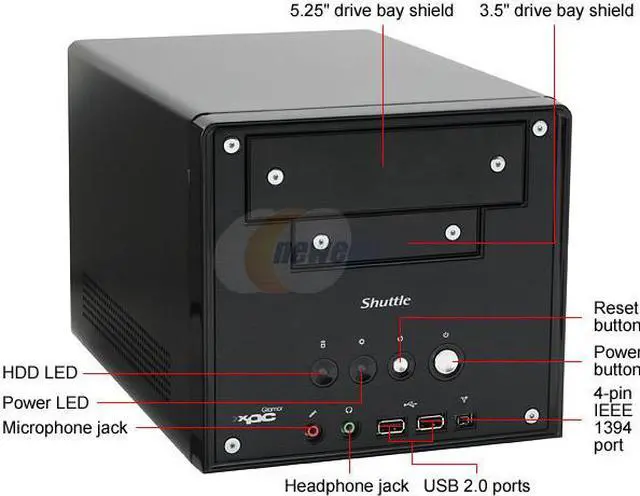

3.5" Internal bays | 1 |
---|---|
3.5" External bays | 1 |
5.25" External bays | 1 |
Front USB | 2 |
---|---|
Front IEEE 1394 | 1 |
Front Audio Ports | 2 jacks |

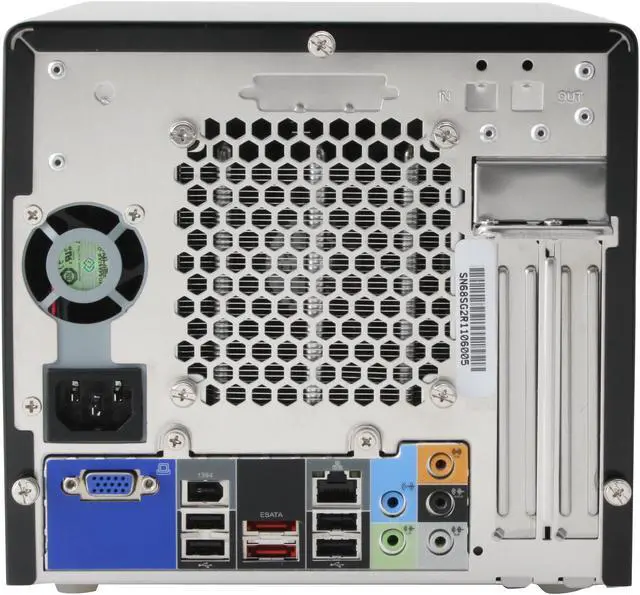

VGA | 1 x D-Sub |
---|---|
Rear USB | 4 |
Rear IEEE 1394 | 1 |
Rear e-SATA Ports | 2 |
RJ45 | 1 |
Rear Audio Ports | 5 jacks |
Input | 100-240V AC |
---|---|

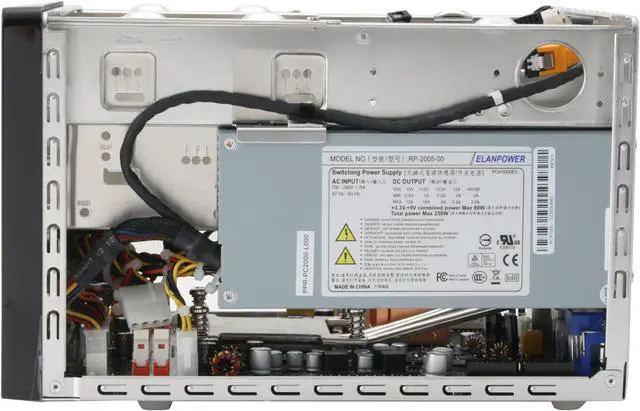

Power Supply | 250W |
Dimensions | 11.8" x 7.9" x 7.3" |
---|
Features | Supports the Latest AM2 Multi-core Processors 7.1 Channel HD Surround Sound Audio Supports Windows Vista Premium Smart Color Slot Design Integrated Cooling Engine 2 (ICE 2) |
---|

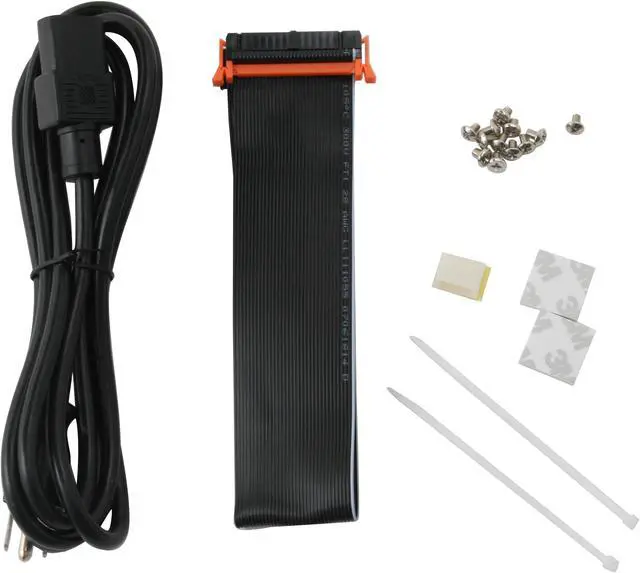

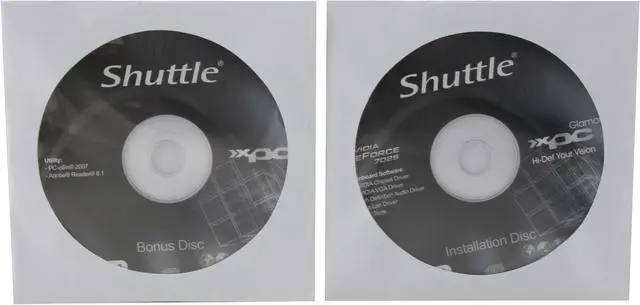

Package Contents | SN68SG2 Driver Disk Power Cord FDD Cable Screws Cable Ties |
---|
Date First Available | February 05, 2008 |
---|
