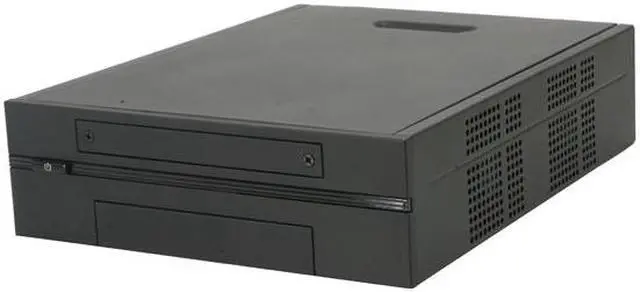

Jetway JC204-B-J7F4K1G5D VIA NanoBGA2 VIA CN700 Black Mini / Booksize Barebone System

(6) Write a Review
  • Embedded VIA NanoBGA C7 Processor VIA C-7D 1.5 GHz Core Clock CPU Included
  • 1 x 240Pin DIMM DDR2 533/400
Specs
Reviews (6)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the JETWAY JC204-B-J7F4K1G5D

Model
Brand Jetway
Model JC204-B-J7F4K1G5D
General
Color Black
CPU Supported
CPU Type Embedded VIA NanoBGA C7 Processor
VIA C-7D 1.5 GHz Core Clock CPU Included
CPU Socket VIA NanoBGA2
FSB 800/400 MHz
Chipset
North Bridge VIA CN700
South Bridge VIA VT8237RP
Memory Supported
Memory slot 1 x 240Pin DIMM
Memory Type Supported DDR2 533/400
Max Memory Supported 1GB
Expansion Slots
PCI 1
Storage
IDE ATA 1 x ATA100 2 Dev. Max
Serial ATA 2 x SATA 1.5Gb/s
SATA RAID RAID 0, 1
Graphics
Intergrated Graphics VIA UniChrome Pro
Audio
Onboard Audio Realtek ALC655
Channel 6 Channel
Communications
LAN Dual Realtek RTL8110SC
Max LAN Speed Dual 10/100/1000Mbps
Extension Bays
Slim ODD 1 x Slim ODD Drive Bay
1 x Internal 2.5" Drive Bay

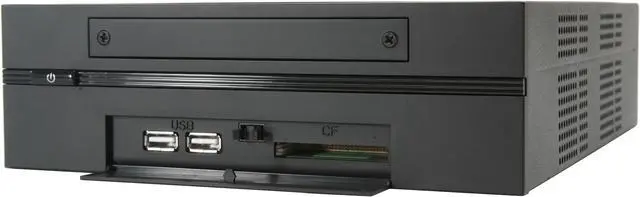

Front Panel Ports
Front USB 2
Card Reader 1 x CF port

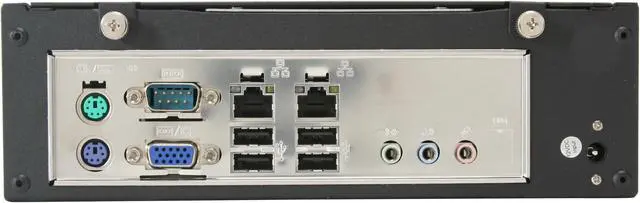

Back Panel Ports
PS/2 2
COM 1
VGA 1 x D-sub
Rear USB 4
RJ45 2
Rear Audio Ports 3 jacks
Power Supply
Power Supply 80W DC Open Frame Power

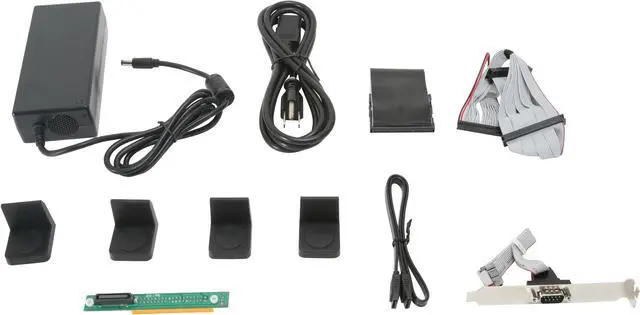

Packaging
Packaging IDE Converter Card (For Slim ODD Drive)
80W AC-DC Adapter
Power Cord
4 x Stand
IDE CABLE (2.54mm To 2.00mm)
PCI Bracket (COM Port Hole)
SATA Cable
Additional Information
First Listed on Newegg July 03, 2008

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
