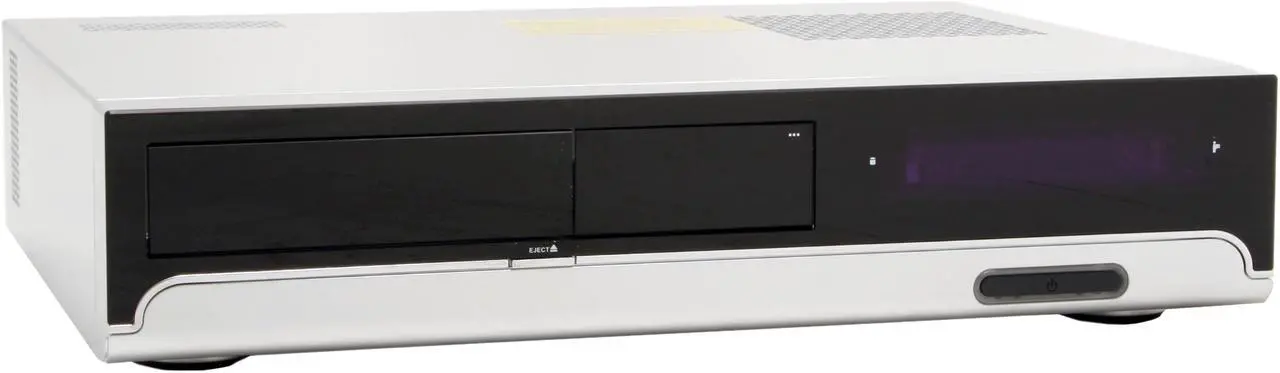

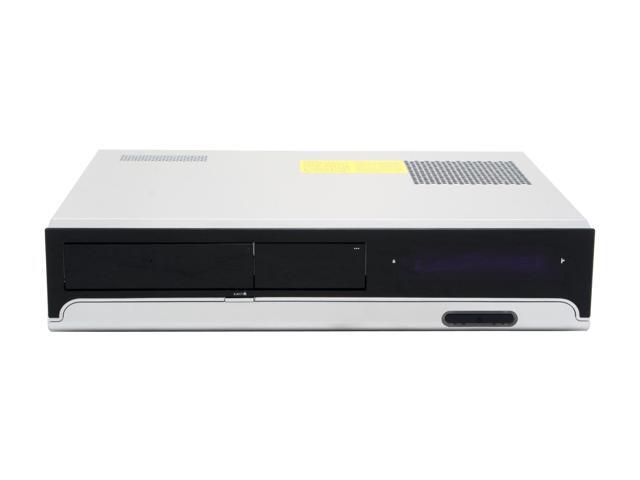

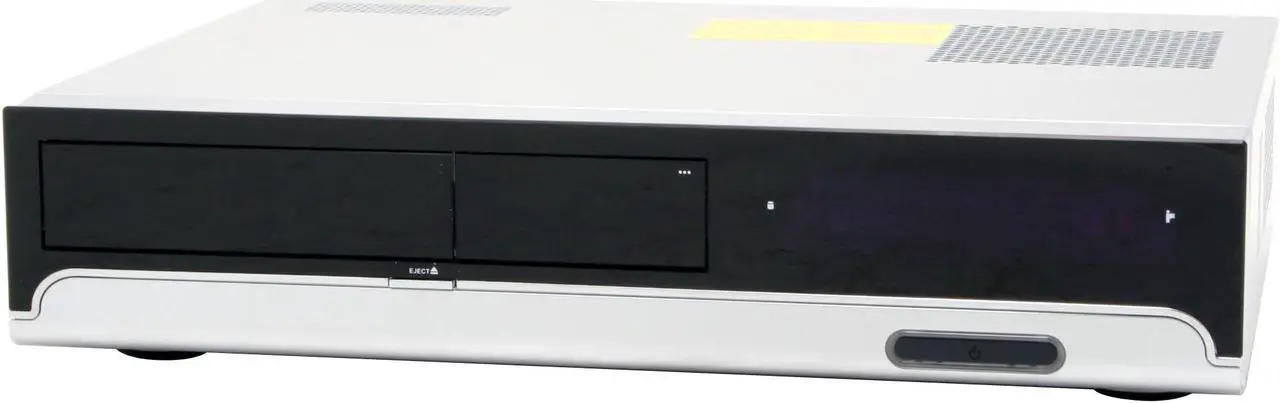

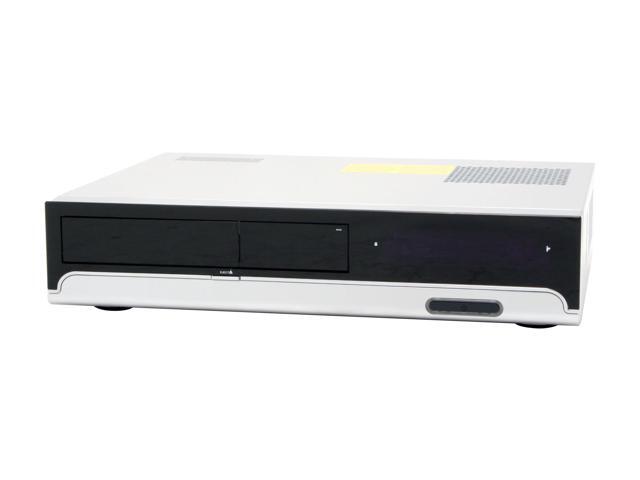

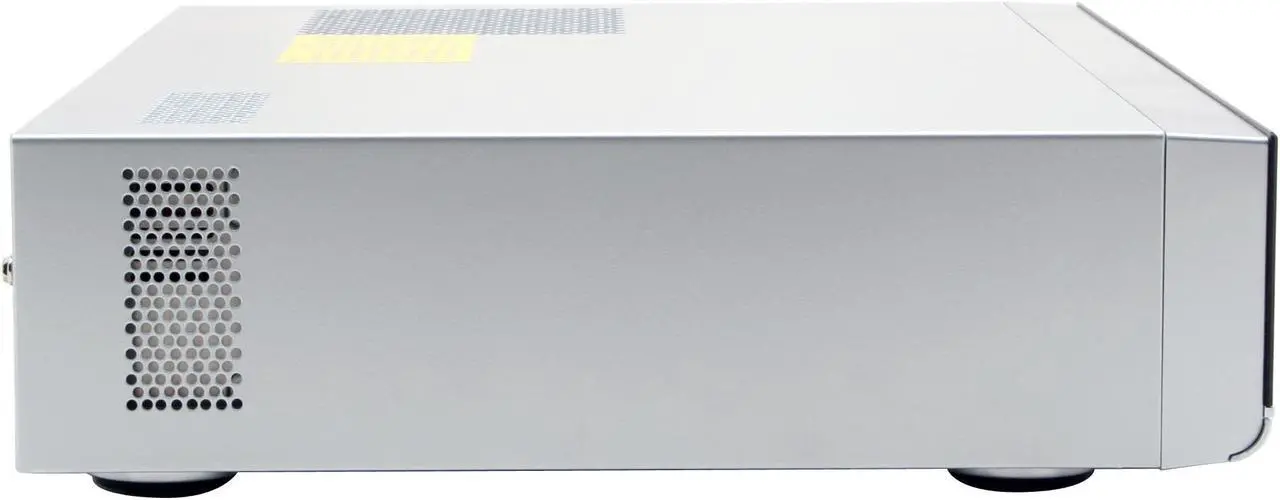

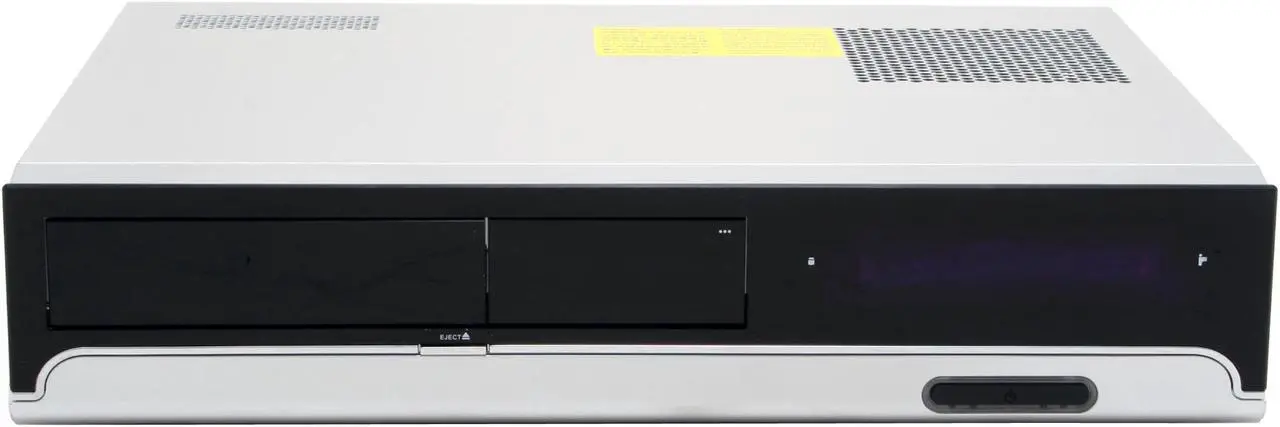

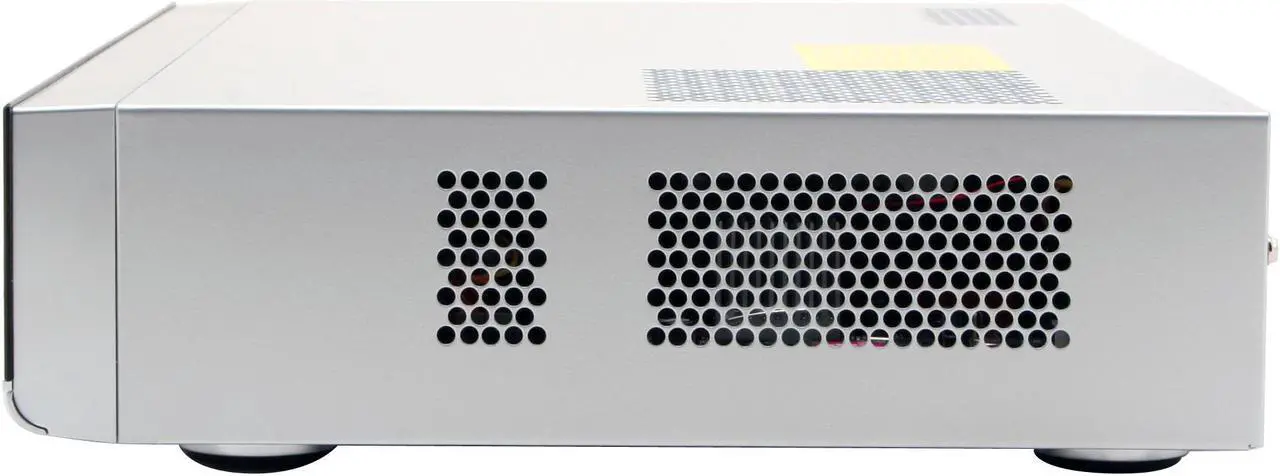

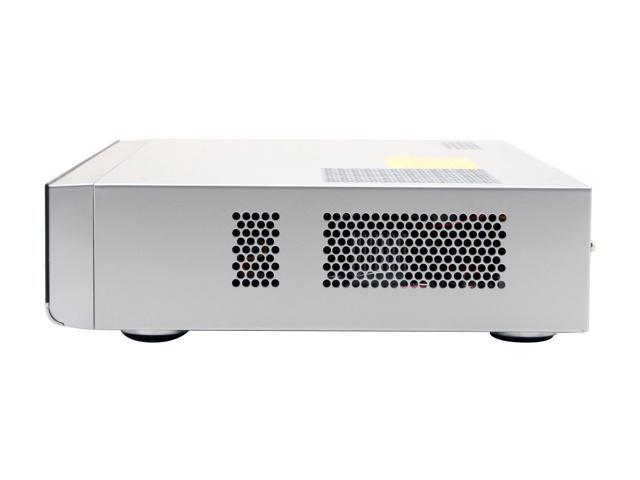

AOpen EPC945-m8 (Silver) Intel Socket T(LGA775) Intel 945G 4 x 240Pin Intel GMA 950 Silver Media Center
- ICH7DH Intel 945G
- Remote Control
Specs
Reviews (2)
Learn more about the AOpen EPC945-m8 (Silver)
| Brand | AOpen |
|---|---|
| Model | EPC945-m8 (Silver) |
| Color | Silver |
| CPU Type | Intel Pentium D / Pentium 4 / Celeron |
|---|---|
| CPU Socket | Intel Socket T(LGA775) |
| FSB | 1066/800 MHz |
| North Bridge | Intel 945G |
|---|---|
| South Bridge | ICH7DH |
| Memory slot | 4 x 240Pin |
|---|---|
| Memory Type Supported | DDR2 667/533 |
| Max Memory Supported | 4GB |
| Dual Channel Memory Supported | Yes |
| PCI Express x16 | 1 x PCI-E x16 (Low Profile) |
|---|---|
| PCI Express x1 | 1 x PCI-E x1 (Low Profile) |
| PCI | 2 x Low Profile |
| IDE ATA | 1 x ATA 100 |
|---|---|
| Serial ATA | 4 x SATAII 300 |
| Onboard Video | Intel GMA 950 |
|---|
| Remote Control | Yes |
|---|
| Channel | 8 Channel |
|---|
| Max LAN Speed | 10/100Mbps |
|---|
| 3.5" Internal Bays | 2 |
|---|---|
| 5.25" External Bays | 1 |
| Front USB | 2 |
|---|---|
| Front IEEE 1394 | 2 x 1394a (4pins and 6pins) |
| Front Audio Ports | 2 jacks |
| Front S/PDIF Out | Yes |

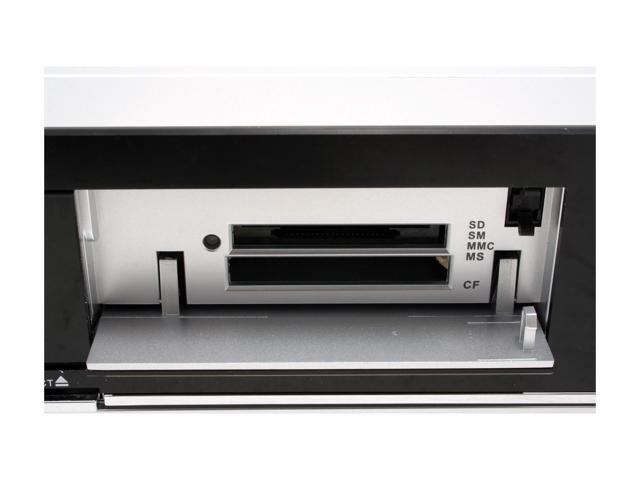

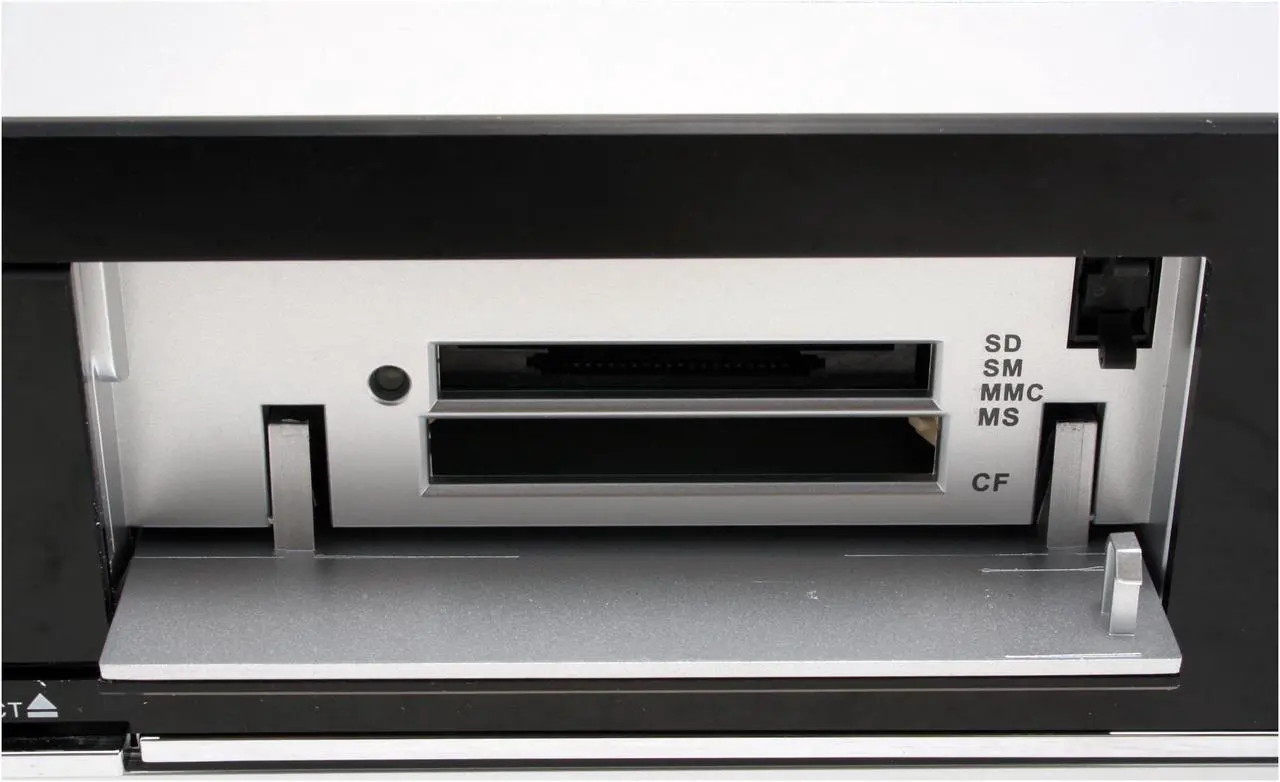

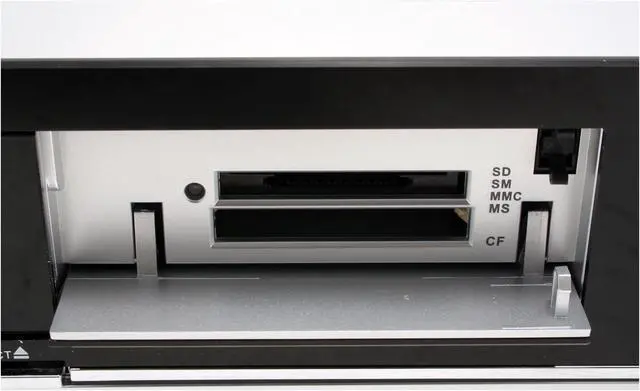

| Card Reader | 23 in 1 |

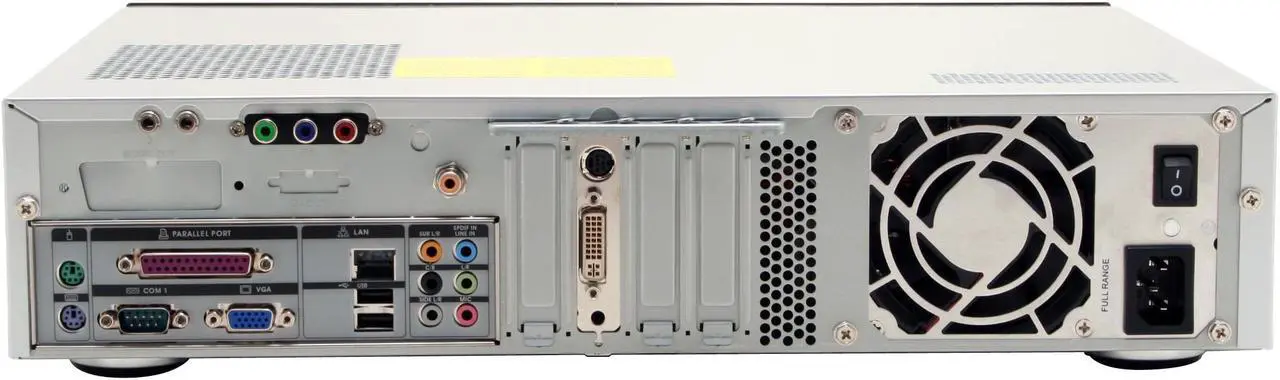

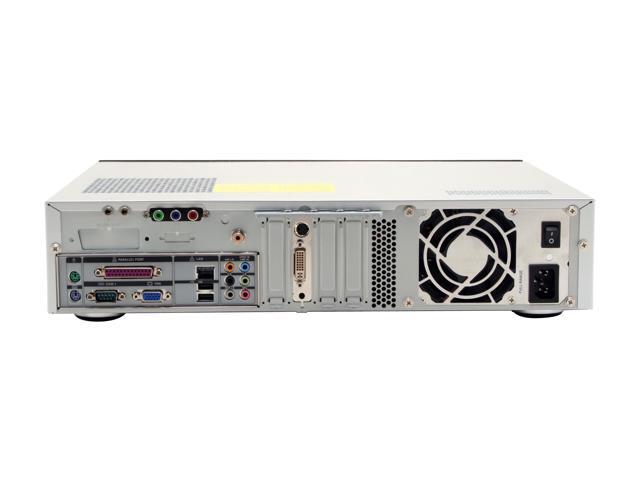

| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| VGA | 1 x D-sub, 1 x DVI |
| TV-Out | S-Video + RCA |
| Rear USB | 2 |
| RJ45 | 1 |
| Rear Audio Ports | 6 jacks |
| Other Rear Ports | 1 x Y/Pb/Pr Port |
| Power Supply | ACTIVE PFC 375W(20+4 Pin W/8CM FAN) |
|---|
| Dimensions | 16.9" x 12.8" x 3.5" |
|---|
| Features | Intel Viiv platforms for digital home entertainment |
|---|

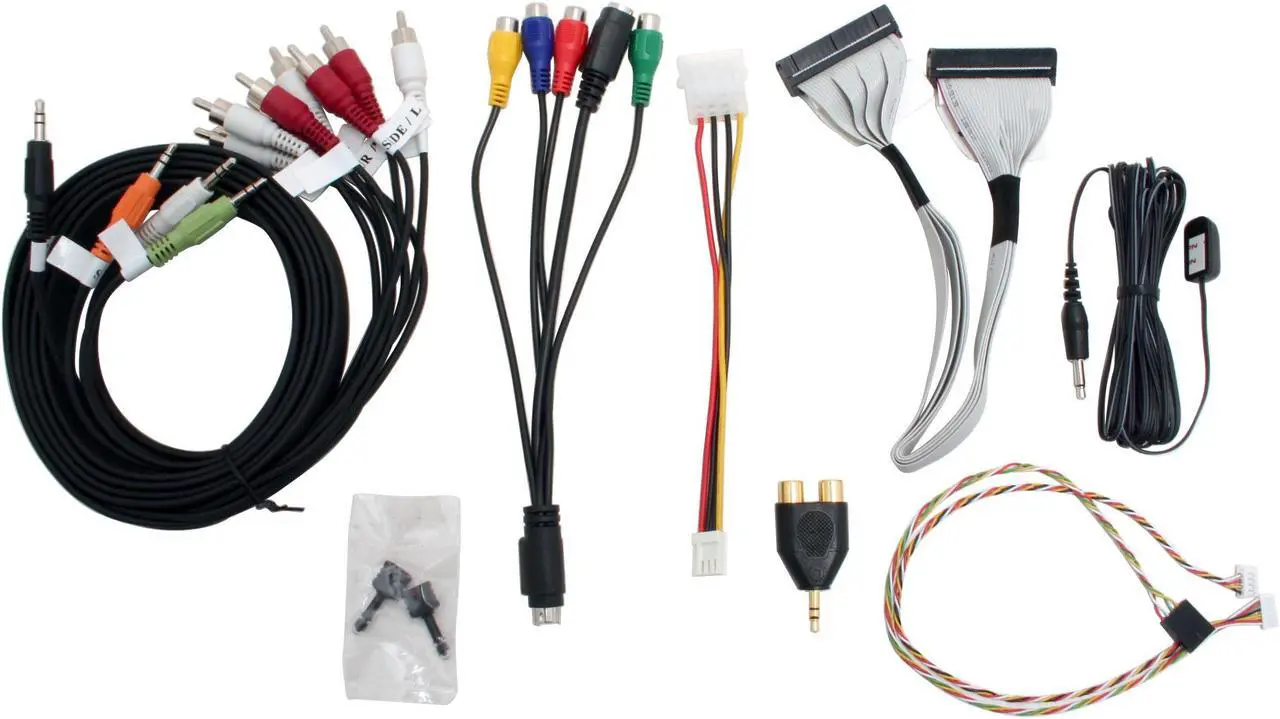

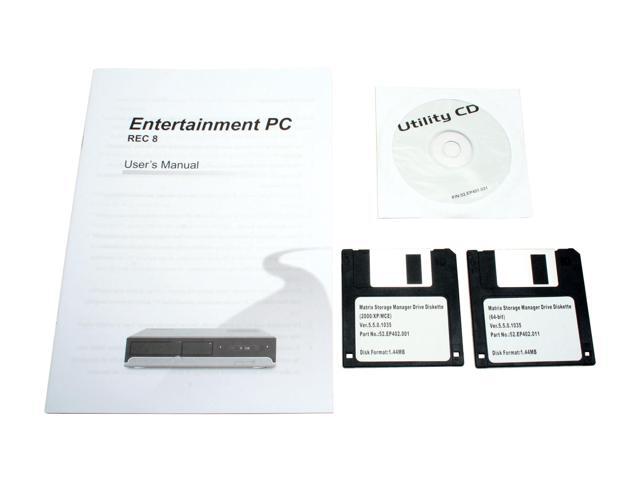

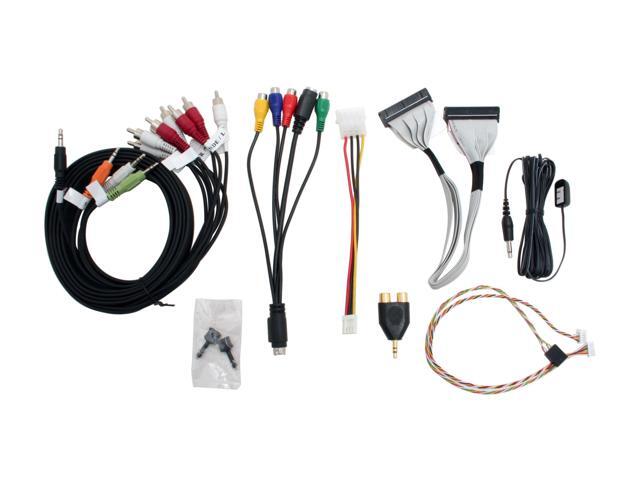

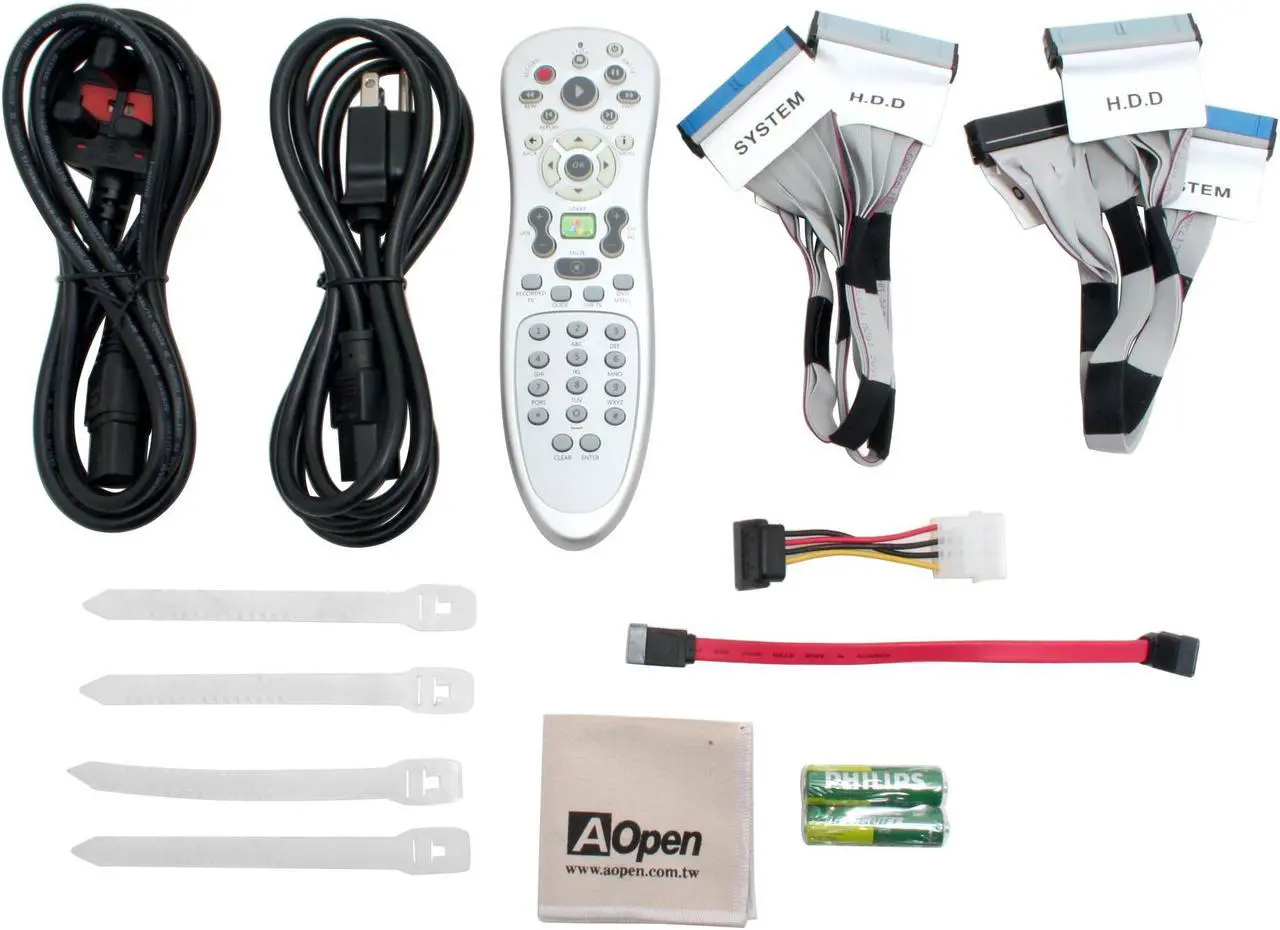

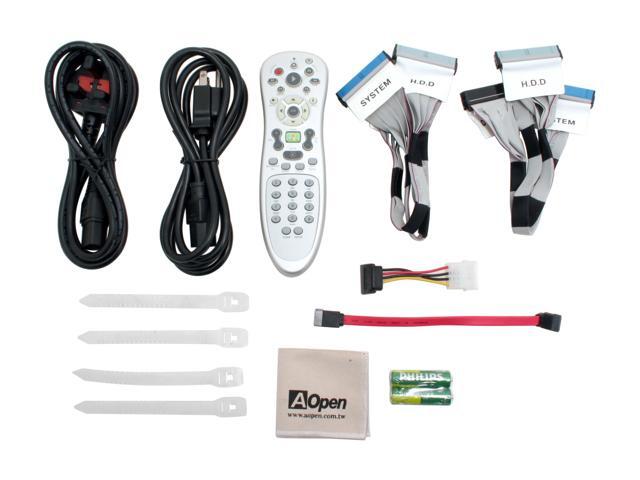

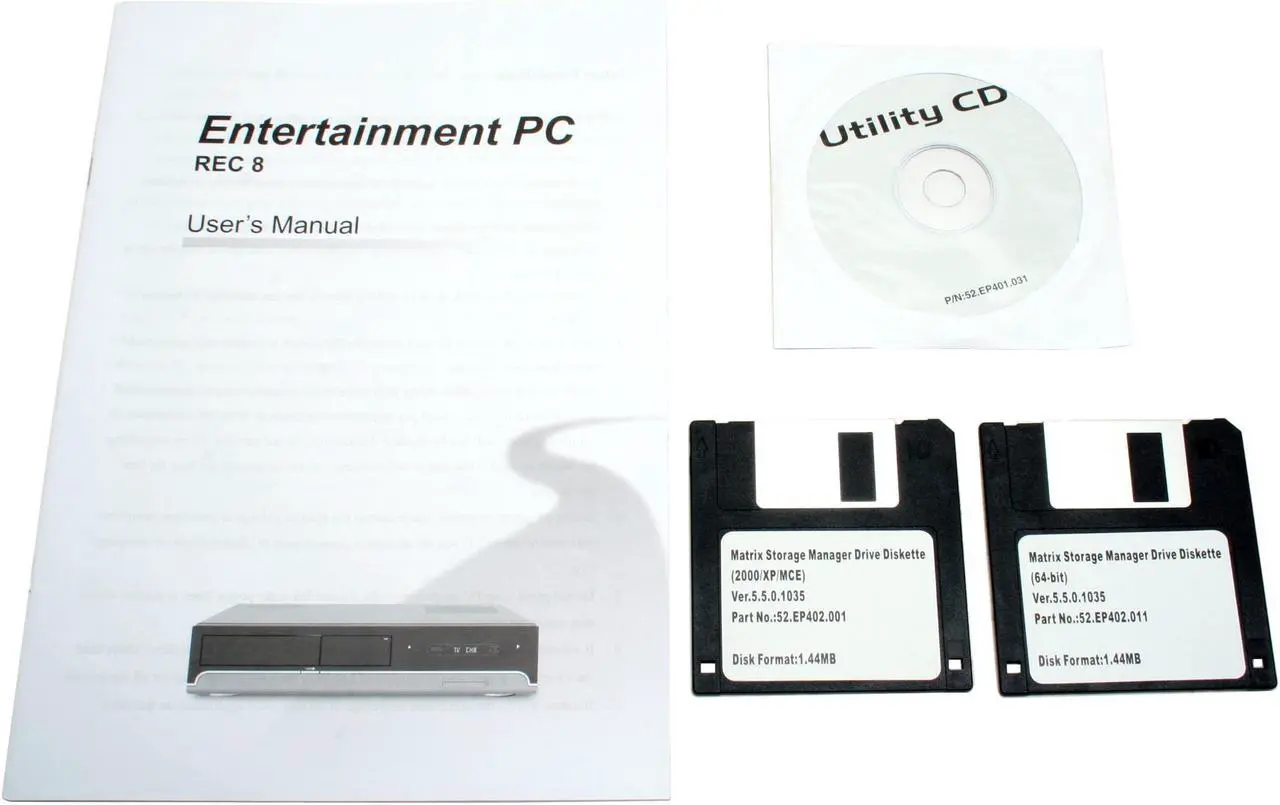

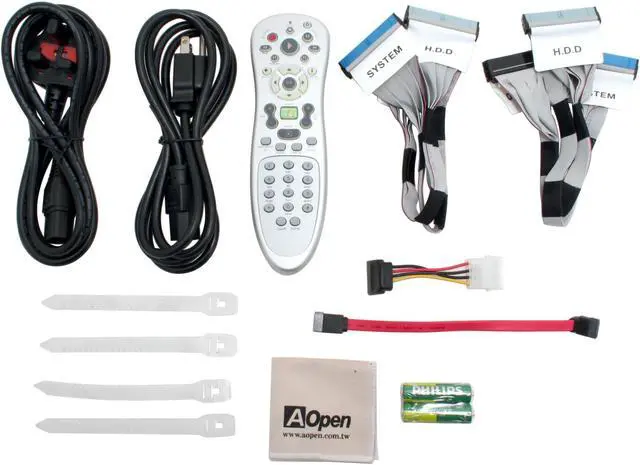

| Packaging | EPC945-m8 (Silver) Remote Control Fan Driver Disk User Manual 2 x Floppy Drive Diskette 2 x Power Cable 2 x Power Connector Battery 2 x IDE/PATA Cable FDD Cable SATA Cable 2 x Video Cable Other Accessories |
|---|
| Date First Available | May 12, 2006 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-510-489-8928
- Support Website
- View other products from AOpen
