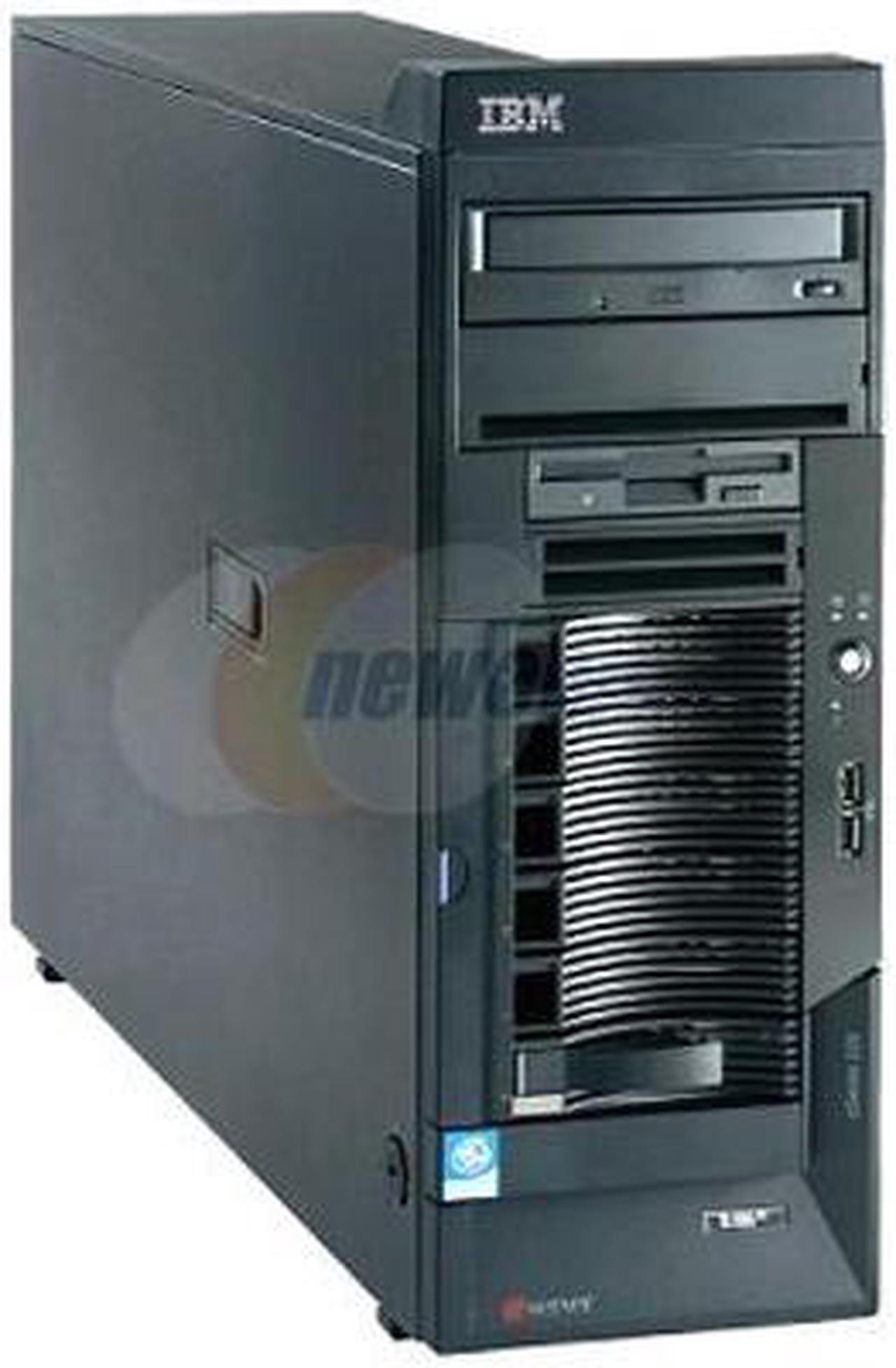

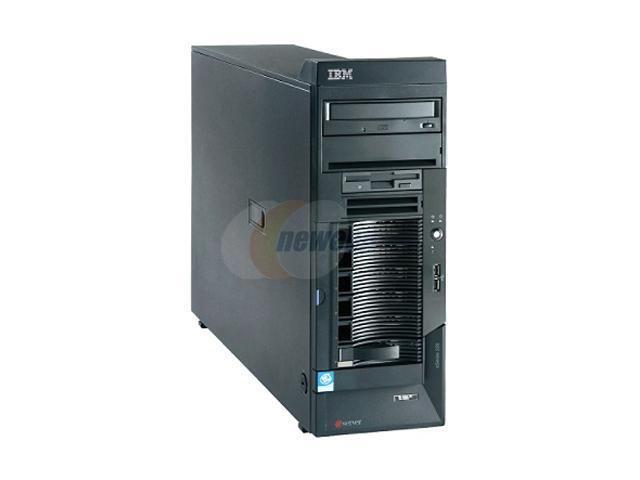

IBM Tower eServer xSeries 226 Intel Xeon 3 GHz 512M DDRII SCSI CD Servers 1 x Intel Xeon 3 GHz 512MB PC2-3200 DDR II 400 MHz - ECC 86484BU

Be the first to review this product...
  • 1 x Intel Xeon 3 GHz
  • 2 MAX Processors
  • 512MB PC2-3200 DDR II 400 MHz - ECC
  • 16GB Max Memory Capacity
  • Voltage Required: AC 120/230 V ( 50/60 Hz ) Power Provided: 514 Watt Installed Qty: 2
Specs
Reviews

Learn more about the IBM 86484BU

Model
Brand IBM
Model 86484BU
Details
Type Tower
Rack Height Tower - 4U
Server Scalability 2-way
Security Power-on password, U-Bolt anchoring, selectable boot
Processor
CPU Type 1 x Intel Xeon 3 GHz
CPU Features Intel Extended Memory 64 Technology
Cache Memory 2 MB L2 cache
MAX Processors 2
Chipset Chipset Type: Intel E7525
Data Bus Speed: 800 MHz
Memory
Installed Memory Size 512MB
Memory Type PC2-3200 DDR II 400 MHz - ECC
Max Memory Capacity 16GB
Memory Features Two DDR channels
Storage
HDD Interface Ultra320 SCSI / IDE
Max HDD Capacity 1.8TB
Media Drives CD ROM
Graphic Controller
Graphic Type ATI Radeon 7000M
Video Memory 16 MB
Networking
Ethernet Controller Network adapter - integrated
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
LAN Ports 1 x Ports
Expansion & Ports
Expansion Slots Total (Free):
1 ( 1 ) x PCI Express x16
2 ( 2 ) x PCI
1 ( 1 ) x PCI-X / 133 MHz
2 ( 2 ) x PCI-X / 100 MHz
Expansion Bays Total (Free):
2 front accessible - 5.25" x 1/2H
1 front accessible - 3.5" x 1/3H
Other ports 4 x Hi-Speed USB - 4 pin USB Type A
1 x display / video - VGA - 15 pin HD D-Sub (HD-15)
2 x serial - RS-232 - 9 pin D-Sub (DB-9)
1 x parallel - IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25)
1 x mouse - generic - 6 pin mini-DIN (PS/2 style)
1 x keyboard - generic - 6 pin mini-DIN (PS/2 style)
Software
Operating System No
Compatible/Certified OS Microsoft Windows Server 2003 SE/EE, Windows 2000 Server/Advanced Server, Windows Small Business Server 2003, Red Hat Linux Advanced Server 2.1, Red Hat Linux Professional 7.2 and 7.3, SUSE LINUX Professional 8.0, Novell NetWare and OS/2
Power
Power Characteristics Voltage Required: AC 120/230 V ( 50/60 Hz )
Power Provided: 514 Watt
Installed Qty: 2
Features
Features Maximum internal storage: 1.8TB Ultra320 hot-swap, 1TB SATA
Floppy Drive: 3.5" 1.44 MB floppy
Recommended Use: Small business, corporate business
Dimensions & Weight
Dimensions 26.0" x 18.4" x 6.5"
Weight 57.1 lbs.
Additional Information
Date First Available October 18, 2006
