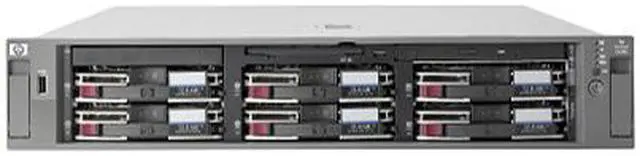

Alt view image 2 of 2 - HP Rack ProLiant DL380 G4 Xeon 3 GHz 1 GB DDR II ATI RAGE XL Hot-swap SCSI Servers 1 x Intel Xeon 3 GHz 1GB PC2-3200 DDR II 400 MHz - Advanced ECC 378735-001

Shop All HP Products

HP Rack ProLiant DL380 G4 Xeon 3 GHz 1 GB DDR II ATI RAGE XL Hot-swap SCSI Servers 1 x Intel Xeon 3 GHz 1GB PC2-3200 DDR II 400 MHz - Advanced ECC 378735-001

Be the first to review this product...

1 x Intel Xeon 3 GHz
2 MAX Processors
1GB PC2-3200 DDR II 400 MHz - Advanced ECC
12GB Max Memory Capacity
Voltage Required: AC 120/230 V ( 50/60 Hz ) Power Provided: 575 Watt Installed Qty: 1 Max Supported Qty: 2

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

The world's best selling server just got better, the new ProLiant DL380R04 Server delivers on its history of design excellence with enterprise-class uptime and manageability, proven 2-way Intel Xeon performance, and 2U density for a variety of rack deployments and applications.

Model
Brand	HP
Model	378735-001

Details
Type	Rack
Rack Height	2U
Server Scalability	2-way

Processor
CPU Type	1 x Intel Xeon 3 GHz
CPU Features	Intel Extended Memory 64 Technology
Cache Memory	2 MB L2 cache
MAX Processors	2
Chipset	Intel E7520

Memory
Installed Memory Size	1GB
Memory Type	PC2-3200 DDR II 400 MHz - Advanced ECC
Max Memory Capacity	12GB
Memory Features	Registered Upgrade Rule: 2 modules at a time

Storage
HDD Interface	2 x Ultra320 SCSI / 1 x IDE
Raid Level	RAID 0, RAID 1, RAID 5, RAID 10
Media Drives	CD ROM

Graphic Controller
Graphic Type	ATI Rage XL
Video Memory	8 MB

Networking
Ethernet Controller	Network adapter - PCI-X - integrated Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet Features: Wake on LAN (WoL)
Compliant Standard	IEEE 802.3, IEEE 802.3U, IEEE 802.3ab
LAN Ports	2 x Ports

Expansion & Ports
Expansion Slots	Total (Free): 2 ( 2 ) x PCI-X / 100 MHz 1 ( 1 ) x PCI-X / 133 MHz
Expansion Bays	Total (Free): 6 ( 6 ) x hot-swap - 3.5" x 1/3H 1 ( 1 ) x front accessible - 3.5" Slim Line 1 ( 0 ) x front accessible - 5.25" x 1/6H (Slim Line)
Other ports	1 x serial - RS-232 - 9 pin D-Sub (DB-9) 1 x mouse - generic - 6 pin mini-DIN (PS/2 style) 1 x keyboard - generic - 6 pin mini-DIN (PS/2 style) 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) 1 x storage - Ultra320 SCSI - 68 pin VHDCI (mini-Centronics) 3 x Hi-Speed USB - 4 pin USB Type A ( 1 in front )
Management Port	1 x management - Compaq iLO - RJ-45

Software
Operating System	No
Compatible/Certified OS	SCO OpenServer, UnixWare, Novell NetWare, Microsoft Windows 2000 Server, Red Hat Linux, SuSe Linux, Microsoft Windows Server 2003

Power
Power Characteristics	Voltage Required: AC 120/230 V ( 50/60 Hz ) Power Provided: 575 Watt Installed Qty: 1 Max Supported Qty: 2

Features
Features	Storage Controller Name: Smart Array 6i Controller Buffer Size: 64 MB Server Storage Bays: Hot-swap Compliant Standards: ACPI 2.0 Software: Drivers & Utilities

Dimensions & Weight
Dimensions	17.5" x 26.0" x 3.4"
Weight	45 lbs.
