Intel Blade Multi-Flex Server Compute Module - no CPU Intel Xeon processors 5500 series DDR3 SDRAM MFS5520VI
- Intel Xeon processors 5500 series
- 2 MAX Processors
- DDR3 SDRAM
- 96GB Max Memory Capacity
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
As a part of Intel's Multi-Flex Modular Server system, the Intel Multi-Flex Server Compute Module MFS5520VI delivers industry-leading performance and flexibility to simplify the growing demands of your IT infrastructure.
The Server Compute Module is based on the new Intel 5520 chipset and will accept up to 2 Intel Xeon 5500 series processors with 2 or 4 cores each. To support all the processing power you can install up to 96GB ECC registered or unbuffered DDR3 800/1066/1333MHz memory.
The module is entirely diskless, giving the capacity for diskless booting and virtual desktop. It also allows for the integration of the Shared Storage Bay and SAN, providing greater flexibility and increased asset utilization.
As a part of Intel's Multi-Flex Modular Server system, the Intel Multi-Flex Server Compute Module MFS5520VI delivers industry-leading performance and flexibility to simplify the growing demands of your IT infrastructure.
The Server Compute Module is based on the new Intel 5520 chipset and will accept up to 2 Intel Xeon 5500 series processors with 2 or 4 cores each. To support all the processing power you can install up to 96GB ECC registered or unbuffered DDR3 800/1066/1333MHz memory.
The module is entirely diskless, giving the capacity for diskless booting and virtual desktop. It also allows for the integration of the Shared Storage Bay and SAN, providing greater flexibility and increased asset utilization.
The Server Compute Module is based on the new Intel 5520 chipset and will accept up to 2 Intel Xeon 5500 series processors with 2 or 4 cores each. To support all the processing power you can install up to 96GB ECC registered or unbuffered DDR3 800/1066/1333MHz memory.
The module is entirely diskless, giving the capacity for diskless booting and virtual desktop. It also allows for the integration of the Shared Storage Bay and SAN, providing greater flexibility and increased asset utilization.
Supports up to Two Multi-Core Intel Xeon ProcessorsThe Intel Server Compute Module supports up to two multi-core Intel Xeon 5500 Series processors. Delivering industry leading performance and virtualization, Intel Xeon processors offer new levels of energy efficiency for IT customers from small business to enterprise.

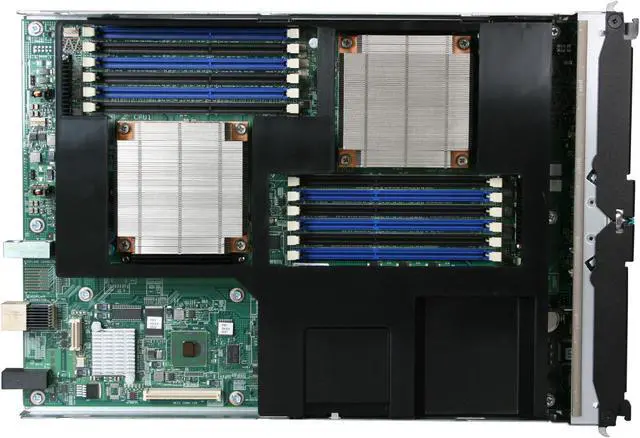

Scalable DDR3 MemoryTwelve 240-pin DIMM sockets support both registered (RDIMM) and unbuffered (UDIMM) DDR3 memory at speeds of 800, 1066 and 1333MHz, ensuring ample capacity for any application.
Virtual, Integrated Shared StorageThe Intel Server Compute Module is entirely disk-free and connects to the virtualized shared storage for a flexible server configuration.
Integrated Gigabit EthernetThe onboard Intel 82575EB Gigabit Ethernet Controller provides high-performance dual-port Gigabit network connectivity and supports Intel's Virtual Machine Device queue (VMDq) technology to improve overall throughput and CPU utilization on virtualized servers.
Integrated ManagementThe integrated Baseboard Management Controller (BMC) enables easy management of the module with support for remote KVM, remote media redirection and remote serial console.

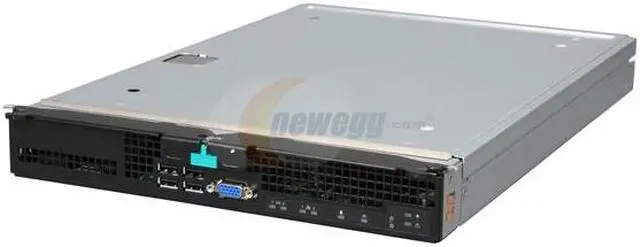

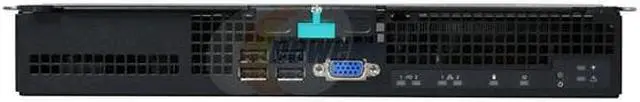

Front AccessThe Intel Server Compute Module provides VGA, USB, a power button, and status LEDs on the front panel for easy access.
Supports up to Two Multi-Core Intel Xeon ProcessorsThe Intel Server Compute Module supports up to two multi-core Intel Xeon 5500 Series processors. Delivering industry leading performance and virtualization, Intel Xeon processors offer new levels of energy efficiency for IT customers from small business to enterprise.
Scalable DDR3 MemoryTwelve 240-pin DIMM sockets support both registered (RDIMM) and unbuffered (UDIMM) DDR3 memory at speeds of 800, 1066 and 1333MHz, ensuring ample capacity for any application.
Virtual, Integrated Shared StorageThe Intel Server Compute Module is entirely disk-free and connects to the virtualized shared storage for a flexible server configuration.
Integrated Gigabit EthernetThe onboard Intel 82575EB Gigabit Ethernet Controller provides high-performance dual-port Gigabit network connectivity and supports Intel's Virtual Machine Device queue (VMDq) technology to improve overall throughput and CPU utilization on virtualized servers.
Integrated ManagementThe integrated Baseboard Management Controller (BMC) enables easy management of the module with support for remote KVM, remote media redirection and remote serial console.
Front AccessThe Intel Server Compute Module provides VGA, USB, a power button, and status LEDs on the front panel for easy access.Warranty & Returns
