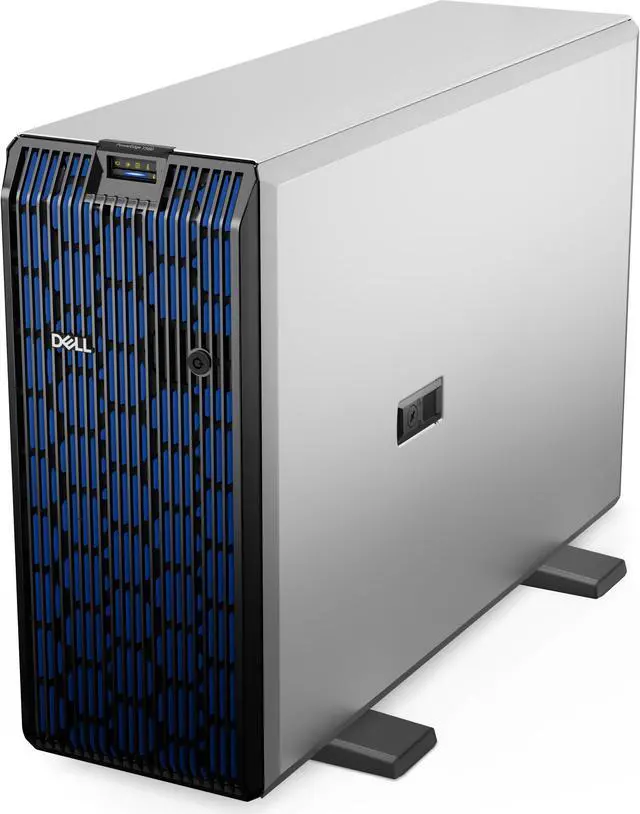

Dell PowerEdge T560 Tower Server - Workstation

Workload: Workstation
A purpose-built office-friendly server, maximizing next-gen technologies with GPU options to achieve enterprise-level performance.
For a customized quote tailored to your specific needs, please contact our sales team by requesting a quote.
Up to two 4th Generation Intel® Xeon Scalable processor, with up to 32 cores per processor or Up to two 5th Generation Intel® Xeon Scalable processor, with up to 28 cores per processor
16 DDR5 DIMM slots, supports RDIMM 1 TB max

Please note that this product is non-returnable and non-refundable.

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Detailed Specifications

Model
Brand	DELL
Series	PowerEdge T560

Details
Workload	Offer a deeper variety of features to accommodate high performance applications like web serving, consolidation, and virtualization. They include more cache and speed, as well as the flexibility for expansion and additional processors.
Type	Tower
Rack Height	4.5U
Security	Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secure Erase Secured Component Verification (Hardware integrity check) Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Memory
Installed Memory Size	No
Memory Type	DDR5
Max Memory Capacity	1TB
Memory Features	Speeds up to 4800 MT/s on the 4th Generation Intel Xeon Scalable processor Speeds up to 5200 MT/s on the 5th Generation Intel Xeon Scalable processor
Number of Memory Slots	16

Expansion & Ports
Expansion Slots	Up to 2 x 300 W DW and 6 x 75 W SW Up to 6 PCIe slots: Slot 1: x16 Gen5 Full height, full length Slot 2: x16 Gen5 Full height, full length Slot 3: x16 Gen4 Full height, half length Slot 4: x16 Gen4 Full height, half length Slot 5: x16 (with x8 lanes) Gen4 Full height, half length Slot 6: x16 Gen4 Full height, half length

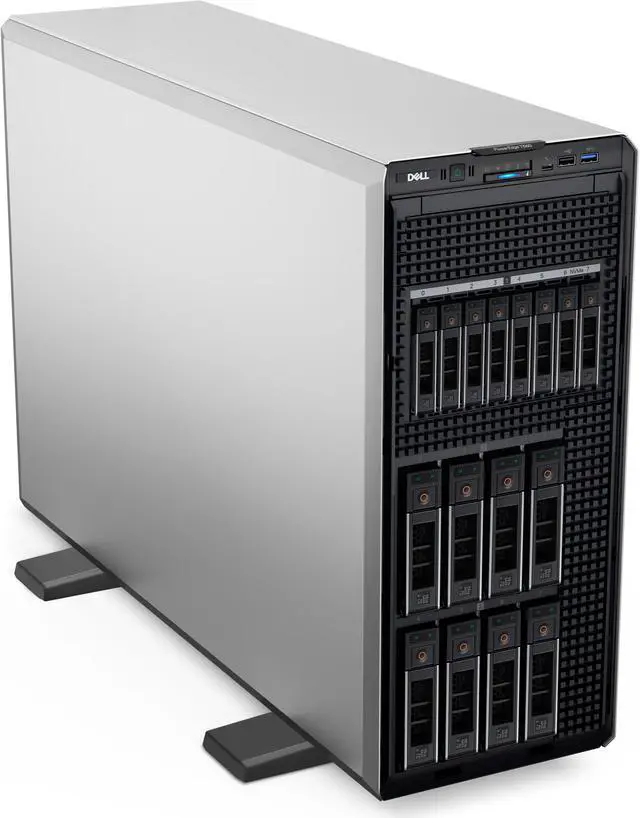

Expansion Bays	Front Bay Up to 12 x 3.5-inch SAS/SATA HDD drives, max 180 TB Up to 8 x 3.5-inch SAS/SATA HDD drives, max 120 TB Up to 8 x 3.5-inch SAS/ SATA HDD + 8 x 2.5-inch NVMe SSD drives, max 240 TB Up to 8 x 2.5-inch SAS/SATA HDD drives, max 120 TB Up to 16 x 2.5-inch SAS/SATA HDD drives, max 240 TB Up to 24 x 2.5-inch SAS/SATA HDD drives, max 360 TB Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs USB

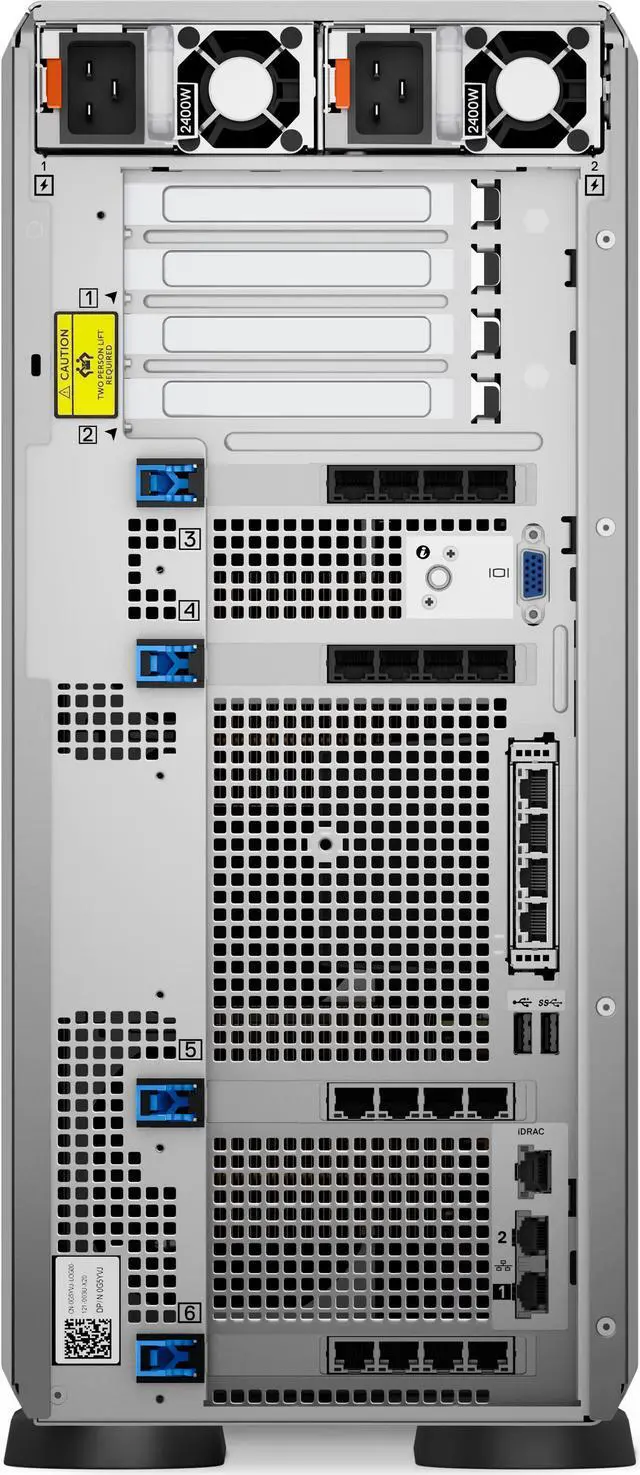

Other ports	Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x USB 3.0 Rear Ports 1 x Dedicated iDRAC (RJ-45) port 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 1 x VGA 2 x Ethernet ports

Software
Operating System	No

Dimensions & Weight
Dimensions	18.26" x 7.87" x 26.7"
Weight	107.32 lbs.
