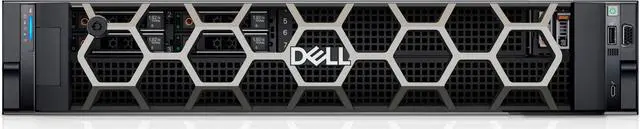

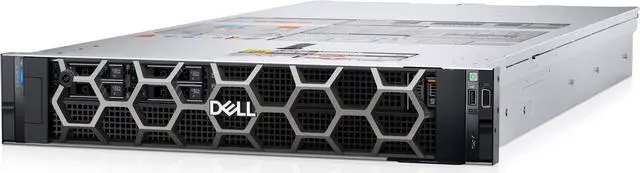

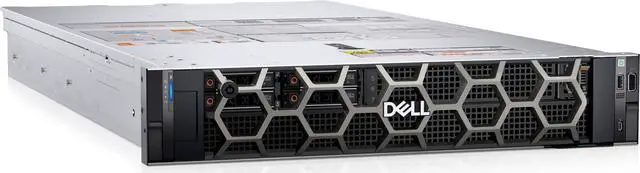

Dell PowerEdge XE9640 Rack Server - AI/ML/HPC Server

Be the first to review this product...

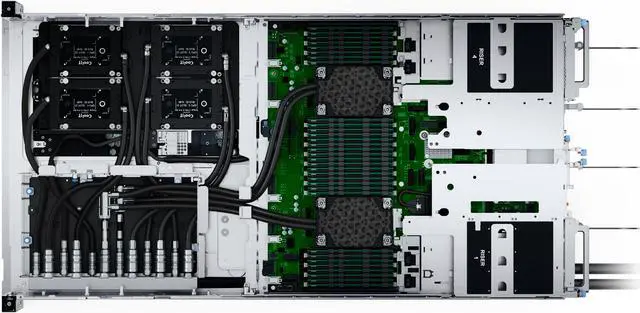

WORKLOADS: Meet the demands of AI, ML, DL and HPC with the high performance liquid-cooled server
PROCESSOR: Two 4th Generation Intel Xeon Scalable processors
MEMORY:
8 DIMMS, 16 DIMMs and 32 DIMMs for XE9640 NVIDIA GPU, up to 2TB
Only 16 DIMM slots are supported out of 32 DIMMs for XE9640 Intel GPU, up to 1TB
Front: STORAGE: Up to 4 x 2.5-inch NVMe SSD drives max 61.44 TB
ACCELERATORS: 4 Intel Data Center Max 1550 OAM 600W with Xe Link or 4 NVIDIA H100 SXM 700W NVLINK GPUs

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Detailed Specifications

Model
Brand	DELL
Series	PowerEdge XE9640

Details
Workload	Meet the demands of AI, ML, DL and HPC with the high performance liquid-cooled server
Type	Rack
Rack Height	2U
Security	Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China

Processor
CPU Type	Intel Xeon Scalable
# of Processors Installed	0
MAX Processors	2
Chipset	Intel C741

Memory
Installed Memory Size	No
Memory Type	DDR5
Max Memory Capacity	2TB

Storage
Hard Drive (Installed)	None
HDD Interface	SATA/SAS
SSD (Installed)	No

Graphic Controller
Graphic Type	4 Intel Data Center Max 1550 OAM 600W with Xe Link or 4 NVIDIA H100 SXM 700W NVLINK GPUs

Expansion & Ports
Expansion Bays	Front: STORAGE - Up to 4 x 2.5-inch NVMe SSD drives max 61.44 TB
Other ports	Front ports - 1 x iDRAC Direct (Micro-AB USB) port - 1 x USB 2.0 - 1 x VGA Rear ports - 1 x USB 2.0 - 1 x USB 3.0 - 1 x RJ45 iDRAC9 ethernet port

Software
Operating System	No

Dimensions & Weight
Dimensions	3.41" x 18.97" x 36.47"
Weight	102.07 lbs.

Additional Information
First Listed on Newegg	August 28, 2024
