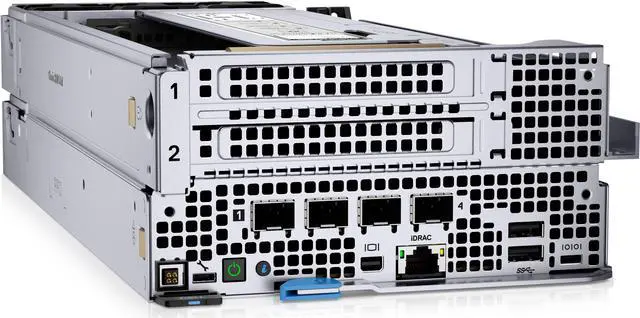

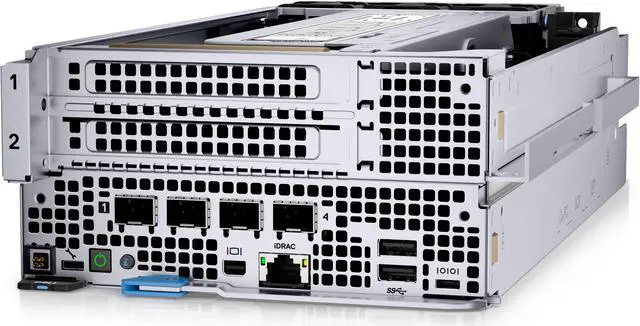

DELL PowerEdge XR4520c Rack Server Intel Xeon Scalable DDR4 None Hard Drive (Installed)
- WORKLOADS: VDI, vSAN/ VM, Machine vision, Point-of-sale, Video surveillance, Data compression
- PROCESSOR: Up to 8 x M.2 NVMe drives
- MEMORY: One 3rd Generation Intel Xeon D Scalable processor with up to 20 cores
- STORAGE:
- 8 x M.2 NVMe SSDs on PCIe Add-in card
- 4 x M.2 NVMe SSDs on M.2 riser module
- ACCELERATORS: Up to 2 x 150W single-width GPU / 1 x 250W double-width GPU
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Detailed Specifications
| Brand | DELL |
|---|---|
| Series | PowerEdge XR4520c |
| Workload | VDI, vSAN/ VM, Machine vision, Point-of-sale, Video surveillance, Data compression |
|---|---|
| Type | Rack |
| Rack Height | 2U |
| Security | Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| CPU Type | Intel Xeon Scalable |
|---|---|
| # of Processors Installed | 0 |
| MAX Processors | 1 |
| Installed Memory Size | No |
|---|---|
| Memory Type | DDR4 |
| Max Memory Capacity | 512GB |
| Memory Features | Supports RDIMM 256 GB max and LRDIMM 512 GB max, with speeds up to 2933 MT/s Supports registered ECC DDR4 DIMMs only |
| Number of Memory Slots | 4 |
| Hard Drive (Installed) | None |
|---|---|
| HDD Interface | SATA/SAS |
| SSD (Installed) | No |
| Graphic Type | Up to 2 x 150W single-width GPU / 1 x 250W double-width GPU |
|---|
| Expansion Bays | 8 x M.2 NVMe SSDs on PCIe Add-in card 4 x M.2 NVMe SSDs on M.2 riser module |
|---|---|

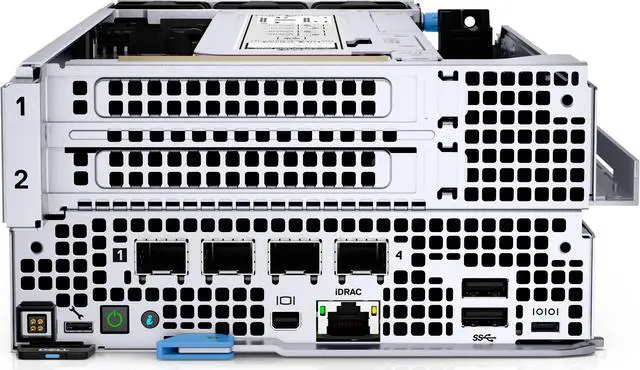

| Other ports | Front ports - 1 x iDRAC Direct (Micro-AB USB) port - 2 x USB 3.0 - 1 x Serial port - 1 x Mini-DisplayPort - 1 x RJ45 iDRAC9 ethernet port |
| Operating System | No |
|---|
| Dimensions | 3.27" x 6.58" x 13.48" |
|---|---|
| Weight | 10.34 lbs. |
| First Listed on Newegg | August 28, 2024 |
|---|
