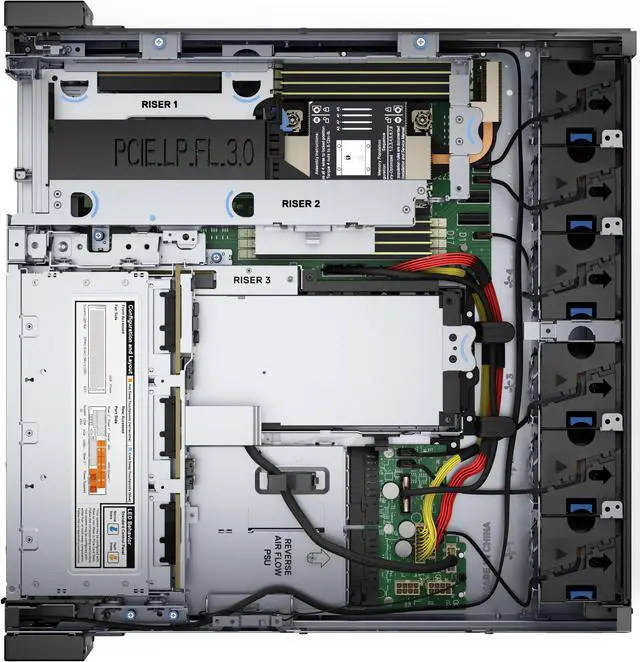

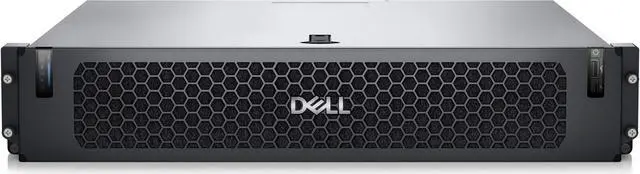

DELL PowerEdge XR12 Rack Server Intel Xeon Scalable DDR4 None Hard Drive (Installed)

WORKLOADS: Telecommunications, Government/Military, Retail and restaurants
PROCESSOR: One 3rd Generation Intel Xeon Scalable processor with up to 36 cores
MEMORY:
Eight DDR4 DIMM slots, supports RDIMM 512 GB max or LRDIMM 1 TB max, speeds up to 3200 MT/s
Up to four Intel Optane PMem 200 Series slots, 512 GB max
STORAGE:
Up to 6 x 2.5" 12Gb SAS, 6Gb SATA, NVMe SSDs
6 x NVMe (4 NVMe direct attach or 6x with H755P RAID controller)
Optional BOSS 1,0 for boot
ACCELERATORS:
2 x 75 W/150 W (SW)
2 x 300 W (DW/FH/FL)

Please note that this product is non-returnable and non-refundable.

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Detailed Specifications

Model
Brand	DELL
Series	PowerEdge XR12

Details
Workload	Telecommunications, Government/Military, Retail and restaurants
Type	Rack
Rack Height	2U
Security	Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Memory
Installed Memory Size	No
Memory Type	DDR4
Max Memory Capacity	1TB
Memory Features	Supports RDIMM 512 GB max or LRDIMM 1 TB max, speeds up to 3200 MT/s Supports registered ECC DDR4 DIMMs only
Number of Memory Slots	8

Graphic Controller
Graphic Type	2 x 75 W/150 W (SW) 2 x 300 W (DW/FH/FL)

Expansion & Ports
Expansion Bays	Up to 6 x 2.5" 12Gb SAS, 6Gb SATA, NVMe SSDs 6 x NVMe (4 NVMe direct attach or 6x with H755P RAID controller) Optional BOSS 1,0 for boot
Other ports	Front Ports - 1 x iDRAC Direct (Micro-AB USB) port - 1 x USB 2.0 Rear Ports - 1 x USB 2.0 - 1 x iDRAC dedicated port - 1 x USB 3.0 - 1 x Serial port - 1 x VGA Internal Ports - 1 x USB 3.0

Software
Operating System	No

Dimensions & Weight
Dimensions	3.41" x 19" x 18.22"

Additional Information
First Listed on Newegg	August 28, 2024
