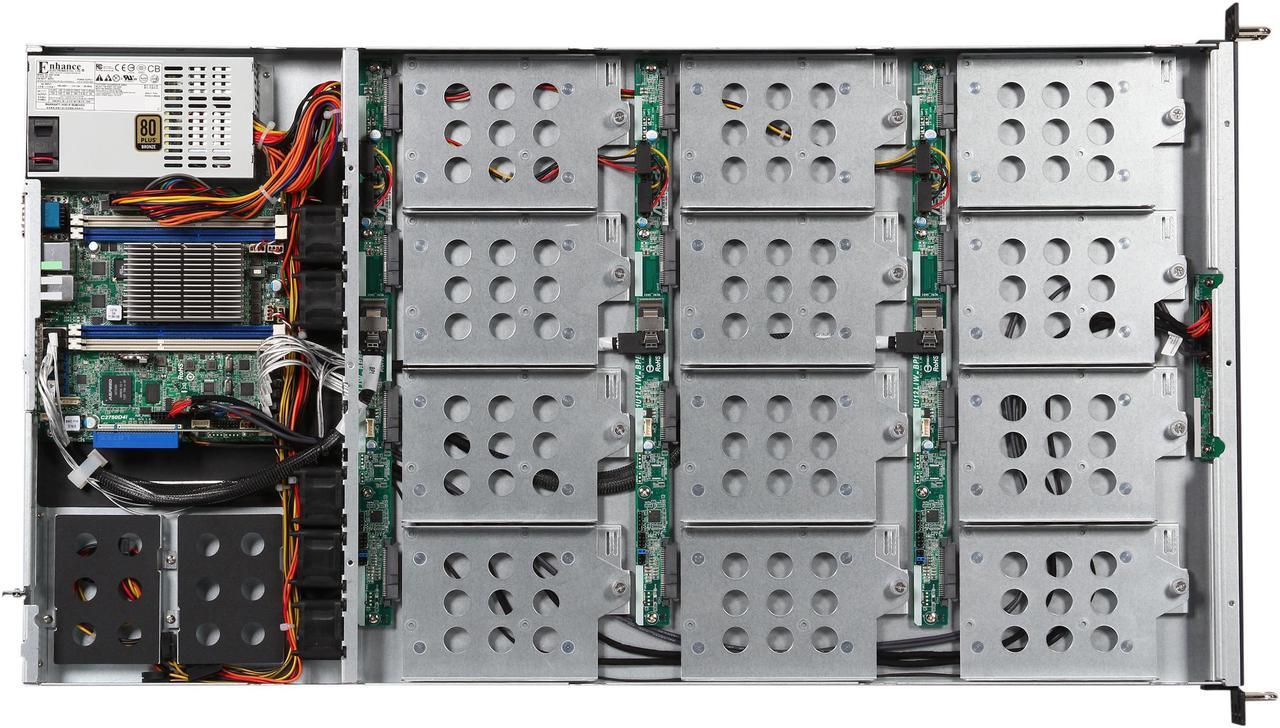

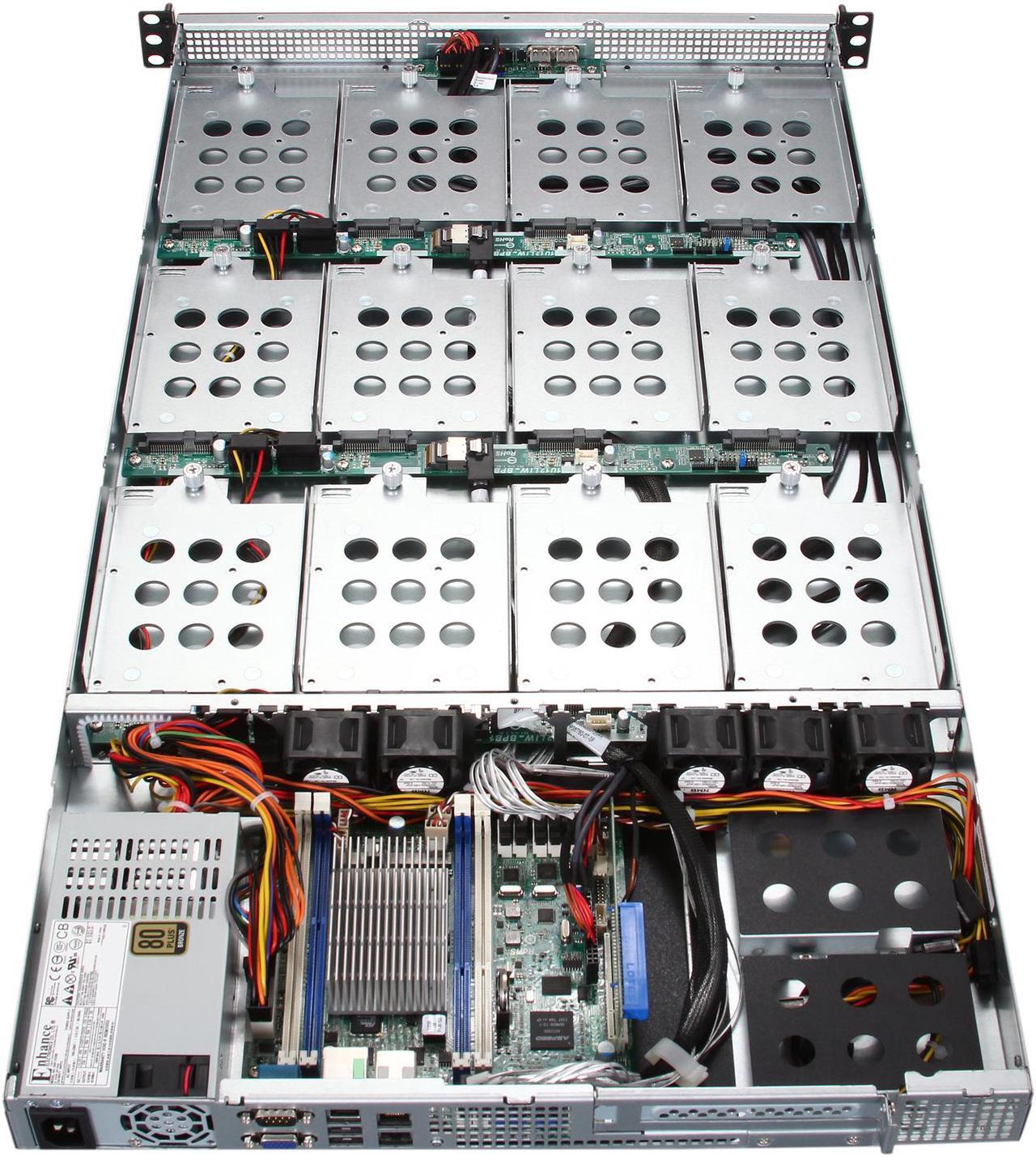

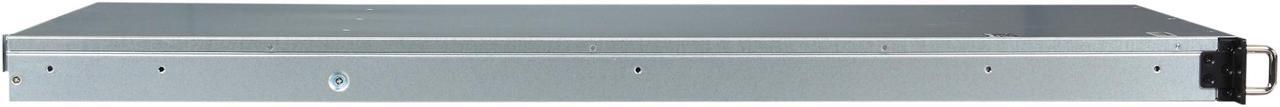

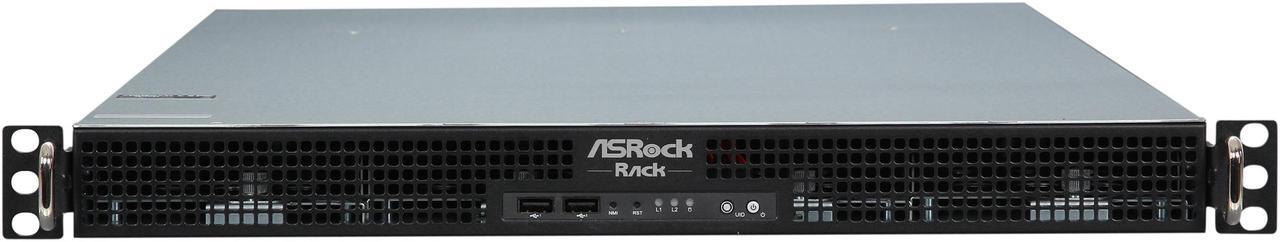

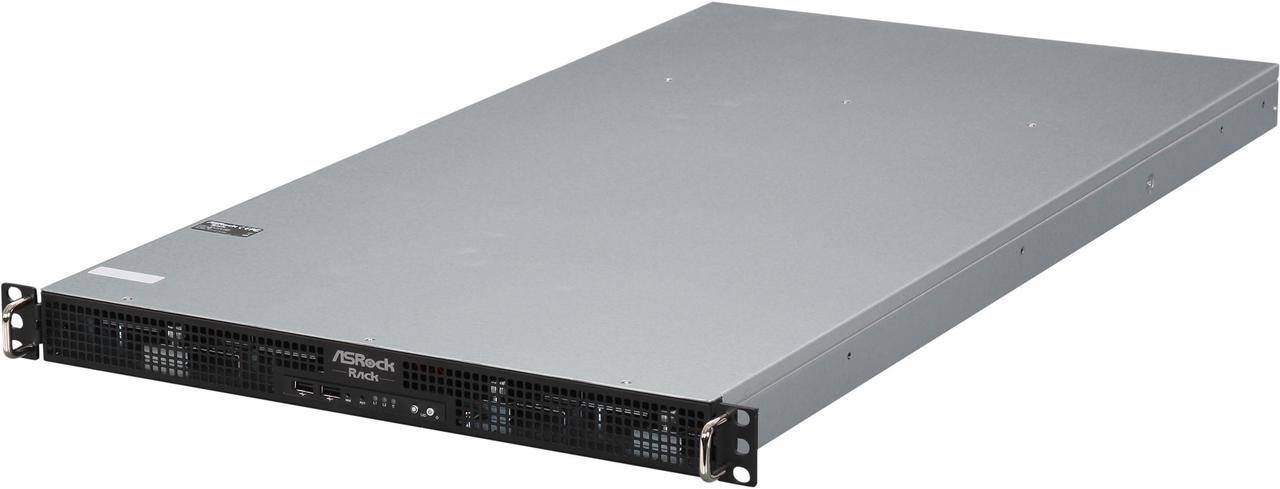

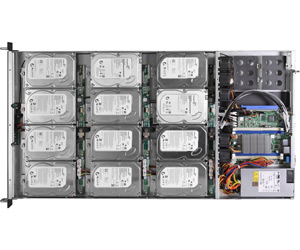

ASRock Rack Server System Intel Avoton C2750 Octa Core 12 Bay 3.5" SATA HDD 1U12LW-C2750

(2) Write a Review
  • Intel Avoton C2750 Octa-Core Processor
  • DDR3 1600/1333 Dual-channel Max. 64GB
  • Dual Intel i210 Gigabit LAN ports (with Teaming function)
Overview
Specs
Reviews (2)



ASRock Rack Server System

Highlights

ASRock Rack Server System
  • Intel Avoton C2750 Octa-Core Processor
  • DDR3 1600/1333 Dual-channel Max. 64GB
  • 2 SATA3 6.0Gbps, 4 SATA2 3.0Gbps by C2750
  • 4 x SATA3 6.0Gbps by Marvell SE9230, 2 x SATA3 6.0Gbps by Marvell SE9172
  • Dual Intel i210 Gigabit LAN ports (with Teaming function)
  • 3 x USB 2.0 ports (2 rear ports + 1 via headers or 1 rear ports + 2 via headers controlled by USB_SEL1 and USB_SEL2 jumper)
  • 1 x PCI-E x8 slot


Specifications

 System
Form Factor 1U Rackmount
Chassis Model IU12LW
Gross Weight 26.5lbs (12kg)
Dimensions 31.5 x 16.9 x 1.7 inches (800 X 430 X 43.5mm)
Supported MBs C2750D4I (Mini-ITX, 6.7" x 6.7")
 External Drive Bays
Front Side Drive Bay 12 Bay 3.5" SATA HDD (6Gbps)
Front Side Backplane 3 x backplane with 1 mini SAS 8087 connector to 4 SATA
Internal Side 2 Bay 2.5" SATA HDD (6Gbps)
Internal Side Backplane n/a
 Power Supply
Type 1U, Single
Output Watts 250
Efficiency BRONZE
 System Fan
Fans 40 x 56mm Fan x 5
 MB Physical Status
Form Factor Mini ITX
Dimensions 6.7" x 6.7" (17.02 x 17.02 cm)
 Processor System
CPU Intel® Octa Core Avoton C2750 Processor
Socket FCBGA1283 SOC
 System Memory
Capacity 4 x 240-pin DDR3 DIMM slots
Support up to 64GB DDR3 ECC and UDIMM
Type Dual Channel DDR3 memory technology
Supports DDR3 1600/1333 ECC and UDIMM
Voltage 1.5V, 1.35V
 Expansion Slots
PCIe 2.0 x 8 1 slot (x8 mode)
 Storage
SATA Controller Intel® C2750: 2 x SATA3 6.0Gbps, 4 x SATA2 3.0Gbps
Additional Storage Controller Marvell SE9172: 2 x SATA3 6.0Gbps
Marvell SE9230: 4 x SATA3 6.0Gbps
 Ethernet
Interface Gigabit LAN 10/100/1000Mbps
LAN Controller
  • 2 x Intel® i210
  • Supports Wake-On-LAN
  • Supports Energy Efficient Ethernet 802.3az
  • Supports Dual LAN with Teaming function
  • Supports PXE
 Management
BMC Controller ASPEED AST2300: IPMI (Intelligent Platform Management Interface) 2.0 with iKVM support
IPMI Dedicated LAN 1 x Realtek RTL8211E for dedicated management LAN
Features Watch Dog
NMI
 Graphics
Controller ASPEED AST2300
VRAM DDR3 16MB
Output Supports D-Sub with max. resolution up to 1920 x 1200 @ 60Hz

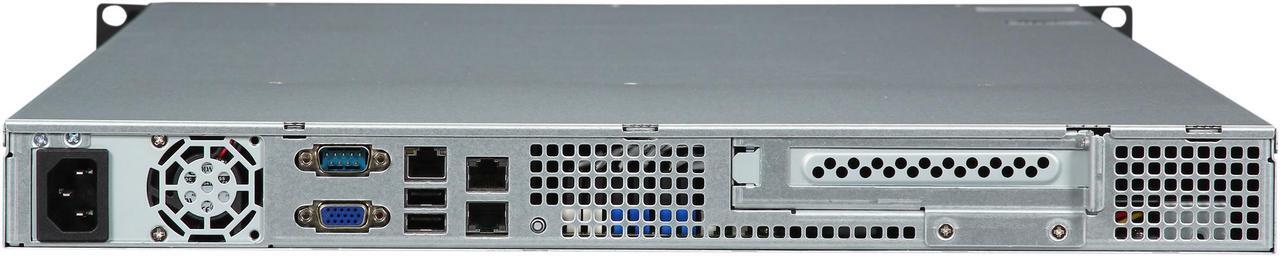

 Rear Panel I/O
VGA Port D-sub x 1
USB 2.0 Port 2
Lan Port 2 x RJ45 Gigabit Ethernet LAN ports
1 x RJ45 Dedicated IPMI LAN port
LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Port 1 (COM1)
UID Button/UID LED 1
 Internal Connector
Auxiliary Panel Header 1 (include chassis intrusion, location button & LED, front LAN LED)
IPMB Header 1
Fan Header 6 x 4-pin
ATX Power 1 (24-pin)
USB 2.0 Header 1 (supports 1 via headers or 2 via headers controlled by USB_SEL1 and USB_SEL2 jumper)
Front Panel 1
 System BIOS
BIOS Type 64Mb AMI UEFI Legal BIOS
BIOS Features
  • Plug and Play (PnP)
  • ACPI 1.1 Compliance Wake Up Events
  • SMBIOS 2.3.1 Support
  • DRAM Voltage Multi-adjustment
  • ASRock Instant Flash
 Hardware Monitor
Temperature CPU Temperature Sensing
Motherboard Temperature Sensing
Fan CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control
Voltage Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, +1.1V,+1.0V, +BAT, 3VSB, 5VSB
 Supported Operating Systems
Operating
Systems		 Microsoft Windows
  • Server 2008 R2 (x64)
  • Server 2012 (x64)
Linux
  • RedHat Enterprise Linux Server 5.5/6.4 (x32 and x64)
  • CentOS 5.5 / 6.4 (x32 and x64)
  • SUSE Enterprise Linux Server 11 SP1 (x32 and x64)
  • FreeBSD 9.1 (x32/x64)
  • Fedora core 18 (x64)
  • UBuntu 12.04/12.10 (x64)
Virtual
  • VMWare ESXi 5.1 (Marvell SE9230 and Marvell SE9172 has no driver can support VMWare)
 Environment
Temperature Operating temperature: 41 - 95°F (10 - 35°C) / Non-operating temperature: -40 - 158°F (-40 - 70°C)

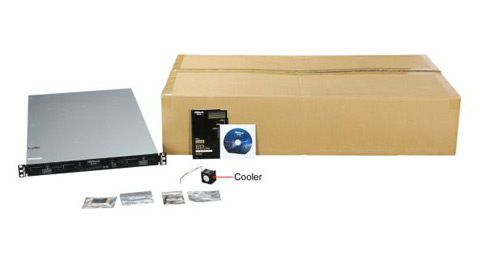

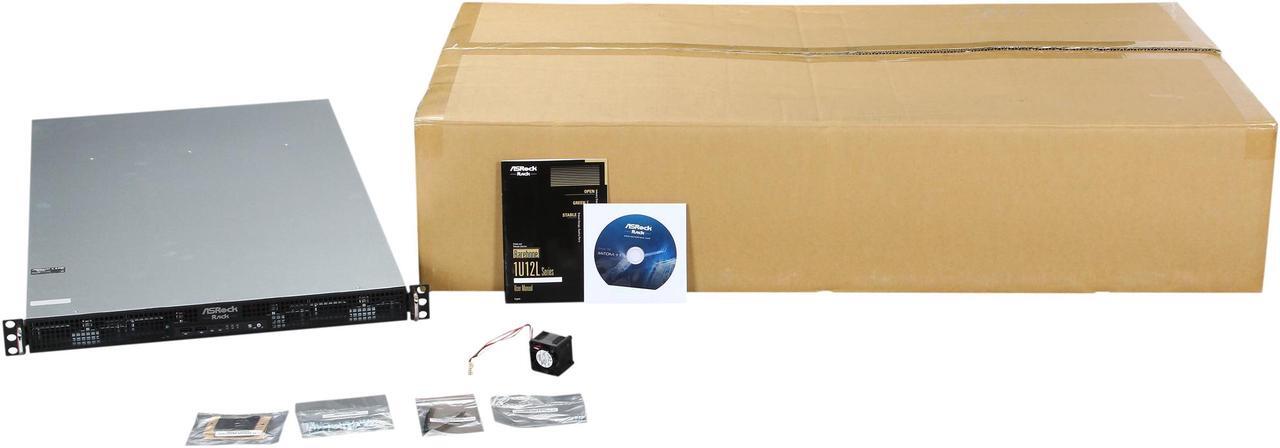

WHAT'S IN THE BOX

ASRock Rack Server System

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
