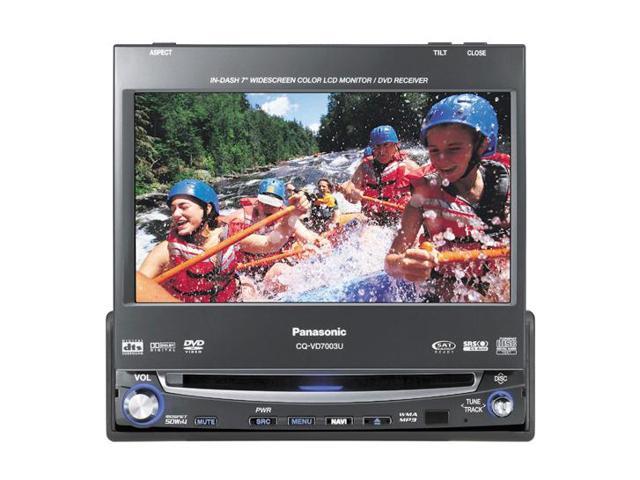

Panasonic In-Dash 7" Widescreen Color LCD Monitor/DVD Receiver

Be the first to review this product...

Panasonic
Screen Size(diag.) & Aspect: 7 inch, 16:9
Number of Pixels: 336,960 pixels
Touch Panel Operation
LCD Drive Method: TFT Active Matrix
Internal Light Source: L-shaped CFL
Motorized Operation
Up/Down Swivel
One-Touch Tilt
Dimmer: Auto/Manual

Overview

Specs

Reviews

Take your DVDs on the road with this large, 7" diagonal, 16:9 widescreen LCD that delivers clear, high-resolution images. Plus, an internal backlight and non-glare surface enhance your viewing experience. And, as an added touch of convenience, all you have to do is press the tilt button to quickly fold the screen forward (down to 25 degrees) for easy access to dash and air conditioning controls.

General
Brand	Panasonic
Type	In-dash DVD Receiver

Connection
Connectors	VTR Input (RCA): 1 set, 1.0Vp-p, 75 ohms VTR Output (RCA): 1 set, 1.0Vp-p, 75 ohms Audio Input: 2.0V rms Audio Output/Preamp Output (RCA): 2.0V rms (0dB), 600 ohms Camera Input CD Changer Input (RCA): 1 set Speaker Connector: Front/Rear

Spec
Display	Screen Size(diag.) & Aspect: 7 inch, 16:9 Number of Pixels: 336,960 pixels Touch Panel Operation LCD Drive Method: TFT Active Matrix Internal Light Source: L-shaped CFL Motorized Operation Up/Down Swivel One-Touch Tilt Dimmer: Auto/Manual
Playback Formats	DVD Video Playback: 5.1 channel Video CD Playback Music CD Playback MP3 Playback (CD-R/RW) WMA Playback (CD-R/RW) Anti-Shock Memory
Power Supply	Max. Power Output: 50W x 4 (MOS-FET)

Features
Features	Take Your DVDs on the Road Take your DVDs on the road with this large, 7" diagonal, 16:9 widescreen LCD that delivers clear, high-resolution images. Plus, an internal backlight and non-glare surface enhance your viewing experience. And, as an added touch of convenience, all you have to do is press the tilt button to quickly fold the screen forward (down to 25 degrees) for easy access to dash and air conditioning controls. Simple Touch-screen Operation To operate most functions, all you need to do is touch the screen; it's that simple. The intuitive graphical user interface features clear, color graphics and text that let you "touch and choose" what you want, so you can start using your system from the very first day quickly and easily. High Power Amp - Pump up the Power Discover greater musical enjoyment with more powerful reproduction. This 4-channel MOS-FET built-in amp delivers 50W to each speaker for a 200W total output. Unlike bipolar transistors, MOS-FETs have low crossover distortion for excellent signal-to-noise ratio in the high range. These power transistors are ideal for handling DVD's frequency response which is more dynamic than CDs. Their high efficiency also means low power consumption and low heat radiation. Speaker Impedance: 4 ohms Frequency Response (+/-1dB): DVD (192kHz sampling) 20Hz - 20kHz Frequency Response (+/-1dB): CD 20Hz - 20kHz S/N Ratio (IHF, A): 100dB Private Mode Equalizer High Pass Filter Low Pass Filter Bass/Treble: Equalizer Balance, Fader: 5.1 ch control CD Changer Control Output Level: 2V rms (0dB), 600 ohms FM/AM Tuner Number of Presets: 18 FM, 6 AM AM Usable Sensitivity(S/N 20dB): 25dB/µV FM Usable Sensitivity(75 ohms, S/N 30dB): 12.2dBf 50dB Quieting Sensitivity(75 ohms): 15.2dBf Graphical User Interface (GUI) Rotary Volume Control Multi-Function Joystick Wireless Remote Control ID Code Security: 4-digit ID code security

Additional Information
Date First Available	October 30, 2006

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies

Return for refund within: Non-refundable

Return for replacement within: 30 days

This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
