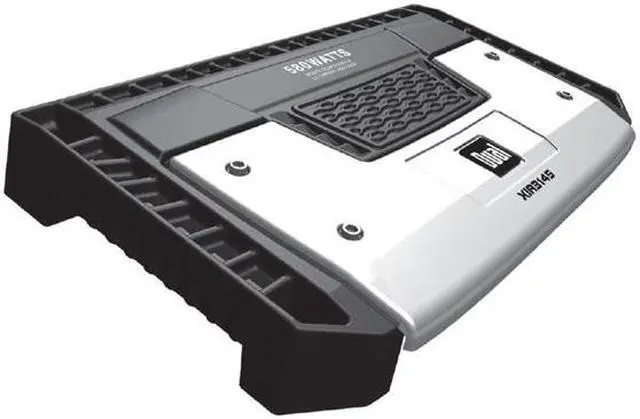

Dual 580W 2 Channels Bridgeable Amplifier

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Dual
  • Bridgeable
  • Built-in Crossover
  • Class AB
  • CEA-2006 Compliant

  • Specifications
  • Warranty & Returns
  • Reviews

General

|
Brand
Dual
Amplifier Class
Class AB
Amplifier Channels
2 Channels

Power

|
Max Power
580W
RMS Power
100w x 2 @ 4 ohms

145w x 2 @ 2 ohms
Bridged Power
290w x 1 @ 4 ohms

Specification

|
Input Voltage
Low level input range: 200mV - 6V (10k ohms)

High level input range: 2V - 10V (100 ohms)
Bridgeable
Yes
Built-in Crossover
Yes
Crossover Frequency Range
40 - 400Hz, 12dB/octave
Bass Boost Control
0 - 12dB @ 45Hz
Load Impedance Capability
2 - 8 ohms (stereo), 4 - 8 ohms (bridged)
Fuse Rating
20 amp ATO x 2, 2 amp ATO x 1
CEA-2006 Compliant
Yes
Dimensions
16.02" x 2.36" x 9.65"

Feature

|
Features
Low level inputs (RCA)

High level inputs (speaker)

Variable input level control

Selectable crossover (high pass/low pass/full range)

Variable high pass crossover

Variable low pass crossover

12dB Variable bass boost

Die-cast aluminum heatsink

illuminite circuit output (works with DUAL illuminite speakers)

PWM MOSFET power supply

2 Ohm stable stereo operation

Class A/B output design

Stereo/bridged simultaneous operation

Direct wire connection terminals

Recessed front mounted controls

Thermal overload protection

Auto-reset speaker short circuit protection

Reverse polarity protection

Bi-color LED status indicator

Additional Information

|
Date First Available
May 27, 2010
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
Ownership: 1 week to 1 month
Verified Owner
4/ 5
Not Bad 10/12/2010 1:25:45 PM

Pros: It works, after reading the 1st review I had doubts but I have not had a problem yet. I have pused this amp to the limit and I have tired on it on two different subs and it pushed them ok. The fuse located next to the battery kept coming lose I thought it was the amp, so I removed the fuse and it has been playing fine. I bought the extended warranty just in case. i have it had for about a month now.

Cons: So far none.

Overall Review: When you see an item with an $80.00 discount it's a good idea to pay and additional $10.00 and buy the extended warranty.

Did you find this review helpful?
Ownership: 1 month to 1 year
Verified Owner
1/ 5
Nice looking, but total junk 9/24/2010 9:33:47 AM

Pros: Nice setup, includes speaker inputs as well as low level rca input. Bridgeable. a few other things.

Cons: Piece of junk. I just installed a second, the first was DOA. I used it for a day, and now the left channel is blown. I'm pretty confident in my installation, been doing this a long time. and it's junk. it's too late to RMA a 2nd time, so im stuck with a half of a brick. won't buy Dual again.

Overall Review: while it worked for a few hours, it seemed to be fine.
