11th Gen Intel Core i7-11700 Octa-Core Processor (16M Cache, up to 4.9 GHz)
Windows 11 Pro and 1 month trial of Microsoft 365 for new customers
512GB PCIe NVMe M.2 SSD and 16GB 2933 MHz DDR4 RAM (expandable up to 128GB)
TPM 2.0 Security for secure data encryption
Small Form Factor - weighs 11.02 lbs
Seamless connectivity with Wi-Fi 6 (802.11ax) and Dual-Band Bluetooth 5.2
Front I/O: 1x Headphone, 1x 3.5mm combo audio jack, 2x USB 2.0 Type-A, 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 1 Type-A, 2x USB 3.2 Gen 2 Type-A, 1x 2-in-1 Card Reader (SD/MMC), and 1x Smart Card Reader
Rear I/O: 1x RJ45 Gigabit Ethernet, 1x HDMI 1.4, 1x VGA Port, 1x Display port 1.2, 2x PS2, 3 x Audio jacks, 4x USB 2.0 Type-A
Expansion slots include 1x PCIe 4.0 x 16, 2x PCIe 3.0 x 1, 1x M.2 connector for WiFi, 2x M.2 connector for storage, 4x DDR4 U-DIMM slot
Wired keyboard and mouse included
Overview
Specs
Reviews (4)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASUS D700SC-XH704
Model
Brand
ASUS
Series
ExpertCenter D700SC
Model
D700SC-XH704
Part Number
90PF02W1-M00N10
Quick Info
Type
Business Desktops & Workstations
Form Factor
Slim/Small Form Factor
Usage
Business
Color
Black
Processor
Intel Core i7-11700 2.50 GHz
Processor Main Features
64 bit 8-Core 16-Thread Processor
Cache Per Processor
16 MB L3 Cache
Memory
16 GB DDR4
Storage
512 GB M.2 NVMe PCIe 3.0 SSD
Optical Drive
DVD reader 8X
Graphics
Intel UHD Graphics 750
Power Supply
300W power supply (80+ Platinum, peak 390W)
Operating System
Windows 11 Pro 64-bit
Special Features
Trusted Platform Module (TPM) 2.0
Motherboard
Chipset
Intel B560
CPU
CPU Type
Intel Core i7 11th Gen
CPU Name
Intel Core i7-11700
L3 Cache Per CPU
16 MB
CPU Main Features
64 bit 8-Core 16-Thread Processor
Graphics
GPU/VGA Type
Intel UHD Graphics 750
Graphics Interface
Integrated video
Memory
Memory Capacity
16GB DDR4
Memory Spec
8 GB x 2
Memory Slot (Total)
4
Memory Slot (Available)
2
Maximum Memory Supported
128 GB
Storage
SSD
512GB PCIe
HDD
No
Optical Drive
Optical Drive Type
DVD±RW
Optical Drive Spec
DVD reader 8X
Audio
Audio Features
High Definition 7.1 Channel Audio
Communications
LAN Chipset
Intel WGI219V
LAN Speed
10/100/1000Mbps
WLAN
802.11ax Wireless LAN
WiFi Generation
Wi-Fi 6
Bluetooth
Bluetooth 5.2 (Dual band) 2x2

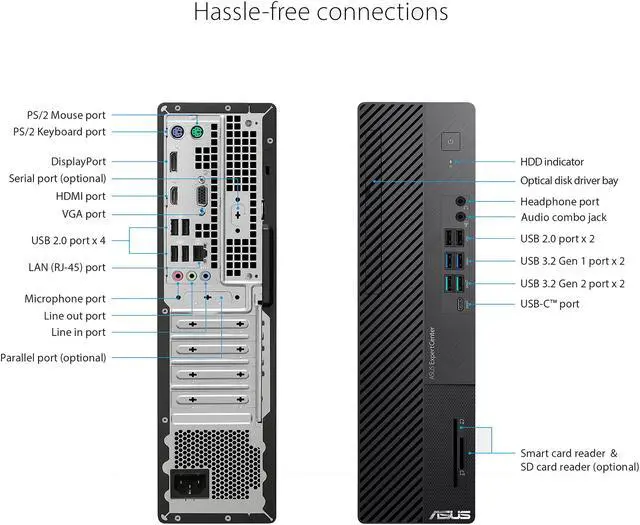

Front Panel Ports
Front USB
2 x USB 2.0 Type-A 1 x USB 3.2 Gen 2 Type-C 2 x USB 3.2 Gen 1 Type-A 2 x USB 3.2 Gen 2 Type-A
Front Audio Ports
1 x Headphone 1 x 3.5mm combo audio jack
Card Reader
1 x 2 in 1 card reader SD / MMC 1 x Smart card reader
Back Panel Ports
PS/2
2
Video Ports
1 x HDMI 1.4 1 x VGA Port 1 x Display port 1.2
Rear USB
4 x USB 2.0 Type-A
RJ45
1 port
Rear Audio Ports
3 ports

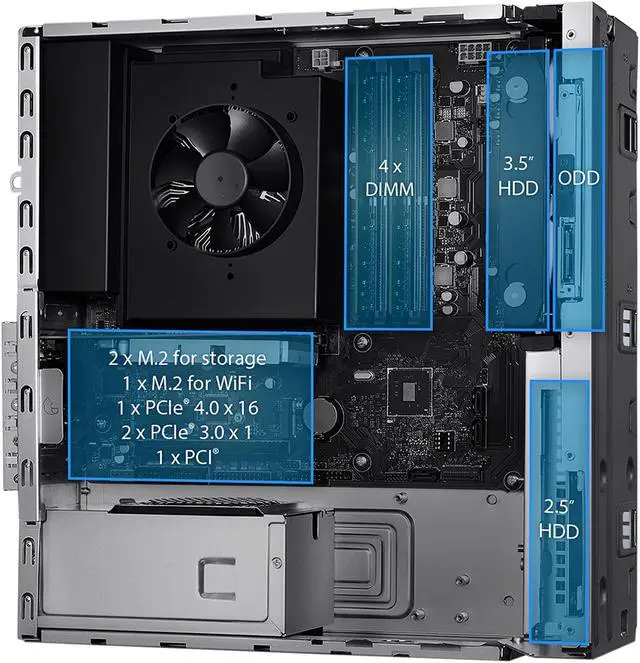

Expansion
Internal Bays
2.5" x 1 3.5" x 1
PCI Slots (Available/Total)
1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 1 x M.2 connector for WiFi 2 x M.2 connector for storage
