What graphics card is used in the ROG NUC 16 Edition 20 Mini PC?

The ROG NUC 16 Edition 20 Mini PC uses a discrete NVIDIA GeForce RTX 5090 Mobile GPU with 24GB of GDDR7 VRAM.

What is the storage capacity of the ROG NUC 16 Edition 20 Gaming Mini PC?

The storage capacity of the ROG NUC 16 Edition 20 Gaming Mini PC is 2TB, supported by an M.2 2280 PCIe Gen5x4 NVMe SSD.

$5,999^.99

Free 30-day Returns

Limit 99999 per customer.

Sold by Newegg

Shipped by Newegg

Price alert

Add to wish list

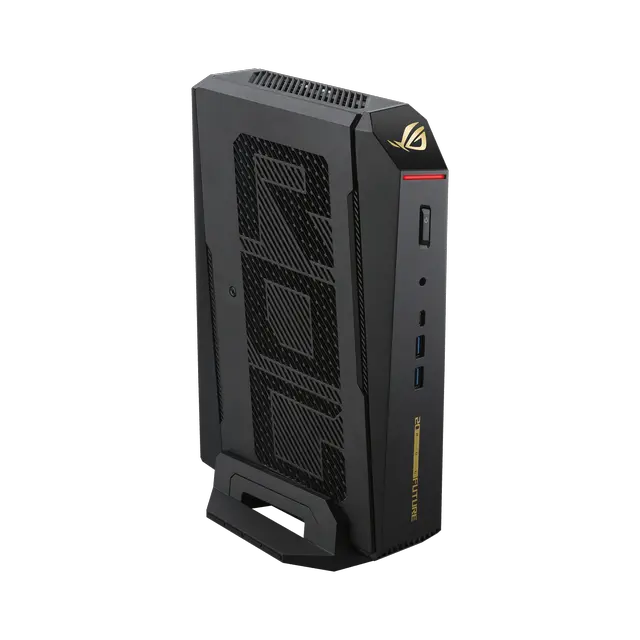

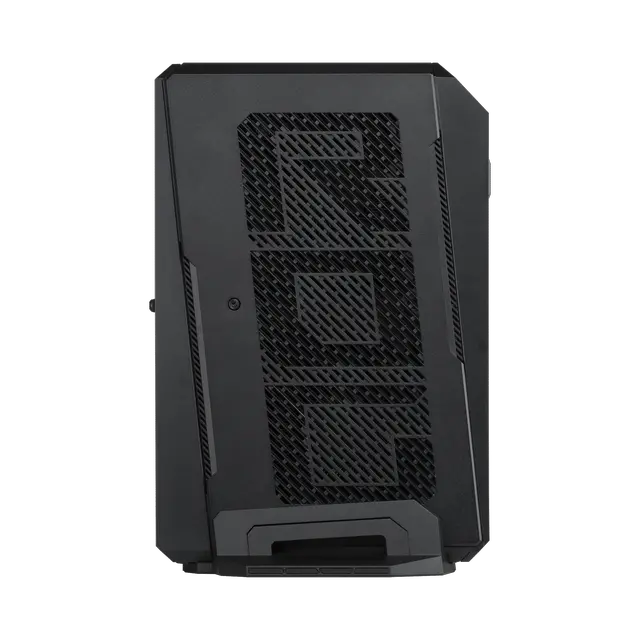

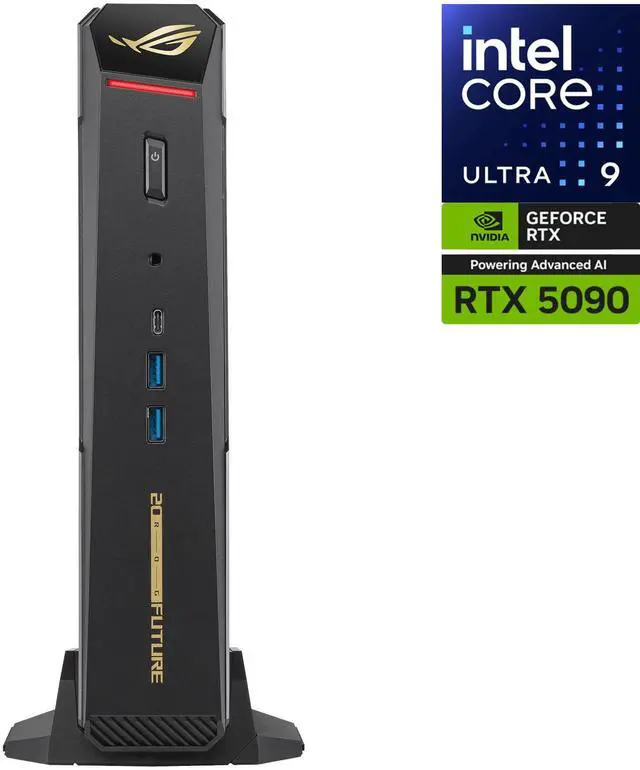

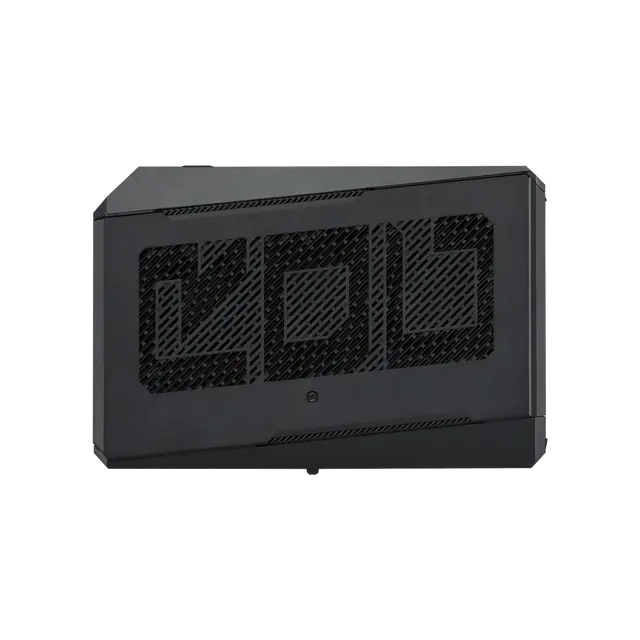

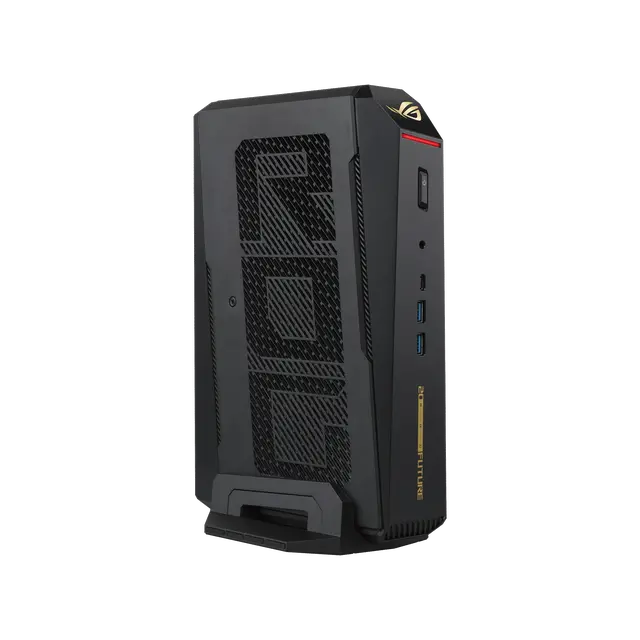

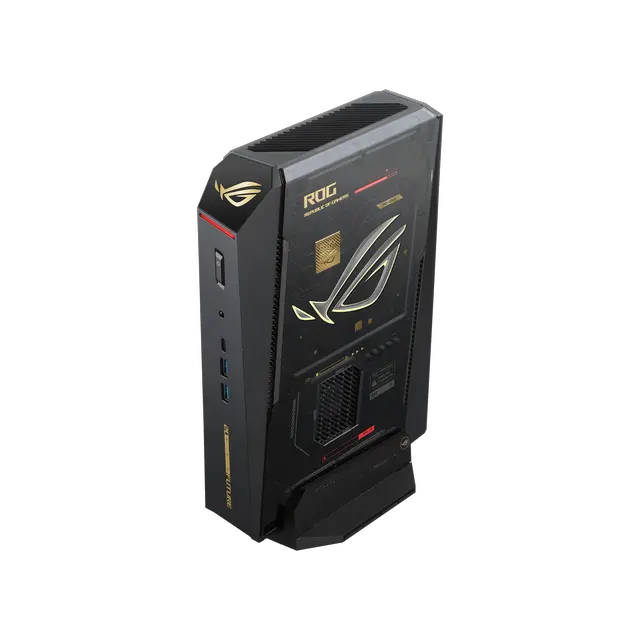

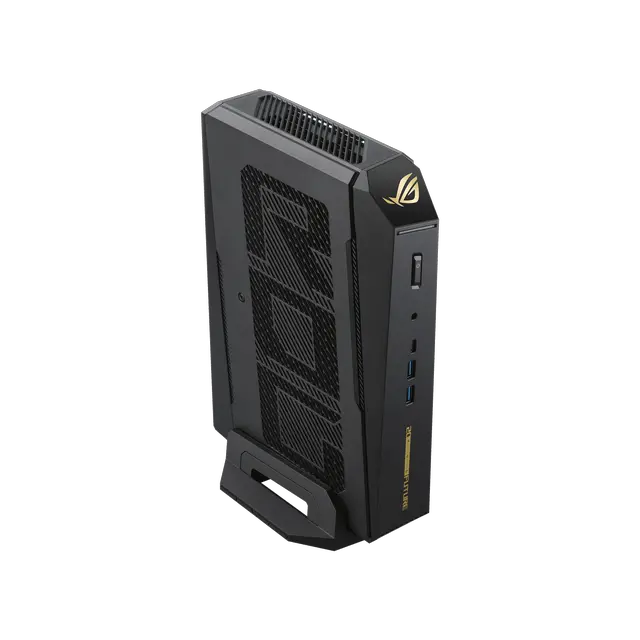

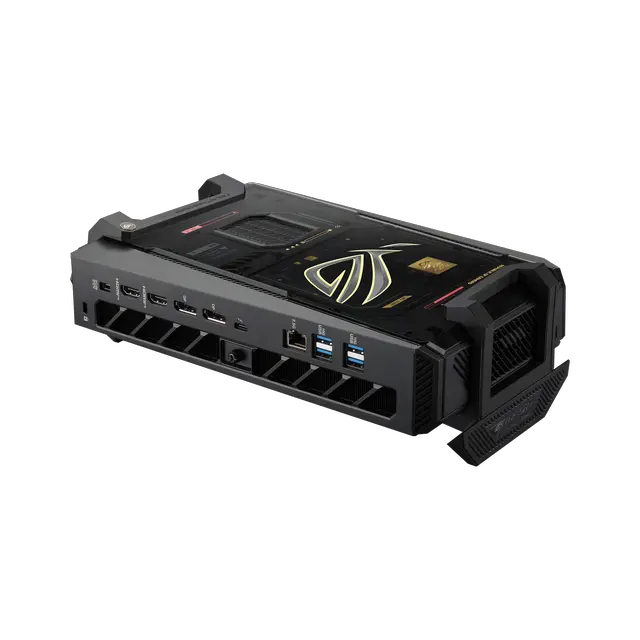

Main image of ROG NUC 16 Edition 20 Gaming Mini PC, RTX 5090 Mobile GPU, Intel Core Ultra 9 290HX Plus, 64GB DDR5 RAM, 2TB PCIe Gen5 SSD, Ultra-Compact Small Form Factor Design, WiFi 7, Thunderbolt 4, 3 Yr Warranty

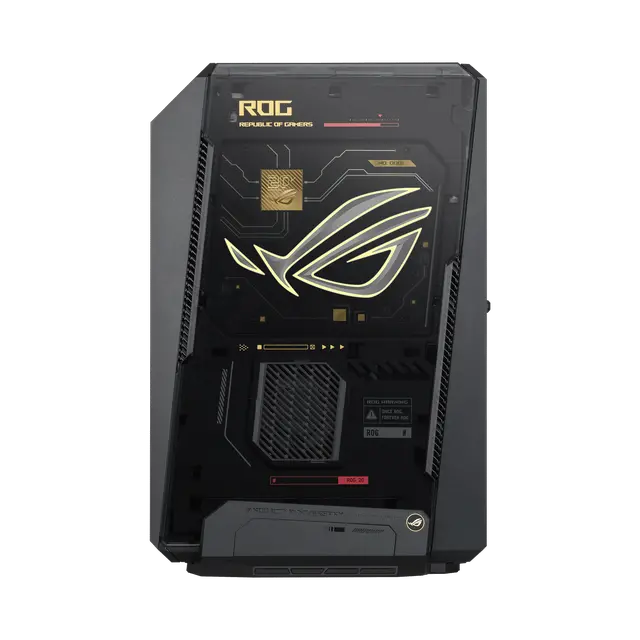

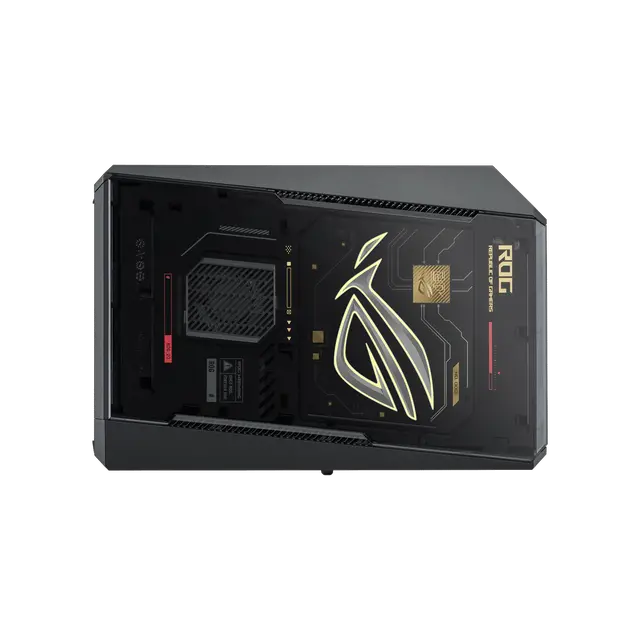

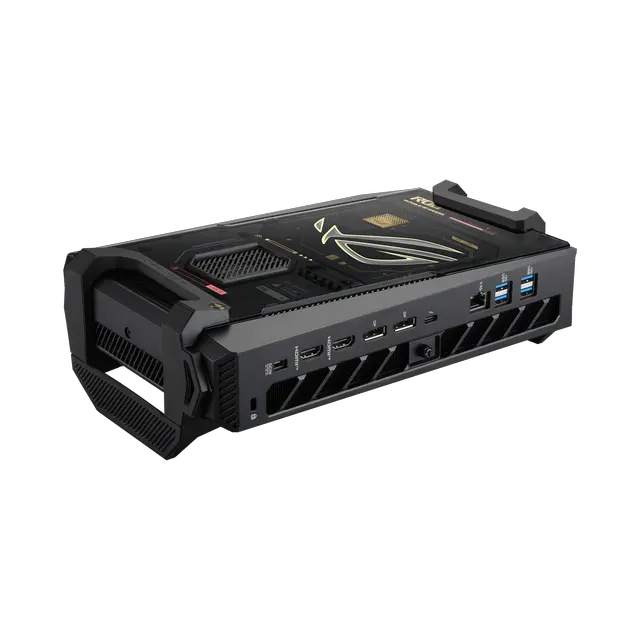

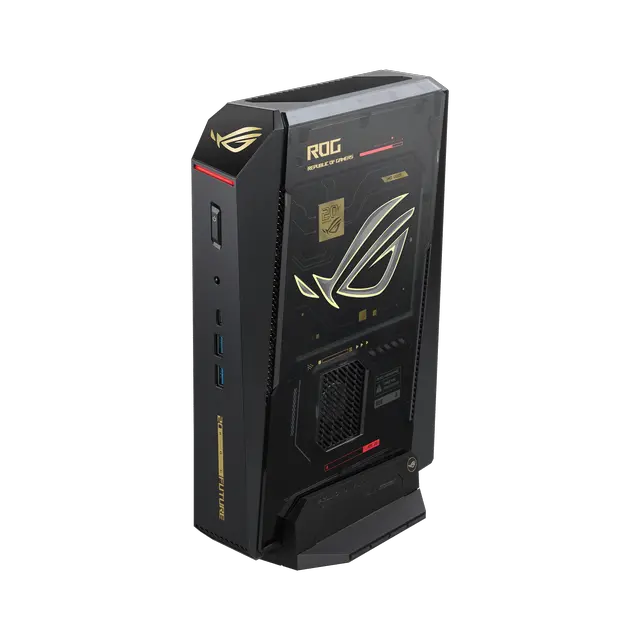

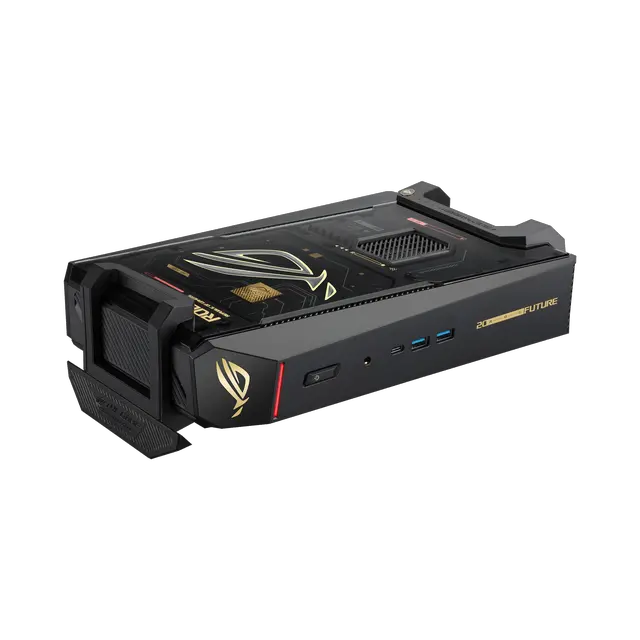

Alt view image 2 of 20 - ROG NUC 16 Edition 20 Gaming Mini PC, RTX 5090 Mobile GPU, Intel Core Ultra 9 290HX Plus, 64GB DDR5 RAM, 2TB PCIe Gen5 SSD, Ultra-Compact Small Form Factor Design, WiFi 7, Thunderbolt 4, 3 Yr Warranty

Alt view image 3 of 20 - ROG NUC 16 Edition 20 Gaming Mini PC, RTX 5090 Mobile GPU, Intel Core Ultra 9 290HX Plus, 64GB DDR5 RAM, 2TB PCIe Gen5 SSD, Ultra-Compact Small Form Factor Design, WiFi 7, Thunderbolt 4, 3 Yr Warranty

Alt view image 4 of 20 - ROG NUC 16 Edition 20 Gaming Mini PC, RTX 5090 Mobile GPU, Intel Core Ultra 9 290HX Plus, 64GB DDR5 RAM, 2TB PCIe Gen5 SSD, Ultra-Compact Small Form Factor Design, WiFi 7, Thunderbolt 4, 3 Yr Warranty

Alt view image 5 of 20 - ROG NUC 16 Edition 20 Gaming Mini PC, RTX 5090 Mobile GPU, Intel Core Ultra 9 290HX Plus, 64GB DDR5 RAM, 2TB PCIe Gen5 SSD, Ultra-Compact Small Form Factor Design, WiFi 7, Thunderbolt 4, 3 Yr Warranty

Alt view image 6 of 20 - ROG NUC 16 Edition 20 Gaming Mini PC, RTX 5090 Mobile GPU, Intel Core Ultra 9 290HX Plus, 64GB DDR5 RAM, 2TB PCIe Gen5 SSD, Ultra-Compact Small Form Factor Design, WiFi 7, Thunderbolt 4, 3 Yr Warranty

Alt view image 7 of 20 - ROG NUC 16 Edition 20 Gaming Mini PC, RTX 5090 Mobile GPU, Intel Core Ultra 9 290HX Plus, 64GB DDR5 RAM, 2TB PCIe Gen5 SSD, Ultra-Compact Small Form Factor Design, WiFi 7, Thunderbolt 4, 3 Yr Warranty

Alt view image 8 of 20 - ROG NUC 16 Edition 20 Gaming Mini PC, RTX 5090 Mobile GPU, Intel Core Ultra 9 290HX Plus, 64GB DDR5 RAM, 2TB PCIe Gen5 SSD, Ultra-Compact Small Form Factor Design, WiFi 7, Thunderbolt 4, 3 Yr Warranty

Alt view image 9 of 20 - ROG NUC 16 Edition 20 Gaming Mini PC, RTX 5090 Mobile GPU, Intel Core Ultra 9 290HX Plus, 64GB DDR5 RAM, 2TB PCIe Gen5 SSD, Ultra-Compact Small Form Factor Design, WiFi 7, Thunderbolt 4, 3 Yr Warranty

Alt view image 10 of 20 - ROG NUC 16 Edition 20 Gaming Mini PC, RTX 5090 Mobile GPU, Intel Core Ultra 9 290HX Plus, 64GB DDR5 RAM, 2TB PCIe Gen5 SSD, Ultra-Compact Small Form Factor Design, WiFi 7, Thunderbolt 4, 3 Yr Warranty

Alt view image 11 of 20 - ROG NUC 16 Edition 20 Gaming Mini PC, RTX 5090 Mobile GPU, Intel Core Ultra 9 290HX Plus, 64GB DDR5 RAM, 2TB PCIe Gen5 SSD, Ultra-Compact Small Form Factor Design, WiFi 7, Thunderbolt 4, 3 Yr Warranty

Alt view image 12 of 20 - ROG NUC 16 Edition 20 Gaming Mini PC, RTX 5090 Mobile GPU, Intel Core Ultra 9 290HX Plus, 64GB DDR5 RAM, 2TB PCIe Gen5 SSD, Ultra-Compact Small Form Factor Design, WiFi 7, Thunderbolt 4, 3 Yr Warranty

Alt view image 13 of 20 - ROG NUC 16 Edition 20 Gaming Mini PC, RTX 5090 Mobile GPU, Intel Core Ultra 9 290HX Plus, 64GB DDR5 RAM, 2TB PCIe Gen5 SSD, Ultra-Compact Small Form Factor Design, WiFi 7, Thunderbolt 4, 3 Yr Warranty

Alt view image 14 of 20 - ROG NUC 16 Edition 20 Gaming Mini PC, RTX 5090 Mobile GPU, Intel Core Ultra 9 290HX Plus, 64GB DDR5 RAM, 2TB PCIe Gen5 SSD, Ultra-Compact Small Form Factor Design, WiFi 7, Thunderbolt 4, 3 Yr Warranty

Alt view image 15 of 20 - ROG NUC 16 Edition 20 Gaming Mini PC, RTX 5090 Mobile GPU, Intel Core Ultra 9 290HX Plus, 64GB DDR5 RAM, 2TB PCIe Gen5 SSD, Ultra-Compact Small Form Factor Design, WiFi 7, Thunderbolt 4, 3 Yr Warranty

Alt view image 16 of 20 - ROG NUC 16 Edition 20 Gaming Mini PC, RTX 5090 Mobile GPU, Intel Core Ultra 9 290HX Plus, 64GB DDR5 RAM, 2TB PCIe Gen5 SSD, Ultra-Compact Small Form Factor Design, WiFi 7, Thunderbolt 4, 3 Yr Warranty

Alt view image 17 of 20 - ROG NUC 16 Edition 20 Gaming Mini PC, RTX 5090 Mobile GPU, Intel Core Ultra 9 290HX Plus, 64GB DDR5 RAM, 2TB PCIe Gen5 SSD, Ultra-Compact Small Form Factor Design, WiFi 7, Thunderbolt 4, 3 Yr Warranty

Alt view image 18 of 20 - ROG NUC 16 Edition 20 Gaming Mini PC, RTX 5090 Mobile GPU, Intel Core Ultra 9 290HX Plus, 64GB DDR5 RAM, 2TB PCIe Gen5 SSD, Ultra-Compact Small Form Factor Design, WiFi 7, Thunderbolt 4, 3 Yr Warranty

Alt view image 19 of 20 - ROG NUC 16 Edition 20 Gaming Mini PC, RTX 5090 Mobile GPU, Intel Core Ultra 9 290HX Plus, 64GB DDR5 RAM, 2TB PCIe Gen5 SSD, Ultra-Compact Small Form Factor Design, WiFi 7, Thunderbolt 4, 3 Yr Warranty

Alt view image 20 of 20 - ROG NUC 16 Edition 20 Gaming Mini PC, RTX 5090 Mobile GPU, Intel Core Ultra 9 290HX Plus, 64GB DDR5 RAM, 2TB PCIe Gen5 SSD, Ultra-Compact Small Form Factor Design, WiFi 7, Thunderbolt 4, 3 Yr Warranty

Shop All ASUS Products

ROG NUC 16 Edition 20 Gaming Mini PC, RTX 5090 Mobile GPU, Intel Core Ultra 9 290HX Plus, 64GB DDR5 RAM, 2TB PCIe Gen5 SSD, Ultra-Compact Small Form Factor Design, WiFi 7, Thunderbolt 4, 3 Yr Warranty

Be the first to review this product...

Power reimagined in a compact form, the ROG NUC 16 Edition 20 Mini PC delivers flagship performance without the bulk. Fusing the Intel Core Ultra 9 290HX Plus CPU and NVIDIA GeForce RTX 5090 Mobile GPU, it brings smooth frame rates and vivid visual fidelity to both gaming and creation.

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

General
Brand	ASUS
Series	RNUC16JNK9X8ADAU
Model	90AS00S3-M000V0
Part Number	90AS00S3-M000V0

Quick Info
Type	Mini PC
Color	Black
Memory	64GB DDR5-6400MHz (2 x 32GB)
Storage	2TB, M.2 2280 PCIe Gen5x4 NVMe SSD
Graphics	Discrete NVIDIA GeForce RTX 5090 Mobile GPU (24GB GDDR7 VRAM)
Power Supply	380W AC Adapter
Operating System	Windows 11 Home, 64-bit

Motherboard
Chipset	Integrated

CPU
CPU Type	Intel Core Ultra 9 290HX Plus Processor
CPU Name	Intel Core Ultra 9 290HX Plus Processor

Graphics
GPU/VGA Type	NVIDIA GeForce RTX 5090 Mobile GPU (24GB GDDR7 VRAM)
GPU Memory	24GB GDDR7

Memory
Memory Capacity	64GB
Memory Speed	DDR5-6400MHz
Form Factor	3.02L
Memory Spec	64GB DDR5-6400MHz (2 x 32GB SO-DIMM)
Maximum Memory Supported	64GB

Storage
SSD	2TB, M.2 2280 PCIe Gen5x4 NVMe SSD

Communications
LAN Speed	2.5GbE
WLAN	Intel Killer Wi-Fi 7 BE200, 2x2, and Bluetooth 5.4
WiFi Generation	Wi-Fi 7
Bluetooth	Bluetooth 5.4

Case
Case Features	Removable Stand, ROG ARGB LED Panel, LED Light Bar, Kensington Lock slot

Ports
Front USB	1 x USB 3.2 Gen2x2 Type-C (5V/3A, 20Gbps), 2 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
Rear USB	4 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
Video Ports	1 x Thunderbolt 4 Type-C (with DisplayPort 2.1), 2 x HDMI 2.1, 2 x DisplayPort 2.1
Front Audio Ports	1 x Audio Jack (Line out/Mic in/Headphone out)
RJ45	1 x 2.5G RJ45 LAN

Dimensions & Weight
Dimensions (H x W x D)	282.5 x 189.5 x 56.5 mm

Additional Information
First Listed on Newegg	June 05, 2026

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.
