what size battery does this take?

There are 4 of the small hearing aid batteries or 1 battery that i get at battery store or radio shack, i keep a couple of the latter on hand cause i cant get them everywhere; but yhe new ones i bought for work had the small hearing aid types instead of the 1 odd battery

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to Wish List

More Resources

Ideal;62-200;62-200 - Ideal - CableOrganizer.com

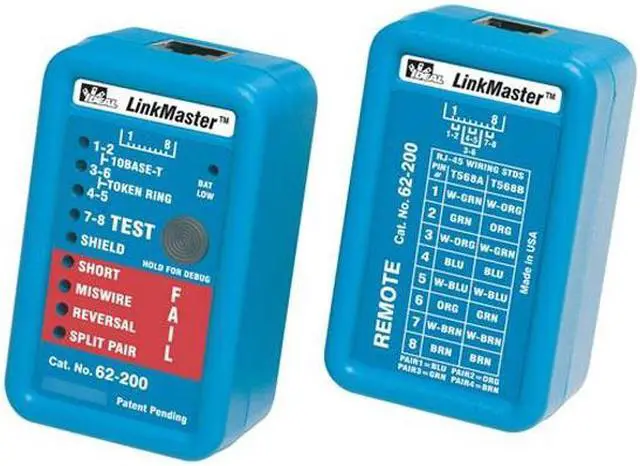

Main image of IDEAL 62-200 LinkMaster PRO Tester

Shop All Ideal Industries, Inc. Products

IDEAL 62-200 LinkMaster PRO Tester

(2) Write a Review

62-200

Choking Hazard Small parts. Not for children under 3 years.

Overview

Specs

Reviews (2)

See all Q & A

Any questions? Our AI mode will help you find out quickly.

Try me now

The LinkMaster PRO Tester enables installers,contractors and maintenance technicians to map, test and troubleshoot data and voice communication cable and coax runs. Rugged, versatile, and easy-to-use, the LinkMaster PRO tester has mastered the link between performance, simplicity and value for both commercial and residential applications.

This LinkMaster™ tester checks for shorts, miswires, reversals, and split pairs. Tester, Utp Stp

Model
Brand	IDEAL
Model	62-200

Spec
Specifications	Test Services: Open circuits Shorts Miswires Reversals Split pairs SHIELD detection tests a cable's shield integrity. Checks continuity and configuration of wiring with unshielded and shielded modular plugs. Remote has wiring chart identifying T568A and T568B wiring configurations. DEBUG quickly identifies which cable pairs have a specific wiring fault. Length Measurement: 36" to 600 ft STP/UTP Ports: 1 x RJ-45 Network 1 x RJ-45 Network Remote Batteries: AA Dimensions: 3.25" x 2.00" x 1.25" Weight (Approximate): 2 lbs. - with Battery.

Features
Features	Status Indicators: Battery low LED. OPEN - There is no "OPEN" LED indication. A typical cable may have 2, 3, or 4 pairs. OPENS are displayed as an unlit LED. The user will determine if a pair is present and continuous or OPEN by comparing the illuminated LEDs to the expected number of pairs that should be good. For example, when testing a 4 pair cable, three illuminated LEDs in the PASS area indicate the presence of an OPEN condition in one of the pairs. SHORT - A short circuit condition exists. MISWIRE - Indicates the improper assignment of individual wire pairs to pins for the wiring schemes tested. Tester checks T568A, T568B, 10Base-T, and Token Ring configurations. REVERSAL - Reverse wiring means the pin for one wire in a pair is connected to the opposite pin for the pair in the remote jack. SPLITPAIRS - Split Pairs occur when the tip (positive conductor) and ring (negative conductor) of two twisted pairs are interchanged. Pass Indicators: T568A and T568B Four green LEDs on pairs 1-2, 3-6, 4-5, and 7-8. All four pairs are terminated correctly Token Ring Two green LEDs on pairs 3-6, and 4-5. Both pairs terminated correctly 10 Base-T Two green LEDs on pairs 1-2, and 3-6. Both pairs terminated correctly Shield Green SHIELD LED indicates the shield on the cable is correctly and continuously wired through the modular plug termination FAIL Indicators: A flashing pair LED indicates that this wire pair has a fault. A flashing LED in the FAIL section will indicate which fault was detected. Multiple flashing LEDs indicate multiple pairs and/or multiple faults. Best practice is to correct cable faults until cable is verified as correct with appropriate green LEDs.

Additional Information
First Listed on Newegg	August 22, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-800-435-0705
Support Email: [email protected]
