Specifications: What's in the box:
Digi Connect EZ Mini - serial server, 1-port, with accessories
Power supply - 12 V, 2.5 A (76000823)
DIN rail clip (76002095)
Specifications: xDirect232 Single Port RS232 10/100 Device Server
Serial Connectors: Single-port: DB9F RS232 (DCE Pinned)
Ethernet Interface: 10/100M RJ-45
Serial Interface Baud Rate: 300bps to 921.6 Kbps
LED Indicators: Power/Status, Link, Activity, Serial RX Activity & TX Activity
CPU: Based on DSTni-EX Enhanced 16-bit x86 Architecture
Memory: 256 KB SRAM, 1 MB Flash
100-240 VAC International Power Supply with Regional Adapters.
Specifications: xDirect PoE Single Port RS232/422/485 10/100 Device Server w/o Power Supply
Serial Connectors: Single-port: DB9F (RS232/RS422/RS485, DCE Pinned)
Ethernet Interface: 10/100M RJ-45
Serial Interface Baud Rate: 300bps to 921.6 Kbps
LED Indicators: Power/Status, Link, Activity, Serial RX Activity & TX Activity
CPU: Based on DSTni-EX Enhanced 16-bit x86 Architecture
Memory: 256 KB SRAM, 1 MB Flash
*No Power Supply
Specifications: What's in the box:
Digi Connect EZ 2 - serial server, 2-port, with accessories
Power supply - 12 V, 3 A (24000136)
DIN rail clip (76002095)
Specifications: 32 x serial - RS-232 - RJ-45
1 x management - console - RJ-45
1 x network - Ethernet 10Base-T/100Base-TX - RJ-45
Total Expansion Slots: 1
Memory: 64MB SDRAM
Input Voltage: 110 - 220 V AC
Form Factor: Rack-mountable
Dimensions: 17.0" x 8.5" x 1.8"
Weight: 5.8 lbs.
Specifications: Interfaces/Ports: 1 x RJ-45
Data Transfer Rate: 230 Kbps Serial
Management: SNMP
Protocols:
Telnet
Reverse Telnet
PPP
SSH v2
HTTP
DHCP
ARP
RARP
TCP
UDP
Status Indicators: Link / Power
Input Voltage:
100 V AC to 240 V AC
9 V DC to 30 V DC
Input Current:
400 mA 12 V DC
500 mA 9 V DC to30 V DC
Specifications: Interfaces/Ports:
4 x RJ-45
1 x RJ-45
Data Transfer Rate: 230 Kbps Serial
Management:
Telnet
SNMP
Digi Port Authority-Remote
HTTP for easy browser configuration
Status Indicators: Link / Power
Input Voltage:
100 V AC to 240 V AC
9 V DC to 30 V DC
Input Current:
400 mA 12 V DC
500 mA 9 V DC to30 V DC
Specifications: Serial Port
Ports: 2
Protocol: RS232
Connector: DB9 Connector - 9 Pin Male
Tx FIFO Size: 256
Rx FIFO Size: 32
Operating Distance: EIA - RS232 Standard
Cable: No Cable; Integrated Connector
Serial Port Settings
Max Baud Rate: 1,000,000 (1 MegaBaud)
Data Bits: 5, 6, 7 or 8
Parity: Odd, Even, None, Mark or Space
Stop Bits: 1 or 2
Flow Control: RTS / CTS, DSR / DTR, XON / XOFF
Tx / Rx Modes: Point to Point
Power
Power Input: Power Over Ethernet OR 5 - 30V DC input, reverse polarity protected
Power Over Ethernet: IEEE 802.3af
Power Supply 1 Description: Optional Global Power Supply - PW-800
General
Mounting Accessories 1 Description: DIN-Rail Mounting Kit - MK-048
PCB Layers: 4
Operating System Compatibility
Operating Systems:
Communicate with Device over TCP from any OS
Microsoft Windows 10
Microsoft Windows 8 32 bit & 64 bit Editi...
Specifications: Technical Information
Host Interface:
USB 3.0 Type A
Interfaces/Ports
Total Number of USB Ports:
3
Number of USB 3.0 Ports:
3
Number of Network (RJ-45) Ports:
1
Software
Operating System Supported:
Windows XP
Windows Vista
Windows 7
Windows 8
Windows 8.1
Windows 10
Windows 11
Windows Server 2003
Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Windows Server 2016
Windows Server 2019
Windows Server 2022
Mac OS X 10.6 Snow Leopard
Mac OS X 10.8 Mountain Lion
Mac OS X 10.10 Yosemite
Mac OS X 10.11 El Capitan
Mac OS X 10.12 Sierra
Mac OS X 10.13 High Sierra
Mac OS X 10.14 Mojave
Mac OS X 10.15 Catalina
Mac OS X 11.0 Big Sur
Mac OS X 12.0 Monterey
Mac OS X 13.0 Ventura
ChromeOS
Linux 2.6.x
Physical Characteristic...

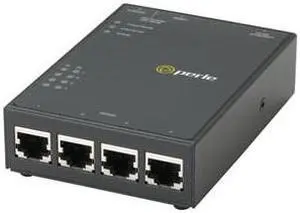

Specifications: Processor:
MPC852T Motorola 66 MHz
Standard Memory:
32 MB RAM
Maximum Memory:
8 MB Flash Memory
Ports:
4 x RJ45 serial ports
Flow Control:
Hardware Flow Control
Functions:
The IOLAN SDS4 is ideal for connecting serial-based COM port, UDP or TCP socket based applications to remote devices. Perle's TruePort V5 re-director provides fixed TTY or COM ports to server based applications enabling communication with remote devices connected to Perle device servers. You can also tunnel serial data between devices across an IP network.
Management:
Web browser or secure web browser via https (SSL/TLS ), Perle DeviceManager software to manage single or multiple device servers, CLI -Telnet, SSH, shared console port SNMP, MIB II, Perle MIB, read and write Capabilities, SYSLOG, Port Buffering-local or 3DES encrypted ...
Specifications: 4 x RJ45 serial ports
10/100 Ethernet
802.3af Power over Ethernet (PoE) compliant
Desktop/wall mount
RS232 interface
Advanced feature set
