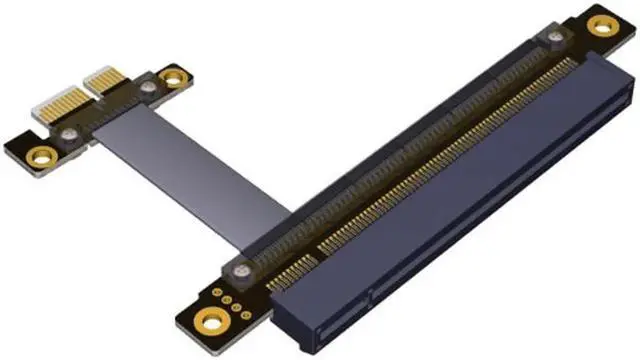

PCI-E Gen3.0 1x To 16x Riser Cable 30cm PCI-Express PCI-E X16 Extender Right Angled Elbow Design EP-114

PCI-E Gen 3.0 1x To 16x Riser Cable 30cm PCI-Express PCI-E X16 Extender Right Angled Elbow Design

Work For GTX1080TI high-end graphics CARDS, firepro w7100, radeon hd RX580 VEGA64, pro wx5100, quadro K1200 professional graphics, support all the PCIe card

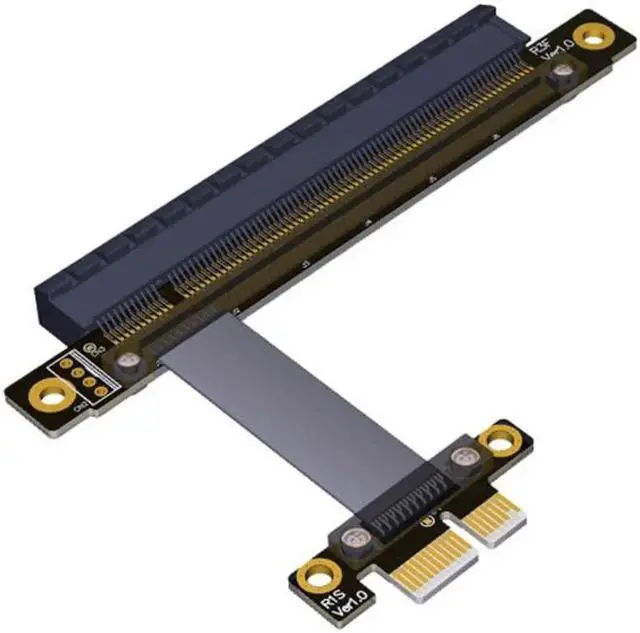

EP-114 series is PCIe 1x to 16x Edge Connector Extension Adapter cable, adapted to PCIe x16, connectors to re-locate a PCIe card slot or bridge between slots on two different PCBs.

The ribbonized format of the axial cable provides a dense and flexible solution without signal attenuation for high speed PCIe Gen3 8Gbps Data Transaction, bidirectional 256Gbps (256GT/sec) for PCI x16, and 16Gpbs (16GT/sec) per PCIe lane.

Cable Quality: Stable PCIe Gen3 8Gbps or higher with high quality Axial Cable

Cable Flexibility: Highly-routable, foldable, flexible

Cable Length: 30cm

PCB Quality: Experienced design and durable material for High frequency and low attenuation.

Connector Quality: Taiwan Made high quality for PC server / mother board.

Solder Point Protection: PCB-Swaddled and fixed with Bolts and nut to prevent tearing and short circuit for PCB-Cable solder points.

Specification:

1.

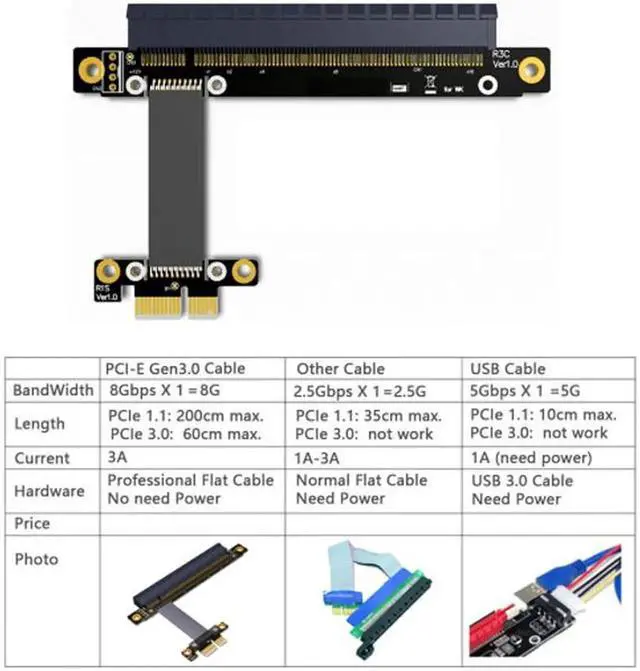

Maximum Speed: PCIe Gen3 8Gbps. Bidirectional 32.0GB /sec (256Gpbs, 256GT/sec) for PCIe x16, 2.0GB /sec (16Gpbs, 16GT/sec) per PCIe lane, PCIe Gen2 (5Gbps) PCIe Gen1 ( 2.5G bps) compatibles.

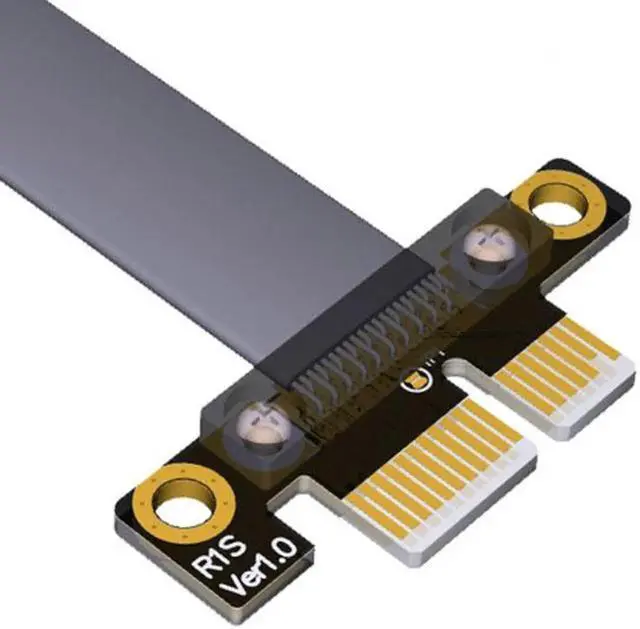

2. Header (Male)

Connector: PCIe x1

3. Receptacle (Female)

Connector: PCIe x16

4.

Cable: Length: Customized for 30cm

5.

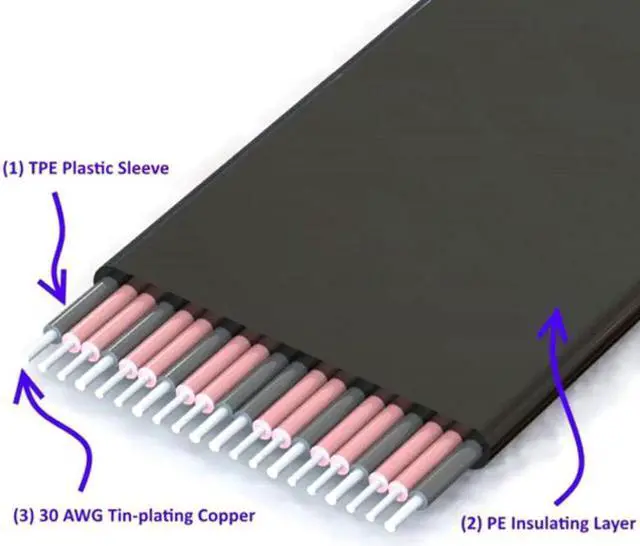

Cable Type: Flat, Twin Axial, Thickness= 1.4 mm (1/16 inch) Width=54mm (9mm*6, 2 1/8 inch)

6. EMI Shielding with Conducting Polymer

7.

Connector Type: Straight, Up angles, Down angled
