Alphacool ES RTX 6000 Pro Server Edition 1-Slot-Design (19450)

The Alphacool ES 1-Slot GPU water cooler for the RTX Pro 6000 Blackwell Server Edition was specifically designed for professional use in performance-optimized server environments. With its compact 1-slot design and well-conceived port placement, it meets the highest demands for cooling performance, reliability, and ease of installation especially in dense rack installations with limited space.

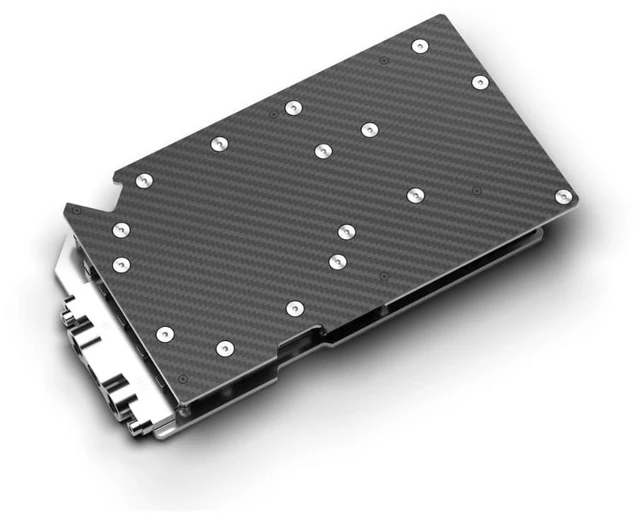

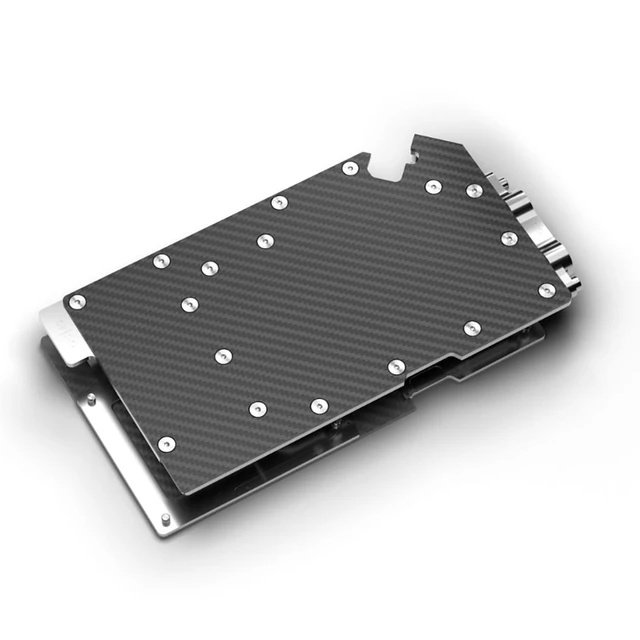

The cooler's top surface is made of lightweight, durable carbon fiber. This significantly reduces the cooler's weight compared to conventional solutions. At the same time, the matte carbon finish provides a subtle, high-quality look both functional and elegant. The cooling block itself is made entirely of chrome-plated copper. Chrome plating is significantly harder and more durable than conventional nickel plating and reliably protects against corrosion, scratches, and mechanical damage ideal for long-term, 24/7 operation.

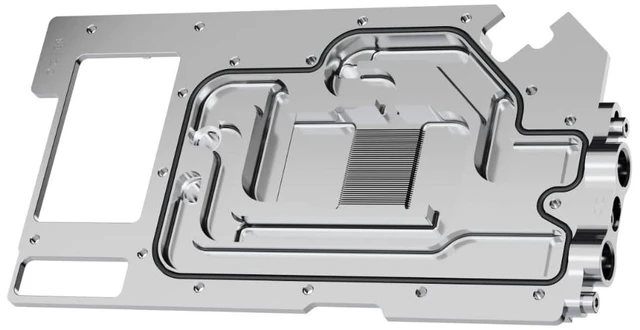

The cooler's inlet and outlet ports are conveniently located on the rear. This connection architecture simplifies tubing and integration into existing cooling loops, even in very compact server chassis. An optimized cooling channel structure ensures particularly efficient heat dissipation from the GPU, VRAM, and voltage regulators. Precise channeling within the cooler ensures a uniform water flow across all relevant components.

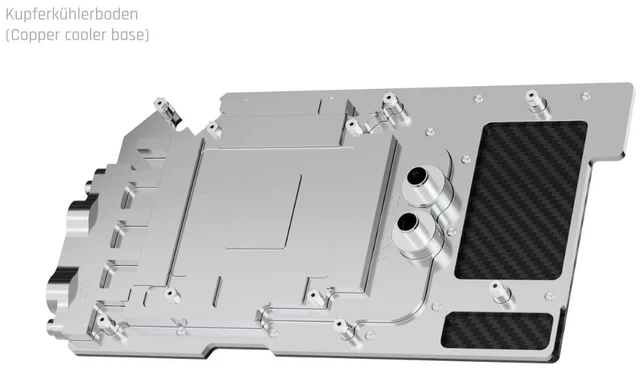

The solid copper base guarantees optimal heat absorption and transfer. The robust chrome plating prevents peeling or damage under thermal stress.

The Alphacool ES 1-Slot GPU water cooler for Nvidia RTX Pro 6000 Blackwell Server Edition and Nvidia RTX Pro 6000 Blackwell Max-Q Workstation Edition is the ideal solution for enterprise applications where performance, reliability, and efficient space management are paramount.

Compatibility:
- Nvidia RTX PRO 6000 Blackwell Max-Q Workstation Edition, 96GB GDDR7
- Nvidia RTX PRO 6000 Blackwell Server Edition, 96GB GDDR7

Technical data
Dimensions (L x W x H)
267.80 x 95.58 x 19.20 mm
Slot size
1
Radiator base material
Chrome-plated copper (Cu-HCP)
Material of radiator top
Carbon (CFRP)
Connections
2 x G1/4"
Material connection thread
Brass (CuZn39Pb3)
Maximum torque of the G 1/4 thread (in Nm)
1.00
Maximum torque of the M2 thread (in Nm)
0.13
Maximum torque of the M2.5 thread (in Nm)
0.27
Maximum torque of the M3 thread (in Nm)
0.48
Maximum torque of the M4 thread (in Nm)
1.12
Maximum operating temperature (in °C)
60
Recommended operating temperature (in °C)
20
Minimum operating temperature (in °C)
-20
Maximum tested pressure (in bar)
4.00
Recommended working pressure (in bar)
0.00 - 2.00
Thickness of radiator base (in mm)
2.96
Thickness of cooling fins (in mm)
0.40
Distance between cooling fins (in mm)
0.40
Cooling technology
Jet Engine
Technical specifications backplate
Dimensions (L x W x H)
267.70 x 95.58 x 4.00 mm
material
Aluminium (AlMg0.7Si)
Color
Black
Technical specifications of thermal pads
Thermal conductivity of the thermal pads (in W/mK)
7
Thermal pads hardness ASTM 2240
35 Shore 00
Technical data Thermal paste
Volatility rate (24@200°C) (in%)
less than 0.5
Density (g/cm3)
3.2 (Test method ASTM D2196)
Viscosity (mPa·s)
150~200*10³ (Test Method ASTM D2196)
Operating temperature (°C)
-40°C to 120°C
Breakdown voltage (V/mil)
250 (Test method ASTM D149)
Thermal impedance (°C in 2/W)
0.1 +/- 0.01 (Test Method ASTM D5470)
Maximum operating pressure (psi)
40
Quantity (in grams)
1
Color
Gray
