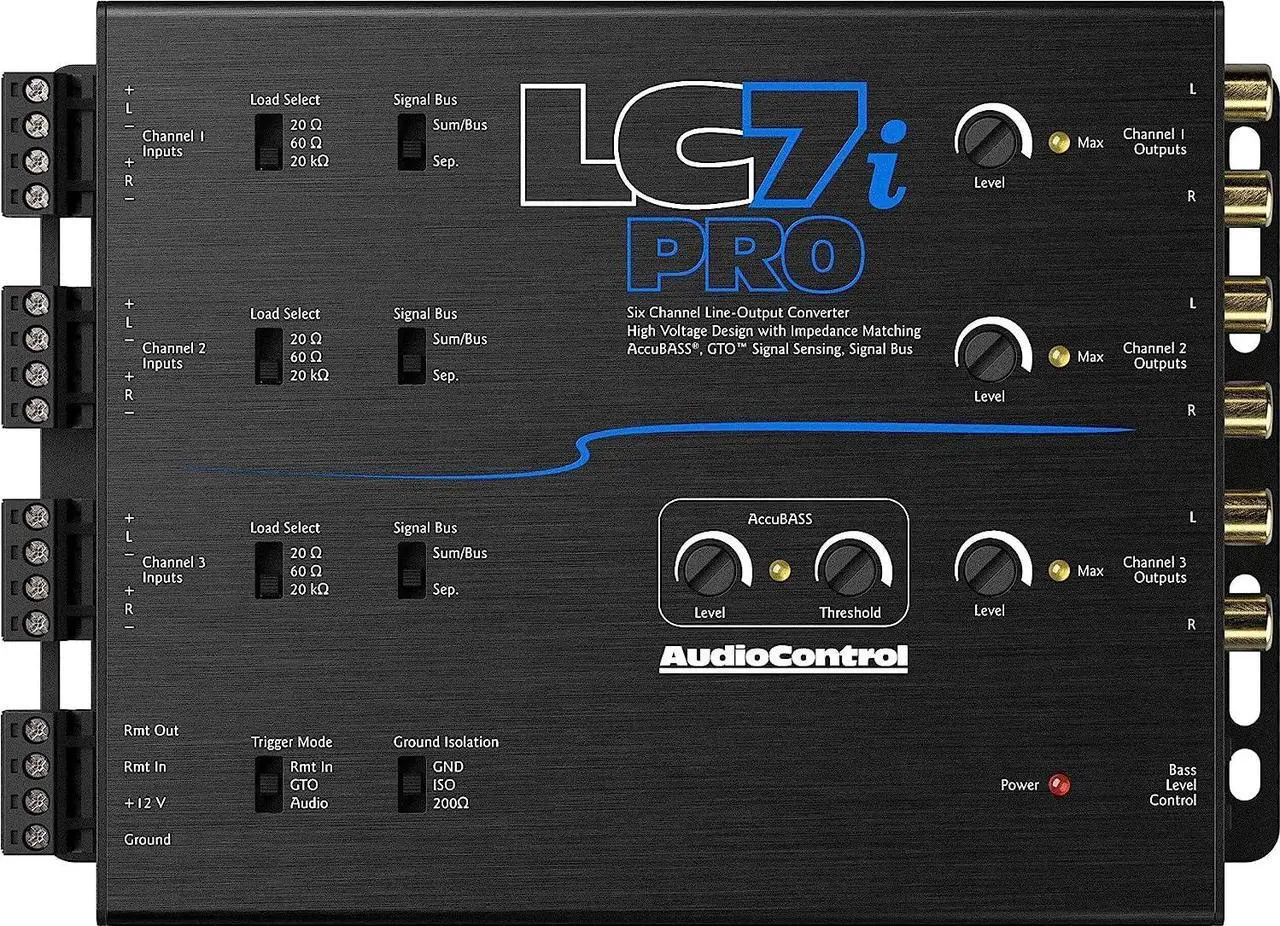

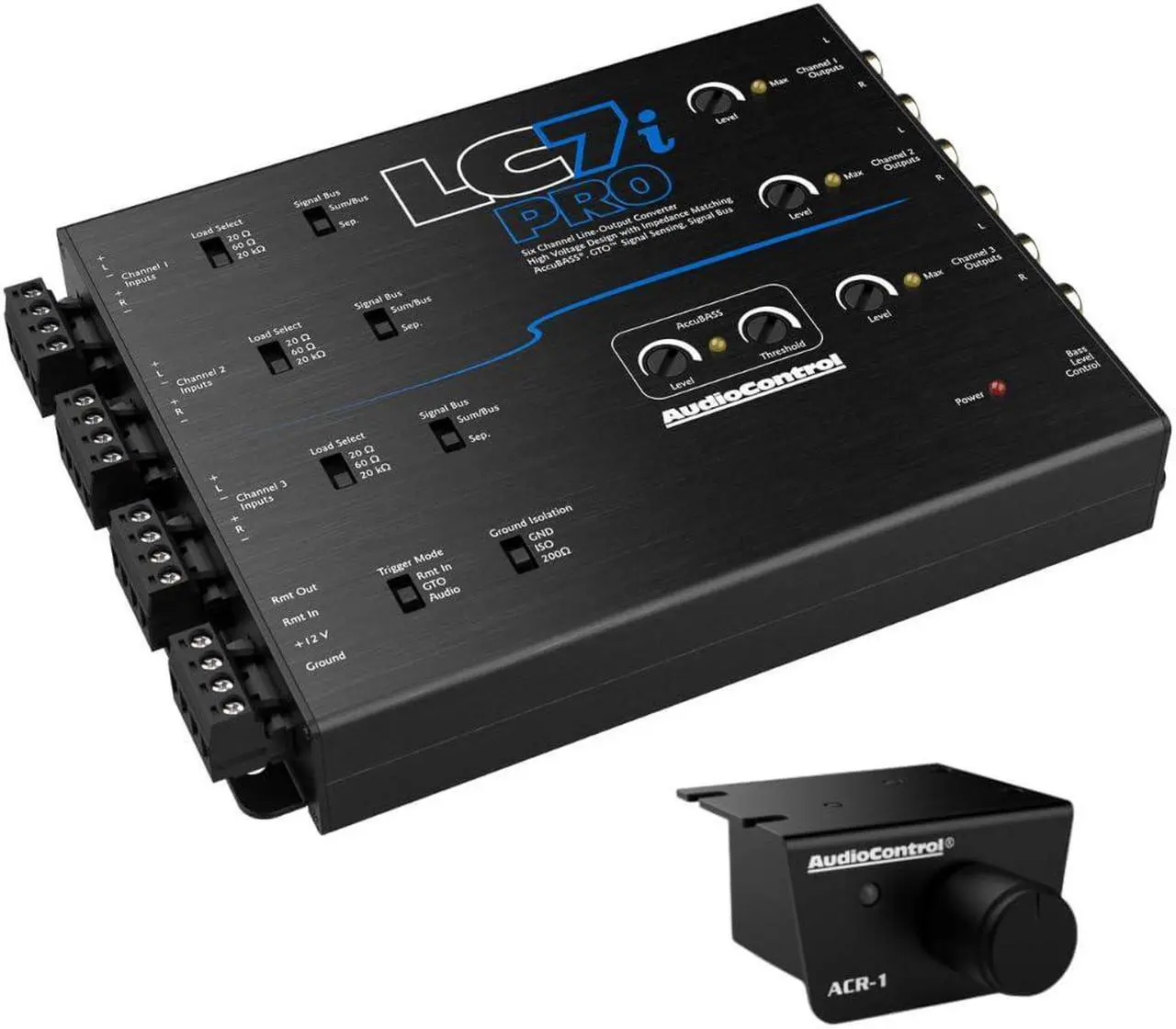

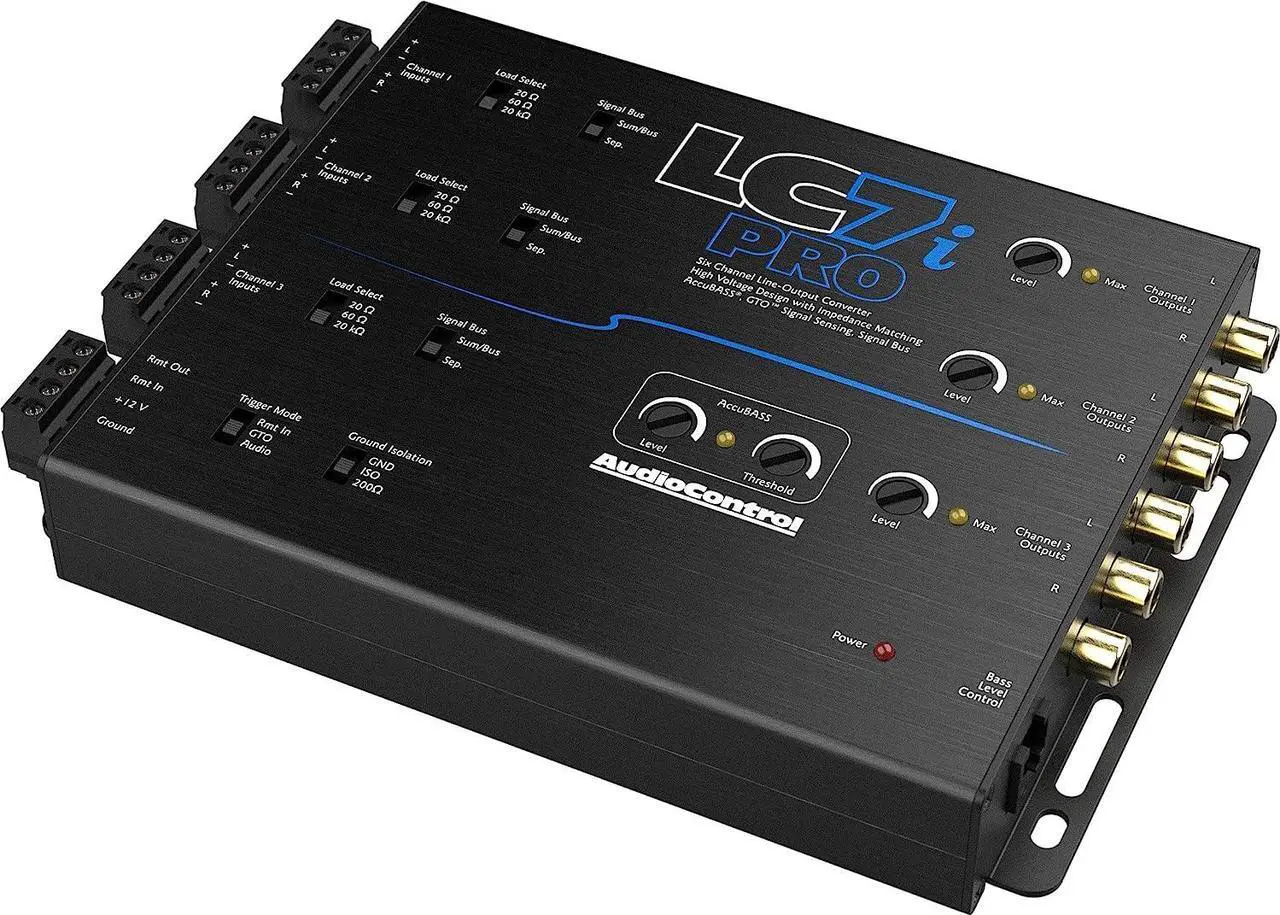

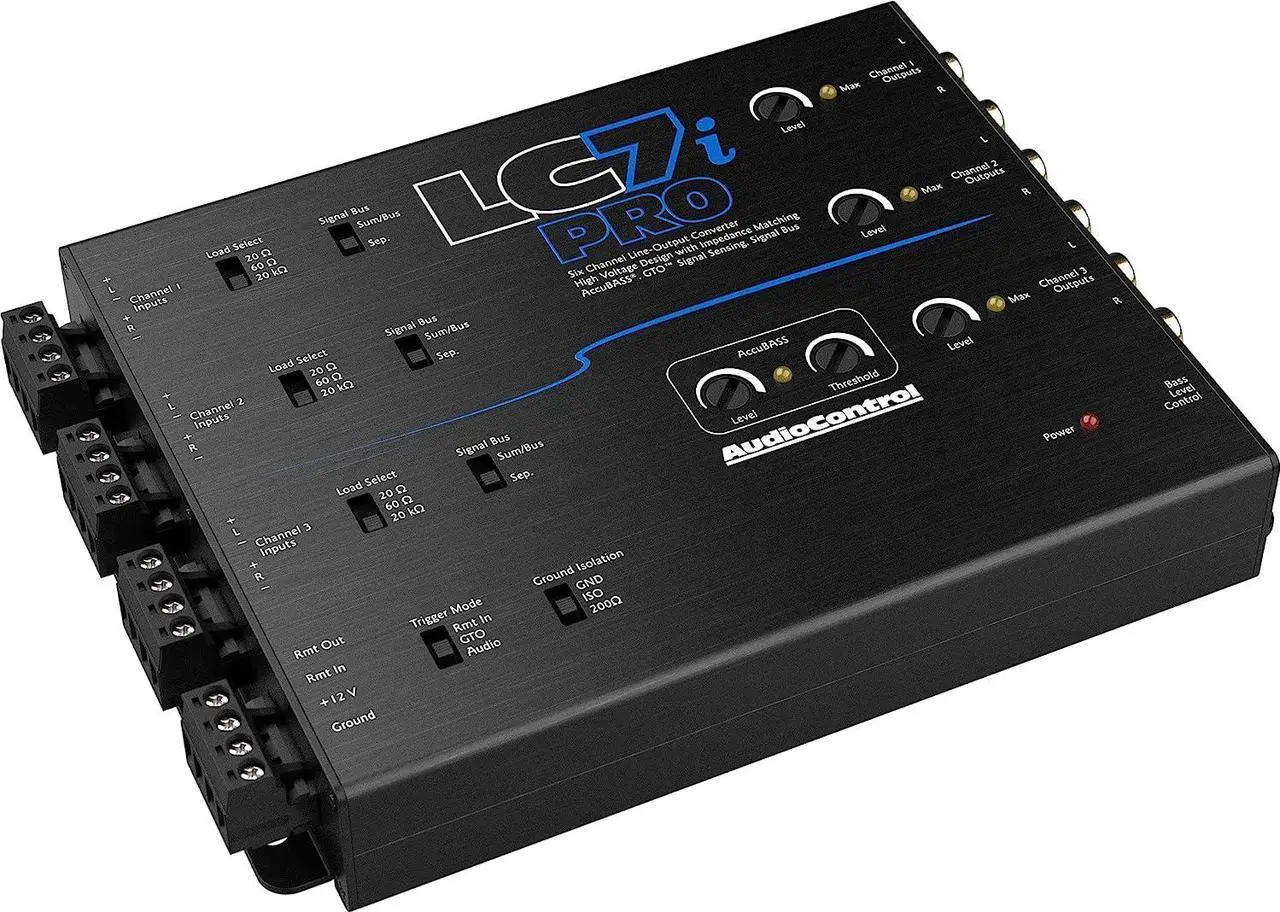

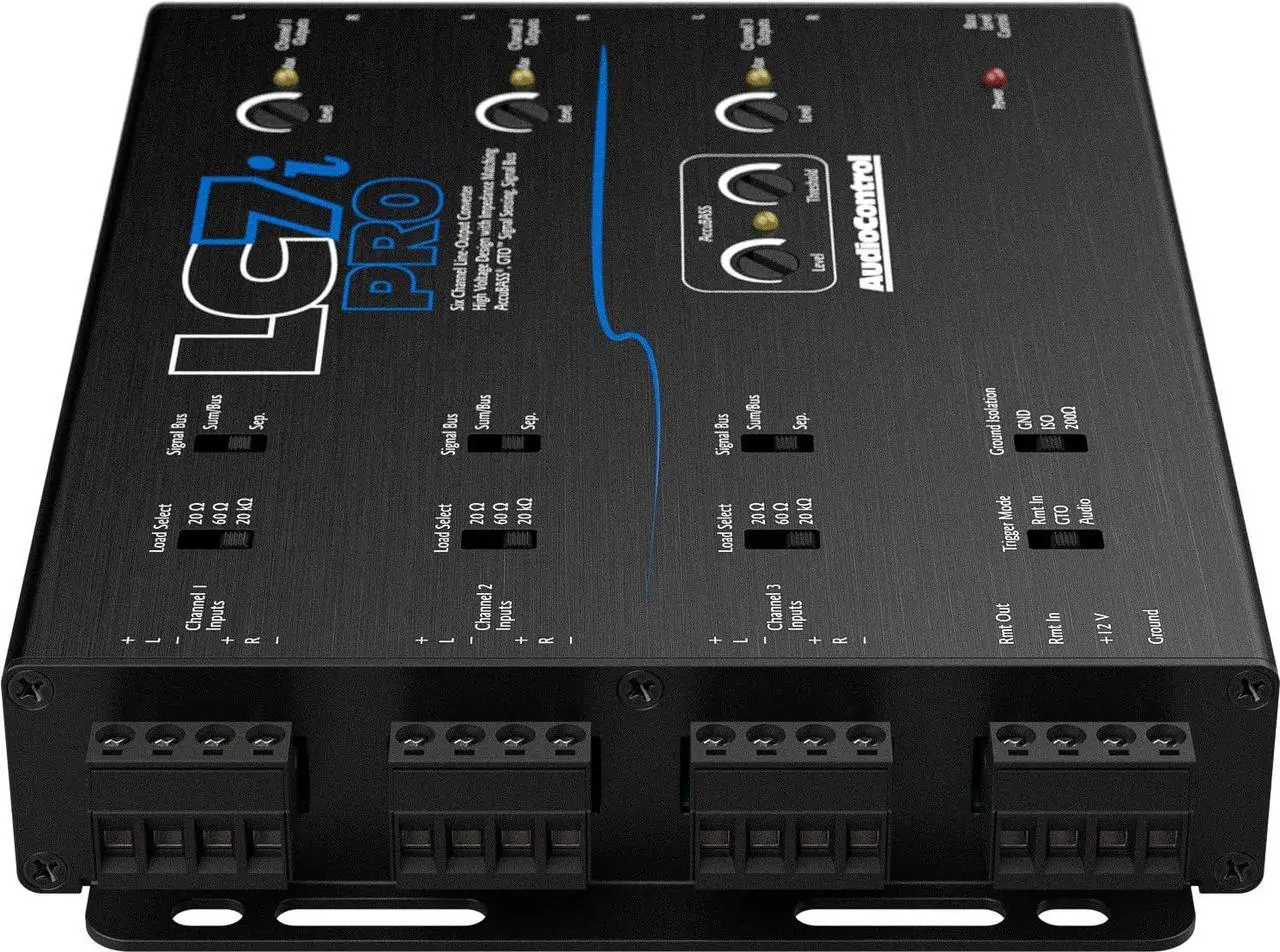

AudioControl LC7i PRO 6-Channel AccuBASS Line Out Converter w/ ACR-1 Dash Remote

AudioControl brings you our most advanced line of LOCs yet. OEM integration has never been easier with the host of intelligent built-in features like LMC (Load Matching Circuit), allowing even the most finicky factory sound systems to no longer be an obstacle to great sound. Installer-friendly trigger modes offer flexibility and an expedited installation time since the units can be turned on via GTO Signal Sense (DC offset), audio signal sensing, or standard remote 12 volt input.KEY_TAB

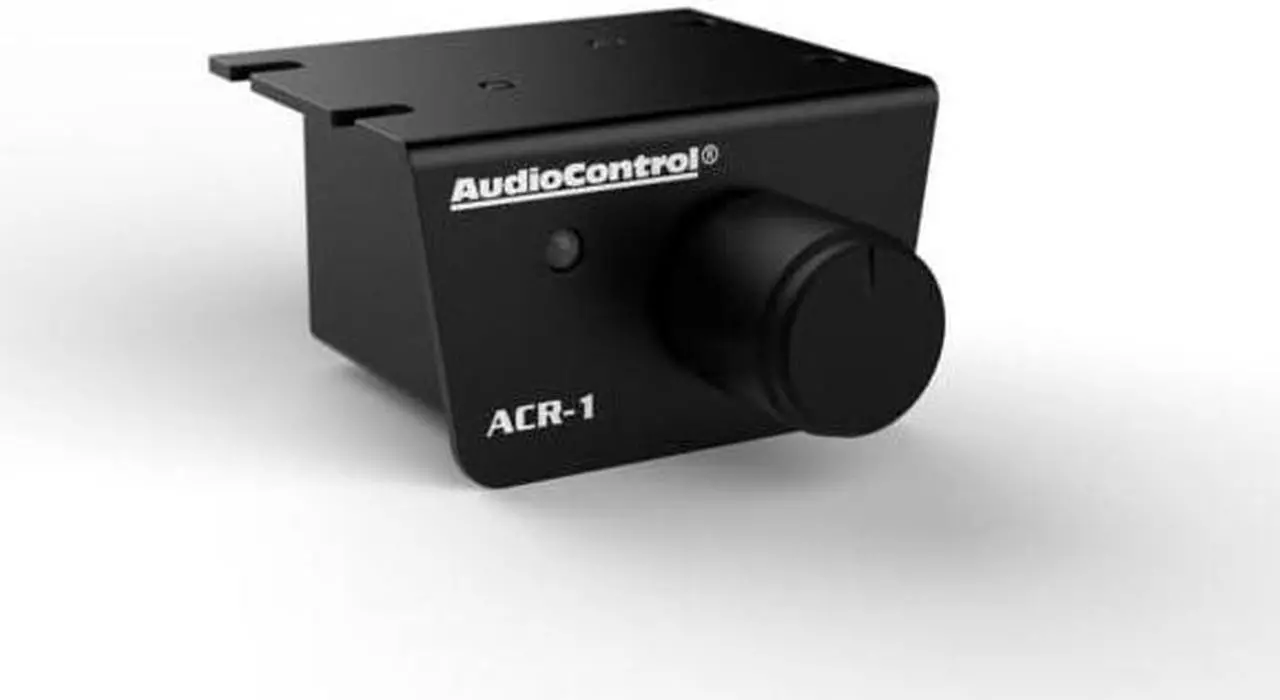

Featuring AudioControl's patented AccuBASS® for restoring low frequency output diminished by factory processing, and an ACR-1 level control is included to dial in the perfect level for your subwoofer right from the comfort of the drivers seat. The Pro series ensures clean, powerful signal you need to take your system from sounding good to sounding great.

KEY_TAB

INPUTS

• Speaker Level Input: 1 (6 channels)
• Maximum Speaker Level Input: 40 Vrms / 400 W (20k setting)
• Input Impedance (selectable): 20, 60, 20k

OUTPUTS

• Preamp Outputs: 6 (4 channels main, 2 channels bass)
• Maximum Output Level: 9.5Vrms/13V peak
• Output Gain: +/- 15 dB
• Output Impedance: 150

KEY_TAB

PERFORMANCE

• Total Harmonic Distortion: 0.01%
• Signal to Noise: >124 dB
• Frequency Response: 20 Hz 20 kHz

KEY_TAB

CONTROL

• Remote In / GTO Signal Sense / Audio Sense
• 12VDC Remote Out (always active when unit is on)

KEY_TAB

ELECTRICAL

• Current Draw: 330 mA
• Recommended Fuse Rating: 2 A

KEY_TAB

DIMENSIONS AND WEIGHT

• Dimensions: 7L x 5.1D x 1.14H (including speaker connectors)
• Weight: 1.15 lbs.

KEY_TAB

WHAT'S IN THE BOX

LC7i PRO, ACR-1, 20 Phone Cable, Speaker and Power connectors, Manual, Warranty
