Supports two M.2 SSD simultaneously (One SATA interface and one NVMe interface)

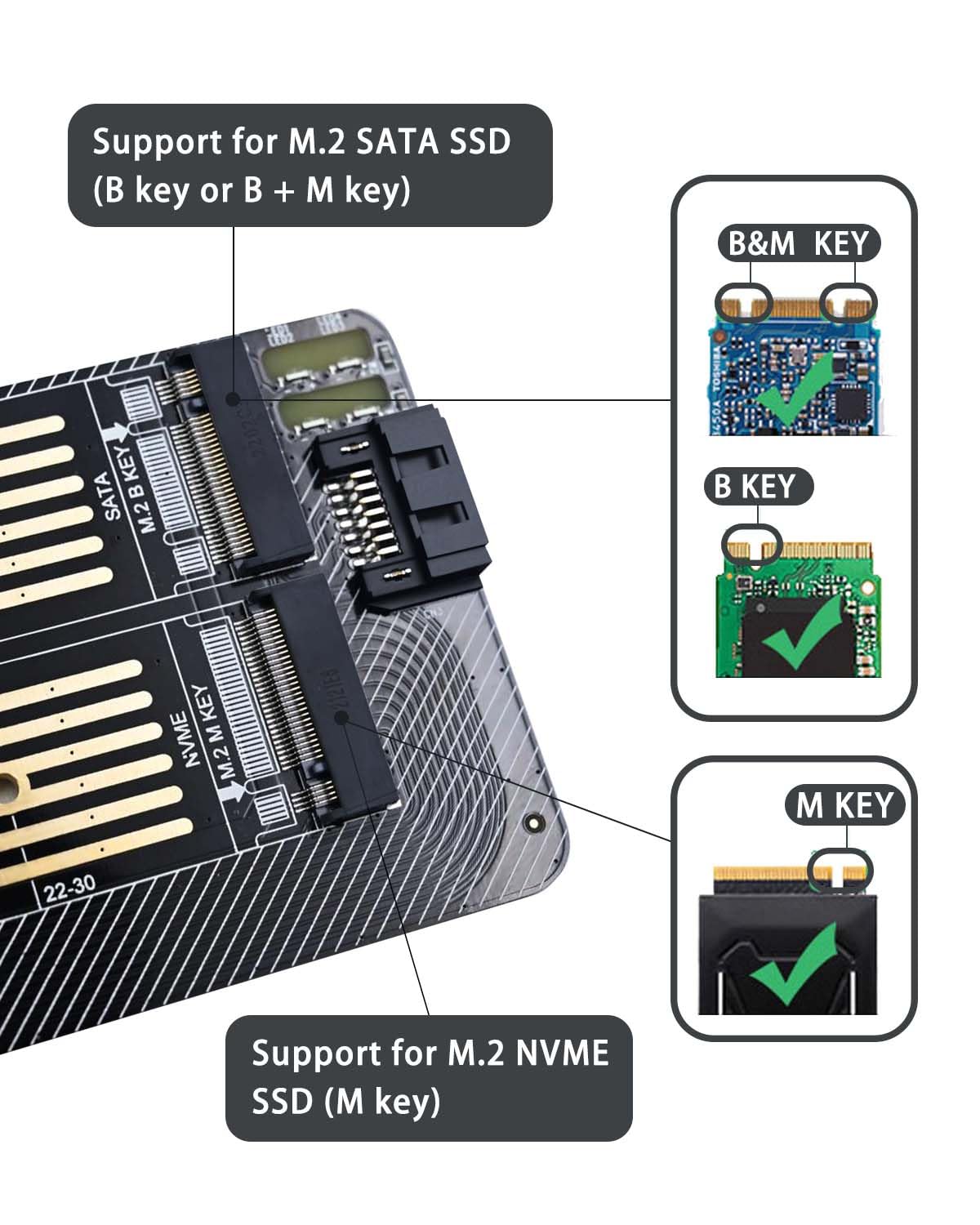

- Converts one M.2 NVMe SSD (M Key) interface to PCIe 3.0 x4 interface (PCIe 2.0 Compatible), Converts one M.2 SATA SSD (B Key or B+M Key) interface to SATA 6Gbps interface (SATA cable connection required)
- Supports one M.2PCIe (NVMe or AHCI) SSD and one M.2 SATA 6Gbps SSD simultaneously
- Supports PCIE M.2 SSD (NVMe or AHCI, Key-M)
- SupportsSATA-based M.2 SSD (Key-B / B+M)
- Supports PCIe Gen3 and PCIe Gen2 M.2 NGFF 110mm, 80mm, 60mm, 42mm,30mm SSD
- Supports PCIe 1.0, PCIe 2.0, PCIe 3.0 and PCIe 4.0 motherboard
- PCB 24 X 5copper hole effective ventilation heat dissipation,Including 2 heat sinks
- Transparent tothe operating system and no driver required
NOTE :
- Please note that it does not support connecting two NVME SSDs or two SATA SSDs.
- Please note that this adapter only supports PCIe X4 X8 X16 slots. PCIe X1 slot not supported.
- Please note that if you want to read the M.2 SATA SSD (Key B), you must connect a 7-pin SATA cable to the motherboard.
Compatibility
Size support

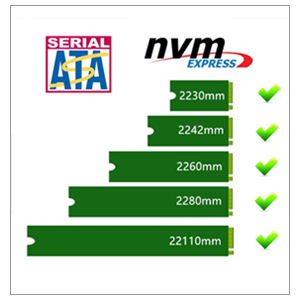

- Supports NVME & SATA M.2 SSD(22110mm/2280mm/2260mm/2242mm/2230mm)
System
- Supports any OS like Windows, Mac and Linux.(no driver required)

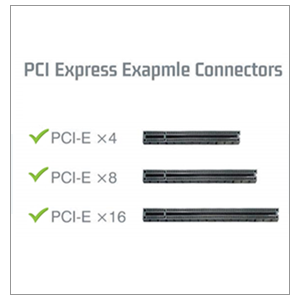

Applicable Slots
Supports PCI-Express X4, X8, X16 slots.

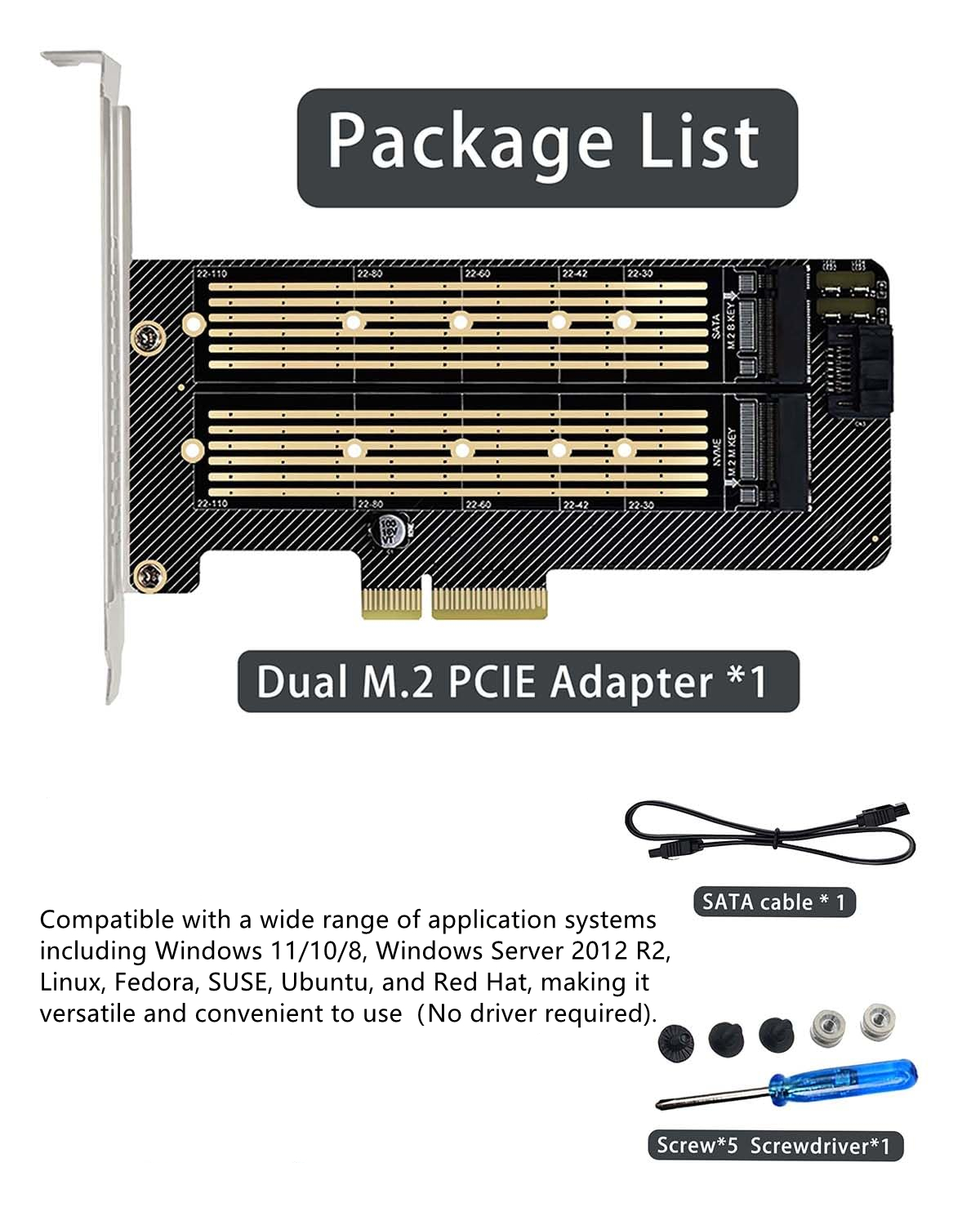

Package list
- Dual M.2 PCIE adapter *1
- SATA cable * 1
- M2 screw * 2
- Screwdriver * 1
PCIE blacket screw *1
