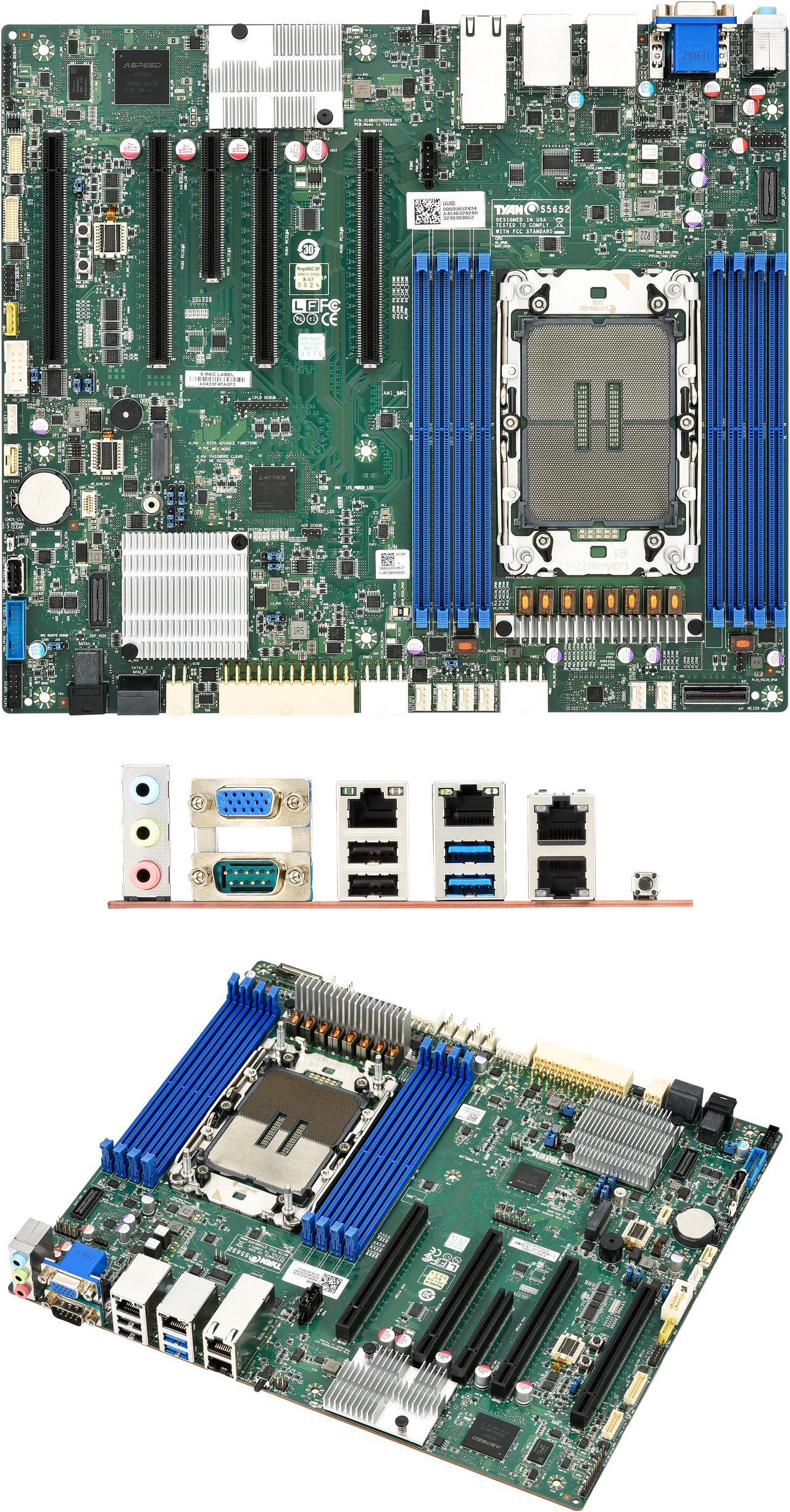

Tyan 4th Gen Intel Xeon Scalable S5652AGMNRE Server motherboard, LGA4677, Intel C741, Max up to 350W (TDP)
- Motherboard with Single-socket Intel Sapphire Rapids Xeon processor in an SSI-CEB form factor.
- Support for up to two double-wide GPU accelerator cards.
- Intel Sapphire Rapids-SP Processor with TDP up to 350W
- Chipset
- Intel Emmitsburg C630-Series PCH
- Memory
- (8) DDR5-4800 DIMM slots (8 memory channels)
- Supporting up to 4TB RAM (Assuming 8x512GB DIMMs)
- 512GB DIMM support is stretch goal but may not be validated until requested
- PCIe Expansion Slots
- (4) PCIe Gen 5.0 x16 slots (All lanes from the CPU socket)
- (1) PCIe Gen 3.0 x4 slot (Lanes come from the PCH)
- Network
- (1) 1000Base-T Ethernet port (Intel i210)
- (1) 1000Base-T Dedicated IPMI Port (Realtek PHY connected to AST2600 BMC)
- Storage
- (6) SATA 6G ports with Intel RSTe 5.0 RAID support
- (1) 2280 PCIe Gen 3.0 x4 NVMe M.2 ports (Lanes come from the PCH)
- AST2600 BMC with iKVM, IPMI, and Redfish support
- Optional SPI TPM 2.0 Module
+
+
Specs
Reviews
Learn more about the TYAN S5652AGMNRE
| Brand | TYAN |
|---|---|
| Model | S5652AGMNRE |
| Part Number | S5652AGMNRE |
| CPU Socket Type | LGA 4677 |
|---|---|
| CPU Type | Intel Xeon |
| Memory Slots | 4 x DDR5 288-pin |
|---|---|
| ECC Supported | Yes |
| PCI Express 5.0 x16 | 4 |
|---|
| SATA | 6 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/10/5 |
| Onboard Video Chipset | Aspeed AST2600 |
|---|
| LAN Chipset | Intel I210 |
|---|---|
| LAN Speed | 10/100Mbps |
| USB 1.1/2.0 | 3 x USB 2.0 |
|---|---|
| USB 3.2 | 2 x USB 3.2 |
| Date First Available | January 30, 2023 |
|---|
