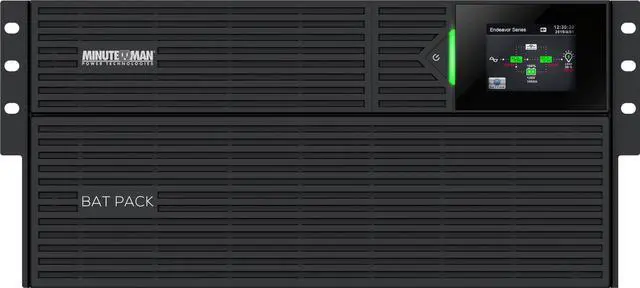

Minuteman ED10KRT UPS Online 208-240V 9000W 4U Rack/Tower Ext Run Endeavor 5-10kVA Series: High-end, True Sine Wave, Online UPS, Rack/Tower, 10000VA/9000W, 208-240VAC Input/Output, Power Factor 0.9

Model: ED10KRT

Endeavor 5-10kVA Series: High-end, True Sine Wave, Online UPS, Rack/Tower, 10000VA/9000W, 208-240VAC Input/Output, Power Factor 0.9, (4) Controllable NEMA L6-30R and (2) NEMA L6-20R Receptacles, (1) Always On Hardwire Terminal Block, Extended Runtime Capable, 3-min Full Load and 12-min Half Load Runtime, Load Shedding, Multi-color LCD Touchscreen Display, Simultaneous RS-232 and USB Communications, Option Slot for SNMP-NV6 Communications Card or Programmable Relay Card, Dedicated Remote Emergency Power Off (EPO) Port

This item is covered under the Manufacturer Only Return Policy.

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the MINUTEMAN ED10KRT

Output
VA Rating	10000VA
Watts	9000W
Output Voltage	208 (Default), 220, 230, 240VAC
Output Frequency	50/60Hz, auto selecting, +/-3Hz (unless synchronized to utility)
Outlets	6
Outlet Type	(4) NEMA L6-30R / (2) L6-20R / (1) 3-wire Terminal Block

Battery
Battery Run Time	Half Load: 7 min Full Load: 2 min
Battery Replaceable	BM0098

Details
Interface Port	DB-9
Approvals	cUL, CE, UL1778, FCC Class B, Energy Star 2.0, RoHS2

Surge Protection
Surge Energy Rating	3140 Joules

Environmental
Temperature	Operating Temperature: +32° to +104°F (0° to +40°C) Storage Temperature: +5° to +131°F (-15° to +55°C)
Humidity	0 to 95%, non-condensing

Dimensions & Weight
Dimensions	8.54" x 28.74" x 17.24"
Weight	170.81 lbs.

Additional Information
First Listed on Newegg	June 05, 2025
