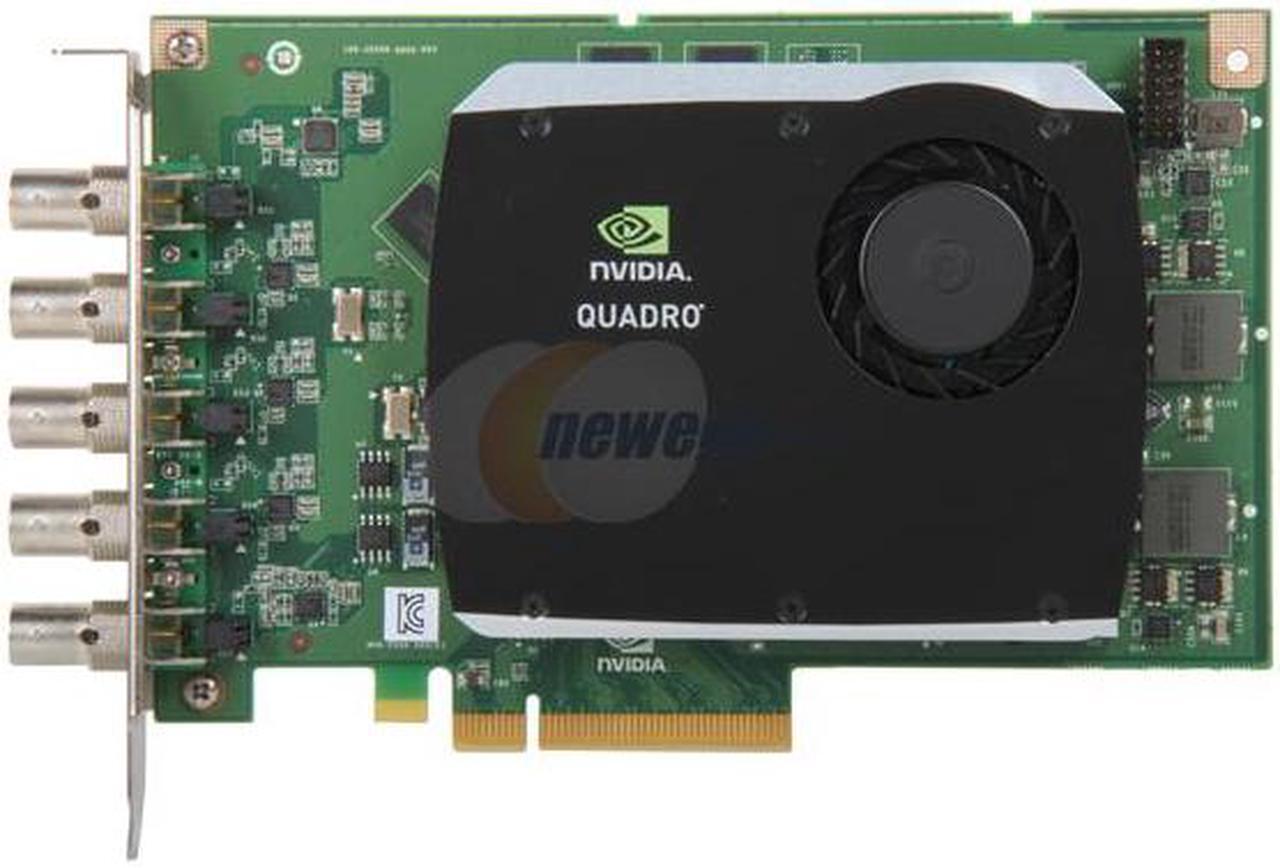

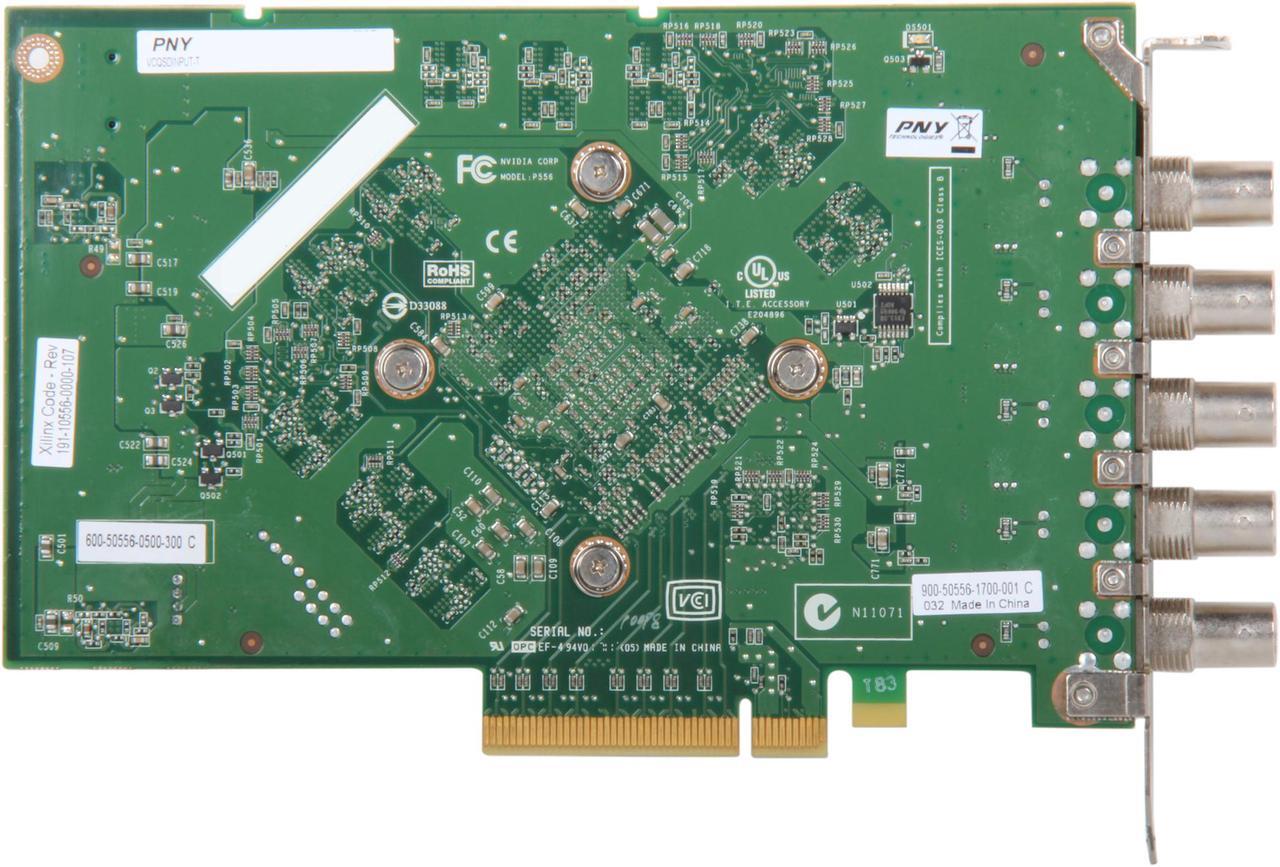

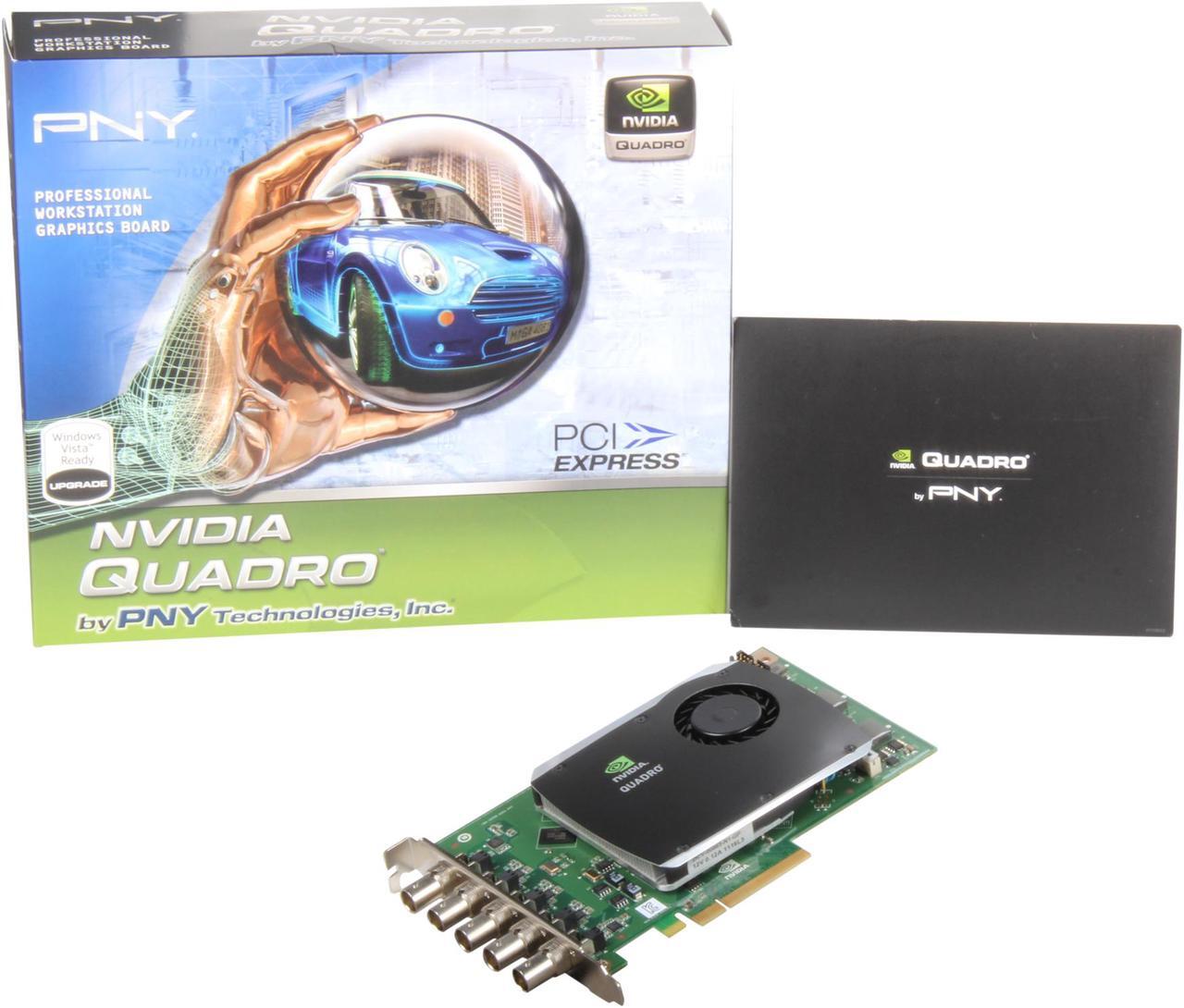

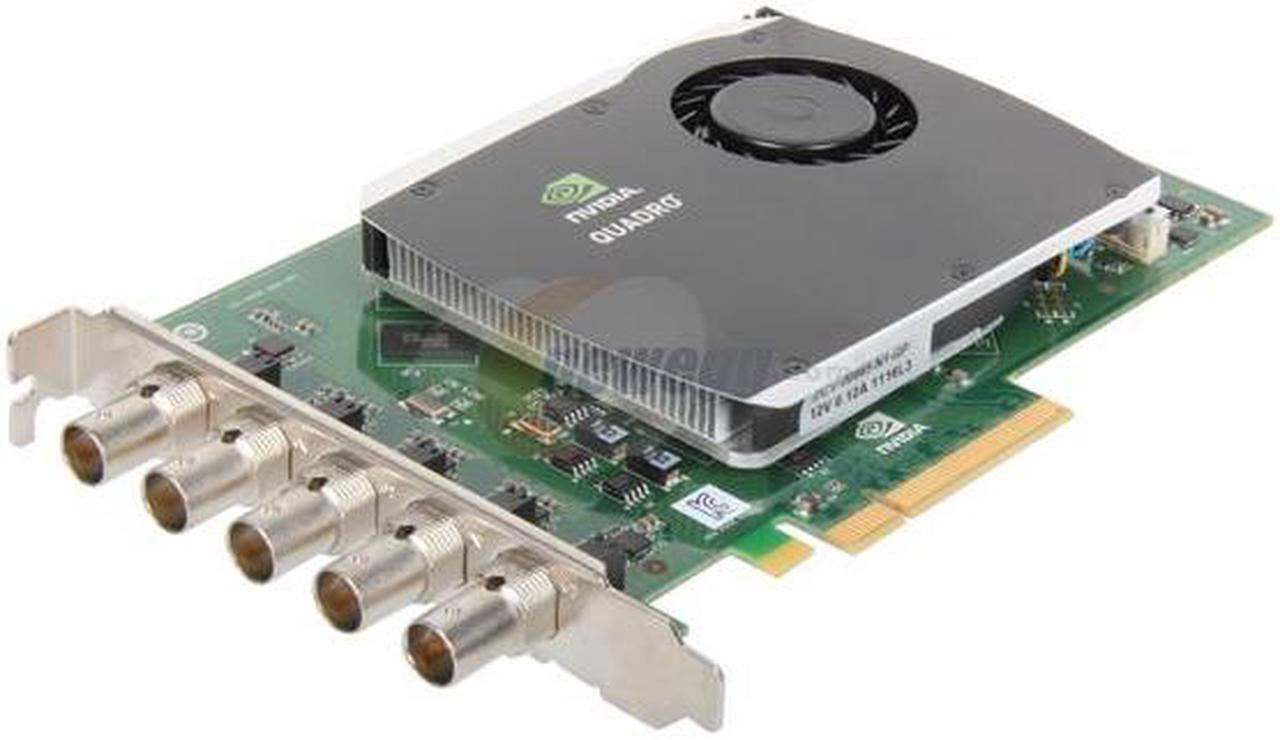

    PNY VCQFXSDINPUT-PB PCI Express x8 Graphics Card

    Be the first to review this product...
    • PCI Express x8
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    Reviews

    Learn more about the PNY Technologies, Inc. VCQFXSDINPUT-PB

    Model
    Brand PNY
    Model VCQFXSDINPUT-PB
    Interface
    Interface PCI Express x8
    Ports
    Other Ports Inputs: 4 BNCs (4 Single Link, 2 Dual Link, 2 3G-SDI Single Link, 1 3G-SDI Dual Link)
    Outputs: 1 Monitor out (BNC)
    Details
    Cooler Fanless
    Operating Systems Supported Microsoft Windows XP (64-bit and 32-bit)
    Linux - Full OpenGL implementation, complete with NVIDIA and ARB extensions (64-bit and 32-bit)
    Features
    Features Capture Uncompressed 8-,10-, or 12-Bit SDI formats
    Enables on-air broadcast, video production and post production professionals to capture live video, uncompressed 8-,10-,12-bit SDI directly to graphics memory in 3G, 2K, SD, or HD resolutions.

    Capture up to 4 SDI Sources Directly to GPU Memory
    Quadro SDI input card is the only capture card that enables direct transfer of video directly to graphics memory.

    Ancillary Data Support
    Support for ancillary data through an NVIDIA API. Support for the capture of SMPTE RP188 ancillary data into GPU memory. This ancillary data can include up to 16 channels of embedded 24-bit digital audio as defined by SMPTE 272M and SMPTE 299M as well as timecode.

    Monitor Out
    Monitor out can be used as a sync source for the optional SDI Output card.

    Compatible Quadro solutions: NVIDIA Quadro FX 5800 / 4800 / 3800

    Specifications:
    Form Factor: Full Height, Half Length
    Thermal Solution: Active
    Genlock: All inputs must be genlocked
    Communication to Graphics Card: Direct to GPU memory through PCIe bus.

    Quadro SDI Capture - Programmable Modes:
    - Up to 4 Channel Fill or 2 channel Fill + 2 channel Key
    - 8-, 10-, 12-bit
    - RGB 4:4:4
    - YCrCb 4:2:2 or 4:4:4
    - 2x YCrCb 4:2:2 + 4:2:2
    - YCrCbA 4:2:2:4
    - RGBA 4:4:4:4 (8-bit only)

    Full support for outputs in the following 3G, 2K, HD, and SD formats:
    - 480i 59.94 Hz (SMPTE259) NTSC
    - 576i 50.00 Hz (SMPTE259) PAL
    - 720p 23.98 Hz (SMPTE296)
    - 720p 24.00 Hz (SMPTE296)
    - 720p 25.00 Hz (SMPTE296)
    - 720p 29.97 Hz (SMPTE296)
    - 720p 30.00 Hz (SMPTE296)
    Additional Information
    Date First Available July 26, 2021
