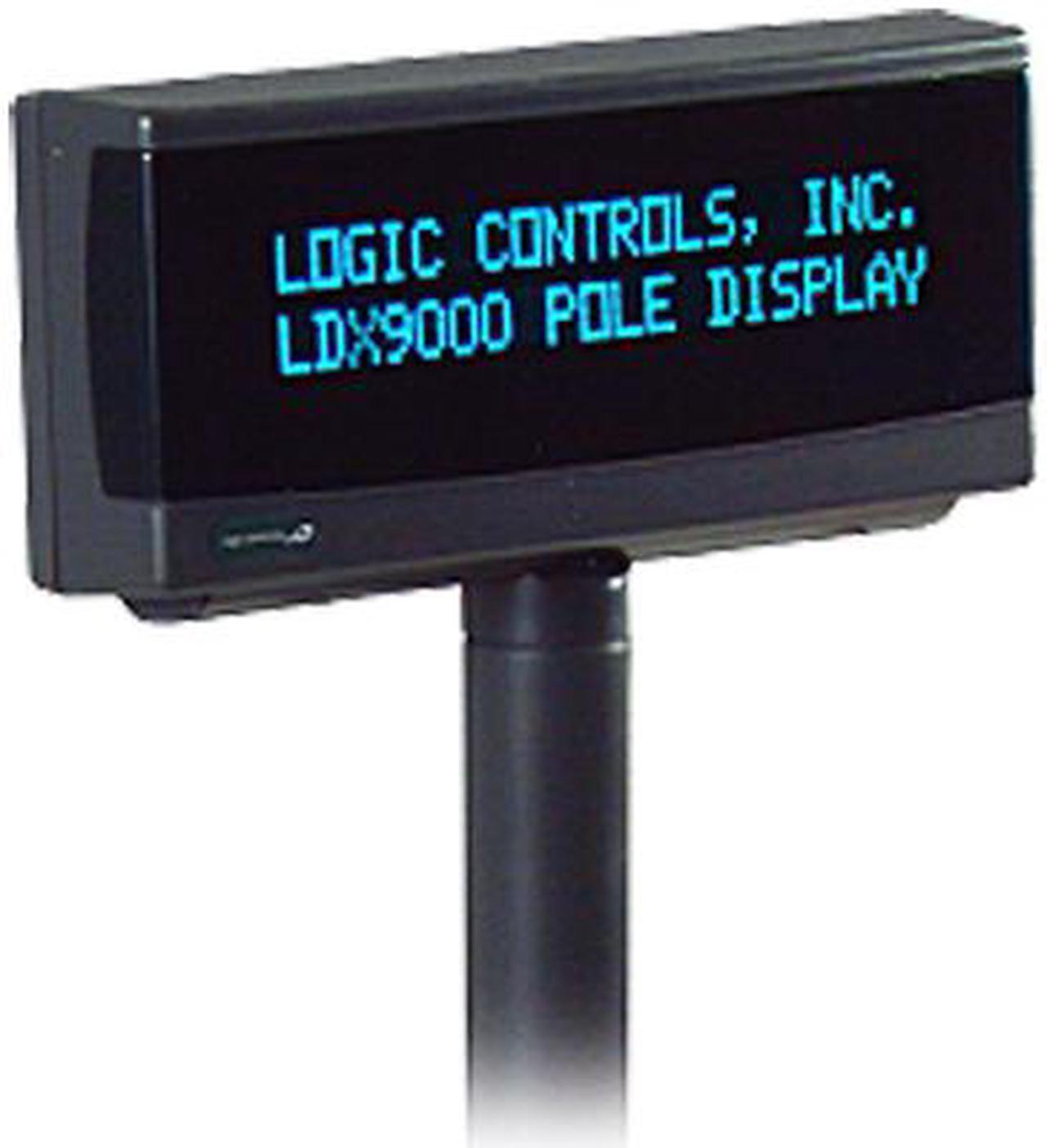

Logic Controls LDX9000UP-GY Logic Controls LDX9000UP-GY Customer Pole Display
- 1.8" x 3.4" x 8"
- 690 cd/m2 Brightness
- Mac , PC
- 2 lines x 20 characters
- USB Interface
- Dark gray Color
- Includes external power supply
+
+
Overview
Specs
Reviews

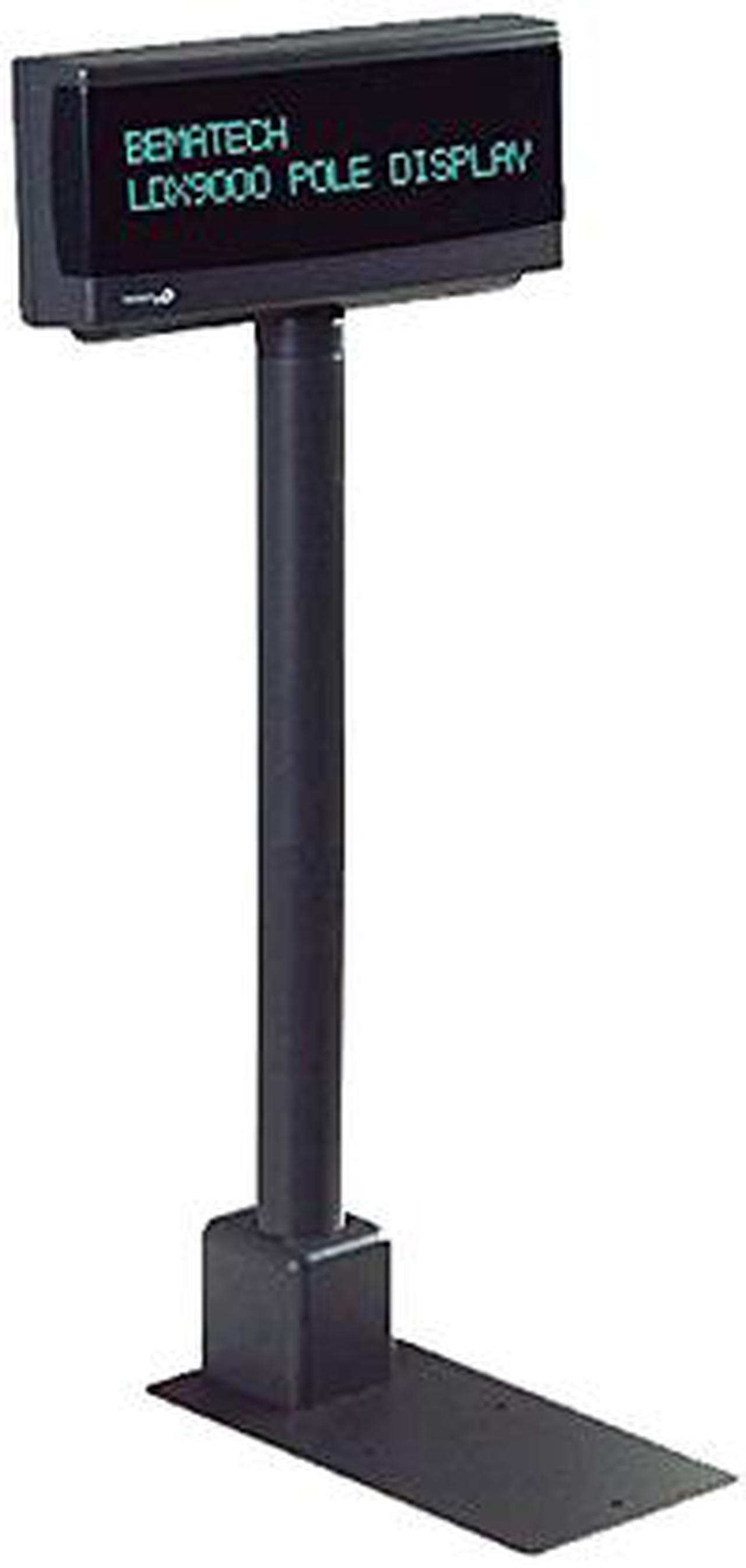

Customer Pole Display
Bematech’s pole displays are widely known as the market leaders for PC-based Point of Sale systems. They have long set the standard for reliability, value and functionality – reasons why most value-added resellers ask for Bematech’s pole displays by name.
One of the reasons why Bematech’s pole displays are the market leaders is because of their well deserved reputation for unsurpassed reliability. The LDX9000 uses special display technology and unique circuit design to achieve its reliability. In addition, the units are made with special, high durability plastic that is UV-resistant and prevents color fading.
The LDX9000 is a 2 x 20 line, 9.5mm character height display that comes with superior functionality that simply is not found in other vendors’ offerings. Scrolling, user-definable characters, and a built-in real-time clock are all standard features of the unit’s firmware. In addition, the LDX9000 comes with a wide variety of interfaces, can emulate most command sets and has better visibility due to an optically matched lens. Best of all, this premium pole display is also one of the most affordable on the market.
Features
- 2 line by 20 character pole display with 9.5mm character height
- Bright blue-green vacuum fluorescent display
- Better visibility due to optically matched lens and wider character pitch
- Automatic message scrolling and “smart scrolling”
- Command set and firmware downloadable options
- Choice of interface: USB or serial
- User-definable characters
- Supports OPOS/JPOS drivers and many command sets including Epson, Ultimate Technologies, IEE, EMAX or Aedex
- Supports a wide variety of languages with code pages
- Adjustable viewing angles
- Available in beige and dark gray, 120V and 220V
Characteristics
MECHANICAL
Weight: 2.7 lbs (1.2 kg)
Dimensions (WxHxD): 8.5in x 3.3in x 1.7in (21.5cm x 8.3cm x 4.3cm)
Rectangular base (WxHxD): 2.1in x 2.0in x 2.2in (5.3cm x 5.0cm x 5.5cm)
Base plate (WxHxD): 4.0in x 0.9in x 8.0in (10.1cm x 2.2cm x 20.3cm)
Overall height: 24in (60.9cm)
Optical (Fluorescent Display)
Digits per row: 20
Number of rows: 2
Digit configuration: 5 x 7 Dot Matrix
Digit height: 0.20in (.5cm)
Digit width: 0.14in (.3cm)
Digit pitch: 0.20in (.5cm)
Character configuration: ASCII
Brightness: 200 fl (690 cd/m2) max.
Display color: Blue-green
MTBF: 300,000 hours
ELECTRICAL
Input power (to adapter): 120VAC, 60Hz. Optional 220VAC, 60Hz
Output power (from adapter): 7.5VAC, 1A
- Connector: 2 conductor female jack
Pole connector: 10-pin mini-DIN (female)
Interface cable
- Pole side connector: 10-pin mini-DIN (male)
- Computer side connector:
- USB: Type A
- Serial: DB9 (female)
- Pass-thru: DB925 (male)
- Power connector: 2 conductor male jack
ENVIRONMENTAL
Operating temperature: 32°F to 122°F (0°C to 50°C)
- Relative Humidity: 85% max. non-condensing
Storage temperature: -4°F to 158°F (-20°C to 70°C)
- Relative Humidity: 90% max. non-condensing
Vibration: (10 to 55 Hz.): 4 G’s
Shock: 40G’s
INTERFACE
USB: 2.0 standard
Serial: RS232
Protocol (* default preset at factory)
- Baud Rate: 2400, 4800, 9600, *19200
- Data Bit: 8
- Parity: None
- Stop Bits: 1
RTS/CTS Control lines are tied together in the connector DSR/DCD/DTR
Control lines are tied together in the connector
