Sizes/Dimensions: 11.81" x 16.50" x 16.50" (H x W x D)
25.10 lbs. (Weight)
Quantity: 1 each
Specifications: Printer Type: Direct Thermal, Drop-and-Print
Printer Stations: Dual Station; Receipt and Journal Printers
Printer Speed: 22 Lines per Second
Paper Roll: 2.25" (58.00 mm)
Displays: (Operator) 2-Line x 16 Character Alpha-Numeric Backlit LCD / (Customer) 9-Digit LED
Keyboard Capacity: Flat - 150 Keys / 100 Programmable Locations
Serial Ports: COM1 & COM2 (D-Sub-9M)
SD Port: Standard
Cash Drawer Ports: One Additional RJ11 (24V) Port (Supports Open/Close)
Standard Cash Drawer: 5 Bill, 5 Coin with Drawer Lock and Two Media Slots
Memory Protection: Full Charge for 24 Hours will Protect Memory for 90 Days
Power Requirements: 120 AC +/- 10%, 50/60 Hz
Power Consumption: Approximately 25 Watts
Operating Temperature: 32 ...
Specifications: Compatibility

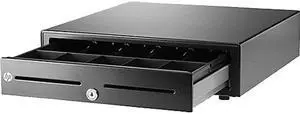

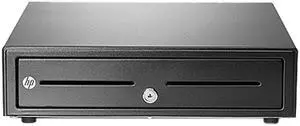

The HP Standard Duty Cash Drawer is compatible with the HP Point of Sale Systems and HP POS printers. The cash drawer can be connected directly to the HP rp5800 Retail System through the integrated cash drawer port. For all other HP Point of Sale Systems, the cash drawer must be connected via the provided interface cable through a HP POS printer.
Sizes/Dimensions: Drawer Dimensions: 13.00" x 14.20" x 3.25"
Drawer Weight: 8.80 lbs.
Specifications: Drawer Case: 4 x Bill Case & 5 x Coin Case & 2 x Media Slots
Drawer Interface: Standard RJ11, or RJ12 Connection
Key Position: 3 Positions (Locked, Unlocked, Electronic Opening Allowed)
Operating Voltage: 9 - 24 V Compatible
Maximum Drawer Load: 66.00 lbs.
Sizes/Dimensions: Drawer Dimensions: 16.00" x 16.00" x 3.90"
Drawer Weight: 17.60 lbs.
Specifications: Drawer Case: 5 Bill Case & 8 Coin Case & a Media Slot
Drawer Interface: Standard RJ12 Connection
Key Position: 3 Positions (Locked, Unlocked, Electronic Opening Allowed)
Operating Voltage: 9 - 24 V Compatible
Maximum Drawer Load: 110.20 lbs.
