EKWB EK-MLC Phoenix GPU Core FC1080 GTX TF6 - Acetal+Nickel

Phoenix is a Modular Liquid Cooling line of products by EKWB and the next generation of improved All-In-One water cooling solutions. Designed around Quick Disconnect Couplings it brings a modular approach to connecting and expanding the loop, giving you the freedom to decide which components you want to cool down. CPU cooling module and GPU cooling module can be connected to the EK-MLC Radiator Core Module in any order, separately or together.

The

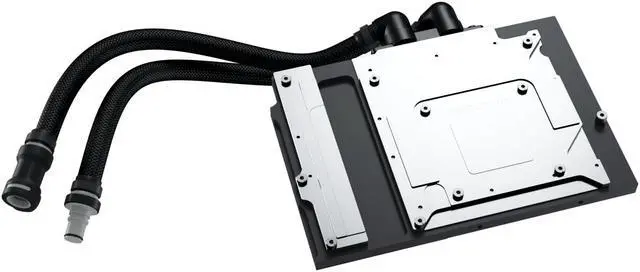

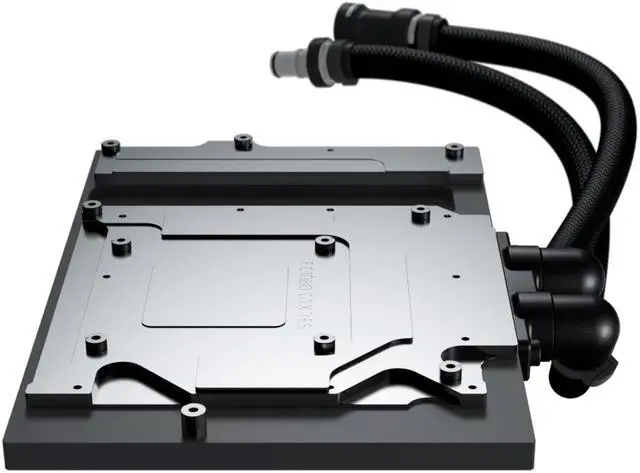

  EK-MLC GPU Module FC1080 GTX TF6 is a pre-filled and pre-assembled Full-Cover GPU water block module. It is precisely CNC machined to fit
  non-reference design
  MSI® GeForce® GTX 1080, 1070 and 1060 GAMING  series
  graphics cards.   It is made from high-purity copper which enables high thermal performances.

Quick Disconnect Coupling or QDC is a special connector that allows for a quick and tool-less expansion of the system without the need for draining of the unit. This allows you to add a pre-filled QDC-enabled GPU or CPU cooling module to  an EK-MLC Radiator Core Module. Quick Disconnect is a medical grade product with Zero Drop design, and the expansion of the modular liquid cooling system can be very quick, easy and safe.

This water block directly cools the GPU, RAM, as well as VRM (voltage regulation module) as water, flows directly over these critical areas thus allowing the graphics card and it's VRM to remain stable under high overclocks.

It features a central inlet split-flow cooling engine design for best possible cooling. Such a design enables great hydraulic performance to work flawlessly with all EK-MLC radiator core modules. The water block is also equipped with a Rotary Terminal
  which gives the user unlimited flexibility for loop routing.

The base of the block is made of nickel-plated electrolytic copper while the top is  made of high-quality POM  Acetal material. The sealing is ensured by quality rubber washers. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure.

EKWB recommends the purchase of aesthetic retention backplate which improves the looks of your graphics cards and also provides some passive cooling to the circuit board VRM  section.

Enclosed:

-  EK-MLC GPU Module FC1080 GTX TF6
- Mounting mechanism with screw-in brass standoffs
- Necessary mounting screws, nuts, and washers
- Thermal pads
- Thermal grease EK-TIM  Ectotherm (1g)

Technical specifications:

-
Top material: CNC machined black POM acetal
- Cold plate material: CNC machined nickel-plated electrolytic copper
- Tube length: 165mm
- Fitting type: 10mm Barb fitting
- QDC type: 10mm Barb fitting
- Coolant type: EK-Cryo
Fuel Clear

Made in Slovenia - Europe!

PLEASE NOTE:

• The EK-MLC GPU Cooling Module is not a standalone product!
• In order to function, every CPU and GPU module requires at least one EK-MLC Phoenix radiator core module!
• The factory backplates of the MSI GTX 1080 GAMING Z and MSI GTX 1070 GAMING Z  are compatible with this water block.
• This water block is compatible with all SLI bridges including the new NVIDI
  A® SLI HB bridge.
