Protocols: FTP/TFTP/HTTP/HTTPS server-based central provisioning; Hardware diagnostics; Manual or dynamic host configuration protocol (DHCP) network setup; Network address translation support for static configuration and Keep-Alive; QoS Support — IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS, and DHCP; Status and statistics reporting; Syslog Event Logging; Conforms to IEEE802.3-2005 (Clause 40) for physical media attachment; Conforms to IEEE802.3-2002 (Clause 28) for link partner auto-negotiation; Time and date synchronization using SNTP; SIP signaling; RTCP and RTP support; IPv4; IPv6; Provisioning and call server redundancy support; DNS-SRV
Ports: 1 USB 2.0 Type-A (for media and storage applications); 1 USB 2.0 Type-C® (for media and storage applications); 2 RJ-45 (10/100/1000BASE-TX Mbps)
Additional Features: Get your message through with EPOS Voice
Six adaptive, beamforming microphones and DSP intelligently isolate voices from room reverb and ambient noise
Rich, natural sound
Powerful ultra-low distortion speaker in a unique patent pending suspended speaker box fills the room with outstanding sound
Superior craftsmanship, statement Scandinavian design
Crafted with high-quality materials and sound-enhancing fabric by Kvadrat with a premium, minimalist aesthetic
Expand your meetings
Attach up to two expansion microphones for larger meetings
Set up your conference call in seconds
Enjoy multiple connectivity options, an intuitive user interface and one touch access to your preferred Voice Assistant or Microsoft Teams
Microphone: EPOS Voice technology For a clear and natural listening experience. Beamf...
Security: • IPv4/IPv6
• IP Assignment: Static/DHCP
• Proxy mode
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• Transport Layer Security (TLS)
• HTTPS certificate manager
• IEEE802.1X
Additional Features: Logitech Swytch is a laptop link for video conferencing in meeting rooms, linking a Windows 10 laptop, MacBook, or Chromebook to the conference camera and display with a single USB Type A or C connection.
In rooms with or without a dedicated computer - including BYOM rooms, Microsoft Teams Rooms, and Zoom Rooms - Swytch adds support for meetings on any service. Simply connect Swytch to a laptop via USB and launch the desired application. Swytch delivers broadcast-quality video at up to 4K resolution, and connects the laptop to the room's display.
Device management capabilities via Logitech Sync make it easy for IT to monitor and manage Swytch together with other meeting room devices, including Logitech MeetUp, Rally, and Tap.
With a one-cable laptop link to a meeting room's AV devices, Logitech Swyt...
Camera: Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
Pan: Motorized ±25°
Tilt: Motorized ±15°
Zoom: 15X HD zoom (5X optical, 3X digital available with upcoming software update)
Diagonal Field of View: 90°
Horizontal Field of View: 82.1°
Vertical Field of View: 52.2°
Total Room Coverage: 132.1° Horizontal x 82.2° Vertical
Camera: Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
Pan: Motorized ±25°
Tilt: Motorized ±15°
Zoom: 4X HD digital zoom
Diagonal Field of View: 120°
Horizontal Field of View: 113°
Vertical Field of View: 80.7°
Total Room Coverage (field of view + pan and tilt): 163° horizontal x 110° vertical
Security: IPv4/IPv6
IP Assignment: Static/DHCP
Proxy mode
HTTP/HTTPS web server
Time and date synchronization using SNTP
Transport Layer Security (TLS)
HTTPS certificate manager
IEEE802.1X
AES encryption for configuration file

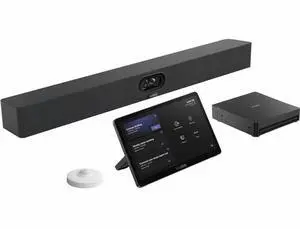

Additional Features: The Yealink A30-020-Zoom Room includes the MeetingBar A20 which features Smart Zoom Rooms Collaboration and ultra HD full-duplex voice. The A30-020-Zoom Room System has a powerful camera with a 133 ° angle and a 20MP lens. This bundle also includes 1 CTP18 touch-screen console that facilitates the control of the system. The CTP18 allows users to annotate on shared content for easy and efficient collaboration at your fingertips. The CTP18 is an Android-based, 8-inch device that runs on the Android operating system. The CTP18 can be used via PoE by connecting one cable that carries both data and power.
Camera: Number of cameras: 3
Number of preset positions: 9
Electronic gimbal
Lens FOV
Maximum pixels: 3x 50MP pixel
Depth of field: 0.7-8 meters
8 x digital zoom
Maximum resolution: 3840*2160
Video output resolution: 4k (2160p) 30fps, 1080p60fps
Effective focal length: 8.29 mm (Tele camera), 3.5mm (Wide camera)
Aperture: F/2.0-F/2.4
Supports wide dynamic range
Supports auto exposure
White balance: ATW/auto/manual
Shutter speed: 10ms-33ms
Minimum illumination: 0.5...
Additional Features: Camera
Smooth motorized pan, tilt and zoom controlled from remote or console
Pan +/- 90 degree
Tilt +35 degree / -45
10x lossless HD zoom
Field of View:
Diagonal: 90 degree
Horizontal: 82.1 degree
Vertical: 52.2
Full HD 1080p 30fps
H.264 UVC 1.5 with Scalable Video Coding (SVC)
Autofocus
5 camera presets
Far-end control (PTZ) of ConferenceCam product (with supported services)
Kensington security slot
Video mute / unmute LED indicator
Standard tripod thread
Remote Control
Camera, speakerphone, and call control
5 camera presets
Docks on speakerphone
IR 8.5m / 28-foot range
CR2032 battery (included)
Speakerphone
Full-duplex performance
Acoustic echo cancellation
Noise reduction technology
Ultra-wideband audio
Pairs with mobile devices via Bluetooth and NFC
LCD for caller ID, call duration and other functional response
LEDs for speakerphone streaming, mu...
Camera: Type: Digital video camera
Form Factor: Desktop
Camera Mechanical Design: Pan / tilt / zoom
Color Support: Color
Optical Zoom: 15
Digital Video Capture Resolution: 3840 x 2160
Video Modes: 1080p, 1440p, 4K, 720p, 900p
Interface Type: SuperSpeed USB 3.0
Features:
+50° / -90° tilt, 180° pan, 30 fps, 52.2° field of view (vertical), 82.1° field of view (horizontal), 90° diagonal field of view, Auto Focus, Motorized pan, Motorized tilt, Motorized zoom, Security lock slot (cable lock sold separately)
Specification: OS Required: Apple MacOS X 10.10 or later, Google Chrome OS, Microsoft Windows 7 / 8.1 / 10
Microphone: Type: Microphone
Microphone Operation Mode: Omni-directional
Form Factor: External
Frequency Response: 90 - 16000 hertz
Speakerphone: Type: Speaker(s)
Frequency Response: 300 - 10000 hertz
Total Harmonic Distortion (THD): 2.5...
Features: Native support for Microsoft Teams
5.5" color touch screen (1280 x 720) with multi-lingual support
GbE support
USB headset support
Bluetooth 5.0 support
PoE or external power supply
AudioCodes Device Management Tool available (Free of charge)
Additional Features: With a single USB connection, Logitech Swytch links a laptop to the room’s display, camera, and audio devices. Now, people can use meeting rooms with any video conferencing software, webinar platform, or streaming service.
Specification: SYSTEM REQUIREMENTS
- Meeting Room Equipment
Display: HDMI input
Conference Camera: USB conference camera with speakerphone
- Laptop Computers
USB 3.0 Port: Type A or Type C
USB Power Delivery: Up to 60 watts for compatible laptops that charge via USB Type C
Operating Systems with DisplayLink Plug and Display Drivers: Windows 10, macOS 10.15 and later, and Chrome OS 75 or later.
INSIDE THE BOX
Swytch Hub
Swytch Extender
Swytch Connector with 1.5m / 4.9ft USB Cable
100-240v Swytch Hub Power Supply
100-240v Swytch Extender Power Supply
5m / 16.4ft USB 3.0 Cabl...
Features: 7 inch (800 x 480) capacitive touch screen,
Optimal HD audio, Yealink Noise Proof Technology
Magnet handset,
Dedicated Microsoft Teams button,
Microsoft Teams-tailored user interface, supports upgradability of firmware to Teams or SfB edition
Built-in Bluetooth 4.2 and dual band 2.4G/5G Wi-Fi
USB Type A port, supports USB headset
Dual-port Gigabit Ethernet, PoE support,
