Specifications: Ports: 24 open mini-GBIC slots
Physical characteristics:
Dimensions: 10.3" x 8.1" x 1.8"
Weight: 2.0 lbs.
Environment:
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Notes:
This product requires revision "B" or later mini-GBICs (product number ends with the letter "B", e.g. J4858B, J4859B).
When installed in a 5400 chassis, the J8706A module limits the operating temperature range of the chassis to 32°F to 104°F (0°C to 40°C).
Specifications: Ports:
4 CX4 10-GbE ports (IEEE 802.3ak Type 10Gbase-CX4)
Duplex: full only
Physical characteristics:
Dimensions: 10.3" x 8.1" x 1.8"
Weight: 1.7 lbs.
Environment: Operating Temperature: 32°F to 131°F (0°C to 55°C)
Cabling
Maximum distance:
15 m using CX4 cable
300 m using optical media converters and multimode fiber cable
Notes
Use CX4 10-GbE cable (0.5 m-15 m) or ProCurve 10-GbE CX4 Media Converter (J8439A)
No CX4 cables are included with this module.
Specifications: Ports: 4 open transceiver slots
Physical characteristics:
Dimensions: 10.3" x 8.1" x 1.8"
Weight: 1.7 lbs.
Environment: Operating Temperature: 32°F to 104°F (0°C to 40°C)
Notes: When installed in a 5400 chassis, the J8707A module limits the operating temperature range of the chassis to 32°F to 104°F (0°C to 40°C).

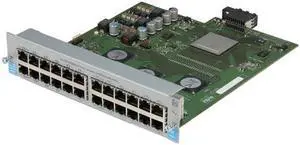

Specifications: Ports :
24 RJ-45 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T)
Media Type: Auto-MDIX
Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only
Specifications: Ports :
24 RJ-45 auto-sensing 10/100 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX)
Media Type: Auto-MDIX
Duplex: half or full
Specifications: Voltage: 200-240 VAC
Current: 10 A
Maximum power rating: 1800 W
Frequency: 50 / 60 Hz
Dimensions: 6.05" x 7.45" x 5.1"
Weight: 7.5 lbs.
Specifications: High-power 1500 W power supply for 5400 series switches. Supplies 900 W for PoE power plus 600 W for switch power. 220 V only.
Physical characteristics:
Dimensions: 6.1" x 7.5" x 5.1"
Weight: 7.5 lbs.
Electrical characteristics:
Maximum Current: 10A
Frequency range: 50/60 Hz
Power: 1500 W
Specifications: Description: IEEE 802.3af PoE compliant or 48 VDC input from included AC power supply
Voltage: 100-240 VAC
Current: 1.0 / 0.4 A
Frequency: 50 / 60 Hz
