Specifications: Standards:
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3af
Device Interface:
1 x Gigabit data/power in port
1 x Gigabit data out port
1 x Power out port
LED indicators
Adjustable output power DIP switch (5 V, 7.5 V, 9 V, 12 V)
Data Transfer Rate:
Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
Jumper Cable:
2.0 to 2.0 mm
2.0 to 2.5 mm
Power:
PoE network cable input: 48 V DC, 0.38 A
Output: 5 V (2 A), 7.5 V (2 A), 9 V (1.7 A), 12 V (1.2 A)
Consumption: 0.3 Watts (max.)
Specifications: Industry Standards
IEEE 802.3af PoE, IEEE 802.3at PoE+
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
Connector Type(s): 2 - RJ-45 Female
Maximum Data Transfer Rate: 1000Mbps
Power Output: 48V/DC at Full 30W Output Supported
Enclosure Type: Plastic
Dimension: 2.8" x 2.5" x 1"
Weight: 1.8oz
LED Indicators: 1 - Device Power Indicator
Center Tip Polarity Positive
Input Current 0.75 A
Input Voltage: 100 ~ 240 AC
Output Curren: 0.75 A
Output Voltag: 48 DC
Plug Typ: M
Power Adapter Included

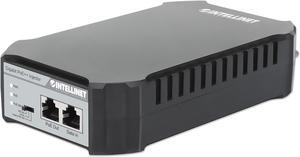

Specifications: Standards
802.3 10BaseT
802.3u 100BaseT
802.3ab Gigabit Ethernet
802.3at / af Power-over-Ethernet
Physical Interface
(1) Gigabit Data Port
(1) Gigabit Data & Power Output Port
(1) IEC-320 C6 AC Connector
Power
Input voltage : 100 to 240 VAC
Input current: 0.8A maximum for 100 VAC
AC input Frequency: 47-63Hz
Maximum output power: 30W
Pin4, 5:54V; Pin7, 8: Return
Temperature Range
Operating: 32 degree F to 104 degree F (0 degree C to 40 degree C)
Storage: -22 degree F to 176 degree F (-30 degree C to 80 degree C)
Humidity (non-condensing)
Operating: 5 to 90% or less
Storage: 5 to 90% or less
LED Indicator: 1 x Power on Green
Mounting: Wall (anchors & screws included)
Dimensions: 1.30" x 3.90" x 2.27"
Parts: Manufacturers Limited Warranty: 1 Year / Parts Onl...
