Specifications: 4K Support: Yes
Bus Type: USB-C
Chipset ID: Genesys Logic - GL3523 (USB Hub), Realtek - RTL8153 (LAN), Parade Technologies - PS176 (HDMI)
Displays Supported: 1
Fast-Charge Port(s): No
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Data Transfer Rate: 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: 4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
Connector Type: 1 - USB Type-C (24 pin) USB 3.0 Male
OS Compatibility: Windows 7, 8, 8.1, 10 / Mac OS 10.10 to 10.12 / Chrome OS
Note:
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP alt mode.
A 4K-capable display is required to achieve 4K x 2...
Specifications: Maximum Digital Resolutions: 3840 x 2160 @ 60Hz
Supported Resolutions:
3840 x 2160 @ 60Hz
2560 x 1600
2048 x 1280
1920 x 1200
1920 x 1080
1280 x 720
1680 x 1050
1600 x 900
1440 x 900
1360 x 768
1280 x 800
1280 x 768
Wide Screen Supported:Yes
Humidity: 0~90% RH
Operating Temperature: 0 C to 40 degree C
Storage Temperature: -20C to 70 degree C
Output Connector: 1 x USB-C (24 pin) DisplayPort Alt Mode Male Input
1 x DisplayPort (20 pin) Female Output
Specifications: 15 ft. USB-C to DisplayPort Cable - 4K 60Hz
The USB-C to DisplayPort cable provides a solution to connect USB-C devices that support DisplayPort alternate mode (DP alt mode) to DisplayPort displays. The 6 feet length efficiently connects MacBooks, Chromebooks, and other USB-C devices that support DisplayPort Alternate Mode (DP Alt Mode) to displays without needing an additional DisplayPort cable.
4K / 60Hz Resolution
Support for resolutions up to 4K / 60Hz allow you to output onto 4K monitors to display Ultra HD resolutions up to 3840x2160 / 60Hz. Perfect for streaming HD content and playing Blu-ray media. The 6ft length also provides a longer length for use with a wide variety of setups. The DisplayPort male end also eliminates the ...
Specifications: Audio: Yes
Chipset ID: NXP - PTN5100 / Pericom - PI3DPX1203
Converter Type: Format Converter
Audio Specifications: 7.1 surround sound
Maximum Digital Resolutions: 4K (3840 x 2160) @ 60 Hz
Supported Resolutions:
1024 x 768
1280 x 720
1920 x 1080 @ 144hz
1920 x 1200
2560 x 1440
2560 x 1600
3840 x 2160 @ 60Hz
Video Revision: DisplayPort 1.2
Wide Screen Supported: Yes
Connector:
1 x USB-C (24 pin) DisplayPort Alt Mode Male Input
1 x Mini-DisplayPort (20 pin) Female Output
System and Cable Requirements:
Your USB-C device must support DisplayPort over USB-C (DP alt mode) to work with this adapter
This adapter outputs a single-mode Mini DisplayPort signal and will not work with additional video adapters such as Mini DisplayPort to HDMI, Mini DisplayPor...
Specifications: Converter Type: Format Converter
Audio Specifications: 7.1 surround sound
Maximum Digital Resolutions: 3840 x 2160 (Ultra HD 4K) @ 60hz
Supported Resolutions: 1024 x 768, 1280 x 720, 1920 x 1080, 1920 x 1200, 2560 x 1440, 2560 x 1600, 3840 x 2160
Wide Screen Supported: Yes
Connector A: 1 x USB-C (24 pin) Male Input
Connector Type(s): 1 x USB Type-C (24 pin) USB 3.0 Female
System and Cable Requirements: Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter.
Humidity: 25% to 85% RH Non-Condensing
Operating Temperature: 5 to 35 degree C (41 to 95 degree F)
Storage Temperature: 5 to 35 degree C (41 to 95 degree F)

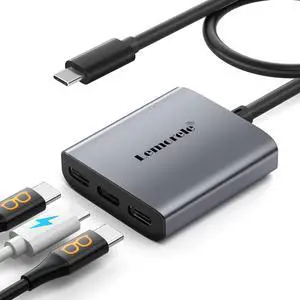

Features: - Two video stream groups for dual display, each group only supports one to use simultaneously.
- Compatible with TBT4/3 and other USB-C Alt Mode ports on Mac or Windows computer.
- Supports mirror and extend modes.
- Boasts excellent heat dissipation capabilities and occupies minimal space, making it convenient to carry around.
Package Contents: 1x USB 3.0 to DP/HDMI Dual Display Adapter(cable length: 90mm/3.5in), 1x CD-Shaped Card for Driver Download Links, 1x Quick Start Guide
