Type: USB-C to DVI Adapter with USB-A Hub, Gigabit Ethernet
Color: Black
Changer Type: USB-C to DVI, USB-A, RJ45, USB-C
Specifications: Adds DVI, USB-A, USB-C PD charging and Gigabit Ethernet ports to your tablet, laptop, notebook, smartphone or PC.
Transmits DisplayPort signals from sources supporting USB DisplayPort Alt Mode
Delivers HD picture quality at resolutions up to 1920 x 1080 (1080p) @ 60 Hz
Connects you to a wired Ethernet network when no Wi-Fi is available
Powers and charges PD Charging-compliant devices, such as MacBooks and Chromebooks
Easy installation with plug-and-play operation-no software required
Package Contents: 2-Port Dual Monitor DVI KVM Switch with Audio and USB 2.0 Hub
2 x 6 ft. DVI-D Dual Link / USB KVM Cable Kits
2 x 6 ft. DVI-D Dual Link Cables
External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5.3V, 2.4A)
Owner's Manual
Changer Type: Mini DisplayPort to VGA / DVI / HDMI
Color: White
Specifications: Mini DP to VGA/DVI/HDMI adapter connects your Mini DisplayPort or Thunderbolt 1/2 laptop or tablet to a VGA, DVI or HDMI display.
Multiple video outputs connect to most displays-no more carrying multiple adapters
Delivers high-definition picture quality at resolutions up to 1920 x 1200, including 1080p
Compact unit fits easily into briefcase or laptop bag for instant use anywhere
Plug-and-play operation with no software required for easy, immediate installation
Passive adapter requires connected computer to have DP++ port for signal pass-through
Specifications: Connector A: USB C (MALE)
Connector B: DVI-D DUAL LINK (FEMALE)
Chromebook Compatible: Yes
System Requirements
Windows XP, Vista, 7, 8 or 8.1 or Mac OS X 10.8.3 and later (32- and 64-bit versions)
Computer with USB-C port and at least 1.2 GHz single-core CPU and 512 MB of RAM
HDMI-enabled monitor
Supports Surface tablets running non-RT Windows 8 or 8.1
Specifications: USB-C to DVI cable connects your DVI display to the USB-C or Thunderbolt 3 port on your laptop, MacBook or Chromebook.
Transmits video signals from sources supporting USB DisplayPort Alt Mode
Delivers HD picture quality at resolutions up to 1920 x 1080 (1080p) @ 60 Hz
Supports USB 3.1 Gen 1 speeds up to 5 Gbps to ensure fast data transfers
Reversible USB-C plug connects in either direction for immediate no-fuss use
Easy installation with plug-and-play operation-no software required
Connector:
Side A - Connector 1: USB-C (MALE)
Side B - Connector 1: DVI-D DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)
Specifications: Audio Specifications: HDMI and mDP output - 7.1 surround sound
General Specifications: Only one video output is supported on the video adapter at a time. If multiple connections are made, only one of the outputs will function.
Maximum Analog Resolutions: 1920 x 1200
Maximum Digital Resolutions: 3840 x 2160
Supported Resolutions:
HDMI and mDP output: 3840 x 2160, 2560 x 1600, 1920 x 1200, 1920 x 1080, 1280 x 720
DVI and VGA output: 1920 x 1200, 1920 x 1080, 1280 x 720
Video Revision: DisplayPort 1.2
Wide Screen Supported
Humidity: 40%-50%RH
Operating Temperature: 0°C to 70°C (32°F to 158°F)
Storage Temperature: -10°C to 80°C (14°F to 176°F)
PC Connectors: TRANSMITTER
Host connection:
Video Input: (1) HDMI female;
Serial Control Port: (1) DB9 female;
Link Port: (1) SFP Cage;
USB: (1) USB Type B female;
Audio: (1) Line in, (1) Line out;
Local Video Output: (1) HDMI female
Console Connectors: RECEIVER
Console connection:
Video Output: (1) HDMI female;
Serial Control Port: (1) DB9 male;
Link Port: (1) SFP Cage;
USB: (4) USB Type A female;
Audio: (1) Mic In, (1) Speaker Out
Specifications: Mini DisplayPort to DVI/VGA/HDMI Adapter
Connects your Surface to a DVI, VGA or HDMI display
DVI-D port supports video resolutions up to 1920 x 1080 (1080p)
HD15 port supports video resolutions up to 1920 x 1200, including 1080p
HDMI port supports UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 24/30 Hz
Supports 36-bit Deep Color (12 bits per channel)
USB 3.0 SuperSpeed to Gigabit Ethernet Adapter
Connects your Surface to a wired Ethernet network
Ensures true 10/100/1000 Mbps network speeds
Reaches USB 3.0 data transfer speeds up to 5 Gbps
Complies with IEEE 802.3, 802.3u, 802.3ab and 802.3az standards
Supports full- and half-duplex, suspend mode and remote wakeup via link-up, and magic packet
Plug and Play Operation
No external powe...
PC Connectors: Keyboard, Mouse, and Monitor: 1 x SPHD-17 Female (Green)
Unit to Unit Connectors: 1 x RJ45 Female
Power Connections: 1 x DC Jack
Function Keys: 1 x Operating Mode Pushbutton

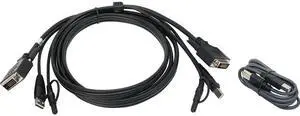

Specifications: Connector on First End:3.5mm Male Audio
DVI-D (Dual-Link) Male Digital Video
Type A Male USB
Connector on Second End:3.5mm - Audio
DVI-D (Dual-Link) Male Digital Video
Type B Male USB
Cable Type:DVI-D/Mini-phone/USB
Device Supported:Desktop Computer
Keyboard
KVM Switch
Monitor
Mouse
Notebook
Speaker

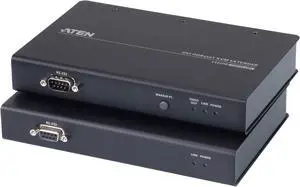

Console Connectors: CE610L:
1 x DVI-D Female (White) Video In
1 x DC Jack Power
1 x mini-USB Firmware Upgrade
1 x RJ-45 Female (Black)
1 x USB Type B Female (White)
CE610R
1 x DVI-D Female (White) Video Output
1 x DC Jack Power
1 x mini-USB Firmware Upgrade
1 x RJ-45 Female (Black)
3 x USB Type A Female (White)
