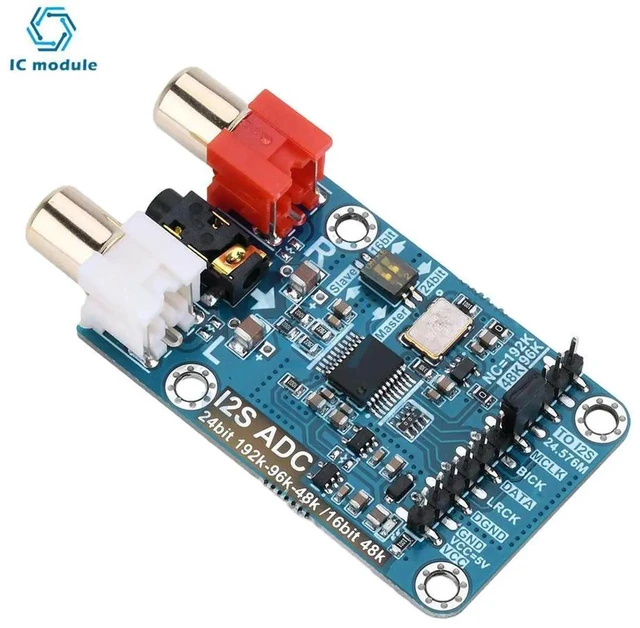

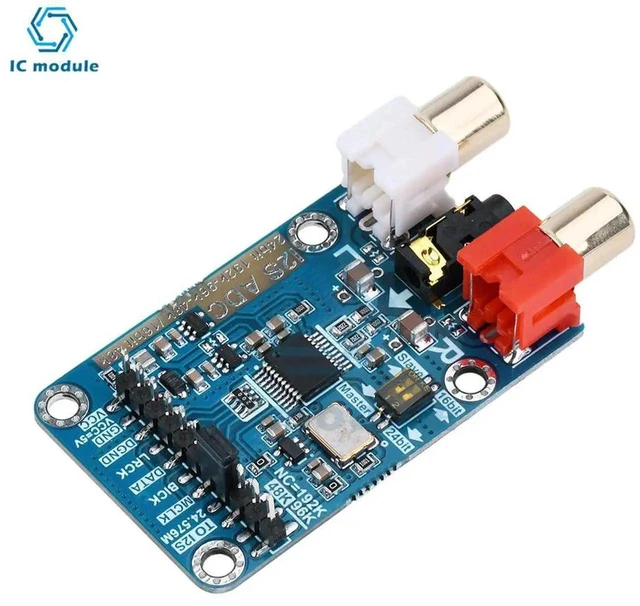

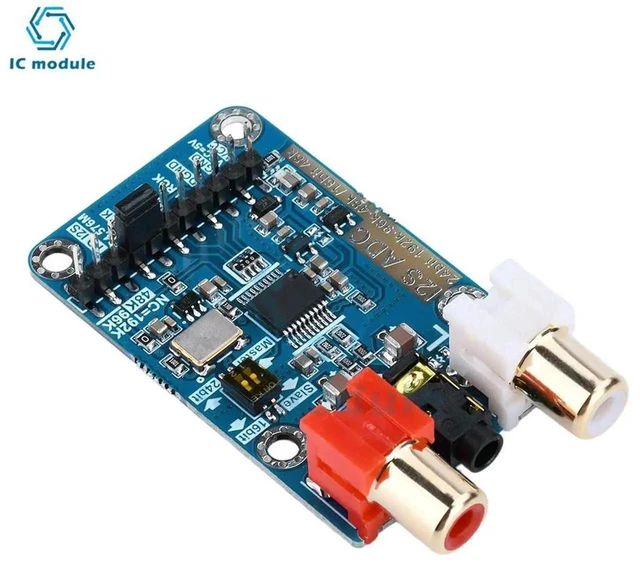

AJMRTC I2S ADC Audio Capture Development Board, MasterSlave Mode, 24Bit 192KHz 96KHz 48KHz Sampling Rate I2S Audio Acquisition Card for Embedded DIY Audio Electronic Development Projects

AJMRTC I2S ADC audio capture development board is a professional audio signal acquisition module for embedded development and DIY audio projects. It adopts highperformance ADC chip to achieve 24bit depth digital audio conversion, supporting multiple common sampling rates including 48KHz, 96KHz and 192KHz, which can capture highfidelity analog audio signals and convert them into standard I2S digital audio output. The module can switch between master mode and slave mode freely. In master mode, the module generates synchronous clock signal; in slave mode, it receives external clock signal from main controller, bringing great compatibility for different MCU and audio hardware. Optimized PCB layout effectively suppresses background noise and crosstalk interference. It is widely used for audio signal collection, audio equipment transformation, embedded audio experiment, teaching demonstration and related electronic development work. Please confirm your controllers I2S clock capability before purchase to ensure normal communication.

Brand: AJMRTC Module Name: I2S ADC Audio Capture Development Board Audio Resolution: 24Bit Sampling Rate: 48KHz, 96KHz, 192KHz Working Mode: Master Mode / Slave Mode Output Interface: Standard I2S Digital Audio Interface Application: Embedded development, audio signal acquisition, DIY audio project, electronic experiment Feature: Low noise circuit design, support secondary development Package Content: 1 x I2S ADC Audio Capture Module
