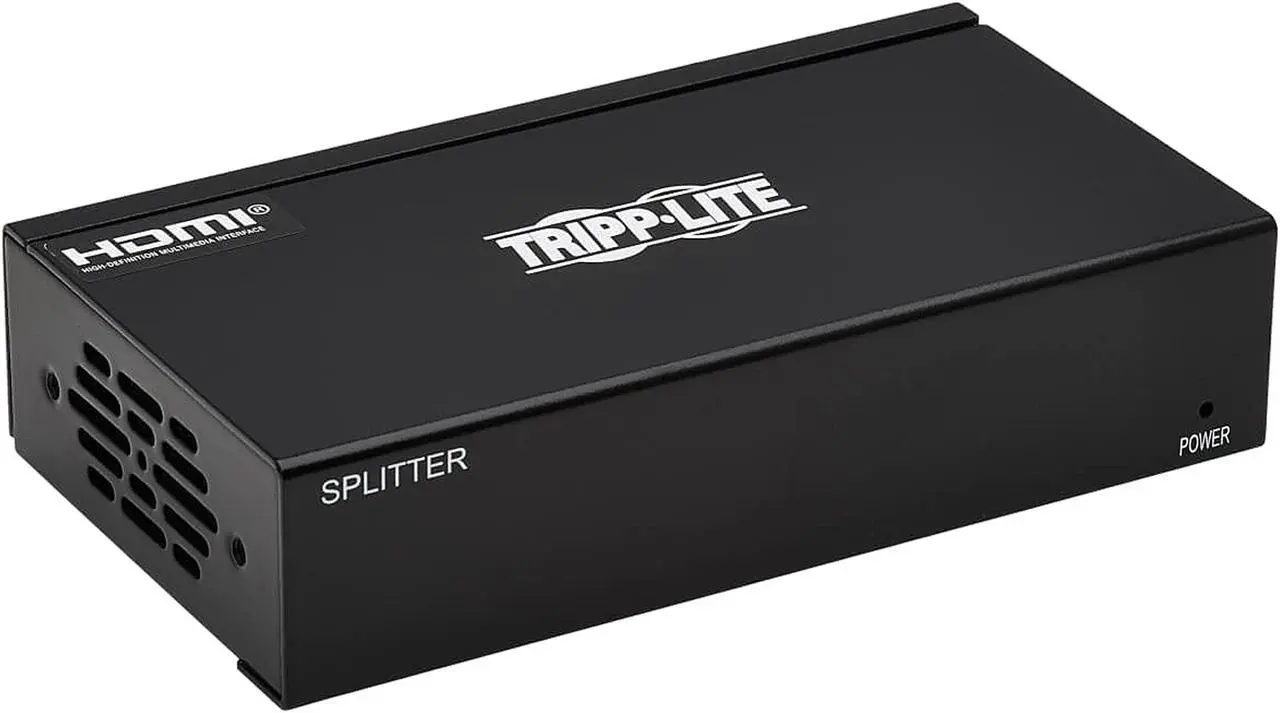

HDMI Over Cat6 Extender Kit Splitter/2x Pigtail Receivers 4K PoC
- HDMI Dual-Output Extender Kit Ideal for Digital Signage in Schools and Workplaces
- Extends a 4K A/V Transmission up to 230 ft… or Even Farther
- Transmits Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color
- Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions
- Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Tripp Lite B127A-002-BHPH2
| Brand | Tripp Lite |
|---|---|
| Model | B127A-002-BHPH2 |
| Type | HDMI over Ethernet |
|---|---|
| Max Extend Distance | 230 feet |
| Color | Black |
| Specifications | Ports: 2 Side A - Connector 1: HDMI (FEMALE) Side A - Connector 2: (2) RJ45 (FEMALE) Side B - Connector 1: (2) RJ45 (FEMALE) Side B - Connector 2: (2) HDMI (MALE) Video Input: HDMI (FEMALE) Video Output: HDMI (FEMALE) Number of Monitors Supported: 2 Video Ports: (2) RJ45 (FEMALE) Video Ports Details: HDMI 2.0; HDCP 2.2 Supported Resolutions: 1280x720 (720p); 1920x1080 (1080p); 1920x1200; 2560x1600; 3840x2160 (4K) Max Supported Video Resolution: 3840 x 2160 @ 60 Hz Audio Input: HDMI Audio Output: HDMI Audio Specification: True uncompressed 7.1 Channel digital audio |

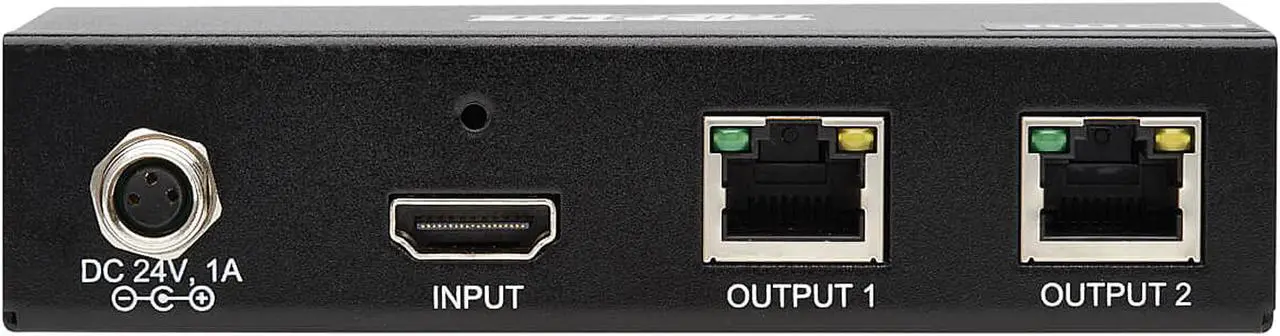

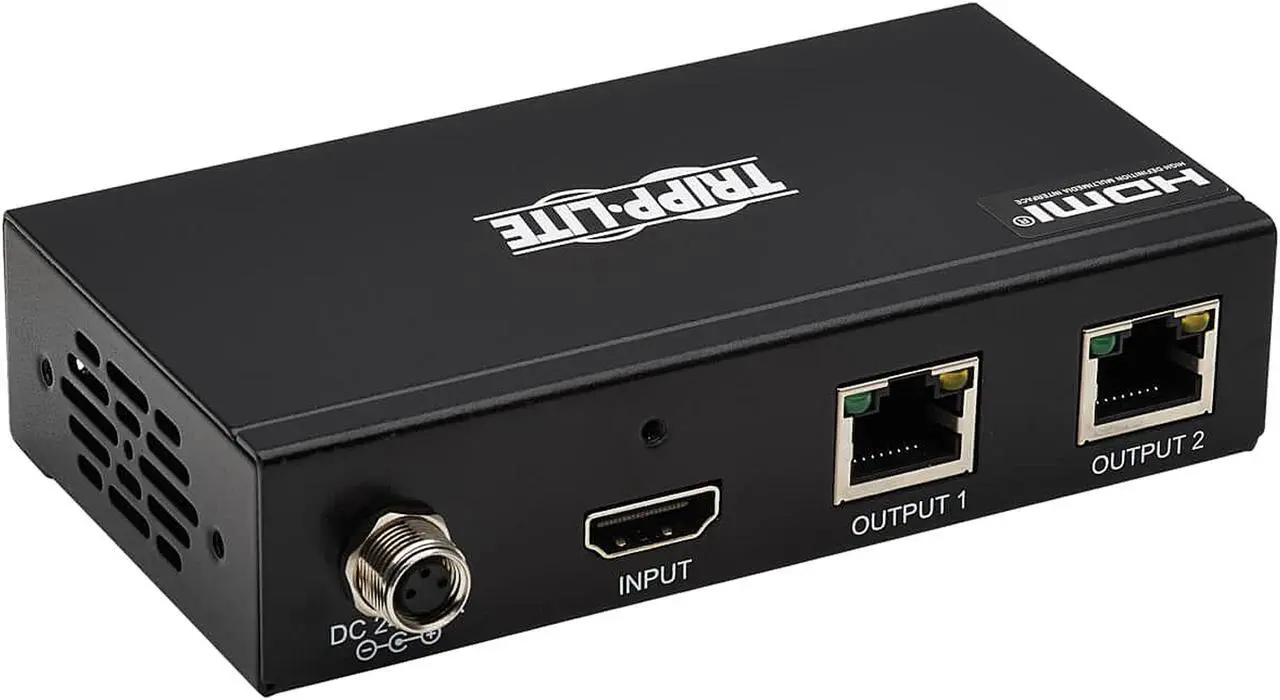

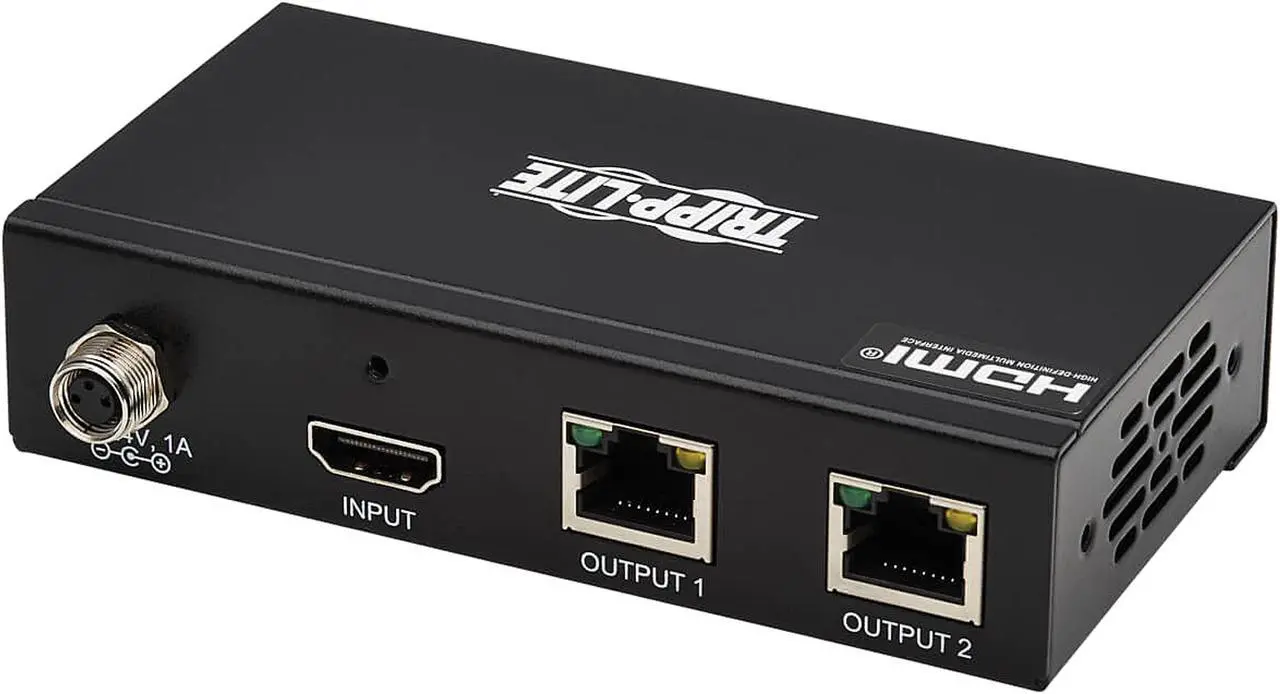

| Connector A | Side A - Connector 1: HDMI (FEMALE) Side A - Connector 2: (2) RJ45 (FEMALE) |
|---|---|
| Connector B | Side B - Connector 1: (2) RJ45 (FEMALE) Side B - Connector 2: (2) HDMI (MALE) |
| Features | Supports 4K @ 60 Hz video resolutions (4:4:4) as specified in HDMI 2.0. Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy. Combines with optional B127A-010-H repeaters to extend signal to 400 ft. Power over Cable (PoC) technology provides power to receivers via Cat6 cable. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. |
|---|

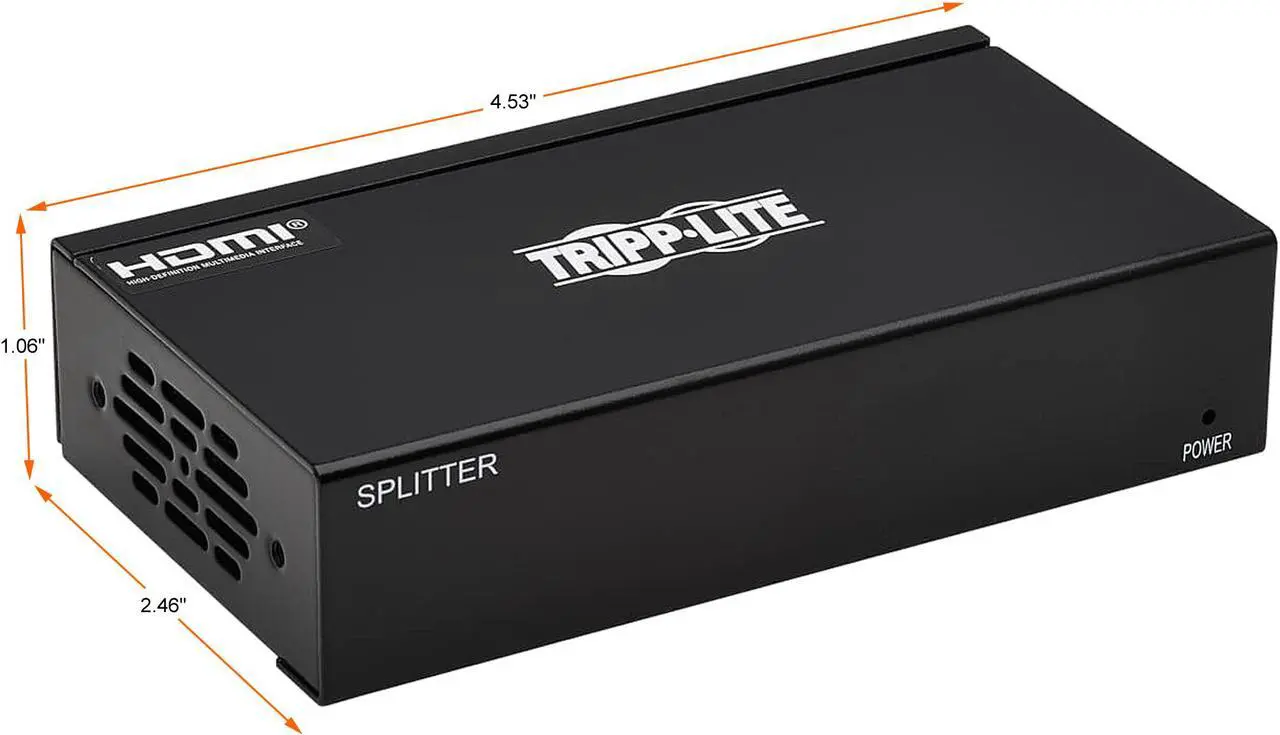

| Dimensions | Receiver Unit Dimensions: 0.73" x 0.85" x 2.95" Transmitter Unit Dimensions: 1.06" x 4.53" x 2.46" |
|---|---|
| Weight | Receiver Unit Weight: 1.00 lbs. Transmitter Unit Dimensions: 1.00 lbs. |

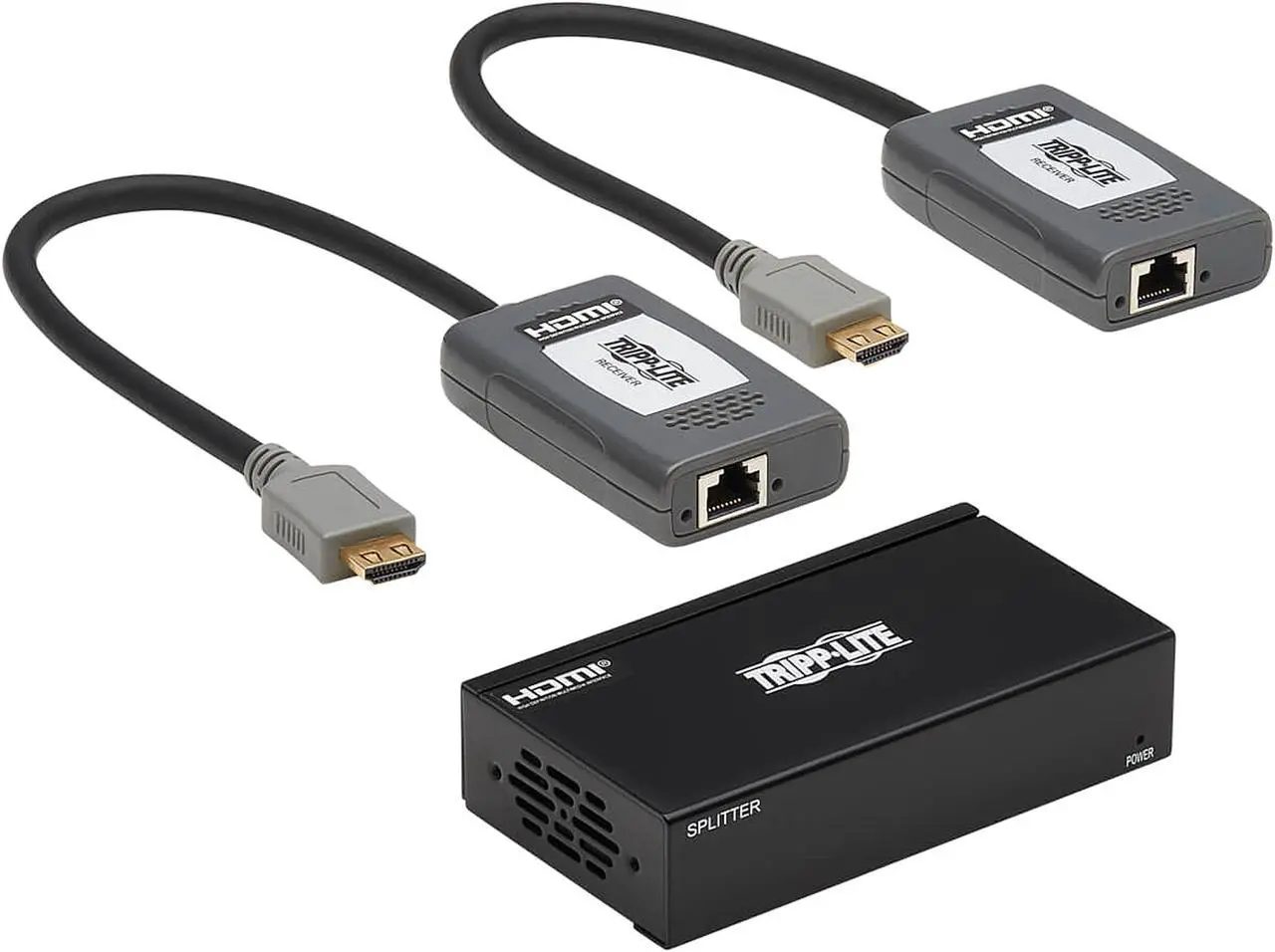

| Package Contents | B127A-002-BH 2-Port HDMI over Cat6 Splitter (2) B127A-1P0-PH 1-Port HDMI over Cat6 Receivers External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A) (4) International plug adapters (North America, U.K., Europe, Australia) Mounting hardware Owner's manual |
|---|
| Date First Available | October 30, 2024 |
|---|
