Specifications: 4K Support: Yes
Bus Type: USB-C
Chipset ID: Genesys Logic - GL3523 (USB Hub), Realtek - RTL8153 (LAN), Parade Technologies - PS176 (HDMI)
Displays Supported: 1
Fast-Charge Port(s): No
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Data Transfer Rate: 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: 4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
Connector Type: 1 - USB Type-C (24 pin) USB 3.0 Male
OS Compatibility: Windows 7, 8, 8.1, 10 / Mac OS 10.10 to 10.12 / Chrome OS
Note:
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP alt mode.
A 4K-capable display is required to achieve 4K x 2...

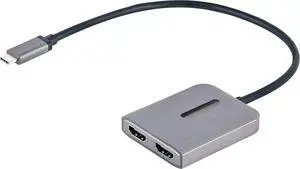

Specifications: Audio: Yes
Chipset ID: STDP4320
Converter Type: MST Hub
Output Signal: HDMI
Ports: 2
Maximum Digital Resolutions: 3840x2160 @ 30 Hz
Supported Resolutions:
Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup.
Average resolution bandwidth allocation
1920 x 1080 (High-definition 1080p) @60 Hz - 22%
1920 x 1200 @60hz - 30%
2560 x 1440 @60hz - 35%
2560 x 1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30 Hz - 38%
Note: Exceeding 100% will reduce functionality.
Wide Screen Supported: Yes
Connector A: 1 x USB-C (24 pin) DisplayPort Alt Mode Male Input
Changer Type: Side A - Connector 1
USB-C (Female)
Side B - Connector 1:
3.5mm (Female)
DisplayPort (Female)
VGA (Female)
HDMI (Female)
RJ45 (Female)
2 x USB 3.0 A (Female)
USB-C (Female)
Side B - Connector 2:
3.5mm (Female)
2 x USB 3.0 A (Female)
USB-C (Female)
Color: Silver
Specifications: USB-C docking station with power adds HDMI, VGA, DP, USB, PD Charging and other ports to your Chromebook, MacBook or PC.
Transmits audio/video signals from sources supporting USB DisplayPort Alt Mode
Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
Connects you to a wired Ethernet network when no Wi-Fi is available
Powers and charges PD Charging-compliant devices, such as MacBooks and Chromebooks
Easy installation with plug-and-play opera...
