Specifications: System Requirements:
Computer with USB-C port that supports USB DisplayPort Alternate Mode
DisplayPort, Mini DisplayPort, VGA, DVI or HDMI external display
Ethernet network
Thunderbolt 3: Yes
Package Contents: U442-DOCK1 USB 3.1 Gen 1 USB-C Docking Station
Owner’s manual

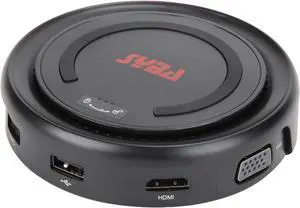

Type: 6-in-1 USB 3.1 Gen 1 Type-C Hub Docking Station
Changer Type: USB to Dual USB-A, HDMI 4K, VGA, USB PD Fast-Charging 60 W, and Detachable QI Wireless Charger
Color: Black
Specifications: A 6-in-1 USB-C Hub with wireless charging up to 10W for efficient, hassle-free charging on a Qi pad. For fast charging, 60W USB PD charging may also be used.
Wireless charging pad on the station is detachable, you can take it on the go and use it independently. Simply setting down your phone on the station and charge wirelessly. Compatible with iPhone Xs MAX/XR/XS/X/8/8 Plus, Galaxy Note 9/S9/S9 Plus/Note 8/S8, All Qi-Enabled Phones.
Complete with a 4k HDMI port, 1080P VGA Port, 1 USB A 3.0 ports, and USB A 3.0 port this hub is the ultimate tool with every feature you could want, and more!
HDMI with audio support allows for the transmission of high ...
Specifications: Ports
Inputs:
1 x USB 3.0 B male
1 x DC 5v female
Outputs:
2 x Displayport
6 x USB A 3.0
1 x Gigabit Ethernet port
1 x 3.5mm Audio jack 2.1 ch
1 x 3.5mm Mic jack
Specifications: Video:
Display Support allow monitor for Extend / Mirror or Primary Display
HDMI (2048x1152) or HDMI with DVI adapter (1920x1200) for external monitor supports
Support HD 1080p video for high resolutions monitor / display
Video Playback via HDCP (HDMI and DVI)
Latest DisplayLink Technology
Virtual 5.1 channel sound via HDMI
USB 3.0:
Support One USB 3.0 port
Compatible with SuperSpeed USB 3.0 and backwards compatible with USB 2.0 specification
Support UASP for added speed
Network:
Gigabit Ethernet wired connectivity (compatible with 10/100 Ethernet)
Capable of Full-Duplex (2Gbps)
Auto MDI-X for simplify connection
Wake on LAN function
Specifications: 4K Support: Yes
Audio: Yes
Bus Type: USB-C
Chipset ID: VLI - VL812 (USB 3.0 Hub), VLI - VL100 (USB Power Delivery), PS - PS171 (DVI), Realtek - RTL8153 (LAN)
Displays Supported: 1
Fast-Charge Port(s): No
Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab; USB 3.0 - Backward compatible with USB 2.0 and 1.1
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Data Transfer Rate: 5 Gbps (USB 3.0); 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: 1920 x 1200 - 60 Hz (DVI)
Maximum Power Delivery Support: 60W
Output Signal: DVI-D (DVI Digital)
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
Connector Type(s): 1 x USB Type-C (24 pin) USB 3.0 Male
OS Compatibility: Windows 7, 8.1, 10 / Mac OS 10.11 to 10.12 / Chrome OS
Note:
Not all...
Specifications: Maximum Data Transfer Rate: 5 Gbps (USB 3.0)
Maximum Digital Resolutions: 4096 x 2160p @ 24Hz / 3840 x 2160p @ 30Hz
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
Output Connector: 1 x HDMI (19 pin) Female
1 x USB Type-A (9 pin) USB 3.0 Female
1 x USB Type-C (24 pin) USB 3.0 Female
Specifications: Industry Standards: USB 3.0 - Backward compatible with USB 2.0 and 1.1
Maximum Data Transfer Rate: 5 Gbps (USB 3.0)
Maximum Digital Resolutions: 4096 x 2160p @ 24Hz / 3840 x 2160p @ 30Hz
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
Power Source: USB-Powered
Output Connector: 1 x HDMI (19 pin) Female
1 x USB Type-A (9 pin) USB 3.0 Female
1 x USB Type-C (24 pin) USB 3.0 Female
Changer Type: Side A - Connector 1
USB-C (Female)
Side B - Connector 1:
3.5mm (Female)
DisplayPort (Female)
VGA (Female)
HDMI (Female)
RJ45 (Female)
2 x USB 3.0 A (Female)
USB-C (Female)
Side B - Connector 2:
3.5mm (Female)
2 x USB 3.0 A (Female)
USB-C (Female)
Color: Silver
Specifications: USB-C docking station with power adds HDMI, VGA, DP, USB, PD Charging and other ports to your Chromebook, MacBook or PC.
Transmits audio/video signals from sources supporting USB DisplayPort Alt Mode
Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
Connects you to a wired Ethernet network when no Wi-Fi is available
Powers and charges PD Charging-compliant devices, such as MacBooks and Chromebooks
Easy installation with plug-and-play opera...
Specifications: 4K Support: Yes
Bus Type: USB-C
Displays Supported: 1
Fast-Charge Port(s): No
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Data Transfer Rate: 5 Gbps (USB 3.0) / 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: 3840 x 2160p (HDMI)
Type and Rate USB: 3.0 - 5 Gbit/s
UASP Support: Yes
OS Compatibility: Windows 7, 8, 8.1, 10 / Mac OS 10.9 to 10.12 / Chrome OS
Power Source: USB-Powered
Output Connector: 1 x USB Type-C (24 pin) USB 3.0 Male
1 x HDMI (19 pin) Female
1 x RJ-45 Female
2 x USB Type-A (9 pin) USB 3.0 Female
1 x USB Type-C (24 pin) USB 3.0 Female
