Specifications: Material: Plastic outer shell
Output limitation (each port):
Addressable RGB port: 72 LED per port, total 5V, 5A
Fan Port : total 12V, 3A
Color Selection: Support 2812 IC Addressable RGB LED
Signal output:
Standard Addressable RGB 3pin + 4-1pin x 6*
Fan 4pin port x 4 (compatible with 3pin)
Included Parts:
6 x Standard Addressable RGB cable
1 x Peripheral power Y cable
1 x RF remote
1 x Thermal sensor cable
1 x Power switch cable
Specifications: Material: Plastic outer shell
Included Parts:
2 x SST-LS02 RGB LED strip
2 x Extend Y cable
1 x RGB 4pin signal cable
1 x 4pin peripheral cable
Signal input: a RGB 4pin host (+12V, G, R, B) or built-in IC control
Signal output: 8 x SilverStone custom RGB 4pin
Net weight: 1.06 oz.
Dimension: 0.75" x 1.81" x 3.35"

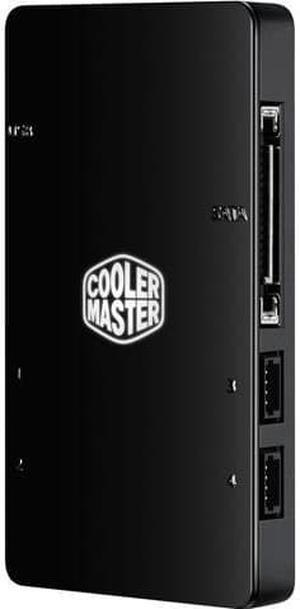

Specifications: Dimension: 90mm x 53mm x 14mmWeight (g): 122Masterial: Plastic, PCBControl Method: Cooler Master SoftwareInput Connector: SATA PowerOutput Channel Voltage: 12vOutput Channels: 4 ports (Port 1, 2 for frequency control) Lighting Mode: Static , Breathing, Color Cycle, Stars,Customize , Multilayer, Turn off, Mirage(Frequency control) Included Accessories:4 x 450 mm Extension cable1 x 600 mm Extension cableInterface: USB connectors (9 Pin)
Specifications: Unit Dimension: 15.50 x 69.00 x 133.00mm Power Input: Logic: 2.97V to 3.63V, 4.5V to 5.5V Fan: 11.4V to 12.6V RGB LED: 4.5V to 5.5V Cable: USB: 440mm SATA Power: 465mm Thermal sensor: 610mm Fan extension: 300mm RGB LED channels: Two 2-pin connector Max. RGB LED strip per channel: 4 Max. RGB fan per channel:6 through 1 RGB LED hub
Specifications: Material Plastic Shell
Signal input:
Standard addressable RGB 3Pin +5V, D, G*
Motherboard addressable RGB 4pin +5V, D, NP, G*
Signal output: SilverStone custom addressable RGB 3pin +5V, D, G** x 8
Power Input: SATA 15pin
Output limitation (each port): 5V 9A (4.5A+4.5A)***
Included Parts:
8 x Standard addressable RGB 3pin cable
1 x SATA power cable
1 x Input signal cable
