Thermal Grizzly Intel 1851 Delid-Die-Mate Heater V1 (TG-DDMH-i1851-V1)

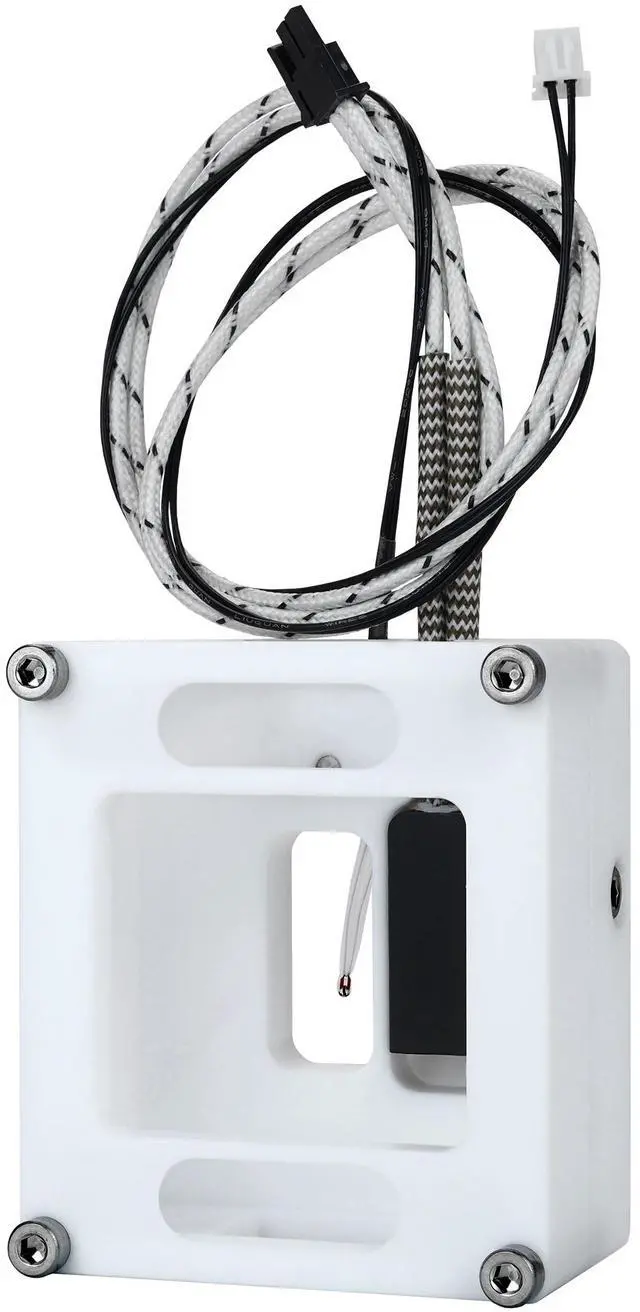

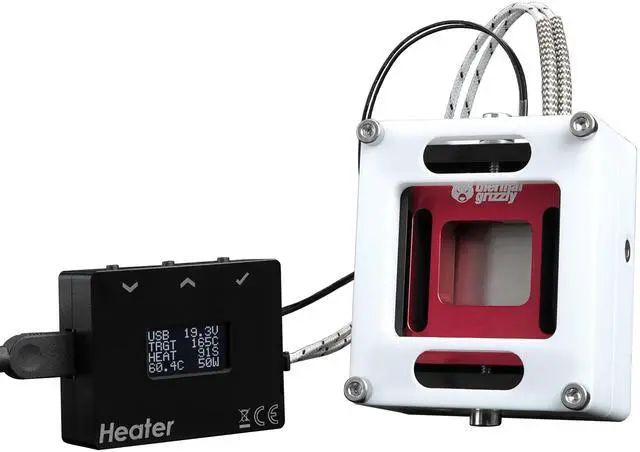

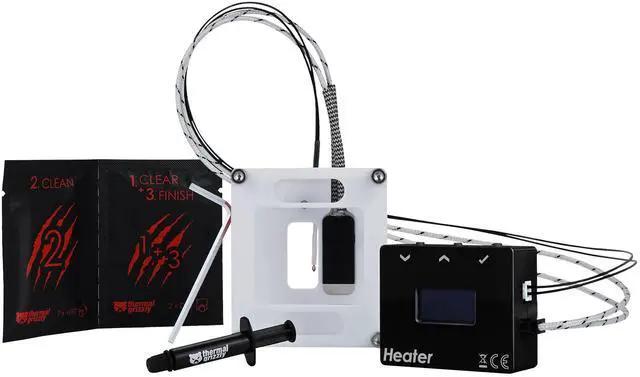

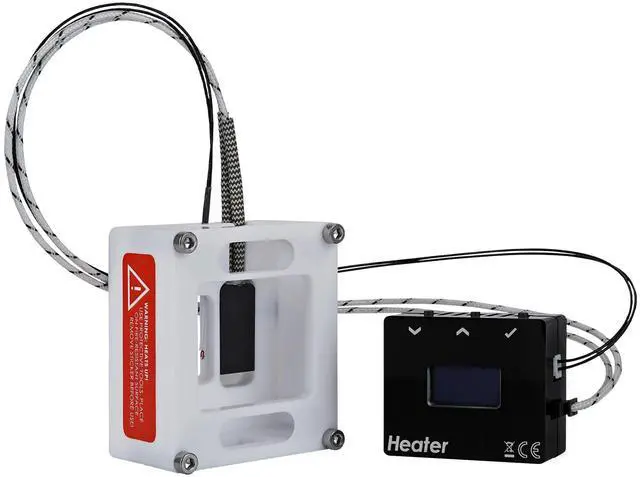

The Intel 1851 Delid-Die-Mate Heater V1 is a specially designed heating element for the Intel 1851 Delid-Die-Mate V1. The heater raises the temperature of both the CPU and the delidder to 165°C, the necessary temperature for delidding. The operation is controlled via a control unit with an OLED display, which is connected to the heater with two cables. A laptop/smartphone charger with at least 65 watts of power and a USB Type-C connector, which is not included, is required for the heater to operate. A small amount of thermal paste is also needed.

• Heating element for warming the CPU


• Designed for the Intel 1851 Delid-Die-Mate V1


• Follow the warning instructions!

Warning Instructions

Note: When delidding with the Intel 1851 Delid-Die-Mate V1, the CPU should be heated to 165°C (the melting point of indium is 157°C) to liquefy the indium, making it easier to remove the heat spreader. This minimizes mechanical stress on the chip and helps prevent damage. Otherwise, there is a high risk of damaging the CPU during delidding.

Caution: Removing the heat spreader (delidding) of a processor is done at your own risk! Delidding the CPU voids the manufacturer's warranty! Damage caused during delidding is not covered by the manufacturer!

Caution: When delidding a CPU using the Intel 1851 Delid-Die-Mate V1, it is essential to watch the video available on the linked website:

https://www.thermal-grizzly.com/en/blog/important-information-regarding-the-delidding-of-intel-arrow-lake-cpus
