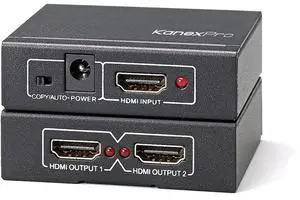

Specification: Approvals: CE, RoHS
Distance: Cable lengths: 16.4 ft. (5 m) maximum
Connectors: Inputs: 1 x HDMI F; 1 x 3.5-mm audio
Outputs: 2 x HDMI F; 2 x 3.5-mm audio
This product works with:
-HDMI Female-DVI Male Adapter (FA795)
-HD View HDMI Extender (AC3010A)
Resolution Support: Full HD 1080p (1920 x 1080), VGA (640 x 480) maximum, SXGA (1280 x 1024), UXGA (1600 x 1200) maximum, WUXGA (1920 x 1200) maximum
Specification: Signal Inputs/Output
Input DDC Signal: 5 volts p-p (TTL)
Maximum Single Link Range: 4K x 2K
Output Video: HDMI 1.4 with full 3D and 4Kx2K@30Hz + HDCP
CEC - Pass through enabled
Operating Frequency
Vertical Frequency Range: 50/60Hz
Environment
Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
Video Bit Rate/Bandwidth: Video Amplifier Bandwidth: 2.97 Gbps
Resolution Support: Interlaced (50&60Hz): 480i, 576i, and 1080i
Progressive (50&60Hz): 480p, 576p, 720p, 1080p, and 4Kx2K
